Latihan pilar

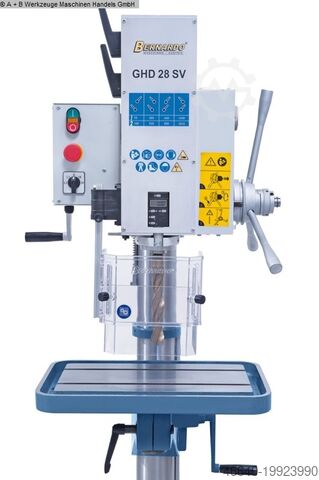

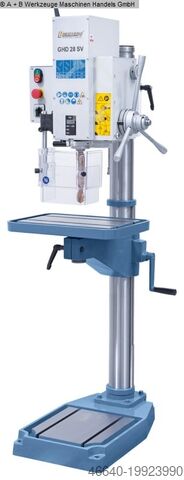

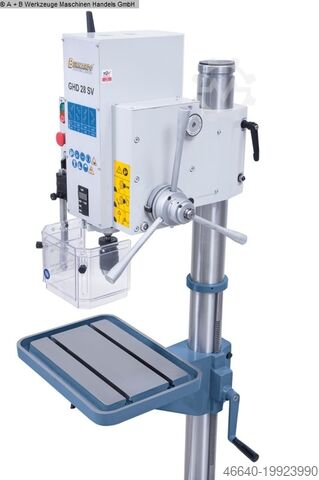

BERNARDO GHD 28 SV

Kondisi: baru, en-GB: Bernardo Gear-Driven Column Drilling Machine GHD 28 SV with Digital Depth Display Technical Specifications - Maximum drilling capacity: 28 mm - Maximum tapping capacity: M12 - Quick-action drill chuck: 1 – 16 mm / B 16 - Morse taper: MK 3 - Spindle speed (8 steps): 75 – 3010 rpm - Feed range: 0.004 / 0.006 / 0.009 / 0.012 / 0.10 / 0.15 / 0.30 mm/rev - Throat depth: 320 mm - Max. distance spindle/table: 810 mm - Distance spindle/base plate: 1230 mm - Quill stroke: 150 mm - Column diameter: 105 mm - Working surface (base plate): 325 x 360 mm - Table size / T-slot size: 500 x 350 mm / 14 mm - Motor output (S1 100%): 0.90 / 1.2 kW (400 V) - Motor input (S6 40%): 1.35 / 1.7 kW (400 V) - Machine dimensions (W x D x H): 600 x 700 x 1900 mm - Weight: approx. 290 kg Features - Digital quill stroke display for user-friendly operation - Automatic quill feed (0.04 – 0.3 mm/rev) as standard - Helical gear transmission for optimal power transfer - High efficiency and smooth running thanks to helical gears (steel against reinforced fiber material) - Automatic disengagement of the quill feed at the preset drilling depth - Direction switch for clockwise and counterclockwise rotation for tapping - Stable, ground steel column designed for heavy-duty use - 8 selectable speeds via a powerful 2-stage drive motor Scope of Delivery - Quick-action drill chuck 1 – 16 mm / B 16 - Drill chuck arbor MK 3 / B 16 - Reducing sleeve MK 3 / 2, MK 3 / 1 - Digital drilling depth display - Automatic tool ejector - Clockwise/counterclockwise switching device Guedpfx Aajd Err Ueboa - Height-adjustable safety guard

Kondisi: baik (bekas), Tahun pembuatan: 2019, Fungsionalitas: berfungsi sepenuhnya, tinggi total: 215 mm, lebar total: 130 mm, panjang total: 360 mm, berat keseluruhan: 7 kg, masa garansi: 12 bulan, jenis pendinginan: udara, tinggi produk (maks.): 10 mm, arus pengelasan pada siklus kerja 60%: 150 A, arus pengelasan pada siklus tugas 100%: 130 A, arus pengelasan (min.): 5 A, arus pengelasan (maks.): 200 A, - Inspected used equipment in excellent condition, directly from the manufacturer - - Multiple units available - MicorTIG 200 DC ControlPro (Accu-ready) TIG-DC welding inverter with MicorBoost technology (incl. gas management, high-frequency ignition, and electrode welding function). All-in technology for mains, generator, and battery operation. - "3 steps and weld" operation concept - Simple one-button control - Infinitely variable current adjustment - Ampere-accurate digital display - With graphical user guidance via OLED graphic display - Maximum customization thanks to detailed welding process control - Job memory for 10 welding tasks Current new price (02/2025): 2,277 € plus VAT Scope of delivery: Unit including detachable mains cable, shoulder strap, gas hose, and operating manual THE MicorTIG SERIES. THE POWER PACKS FOR MOBILE TIG WELDING. Whether for professional TIG welders or occasional users: The MicorTIG series from Lorch are the ultimate TIG units for assembly work as well as for the workshop—suitable for steel and stainless steel. Whether for production or repair, with or without a power socket on site: The MicorTIG series improves TIG welders’ results worldwide and makes their everyday routine easier. Quite literally: Weighing only 6.8 kg, you can easily take your Lorch MicorTIG welding machine anywhere—with accessories in the carrying case. Compact but powerful: Thanks to patented MicorBoost technology, these units deliver 200 amps from any standard socket. INTUITIVE OPERATION. Thanks to the ampere-precise digital display and clearly structured control panel, intuitive and highly precise operation is possible. Optionally available as well: graphic display operation concept. CONTACTLESS HF IGNITION. TIG ignition takes place contact-free via high-voltage pulses at the push of a button. Since the tungsten electrode does not touch the workpiece, no inclusions occur in the weld seam, and the electrode is preserved. PULSING AND FAST PULSING UP TO 5 kHz. The integrated pulse and fast pulse function up to 5 kHz is particularly suitable for working with thin welding sheets. It allows for outstanding control of the molten pool and perfect results—even with challenging welding tasks. JOB MEMORY FOR UP TO 10 WELDING TASKS. With the job function, you can store the parameters for up to 10 welding jobs and retrieve them quickly when needed. Recurring tasks are completed quickly and efficiently. PERFECT FOR ELECTRODE WELDING. Lorch MicorTIG welding units are suitable for all electrode types and offer convenient preselection for CEL and standard electrodes. Even special electrodes are no problem. During welding, arc-force control ensures arc stability and perfect material transfer. The anti-stick system prevents sticking or annealing of the electrode. WITH MicorBoost TECHNOLOGY – UP TO 200 A FROM THE SOCKET. Gjdpfxjvxid Re Aabjua The patented MicorBoost technology provides tremendous voltage reserves and regulates the TIG arc exceptionally stably, controllably, and precisely—even with fluctuating mains voltage. This allows you to weld with up to 200 amps from any regular power outlet.

Kondisi: baru, Tahun pembuatan: 2026, The drill press, thanks to its rigid construction, ensures perfect drilling quality. The tilting table enables a wide range of machining operations. The unit is equipped with an electronic speed display, a drilling depth indicator, and a movable head. A 125 mm vise is included in the set. This model features stepless spindle speed adjustment. Machine Description: Gedpfx Aewnca Ajabjua - Stepless spindle speed adjustment - LED work lamp - Worktable and base equipped with T-slots - Solid, torsion-resistant column - Tilting worktable adjustable from -45° to +45° - Drilling depth stop with scale Technical Specifications: Maximum drilling diameter: 25 mm Maximum chuck diameter: 16 mm Spindle axis distance from column: 215 mm Spindle taper: MT3 Spindle stroke: 150 mm Column diameter: 80 mm Motor: 230 V / 50 Hz / 1100 W Gear transmission: YES Base dimensions: 580 x 415 mm Table dimensions: 356 x 356 mm Overall height: 1710 mm Spindle speed range (50 Hz): 180–2000 rpm Table travel range: 600 mm Packaging dimensions (L/W/H): 1510 x 690 x 256 mm Weight: 95 kg

Kondisi: baru, Tahun pembuatan: 2026, The industrial gear-driven drill press Z5028W is a machine that combines power and precision, essential for a wide range of applications. It features a sturdy construction that ensures efficient and precise drilling. The drill is equipped with a large work table with adjustable height, 12 spindle speed ranges, forward/reverse rotation, and an adjustable drilling depth stop with scale. The drill press also comes with an integrated cooling system. Column Drill Press CORMAK Z5028W - Machine Features Workspace lighting Thread cutting capability Base with T-slots Forward/reverse rotation Drilling depth indicator Integrated cooling system Column Drill Press CORMAK Z5028W - Technical Specifications MAX. DRILLING DIAMETER: 28 mm SPINDLE TAPER: MT3 SPINDLE TRAVEL: 130 mm Gjdpfx Aaoridquobeua DISTANCE FROM SPINDLE CENTER TO COLUMN SURFACE: 250 mm DISTANCE FROM SPINDLE END TO WORK TABLE: 125 - 825 mm DISTANCE FROM SPINDLE END TO BASE: 1220 mm MAX. SPINDLE WORKING HEIGHT (FROM GROUND LEVEL): 1340 mm COLUMN DIAMETER: 97 mm SPINDLE SPEED RANGE: 75 - 3200 rpm NUMBER OF SPEEDS: 12 WORK TABLE DIMENSIONS: 480 x 380 mm BASE DIMENSIONS: 360 x 535 mm OVERALL HEIGHT: 2050 mm T-SLOT WIDTH: 14 mm MOTOR POWER: 1.1 kW / 400V WEIGHT: 230 kg DIMENSIONS: 700x480x1810 mm

Kondisi: baik (bekas), Gillardon GSB 20 column drilling machine Gujdpfx Aasm Sg S Noboa Drilling capacity in steel (diameter) 20 mm Throat depth 260 mm Quill stroke 115 mm

Kondisi: baru, Tahun pembuatan: 2026, Heavy-duty construction of the entire machine High running smoothness thanks to new spindle design Industrial motor Separate emergency-stop impact switch Drill depth stop Integrated LED work light in the drill head Precisely machined, stable drill table with diagonally arranged T-slots with a surrounding coolant channel Drill table tiltable ± 45° and rotatable 360° V-belt guard with safety switch Precision spindle bore Machine control safety electronics in 24 V DC Guaranteed concentricity accuracy ≤ 0.02 mm measured at the drill spindle Thick-walled steel column for high load capacity and stability Massive, large-sized base plate with T-slots Dimensions and weights Column diameter 92 mm Length approx. 945 mm Width/Depth approx. 485 mm Height approx. 2040 mm Weight approx. 162 kg Drilling capacity Drilling capacity in steel (S235JR) 30 mm Continuous drilling capacity in steel (S235JR) 25 mm Drill table Work surface length 355 mm Work surface width 355 mm T-slot type diagonal T-slot size 14 mm T-slot number 2 Rotation 360 ° Gusdpfx Aog Uaiueabja Tilt 45 ° Distance spindle - drill table max. 784 mm Speed range Speed range 120 – 1810 rpm Number of speed ranges 9 Electrical data Rated voltage 400 V Mains frequency 50 Hz Machine base Distance spindle - machine base max. 1470 mm Work surface length 230 mm Work surface width 300 mm T-slot size 16 mm T-slot number 2 Spindle Quill stroke 125 mm Spindle taper MK 4 Throat 270 mm Location: From stock 54634 Bitburg - immediately available -

Kondisi: baru, Drilling capacity cast iron / steel ----- 35 / 30 mm Tapping capacity cast iron / steel ----- 22 / 20 mm Motor ----- 1.5 kW Gujdpoq E N U Hefx Aabsa Speed range ----- 75 ~ 3200 rpm Spindle stroke ----- 130 mm Spindle taper ----- MT4 Drill table ----- 540 x 470 mm Base ----- 650 x 450 mm T-slot diameter ----- 12 mm Maximum distance spindle - table ----- 610 mm Maximum distance spindle - base ----- 1180 mm Weight ----- 320 kg INCLUDES * LED work light * Cooling system * Digital depth stop * Tapping function * 2-speed motor 75-3200 rpm * CE plug * Toolbox with various tools

Kondisi: baru, Seamless column drilling machine for versatile applications. Equipped as standard with a digital speed display. The worktable is adjustable via rack and pinion and can be swiveled around the column. Motor protection switch, star handle. The image shows model SB 25 S. Technical data: Drilling capacity: 30 mm Spindle: MT 3 Drill depth: 130 mm Throat: 250 mm Spindle speeds, continuously variable: 230 - 2700 rpm Gujdpfx Aep Duagjabea Table size: 460 x 360 mm Column diameter: 100 mm Dimensions, approx. (W x D x H): 600 x 810 x 1780 mm Motor power: 1.5 kW Electrical connection: 400 V Weight, approx.: 230 kg Features: - Infinitely variable speed control with digital display - Forward/reverse operation - T-slot blocks - 24 V electrics - Height-adjustable spindle guard with micro switch - Base plate with T-slots - Drill table adjustable via rack and pinion and worm gear, and swiveling around the column - Reversing switch for forward/reverse operation (optional) Scope of delivery: - Machine lamp - Emergency stop button - Full motor protection - Star handle - CE compliant

Kondisi: bekas, Drilling machine, pillar drill, column drill, bench drill - Handover: As-is condition as inspected - Motor: HEW 0.8 kW - Table size: Ø 355 mm Gedpfxjfla Rij Aabsua - Spindle taper: MT3 - Travel distance: 500 mm - Throat depth: 300 mm - Column diameter: Ø 110 mm - Quill stroke: 150 mm - Transmission: via V-belt - Dimensions: 850/500/H1850 mm - Weight: 294 kg

Kondisi: baru, COLUMN DRILLING MACHINE IBERDRILL AZ 40 TECHNICAL DATA – STANDARD Max. drilling capacity in steel (St 60) at continuous operation S1: Ø 40 mm Guedpfx Aogy E U Djabja Max. drilling capacity in cast iron (GG 20) at continuous operation S1: Ø 45 mm Max. thread cutting capacity in steel (St 60) at continuous operation S1: M 33 Max. thread cutting capacity in cast iron (GG 20) at continuous operation S1: M 39 Spindle taper: MT 4 Max. spindle stroke (drilling depth): 180 mm Spindle motor power: 4.12 kW Drive: V-belt Speed adjustment: stepless Speed range for 50 Hz motor, n = 1,500 rpm: 100 – 2,000 rpm Feed: automatic or manual Number of automatic feeds: 3 gears Range of automatic feeds: 0.1 – 0.2 – 0.3 mm/rev Table dimensions (W x D): 480 mm x 480 mm Column diameter: 150 mm Distance spindle center / column: 350 mm Machine net weight: 460 kg Gross weight: 510 kg Transport dimensions (L x W x H): 2.3 m x 0.6 m x 1.1 m STANDARD EQUIPMENT / BASIC MACHINE V-belt drive with frequency inverter Stepless speed adjustment via potentiometer Digital speed display 3 automatic feeds Mechanical clutch Scale with adjustable drilling depth Automatic feed reversal during tapping Automatic tool ejector Movable, rotatable, and tiltable work table (type MGI) Machine base plate with machined support surface, T-slots and integrated coolant system Integrated lighting EMERGENCY STOP button Chip guard with microswitch monitoring Thermomagnetic motor protection, control electrics in low voltage range Color scheme RAL 7004 (signal grey), RAL 9011 (graphite black) Documentation, operating and maintenance manual, CE
