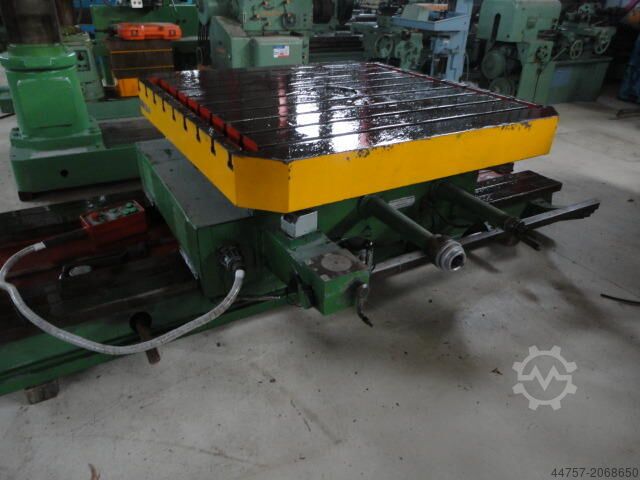

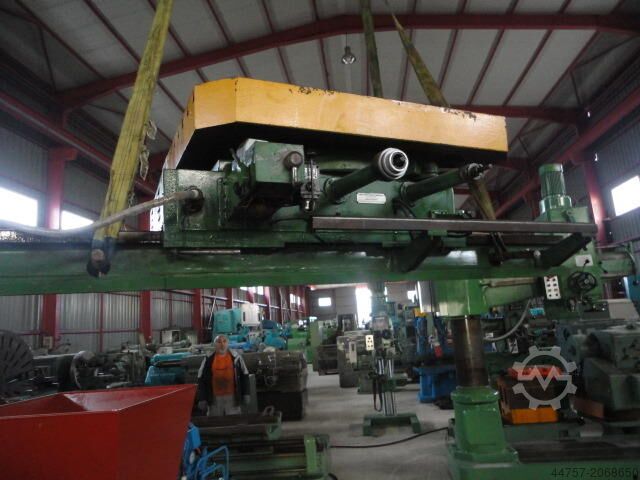

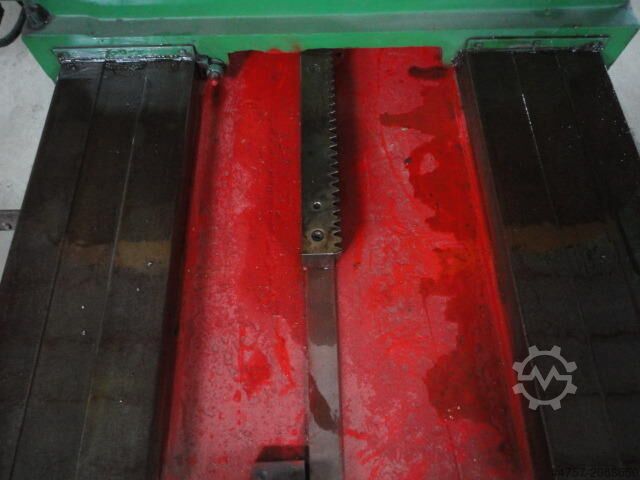

MEMBOSANKAN DIPUTAR MEJA & SUMBU X

DABROWSKA

Kondisi: baik (bekas), tinggi total: 2.500 mm, panjang total: 5.300 mm, lebar total: 2.500 mm, panjang pemakanan sumbu X: 1.550 mm, panjang umpan sumbu Y: 600 mm, tinggi penggerindaan: 800 mm, berat keseluruhan: 7.800 kg, GER RS 15/60 Surface Grinder Table size: 1500 x 600 mm X-axis travel: 1550 mm Y-axis travel: 600 mm Maximum grinding height: 800 mm Grinding wheel size: 400 x 100 mm Automatic downfeed: Yes Dovetail accessory: Yes Coolant system: Yes Machine dimensions (W x L x H): 2500 x 5300 x 2500 mm Weight: 7800 kg Psdpfjvli H Sox Adcegu

Kondisi: bekas, Table unit from a DROOP & REIN gantry milling machine Clamping plate with T-slots made of cast steel/grey cast iron Table unit with clamping plate and extremely robust guideway Table clamping surface: 5500 x 2000 mm Travel path of the table clamping plate: approx. 3100 mm Table height/overall height: 1050 mm Table load capacity: max. 20 tons Ballscrew: Ø 100 mm Thread pitch: 20 mm (single start) - Machining table is very stably guided on the bed - Metal telescopic way cover - Originally from a DROOP & REIN gantry milling machine - Longitudinal table movement via ballscrew and SIEMENS servo motor - Clamping surface with 11 T-slots, 28 mm - Drive by SIEMENS servomotor 1FT6134-6AB71-1AG2 with encoder IC200448S/R (RN 000 B25) Overall length: 9500 mm Pgodpfxjthuzpo Adceu Width: 2000 mm Overall height: 1050 mm Net weight: 28 tons Good condition

Kondisi: baik (bekas), Tahun pembuatan: 2009, Kontrol: Heidenhain iTNC 530 Spindel * Diameter: 180 mm * Soket: ISO 50 * Daya: 51 kW * Kecepatan: 2000 rpm (gearbox 2 langkah) * Torsi: 2668 Nm * Dudukan spindel: 550 mm * Pendinginan internal tekanan tinggi Sumbu * X: 5000 mm * Y: 3500 mm * Z: 2350 mm * W: 1000 mm (Pinole secara permanen menjorok 200 mm, pada perjalanan maksimum – total jangkauan 1200 mm) Psdpfx Asy R N Iledcegu Meja * Ukuran: 2000 × 2500 mm * Kapasitas beban: 28 ton * Hidrostatis * Posisi sumbu-B: 0,001° (roda gigi ganda, bebas celah) Lain-lain * Penukar alat: 60 posisi * Motor sumbu dan spindel Siemens * Skala linear di semua sumbu + encoder sumbu putar * Handwheel HR 410 * Konveyor serpihan

Kondisi: bekas, Module milling cutter Module 8 20 degrees Length 1800 mm Diameter 120 mm Pgjdpfxodklt No Adcsu Bore 40 mm

Kondisi: baik (bekas), Tahun pembuatan: 2007, Kontrol 840 D Sumbu x 2500 mm Sumbu y 2500 mm Sumbu z 1700 mm Pgedpfowzyp Ujx Adcsu Kontrol - Siemens Sinumerik 840 D Berat benda kerja maks. - 6000 kg Diameter spindle - 130 mm Jangkauan pinol - 700 mm Taper alat - ISO 50 DIN 69871 - AD Torsi maksimum pada spindle - 1847 Nm Kebutuhan daya total - 65 kW Berat mesin kira-kira 45 t Kebutuhan ruang kira-kira 10,9 x 9,3 x 5,7 m

Kondisi: sangat baik (bekas), Tahun pembuatan: 1985, Fungsionalitas: berfungsi sepenuhnya, gaya penekanan: 4.000 t, Ковашки чук SMERAL модел KJH 4 Pgedpfx Aswbginsdcju Пневматично-хидравличен ковашки чук с обратно действие (counterblow) за матрично коване. Тегло на ударача (рамата), кг: 1 800 Номинална енергия на ударача, кгм: 4 000 Брой удари на ударача, 1/мин: 48 Ход на ударача, мм: 500 Работна площ на матрицата, мм: 286 x 600 Минимална височина на матрицата, мм: 350 Мощност на основния електродвигател, kW: 45 Дължина на машината, мм: 3 100 Ширина на машината, мм: 1 900 Височина на машината, мм: 3 900 Тегло на машината, кг: 27 000

Kondisi: baik (bekas), Tahun pembuatan: 1984, Max. wheel diameter: 250 mm Wheel width: 275 mm Module (max.): 6 Machine weight: approx. 5.5 t The gear hobbing machine ZFWZ 250 is suitable for the efficient production of all indexable cylindrical gears such as: - Straight and helical spur gears, worm wheels and worms, splined shafts, keyed shafts, broached profiles, chain and ratchet wheels, as well as conical and crowned straight and helical gears. Change gears and milling accessories Technical data: - Max. workpiece diameter: 250 mm - Max. module: 6 mm Pgsdjv T Nqaspfx Adcju - Max. axial feed travel: 275 mm - Max. tangential feed travel: 100 mm - Max. helix angle: 45 degrees - Max. cutter diameter: 145 mm - Max. cutter length: 170 mm - Min. clamping surface (table): 195 mm - Max. clamping surface (table): 470 mm Performance Cutter speeds - Stepped in 2 ranges: 56 ... 250 rpm - (Standard version): 90 ... 400 rpm - Infinitely variable in 2 ranges: 63 ... 180 rpm - (Special version with DC motor): 140 ... 400 rpm Weight - Net machine weight: approx. 5,000 kg - Electrical cabinet: approx. 800 kg - Hydraulic unit + coolant tank + chip conveyor: approx. 700 kg Overall dimensions (with oil mist filter) - Length: Standard version: 3,950 mm DC drive: 3,450 mm (or 3,350 mm as per table) - Width: 3,300 mm - Height: Machine: 1,980 mm Machine with DC drive: 2,150 mm Electrical cabinet: 2,200 mm

Kondisi: perlu perbaikan (bekas), Fehlmann Picomax 60 M (5-axis universal milling machine) with Heidenhain TNC 426 control X axis: 500 mm Y axis: 350 mm Z axis: 610 mm Pjdpfx Adewmwrdscjgu Motor spindle: 18,000 rpm Power: 10.2 kW Tool changer: 24 positions Weight: 3,200 kg With 4th axis Tool holders: SK 30 Approximately 40 tool holders included The machine has the following issues: - The Heidenhain 430 control system is defective (booting is not always possible, system crashes occur during operation)

Kondisi: baik (bekas), Fungsionalitas: berfungsi sepenuhnya, berat kosong: 11.800 kg, berat muatan maksimum: 25.500 kg, berat keseluruhan: 36.800 kg, konfigurasi gandar: 3 gandar, pendaftaran pertama: 10/1998, panjang ruang muatan: 13.300 mm, lebar ruang muat: 2.550 mm, tinggi ruang muatan: 450 mm, suspensi: udara, ukuran ban: 245.70 R 17.5, warna: merah, Tahun pembuatan: 1998, Perlengkapan: ABS,

Kondisi: sangat baik (bekas), Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 70.0961.000.253, TECHNISCHE DATEN: Drehdurchmesser: - Über dem Bett: 800 mm Psdoup A Rzjpfx Adcjgu - Über dem Support: 560 mm - Planscheibendurchmesser: 750 mm Spitzenhöhe: - Über Flachprismen: 380 mm - Über V-Prismen: 358 mm Bettbrücke, Bett und Brückenstück: - Drehdurchmesser in der Brücke: 980 mm - Breite der Brücke vor der Planscheibe: 380 mm - Umlaufdurchmesser in der Brücke: 1040 mm - Breite der Brücke vor der Planscheibe innerhalb des Umlaufdurchmessers: 330 mm - Bettbreite: 560 mm Spindelstockspindel: - Spindelbohrungsdurchmesser: 90 mm - Spindeldurchmesser im vorderen Lager: 145 mm - Spindelaufnahme: MK 6 (Morsekegel 6) Spindeldrehzahlen: - Anzahl: 18 - Drehzahlbereiche: 7,1 - 355 U/min 9,0 - 450 U/min 11,2 - 560 U/min Antriebsleistung: 7,5 - 14 kW Vorschübe: - Anzahl: 32 - Längsvorschübe pro Umdrehung: 32 Längsvorschübe: 0,071 - 2,5 mm/U 32 Quervorschübe: 0,04 - 1,4 mm/U Extras: Zusatzausrüstung, Maschinenhandbücher
