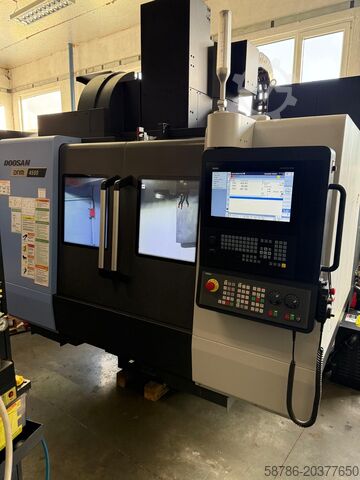

Pusat permesinan vertikal

Doosan DNM 4500

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2020, jam operasional: 2.850 h, de Dwodpfxjx D E H Is Afrof

Kondisi: baik (bekas), Tahun pembuatan: 2007, Die Maschine ist in gutem Zustand, Die per Hand gezeigten Teile sind nicht im Lieferumfang enthalten. SK 40, 24 Werkzeugplätze im Werkzeugwechsler. 10.000 U/min Dwsdpfx Afjwk Nm Iorsf

Kondisi: bekas, Tahun pembuatan: 2018, neuwertige-doosan-dnm4500 Dsdpfx Ajxuagqofrswf

Kondisi: hampir baru (bekas), Tahun pembuatan: 2019, jam operasional: 253 h, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 800 mm, jarak lintasan sumbu Y: 450 mm, jarak gerak sumbu Z: 510 mm, beban meja: 600 kg, kecepatan spindel (maks.): 12.000 rpm, Pusat pemesinan dari tahun 2019 dengan hanya 253 jam pemotongan! DETAIL TEKNIS Perjalanan Sumbu Perjalanan sumbu X: 800 mm Perjalanan sumbu Y: 450 mm Perjalanan sumbu Z: 510 mm Kecepatan cepat Kecepatan cepat sumbu X: 36 m/menit Kecepatan cepat sumbu Y: 36 m/menit Kecepatan cepat sumbu Z: 30 m/menit Meja Kerja Ukuran meja kerja: 1.000 x 450 mm Beban maksimum di meja: 600 kg Spindel Kepala: 12.000 rpm BT 40 Djdpfxoxlip Ne Afrowf Penukar alat: 30 posisi Sumbu putar (poros ke-4): Tsudakoma Diameter sumbu putar: 160 mm DETAIL MESIN Kontrol: Fanuc iSeries Jam Operasi Jam potong: 253 jam Total jam operasi: 300 jam PERLENGKAPAN Konveyor serbuk/keripik

Kondisi: bekas, TECHNICAL DATA - Number of axes: 4 MILLING SPINDLE - Tool holder: BT30 - Spindle drive power: 6.7 kW - Spindle speed: 10,000 rpm LINEAR AXES - Travel X/Y/Z axes: 700 x 400 x 300 mm - Rapid traverse (X/Y/Z): 50 / 50 / 56 m/min - Feed rate (X/Y/Z): 1 - 30 m/min - Distance from table to spindle nose: 330 – 630 mm TOOL CHANGER - Tool changer type: Umbrella - Number of tools in magazine: 21 - Tool change time: 0.8 sec TABLE - Table size: 800 x 400 mm - Max. table load: 250 kg ELECTRICAL SUPPLY - Supply voltage: 220 V - Total connected load: 9.5 kVA WEIGHT AND DIMENSIONS - Required space: 2,050 x 2,220 mm - Machine height: 2,497 mm - Machine weight: 2,400 kg EQUIPMENT - Control: Brother CNC-C00 - Interface: Ethernet / USB - Electronic handwheel Dwjdjvt Eifjpfx Afref - Indexing unit type: 4th axis integrated CNC rotary table * Coolant tank * With high-pressure pump - Internal coolant supply (IKZ) - Electrical transformer

Kondisi: bekas, Tahun pembuatan: 2016, Travel path - X 800 mm Travel path - Y 450 mm Travel path - Z 510 mm Control: HEIDENHAIN TNC620 Table size (L x W): 1,000 x 450 mm Dwodpfx Aswq S Aljfrof Number of tool changer stations: 30 Vertical machining center | DOOSAN DNM 4500 equipped with a 30-position tool changer, internal coolant supply (IKZ), and chip conveyor. The machine has only 5,365 spindle hours. The machine is in well-maintained condition. We are happy to share a machine video at the factory location upon request. Technical data for the machine will follow shortly. ----- #Tags: DNM4500 | DNM-4500

Kondisi: baru, Cutting diameter round: 230 mm Cutting diameter square: 230 x 230 mm Saw band length: 2950 x 27 x 0.9 mm Table height: mm Band speed: 15 - 100 m/min Dwjdpfx Aefg E Hysfrof Total power requirement: 2.2 kW Machine weight: approx. 1.2 t Dimensions (L x W x H): m SHARK 230-1 NC HS 5.0, electrohydraulic dual-column fully automatic bandsaw with semi-automatic function for 0° cuts in structural steel, stainless steel, steel alloys, solid and profile material, with a maximum remnant piece length of 60 mm. - Maximum cross-section: 230 x 230 mm. - Numerically controlled bandsaw machines featuring the new Windows "CE" based IGE developed specifically by MEP for automatic operation FEATURES: - User interface with 7" touchscreen display and mechanical buttons for machine operating functions, ensuring reliable operation, ease of use, and intuitive real-time monitoring of all cutting parameters. - Safety enclosure designed in accordance with the latest Machinery Directive EN 13898/2007 safety standards. - New fieldbus communication system with dual microprocessor and serial connection. - Sturdy cast iron structure (G25) for vibration compensation, enhanced machine stability, and reduced saw blade wear.

Kondisi: diremaj di bengkel (bekas), Tahun pembuatan: 2008, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 2.500 mm, jarak lintasan sumbu Y: 1.250 mm, jarak gerak sumbu Z: 1.000 mm, gerak cepat sumbu X: 25.000 m/menit, pergeseran cepat sumbu Y: 25.000 m/menit, tahun perombakan terakhir: 2025, RepairFIT by Dornhöfer The Difference. Dwsdjv Rw Uuepfx Afrjf Including installation & commissioning! Technical specifications of the machine: Year of manufacture: 2008 Control: Heidenhain iTNC 530 Travel distances: X-axis (mm): 2,500 Y-axis (mm): 1,250 Z-axis (mm): 1,000 Rotary table size: Length (mm): 1,000 Width (mm): 1,000 Spindle speed range (rpm): 15,000 Feed rates X, Y & Z axes (mm/min): 10 – 10,000 Max. rapid traverse speed X, Y & Z axes (mm/min): 25,000 Milling head: Automatic milling head, vertical Tool holder: HSK 63 A Main spindle drive power (100% duty cycle): 25 kW - Chip conveyor - Coolant system - 3D thermal expansion compensation - Portable electronic handwheel Heidenhain HR 410 with 3m spiral cable - INA linear guideway system RUE 45 on all linear axes with central lubrication - Complete splash guard enclosure RepairFIT is our proven solution for a profitable entry into our product lines. The machines available in this range are procured by us through a strict selection process and subjected to a thorough examination (deep-dive check). Following intensive cleaning, any identified obvious defects and faults are professionally rectified by our expert service team.

Kondisi: bekas, Tahun pembuatan: 1980, Drilling capacity in steel (diameter): 23 mm X-travel: 400 mm y-travel: 285 mm Total power requirement: 3 kW Machine weight approx.: 1,400 kg A C I E R A (Switzerland) Semi-automatic precision drilling and milling machine with BREGNARD coordinate table Model: 23 TR 50 Year of manufacture: approx. 1980 #36586 X-axis (longitudinal): 400 mm y-axis (cross): 285 mm Z-axis (vertical) - quill travel: 120 mm W-axis (drilling head slide): 470 mm Table size: 520 x 410 mm Min. / max. distance spindle–table surface: 230 / 700 mm Table traverse (cross travel): approx. 280 mm Spindle overhang: approx. 270 mm Spindle speeds (stepless, 2 ranges): 45 – 4,000 rpm Spindle taper: SF 32 Drilling capacity in steel: 23 mm Feed rates: 0.1 / 0.04 / 0.02 mm/rev 0.6 / 0.25 / 0.12 mm/rev Workpiece weight approx.: 300 kg Spindle drive: 2.5 kW Total drive power: approx. 3 kW – 400 V – 50 Hz Weight approx.: 1,400 kg Accessories / Special equipment: • BREGNARD precision coordinate table TR 50 for X/Y axes with pneumatic rapid adjustment via hand switch, Longitudinal travel 400 mm / cross travel 285 mm • Automatic drilling feed with cut-off automatic, simple depth stop Dedpfet Hw Sbsx Afrjwf • Electrical control panel with buttons for rapid slide adjustment, cut-off at highest quill position, etc. • Many tool holders with special taper mount, clamping tools, drill chuck • Built-in coolant system, central lubrication, foldable chip guard • Machine lamp Condition: Good – ready for demonstration, ideal machine for single parts and small series, very stable design. Please click here soon for a video of the machine: Delivery: ex stock – as inspected Payment: strictly net – upon receipt of invoice

Kondisi: bekas, Tahun pembuatan: 2007, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 1.270 mm, jarak lintasan sumbu Y: 508 mm, jarak gerak sumbu Z: 635 mm, gerak cepat sumbu X: 35.600 m/menit, pergeseran cepat sumbu Y: 35.600 m/menit, pergerakan cepat sumbu Z: 35.600 m/menit, diameter benda kerja (maks.): 127 mm, jumlah slot dalam magazin alat: 31, panjang alat: 330 mm, Haas VF-4SSHE – Vertical Machining Center Dedpfx Afjwt Riperowf The Haas VF-4SSHE is a high-performance vertical machining center, built in 2007 and equipped with a Haas CNC control. Ideal for fast and precise machining operations, it offers generous work capacity in a compact footprint. Main technical specifications: Axis travels: X = 1,270 mm, Y = 508 mm, Z = 635 mm Spindle: ISO 40, 12,000 rpm, 22.4 kW Spindle-to-table distance: 107 – 742 mm Rapid traverses: 35,600 mm/min Working feeds: 21,200 mm/min Table: Size: 1,321 x 495 mm Load capacity: 800 kg Tool changer: Tool type: BT-40 Magazine capacity: 24 positions Max tool diameter (adjacent tool empty/filled): Ø64 / Ø127 mm Max tool length: 330 mm Max tool weight: 5.4 kg Additional equipment: Haas 4th axis rotary table Ø 310 mm High-pressure coolant system through the spindle Washdown tank with pump Spindle chiller unit Auger-type chip conveyor Manuals, electrical diagrams, and CE declaration Machine dimensions: L 4,100 mm × W 2,600 mm × H 2,690 mm – Weight: 6,250 kg
