Gunting guillotine hidrolik

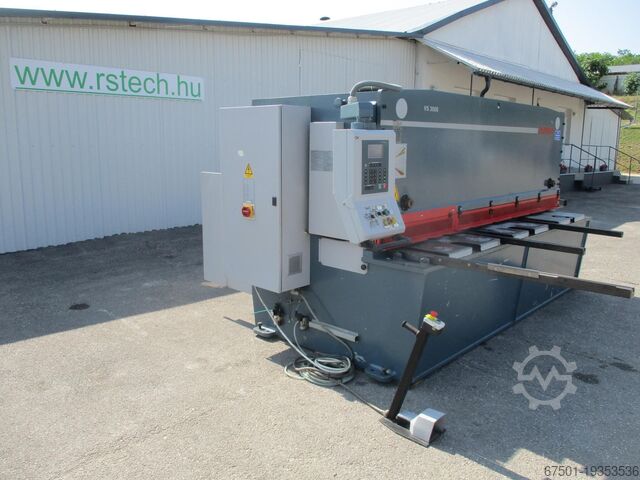

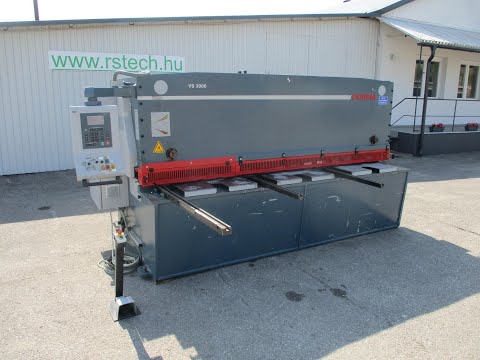

DURMA , Abkantbank, Schlagschere VS 3006 ( 3227)

Kondisi: baru, Tahun pembuatan: 2023, ketebalan pelat baja (maks.): 10 mm, panjang pemotongan (maks.): 3.050 mm, Technical Specifications Cutting Capacities: - Maximum cutting length: 3,100 mm - Maximum permissible thickness for mild steel: 10 mm - Maximum permissible thickness for stainless steel: 6 mm - Throat depth: 50 mm - Adjustable cutting angle: 1.5 degrees - Number of hold-down devices: 16 - Hold-down force: 22 tonnes - Adjustable backgauge: up to 1,000 mm Nodpfxort Uv Ej Aa Uelb - Backgauge speed: 200 mm per second Drive and Dimensions: - Motor power: 22 kW - Oil tank capacity: 200 litres - Support arms: 2 units - Working table height: 865 mm - Working table width: 580 mm - Working table length: 3,515 mm - Machine dimensions (LxWxH): 4,200 mm x 2,250 mm x 2,100 mm - Weight: 9,300 kg - Total width incl. support arm and safety guards: 3,600 mm Features: - Swing-beam cutting system for precise results - Intuitive NC control (D-Touch 7) with touchscreen for settings such as backgauge, cutting length, and batch count, including USB port - Motorised backgauge with ball screw drive, measuring range up to 1,000 mm, foldable for maximum flexibility - Ergonomic control panel mounted on pivoting arm for convenient operation - Hydraulic hold-down devices positioned close to the cutting line for optimised cutting results - Foot pedal for easy operation - Centrally adjustable blade clearance for various material thicknesses - Cutting line illumination for increased accuracy - Large support table with ball transfers for effortless material handling - Stroke counter - Options for single and batch cutting - Foldable finger guard and side stops for safe operation - Knives are easy to replace and regrind for lasting sharpness - Adjustable cutting length for efficient processing and minimal material waste - Low-maintenance design with easily accessible oil filler - Safety light barriers at the rear of the machine for enhanced workplace safety - Professional customer service - Operating manual in GERMAN and ENGLISH - Compliant with current CE safety regulations

Kondisi: hampir baru (bekas), Tahun pembuatan: 2015, Fungsionalitas: berfungsi sepenuhnya, Universal Tool Milling Machine Kunzmann WF 600M with Heidenhain TNC 128 Control – Excellent Condition, CE Compliant! Technical Specifications: >> Year of manufacture: 2015 Machine No.: 610398 >> Milling table clamping surface: 800 x 425 mm Clamping slots: 6 Slot width: 14 H 7 Slot spacing: 63 mm Max. table load: 300 kg >> Spindle speed range: 1-4500 rpm >> Infinitely variable feed: 0-2000 mm/min >> Rapid traverse X and Y axes: 5000 mm/min Nljdjwz Eu Nspfx Aa Uob Z axis: 4000 mm/min >> Travel X/Y/Z: 600/400/400 mm >> Vertical quill and horizontal quill – SK40 >> Hydraulic clamping system >> Weight approx.: 2025 kg >> Dimensions approx.: 2 x 2 x 2 m >> Main drive motor: AC three-phase motor Rated output at 100% duty cycle Equipment and Accessories: >> Heidenhain TNC 128 control >> Hydraulic clamping vertical and horizontal >> Automatic central lubrication system >> Spindle brake >> Technical documentation, spare parts diagrams, operating manual >> Coolant system About the Machine: For sale is a Kunzmann WF 600M tool milling machine equipped with a Heidenhain TNC 128 control unit. The TNC 128 offers a wide range of dialog-guided cycles with graphical simulation for fast and simple data input, e.g.: various drilling cycles, tapping, bolt circles, linear hole rows, rectangular pockets, rectangular tenons, and face milling patterns. This universal milling machine is in like-new condition. The control unit is extremely user-friendly. In addition, the machine features hydraulic clamping systems for both vertical and horizontal operation. Conversion from vertical to horizontal is very straightforward by simply tilting away the vertical head. The guides are automatically lubricated by the central lubrication system. The Kunzmann has been mechanically and electrically tested by us. Take the opportunity to view and test the Kunzmann under power at our facility.

Kondisi: bekas, Tahun pembuatan: 2020, jam operasional: 2.018 h, panjang total: 4.000 mm, lebar total: 2.300 mm, tinggi total: 2.850 mm, Color: Grey Weight: 10,520 kg Price: On request - Year of manufacture: 2020 - Documentation available: Yes - CE marking present: Yes - CE certificate available: No - Serial number: 73332015912 - Operating hours: 2,018 - Control: CNC - Control system brand: Durma - Control system type: DT-15 - Power [kW]: 18.5 - Number of axes [pcs]: 4: Y1+Y2+X+R - Press force [ton]: 175 - Max. working width [mm]: 3,100 - Distance between uprights [mm]: 2,500 - Backgauge depth [mm]: 600 - Max. stroke [mm]: 195 - Crowning system: CNC-controlled - Punch holder: Standard - Tool holder type: European-style - Tools included: Yes - Transport dimensions: 4,000mm x 2,300mm x 2,850mm (L x W x H) - Transport weight [kg]: 10,520kg - Transport packages [pcs]: 1 Financial Information VAT: The indicated price is exclusive of VAT Nlsdpfsyypfijx Aa Usb VAT/Differential taxation: VAT refundable for businesses Delivery and trade-in possible at any time for all industrial equipment Lukas van Rossum

Kondisi: baru, Tahun pembuatan: 2025, ketebalan pelat baja (maks.): 6 mm, panjang pemotongan (maks.): 3.050 mm, Guillotine Shear: Immediately Available! General Performance Features: - Cutting Length: 3100 mm - Maximum Sheet Thickness: 6 mm (mild steel), 4 mm (stainless steel) - Side Frame Throat Depth: 50 mm - Strokes per Minute: 15 - Cutting Angle: 1° - Number of Hold-Downs: 16 - Hold-Down Pressure: 14 tons - Backgauge: up to 1000 mm - Backgauge Speed: 200 mm/s - Motor Power: 15 kW - Hydraulic Tank Capacity: 200 liters - Support Arms: 2 units Njdpfxerx Syde Aa Uelb - Table Dimensions: 865 mm (height) x 500 mm (width) x 3515 mm (length) Dimensions and Weight: - Length: 4110 mm - Width: 2200 mm - Total Width (with support arm and rear safety guard): 3700 mm - Height: 2100 mm - Weight: 7650 kg This guillotine shear is the ideal addition to your workshop, taking efficiency and precision to the next level. Secure this high-quality machine for demanding metalworking projects. Contact us now for further information and a personalized quote!

Tahun pembuatan: 2016, Kondisi: siap digunakan (bekas), - BEKAS - PRESS BRAKE CNC 4-SUMBU TERSINKRONISASI SUMBU: Y1 - Y2 - X - R PANJANG TEKANAN: 2100 mm KAPASITAS: 60 ton KEDALAMAN LEHER: 410 mm JARAK ANTAR TIANG: 1700 mm Njdpfx Asxn U Rqoa Uslb GERAK BALOK ATAS: 275 mm UNIT KONTROL: DELEM DA58 BERAT: 4560 kg DIMENSI KESELURUHAN: 3250 x 1960 x 2750 mm

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2008, nomor mesin/kendaraan: HFE 220-3 N080201, Fungsionalitas: berfungsi sepenuhnya, jam operasional: 24.330 h, daya: 20 kW (27,19 hp), tegangan masuk: 400 V, gaya tekuk (maks.): 2.200 t, jenis kontrol: Kontrol CNC, tingkat otomatisasi: otomatis, jenis aktuasi: hidrolik, Perlengkapan: dokumentasi / manual, henti darurat, penghadang cahaya keselamatan, perkakas atas, perkakas bawah, perlindungan jari, sistem pelumasan terpusat, Ideal untuk produksi logam. Dirawat dengan baik, siap digunakan! Detail dan peninjauan melalui telepon. Nlodpeyqvatjfx Aa Usb

Kondisi: sangat baik (bekas), Tahun pembuatan: 2018, Press brake Durma bekas sangat rapi Tipe: AD S 40320 Kapasitas: 4050 x 320 ton Kontrol Delem DA 69T Sumbu Y1, Y2, X1, X2, R1, R2, Z1 dan Z2 dikendalikan CNC (stop belakang 3D) Klem atas dan bawah hidrolik Wila NS Pembombaan CNC Nljdex I A Efjpfx Aa Usb

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2011, Press force: 135 t Bending length: 3050 mm Distance between uprights: 2600 mm Throat depth: 410 mm Approach speed: 160 mm/sec Working speed: 10.0 mm/sec Return speed: 120 mm/sec Stroke: 265 mm Installation height: 530 mm Table height: 900 mm Oil capacity: 200 l Control: DNC 880 S Operating hours: approx. 17,200 h Total power requirement: 15.0 kW Machine weight: approx. 10,250 kg Dimensions (LxWxH): 4570 x 2360 x 2900 mm Good condition (!!) Current new price: approx. €80,000 Special price on request - Inspected condition - Machine video - ?v=dyv7iQXcRt4 ?v=SZa0M0bJoS0 Equipment/features: - Electro-hydraulic CNC press brake - Two synchronized cylinders with "HIGH PERFORMANCE" hydraulic components - Equipped with CYBELEC CNC control – "DNC 880S" * 2D graphic display for visualization and multi-simulation * Graphical 2D programming * User-friendly operation * Automatic bending sequence calculation and collision detection * Comprehensive product and tooling library * Automatic tonnage (press force) calculation - Swiveling operator station, front right - CNC-controlled axes: Y1 + Y2 + X + R + CNC crowning - Upper beam with robust, self-lubricating four-fold guidance - CNC electric motor-driven backgauge (X axis) * With 2x manually adjustable backgauge fingers * Adjustment range up to max. 650 mm Nljdpfxsxablrs Aa Ueb - CNC electric motor-driven height adjustment of backgauge (R axis) * Adjustment range up to max. 250 mm - CNC electric motor-driven table crowning - AMADA/RAPID pneumatic upper tool clamping - AMADA lower tool holder, incl. die shoe - FIESSLER LASER safety device at the front - 2x front, movable support arms ("Sliding" system) - Side guard (swiveling doors) - Rear guard (swiveling door) - 1x movable foot switch - Large hydraulic oil tank to maintain low operating temperature - Original operating manual

Kondisi: bekas, Tahun pembuatan: 2008, Sheet width: 3100 mm Sheet thickness: 6 mm Back gauge: 1000 mm Cutting angle: 1.2° Hold-downs: 14 pcs Strokes: 18 strokes/min Oil capacity: 150 l Total power requirement: 11 kW Space requirement approx. 3900 x 1900 x 1600 mm Weight: 5500 kg Equipment: - Hydraulic swing-beam shear - ELGO control unit - Electric back gauge 1000 mm - Manual blade gap adjustment - Cutting length limitation - Ball rollers on the table - 2x front support arms - 1x front side stop with scale - Front finger guard, folding - Rear safety device (protective grid + light barrier) Nlsdevuz Tpspfx Aa Ueb - Foot switch - Operating instructions

Kondisi: sangat baik (bekas), Tahun pembuatan: 2022, Fungsionalitas: berfungsi sepenuhnya, de-to-hu-20240612-1 Nledjyr N Rbepfx Aa Ujb
