Aluminium gergaji

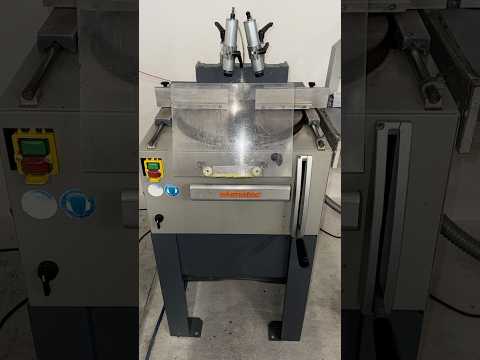

Elumatec TS 161

Kondisi: baik (bekas), Pekerjaan presisi melalui pemotongan gergaji dari bawah. Rentang putar besar hingga 45° ke kiri dan hingga 0° ke kanan. Mekanisme kemiringan khusus dengan meja putar terintegrasi memungkinkan pengoperasian dari depan pada semua pengaturan sudut. Penahan benda kerja yang dapat digeser ke belakang memungkinkan pemanfaatan maksimal kapasitas mata gergaji pada profil lebar dan datar. Gergaji didorong secara manual. Standar dilengkapi dengan mata gergaji dan dudukan. Perangkat penjepit material pneumatik (vertikal). Perangkat penyemprotan dosis. Unit perawatan. Guedpfx Aezdi Nmeiaoh

Kondisi: hampir baru (bekas), Tahun pembuatan: 2024, Overhauled: 2024 Year of manufacture: 1994-2000 Saw blade: 560 mm Motor power: 6.5 / 8.0 kW Speed: 1500/3000 rpm Cutting speed: 2100 – 4200 m/min Electronic saw height adjustment Working area, square max.: 170x170 mm Working area, flat max.: 300x150 mm Working area, round max.: 200 mm Saw feed: 0 – 40 mm/s, stepless adjustment Cut length: 5-950 mm (9999 mm with multiple stroke) Feed speed max.: 500 mm/s Weight approx. 1,900 kg Dimensions LxWxH: 2200 mm x 2700 mm x 1950 mm After a comprehensive retrofit, the machine is in like-new condition both technically and visually. Thanks to its features and robust design, it is highly efficient and suitable for a wide range of applications. The programmed HMI control enables easy and highly profitable operation. The soundproof enclosure minimizes noise emissions. The machine is completely overhauled in our facility according to customer requirements. The overhaul includes, among others, the following upgrades: - Conversion to Siemens S7 PLC - Upgrade to Siemens HMI operator interface Guodpfxouiy Hre Aiash - Replacement of the ball screw - Replacement of servo motor and servo drive - New electrical components - New pneumatic lines - New pneumatic components - Overhaul or replacement of all pneumatic cylinders - Renewal of the valve island - Optimization of extraction performance - Overhaul of minimum quantity lubrication system - Replacement of wear parts - Refurbishment of the enclosure Additional features: - Soundproof enclosure - Kerf extension (for high-quality cut surfaces without return marks) - Fully electronic height adjustment Warranty: Unless otherwise agreed, we provide a 6-month warranty on all overhauled or replaced parts. Labor and wear parts are excluded from the warranty. Options: - Multiple clamping device for parallel sawing of several workpieces - Flat magazine for automatic loading of material up to 6 m in length - Roller conveyors for raw material - Reinforced motor 18.0 kW (frequency controlled) - Delivery and installation at your site - Training for your personnel

Tahun pembuatan: 1995, Kondisi: bekas, Diameter maksimum mata gergaji: 280 mm Penegang material pneumatik Gujdozvd N Eepfx Aiaeh Meja dapat diputar dengan titik penguncian Sistem penyemprotan jumlah minimum Roda panduan dan pembatas panjang dalam berbagai ukuran tersedia berdasarkan permintaan.

Kondisi: sangat baik (bekas), Tahun pembuatan: 1995, Fungsionalitas: berfungsi sepenuhnya, Data Teknis – Elumatec TS 161 Gjdozf Rllepfx Aiaouh Tipe mesin: Mesin gergaji meja Diameter mata gergaji: 280 mm Kecepatan putaran mata gergaji: 3.200 rpm Daya motor: 1,1 kW Tegangan operasi: 400 V / 3~ / 50 Hz Rentang kemiringan: 0° hingga 45° ke kiri Kecepatan pemotongan: 3.200 m/menit Dimensi (P × L × T): sekitar 650 × 750 × 1.300 mm Bobot: sekitar 96 kg

Kondisi: sangat baik (bekas), Tahun pembuatan: 2017, Hanya digunakan selama 445 jam. Kondisi teknis sangat baik. Siap digunakan. Mesin ini dirancang untuk memotong aluminium dan PVC. Sistem kontrol E 580. Diameter mata pisau 500mm. Pemotongan sesuai dengan dimensi luar, tanpa koreksi. Pelindung mata pisau yang turun dan naik secara otomatis. Guedpezgu Efofx Aiaoh Pengaturan sudut pneumatik 45-90 derajat. Dilengkapi dengan printer.

Kondisi: seperti baru (mesin pameran), A demonstration double-mitre cold circular saw for metal with a 350mm circular saw blade. Godopgmngspfx Aiasuh Cutting capacity: Round/Rectangle 90°: 120 mm / 140 x 100 mm Round/Rectangle 45° right and left: 100 mm / 100 x 100 mm Cutting speed: 18 / 36 m/min For further technical data, see PDF document. Technical data and dimensions subject to change/errors.

Tahun pembuatan: 1996, Kondisi: baik (bekas), nomor mesin/kendaraan: 9182, 23168 Technical Data: - Notching options and mitres on 3 levels - Right-angled, single-sided, double-sided, and triple-sided bevel cuts - Usable as a crosscut saw for shifting cuts - Pneumatic profile clamping, processing with semi-automatic saw aggregates - Saw blade dimensions: - Vertical: 500 x 3.5 x 40 mm, positive - Horizontal: 500 x 3.5 x 40 mm, negative Godpfx Ajmb U E Aoiaeuh - Notching width / notching height at 90°: 300 / 285 mm - Vertical saw blade: 60° - 90° - 25°, motorised positioning with digital display - Saw blade pivot range horizontal with vertical saw blade: 45° - 90° - 45°, motorised positioning with digital displays - Notching height adjustment with digital displays - Manual profile stop shoulder, swivelling 30° - 90° - 45° - Pneumatic coolant spray device - Air connection: 6 bar - Drive: 400 V / 2 x 3 kW - Space requirements approx.: W 2400 x H 2000 x D 1400 mm - Weight approx.: 1200 kg

Kondisi: bekas, Underslung circular saw, cross-cut saw, pull saw, chop saw, panel saw, table saw, circular saw, precision circular saw Gsdpfx Asm Sk H Ijiajuh - Manufacturer: Rapid, Table saw saw unit: 45° tiltable - Model: Pk 100 - Motor power: 2.5 kW / 2850 rpm - Saw blade: Ø 175 mm (max. Ø 300 mm) - Cutting height: 37 mm with saw blade Ø 175 mm (max. approx. 100 mm) - Cutting width: 350 mm - Mitre cut: up to 45° - Dimensions: 940/860/H1390 mm - Weight: 162 kg

Kondisi: bekas, Stop for Mitre Saw, Crosscut Saw, Stop and Measuring System - Manufacturer: elumatec, stop and measuring system with digital display - Mount: Bosch profile - Length measuring unit: 4280 mm - Price: complete - Dimensions: 4710/510/H635 mm - Weight: 72 kg Gjdpfxoinwuqo Aiasuh

Kondisi: baik (bekas), Tahun pembuatan: 1998, nomor mesin/kendaraan: 25320, Penawaran 25282 Data teknis: - Diameter mata gergaji: 600 mm - Kapasitas potong pada 90°: 190 x 190 mm, 100 x 310 mm - Dalam kemiringan pada 45°: 170 x 170 mm, 100 x 220 mm - Kecepatan putar mata gergaji: 2800 rpm - Daya penggerak: sekitar 4,5 kW - Kebutuhan tempat (P x T x L): sekitar 1470 x 1800 x 1550 mm Gjdjxcwk Aspfx Aiaouh - Berat: sekitar 450 kg - Indikator posisi derajat digital - Perangkat pneumatik dengan silinder penjepit pneumatik - Mata gergaji - Konveyor rol keluar dengan stop ukur & indikator digital 5000 mm
