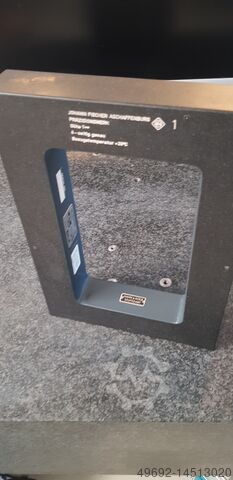

Standar sudut referensi terbuat dari batu keras

JFA Aschaffenburg Lab++

Kondisi: hampir baru (bekas), Tahun pembuatan: 2001, Fungsionalitas: berfungsi sepenuhnya, Ceramic surface plate by Johannes Fischer Aschaffenburg, laboratory quality, 1000x1000mm. Flatness under 1µm (!). Includes cabinet base with 2 doors. Calibration certificate available upon request at additional cost. Hodpfx Asix Ahqjd Ror

Kondisi: bekas, Tahun pembuatan: 2007, Suitable for the automatic machining of PCD-tipped milling cutters, shank tools, and disk-shaped tools such as saws and milling cutters using the wire electrical discharge machining (EDM) process. Equipment: - Full enclosure - Cooling unit for dielectric fluid - Automatic fire extinguishing system - N181 extraction unit Hsdpfx Ajwtmg Dod Ror - Measuring probe - Machine lamp - Automatic central lubrication - Workpiece holder ISO50 - Measuring arbor Milling cutter outer diameter: max. 250 mm Cutting edge length: max. 260 mm Shank tool diameter: 10 - 250 mm Outer diameter of disk-shaped tools: max. 250 mm Maximum tool weight: 20 kg X-axis travel: 275 mm Y-axis travel: 300 mm W-axis travel: 200 mm A-axis spindle taper: ISO 50 E-axis swivel range: 180° Machine footprint: 2535 x 2200 x 2220 mm Weight approx.: 4500 kg Connected load: 4.5 kW (400 V / 50 Hz) Colour: grey RAL 7045/7047

Kondisi: baik (bekas), Tahun pembuatan: 2003, Fungsionalitas: berfungsi sepenuhnya, tegangan masuk: 400 V, jarak pergerakan sumbu X: 780 mm, jarak lintasan sumbu Y: 560 mm, jarak gerak sumbu Z: 560 mm, berat benda kerja (maks.): 4.000 kg, jumlah slot dalam magazin alat: 120, produsen pengendali: Heidenhain, tinggi total: 2.800 mm, panjang total: 6.000 mm, lebar total: 6.000 mm, berat keseluruhan: 12.000 kg, panjang meja: 630 mm, lebar meja: 500 mm, model controller: iTNC530, daya nominal (semu): 61 kVA, pergerakan cepat sumbu Z: 50 m/menit, gerak cepat sumbu X: 50 m/menit, pergeseran cepat sumbu Y: 50 m/menit, kecepatan spindel (maks.): 18.000 rpm, kecepatan spindel (min.): 20 rpm, beban meja: 4.000 kg, jam operasional spindle: 19.500 h, Perlengkapan: kecepatan rotasi dapat diubah tanpa batas, konveyor serpihan, DMG DMC 60T RS3 with Heidenhain iTNC 530, no maintenance backlog, in good condition. Hjdpfjrxrklsx Ad Rjr Ideal machine for unmanned machining, geometrically within new machine tolerances. The machine can be measured/inspected on site upon request. Machine Data: Machine designation: Machining center with pallet storage Manufacturer: DMG MORI Model: DMC 60T RS3 Year of manufacture: 2005 Condition: Good Equipment: • Direct path measurement in X/Y/Z (glass scales) • Chip conveyor • High-pressure coolant system, 40 bar • Extraction unit • NC rotary table • Tool magazine with 120 stations • Heidenhain touch probe • Rotating viewing window • High-pressure coolant (IKZ) 40 bar • Signal lamp • Chip flushing • Operating mode 4 Technical Data: Number of axes: 5-axis CNC control: Heidenhain iTNC530 NC rotary table clamping surface: 500mm x 630mm Weight: approx. 9,000 kg Chip conveyor: Yes Coolant system: Yes Internal coolant supply: Yes Travel paths and axes: X-axis: 780 mm Y-axis: 560 mm Z-axis: 560 mm C-axis: 360° B-axis: -90°/+12° Feed rate and rapid traverse: X-axis: 50 m/min Y-axis: 50 m/min Z-axis: 50 m/min B-axis: - C-axis: 30 m/min Motor Spindle: Max. speed: 18,000 rpm Interface: HSK A63 Tool Changer: Automatic tool changer: Yes Number of magazine stations: 120 Pallet Changer: 5 pallets

Kondisi: sangat baik (bekas), Tahun pembuatan: 2017, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 3379284, dmg-lasertec45-specs Hodpoudy Huofx Ad Rsr

Kondisi: seperti baru (mesin pameran), Tahun pembuatan: 2023, jarak pergerakan sumbu X: 1.450 mm, jarak lintasan sumbu Y: 1.200 mm, jarak gerak sumbu Z: 1.035 mm, en-001 Hjdpfx Astiyzded Rjr

Kondisi: sangat baik (bekas), Pengendali: Siemens Sinumerik 840D SL Aksesori yang tersedia: - Berbagai macam dudukan batu gerinda - Pompa pengangkat untuk cairan pendingin - Berbagai suku cadang untuk mesin, dokumen mesin - Penjepit magnetik 2000 x 250 mm termasuk sistem hidraulik penjepit - Jam kerja mesin: 8.000 jam (sejak 2018) - Perata meja: Merk Dittel Hedpfx Adjulghco Rer - Kepala gerinda: dapat diputar secara manual Panjang mesin: 6,6 m Lebar: 2,8 m Tinggi: 2,5 m Berat: 14.000 kg Penggerak: Siemens

Tahun pembuatan: 2015, Kondisi: bekas, Diameter / mm Number of cutting edges / Weight 15,000 kg Control system Siemens 840D Production Facility – Modular Special Machine (MSM) with Clamping Device 1 Double-spindle Machining Center Manufacturer: GROB Type: Special Machine GM4650 Year: 2015 Control: Siemens, Type 840D sl CO2 Fire Extinguishing System, LTA Air Filter, Oil Preparation System, Manufacturer: Ruez, Type MBF-1000 AS, Year of manufacture 2015 – Operating hours 43,774, Spindle hours 1,598 Hsdsphu D Tepfx Ad Rsr Technical Data Machine length: 8,400 mm Machine width: 2,500 mm Machine height incl. LIP: 2,150 mm Machine weight: 15,000 kg

Kondisi: bekas, Tahun pembuatan: 2012, Kontrol Siemens 840 D Berat mesin sekitar 13,5 t Kebutuhan ruang sekitar 7m x 4m x 2,75m Aksesori: Tangki pendingin Batu gerinda Berbagai suku cadang Manual operasi dan perawatan Kesesuaian CE Dimensi: 7x4x2,75 m (P x L x T) DATA TEKNIS: Data benda kerja: Diameter luar maks.: 250 mm dengan batu gerinda maks. Ø 450 mm diameter maksimal yang dapat dikerjakan di atas meja: 375 mm Kedalaman profil untuk batu gerinda yang dapat di-dress: 40 mm Panjang benda kerja maks.: 3.600 mm Jarak maksimum antara senter (1): 2.800 mm Sudut kemiringan maks.: +/- 90° Jumlah gigi benda kerja: 1–999 Berat benda kerja maks.: 250 kg Ruang kerja: Hodpfx Adjxh Rqts Rsr Jarak sumbu antara spindel benda kerja dan spindel alat: 355–170 mm Perjalanan radial: 185 mm Perjalanan aksial: 3.000 mm Sudut putar: +/- 90°

Kondisi: bekas, Tahun pembuatan: 2001, de-DE Hedpfoyh Nm Sox Ad Ror

Kondisi: sangat baik (bekas), Tahun pembuatan: 2008, panjang pemakanan sumbu X: 5.500 mm, panjang umpan sumbu Y: 650 mm, panjang umpan sumbu Z: 750 mm, kecepatan pemakanan sumbu X: 20.000 m/menit, laju pemakanan sumbu Z: 20.000 m/menit, panjang meja: 5.500 mm, lebar meja: 750 mm, CNC rack grinding machine Automatic grinding head B-axis grinding head, swivels approx. 20° ARO-KKS coolant tank 8000 L (dimensions 4400 × 1900 × 2200) Pendulum operation (double table) Automatic dressing device Table dresser X-axis travel: 5500 mm Y-axis travel: 650 mm Z-axis travel: 750 mm Table length: 5500 mm Table width: 750 mm X-axis feed rate: 20000 mm/min Z-axis feed rate: 20000 mm/min Grinding wheel size: 600 x 300 mm Power: 115 kW Speed: 8000 rpm Coolant system: Yes Y-axis feed rate: 20000 mm/min Length: 10700 mm Width: 4700 mm Height: 3800 mm Weight: 42000 kg Please note: The information on this page has been compiled to the best of our knowledge and, wherever possible, obtained from the manufacturer. This information is provided in good faith, but accuracy cannot be guaranteed. Therefore, these details do not constitute representations or contractual conditions. We recommend verifying all key details independently. Hodpfx Asx Swqwed Ror
