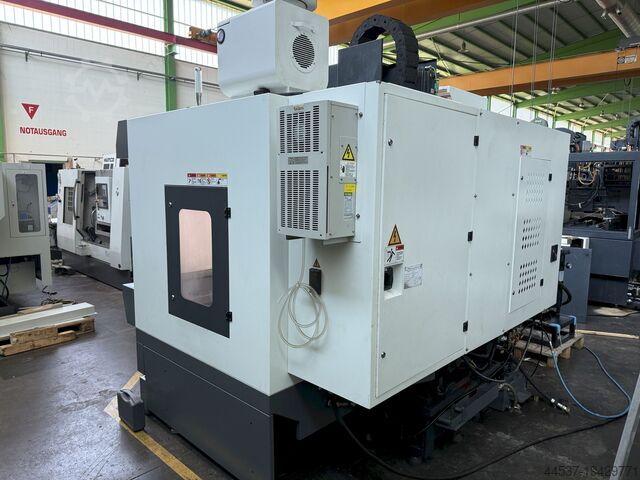

Pusat permesinan vertikal

Kaast VF-Mill Eco 1000

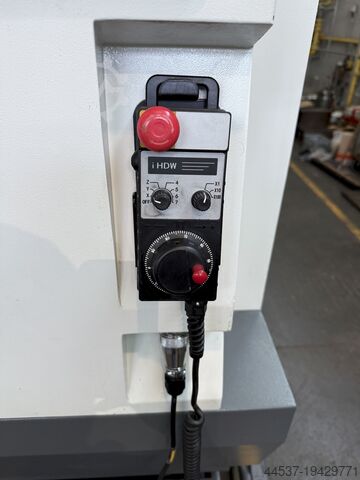

Kondisi: hampir baru (bekas), Tahun pembuatan: 2019, jam operasional: 794 h, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 650 mm, jarak lintasan sumbu Y: 520 mm, jarak gerak sumbu Z: 475 mm, model controller: Siemens, berat keseluruhan: 7.750 kg, kecepatan spindel (maks.): 20.000 rpm, jumlah slot dalam magazin alat: 60, Kami menawarkan DMG DMU 50 dalam kondisi sangat baik dengan hanya 794 jam operasi. Mesin akan tersedia di stok minggu depan. Mesin dilengkapi dengan opsi berikut: - Siemens 840D SL - Speedmaster Motorspindel 20.000 RPM, 35 kW / 25 kW, Torsi 130 Nm / 86 Nm, SK40 - Changer alat otomatis 60 alat - Konveyor chip - Meja putar 630 x 500 mm - Pendingin internal 20 bar - Pendingin udara eksternal - Udara melalui spindle - Jendela pandang jernih berputar - Spray gun - Separator kabut oli & emulsi - Probe sentuh Heidenhain TS460 - Alat ukur alat Heidenhain TT160 - 3D quick set Fjdezb Em Rjpfx Am Ssph - Handwheel elektronik

Kondisi: baik (bekas), Studer S30-12 Cylindrical Grinding Machine TECHNICAL DATA Main Dimensions Centre height: 125 mm Centre distance: 400 / 700 / 1025 mm Maximum longitudinal slide travel: 400 / 700 / 1000 mm Longitudinal Slide Table speed: 50 – 5000 mm/min Reversal delay: 0-6 s Minimum automatic feed: 1.5 mm Fjdpfx Amovca Izs Ssph Maximum travel: 400 / 700 / 1020 mm Maximum table swivel angle: 12 / 30 / 78° Cross Slide Swivel range: ±45° Rapid traverse: 40 mm Handwheel feed travel: 20 mm Maximum plunge depth: 1.7 mm Grinding Spindle Headstock Grinding wheel diameter x width x bore: 450 x 80 x 203 mm Rotational speed: 1340 / 1500 / 1625 / 1800 / 2000 / 2200 rpm Coarse adjustment: 210 mm Workpiece Spindle Headstock Swivel range: 0 – 90° Speed range: 30 – 675 rpm Mounting taper: Morse 5 Collets: W25 Tailstock Mounting taper: Morse 3 Quill stroke: 30 mm Total power requirement: 5 / 8.25 kW No guarantee is given for the correctness, completeness, or currency of the information provided.

Kondisi: bekas, Technical Details: Swing diameter: 200 mm Distance between centers: 450 mm Cross traverse: 245 mm Longitudinal traverse: 830 mm Table feed rate: 0.05–4.5 m/min stepless Spindle speed (grinding spindle): 1,780 / 2,050 rpm Spindle speed (workpiece spindle): 50–500 rpm Grinding wheel dimensions: 350 x 32 x 127 mm Table size: 2,200 x 280 mm Table swivels on both sides: 9° forward / 10° backward Total power requirement: 6.0 kW Machine weight approx.: 2.2 t Machine dimensions: 2.2 x 2.05 x 1.6 m UNIVERSAL EXTERNAL CYLINDRICAL GRINDING MACHINE without internal grinding arrangement Fpsdpou Ng Dgjfx Am Sjh - For precision grinding of external (and internal) cylindrical and tapered surfaces. - Adjustment of the grinding spindle head by hand or hydraulically - Infinitely variable hydraulic table feed - Grinding spindle swivels by 60° - Workpiece spindle head swivels by 90°, morse taper MT 4 - Tailstock morse taper MT 3 Equipment: - Dressing device - Coolant tank with pump and supply lines in stock.

Kondisi: sangat baik (bekas), Tahun pembuatan: 2008, jam operasional: 35.598 h, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 07400004031, daya motor spindle: 20 W, kecepatan spindel (min.): 3.250 rpm, kecepatan spindel (maks.): 5.000 rpm, saluran batang: 90 mm, berat keseluruhan: 10.000 kg, Capacità barra 90 mm - 2 torrette motorizzate a 12 posizioni - Asse Y sulla torretta superiore - Contropunta - Controllo Siemens 840D power line - Macchina in condizioni perfette, sempre utilizzata con olio - Completamente attrezzata e in ottimo stato - Caricatore di barre LNS Sprint S2. Fpedpfxeuyx Hzs Am Soh

Kondisi: bekas, Tahun pembuatan: 1974, Maximum wheel diameter - 400 mm Wheel width 75 mm Total power requirement 25 kW Machine weight approx. 7 t LORENZ High-performance gear shaping machine Type LS 400 Year of manufacture 1975 S/N 12592 _____ Max. external gear diameter 400 mm* (possibly larger) Max. internal gearing diameter approx. 350 mm Max. gear width 75 mm Module range 0.5-6 Stroke length 82 mm Stroke position adjustability 0 - 100 mm Distance from shaping spindle to machine body 205 mm Spindle taper approx. MT 5 Stroke rates roughing/finishing 118 - 1,000 rpm Table size 400 mm Table bore 125 mm Fpsdpfx Amot Hww De Sjh Mounting height between table and shaping head min./max. 190/290 mm Fixed outreach from shaping spindle 250 mm Axial travel of the table approx. 295 mm Number of teeth approx. 12 - 150 Feed range tooth depth 0.01 - 0.063 mm/stroke -"- Rotary feed at tool diameter 125 0.125 - 3.150 mm/stroke Spindle/Total drive approx. 19 kW / 25 kW - 380 V - 50 Hz Weight 7,000 kg Accessories / Special features: " Hydrostatic linear guide with separate hydraulic unit, " built-in intermediate plate 100 mm to raise the shaping head, " hydraulic workpiece clamping (RINGSPANN make) integrated in table for flat workpieces and for workpiece internal clamping, various clamping chucks for different workpiece diameters " stepless stroke rate adjustment for roughing and finishing operations (SIMOREG DC-Master), " automatic stroke rate change and automatic feed change for ROUGHING and FINISHING in up to 3 cuts, " automatic and motorized shaping stroke locking in upper position after finishing operation, " separate control cabinet and control panel, " integrated coolant unit with chip conveyor and magnetic separator, " approx. 20 change gears, Condition : satisfactory to good, demonstration-ready shortly Delivery : ex stock – as inspected Payment : strictly net – payment upon receipt of invoice

Kondisi: sangat baik (bekas), Tahun pembuatan: 2013, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 600 mm, jarak lintasan sumbu Y: 655 mm, jarak gerak sumbu Z: 500 mm, gerak cepat sumbu X: 36 m/menit, pergeseran cepat sumbu Y: 36 m/menit, pergerakan cepat sumbu Z: 30 m/menit, produsen pengendali: Fanuc, model controller: Fanuc 0i-MD, panjang benda kerja (maks.): 400 mm, lebar benda kerja (maks.): 355 mm, berat benda kerja (maks.): 250 kg, tinggi total: 3.120 mm, panjang total: 2.995 mm, lebar total: 2.975 mm, diameter meja putar: 350 mm, kecepatan spindel (min.): 80 rpm, kecepatan spindel (maks.): 12.000 rpm, pasokan pendingin: 15 batang, daya motor spindle: 15 W, hidung spindel: ISO 40, jumlah slot dalam magazin alat: 40, panjang alat: 270 mm, diameter alat: 80 mm, berat alat: 8 g, tegangan masuk: 400 V, jenis arus masuk: tiga fasa, Perlengkapan: dokumentasi / manual, kecepatan rotasi dapat diubah tanpa batas, konveyor serpihan, Pusat pemesinan vertikal BEKAS 5-sumbu dengan CNC FANUC 0i-MD Fpodpfx Amox N Tm Ns Sjh

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2008, jarak pergerakan sumbu X: 1.270 mm, jarak lintasan sumbu Y: 508 mm, jarak gerak sumbu Z: 635 mm, kecepatan spindel (maks.): 12.000 rpm, daya motor spindle: 22.400 W, jumlah sumbu: 3, This 3-axis vertical machining center HAAS VF-4SS was manufactured in 2008. It features a travel range of 1270 × 508 × 635 mm, 22.4 kW spindle power, and a maximum spindle speed of 12,000 rpm. The machine is equipped with a tool changer with 40 + 1 positions and a high-speed machining package. If you are looking for a high-quality milling machine, you should consider the HAAS VF-4SS we are offering for sale. Contact us for further information. • Spindle-to-table distance: 102 mm • Tool holder taper: CT40 (DIN 69871) • Max. cutting feedrate: 20.5 m/min • Rapid traverse (X/Y/Z): 35.6 m/min • Tool changer type: Random vertical • Tool magazine capacity: 40 + 1 positions • Data interface: USB • Options/Features: • Through-spindle coolant system (21 bar) • 4th axis drive and wiring (prepared for 4th axis) • Intuitive programming system • Dual spindle orientation • Coordinate rotation system • Macro variables and scaling functions • High-speed machining package Additional equipment • Auger-type chip conveyor Fodpfx Amox D Irmj Sjph • Additional high-pressure filtration system

Kondisi: sangat baik (bekas), Tahun pembuatan: 2001, kecepatan spindel (maks.): 10.000 rpm, Ragum tidak termasuk dalam lingkup pengiriman! Fodpfx Aexb Dyhjm Ssph

Kondisi: bekas, Tahun pembuatan: 2013, A 4-axis CNC machining center from Spinner is available. Travel range X/Y/Z: 1600mm/810mm/700mm, rapid traverse X/Y: 18m/min, rapid traverse Z: 15m/min, table dimensions X/Y: 1800mm/810mm, max. table load: 2000kg, spindle speed: 10,000 rpm, power: 22kW, tool holder: SK40, tool stations: 24, weight: approx. 8,000kg. Documentation available. An on-site inspection is possible. Fpsdpfxowqd R Uo Am Soh

Kondisi: bekas, Tahun pembuatan: 1963, Technical details: Maximum wheel diameter: 900 mm Maximum module: 10 Machine weight approx.: 8,200 kg Maximum hob diameter: 190 mm Maximum hob length: 320 mm Infinitely variable hob speeds: 13-80 rpm Maximum workpiece length: 750 mm Maximum workpiece diameter: 150 mm Fpodpfx Amjvkpu Hs Ssh LIEBHERR Gear Hobbing Machine L 900 Counter holder for cutter arbor missing
