Penggiling sabuk

Löser

Kondisi: baru, DM100 Z2C – carries out edge rounding and removes sharp burrs from both internal and external edges of steel, stainless steel or aluminum parts after laser, shear or punch cutting, for metal parts ranging from 50 x 50 mm up to 1100 x 100 mm. The first station processes the products with a contact roller (approx. 55° Shore hardness) using an abrasive belt, efficiently removing heavy burrs in the initial step. Gtjdpfed Ixadex Adgot The second station processes the products with two pairs of counter-rotating cross belts—one from below and one from above. The cross belts round off both internal and external edges of the workpieces. A major advantage is the deburring of products with protective surface film, as only the edges are processed without damaging the film. Technical Specifications – DM1100 Z2C: Working capacity (Ø mm): 1100 x 100 Number of belt stations (Z): 1 Number of cross belt stations: 2 Abrasive belt dimensions (mm): 1100 x 2200 Abrasive belt speed (m/s): 8–22 Cross belt speed (m/s): 2–8 Feed speed (m/s): 0.6–3.2 Abrasive belt motor per head (kW): 18.5 Cross belt motor (kW) (2x): 3 Feed motor (kW) (3x): 0.18 Total power (kW): 33 Power consumption (A): 62 Extraction connection per head (Ø mm): 150+185 Dimensions (mm): 3600 x 2330 x 2350 Weight (kg): 5000

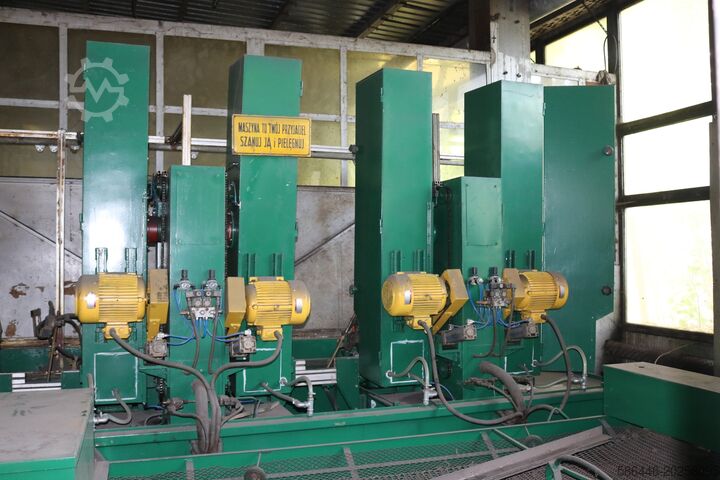

Kondisi: diremajakan ulang (bekas), Tahun pembuatan: 1988, Fungsionalitas: berfungsi sepenuhnya, Löser centreless tube grinding machine – belt grinding machine – centreless tube polishing machine – cylindrical grinding machine Centreless tube grinding / polishing machine for workpieces with a minimum length of 1100 mm. The machine was built in 1988 and completely overhauled in 2012. During the overhaul, the machine was converted for polishing and has since processed approximately 10,000 parts. Afterward, the machine was no longer used. As part of the general overhaul, the motors, bearings, and the entire control cabinet including frequency converters were completely renewed. The machine can be used for both wet grinding and polishing. Wastewater treatment including pumps is not currently included. We can retrofit this to your specifications upon request. The transport systems (roller conveyors) between the grinding stations will also need to be adapted and retrofitted to match your workpieces. The machine can process tube diameters from 10 mm to 160 mm. The grinding/polishing motors have a power rating of 7.5 kW per station. Gsdpfx Aetmqi Dsdgjtt The system can be inspected by appointment at our warehouse in D-63128 Dietzenbach.

Kondisi: baik (bekas), Tahun pembuatan: 2001, Fungsionalitas: berfungsi sepenuhnya, lebar penggilingan: 150 mm, tinggi penggerindaan: 100 mm, jenis arus masuk: tiga fasa, tegangan masuk: 400 V, Perlengkapan: kecepatan rotasi dapat diubah tanpa batas, GREIF 7-station through-feed flat grinding machine, wet grinding, for square tubes and flat material, 7 belt grinding stations each with 4 kW drive, each station frequency-controlled, each station tiltable by ±15° for cross-grinding, max. grinding width 150 mm, max. grinding height 100 mm, contact wheel diameter 200 mm, abrasive belt dimensions 150 x 2500 mm, pneumatic belt tensioning, belt oscillation, machine including return conveyor, including paper band filtration unit with 1500 liters capacity. Since the contact wheels are directly driven, the system can also be used for polishing or brushing. Godpjtq Twvsfx Adgjtt Upon request, this system can also be offered fully refurbished.
