Recoiler mandrelless 2,4 t

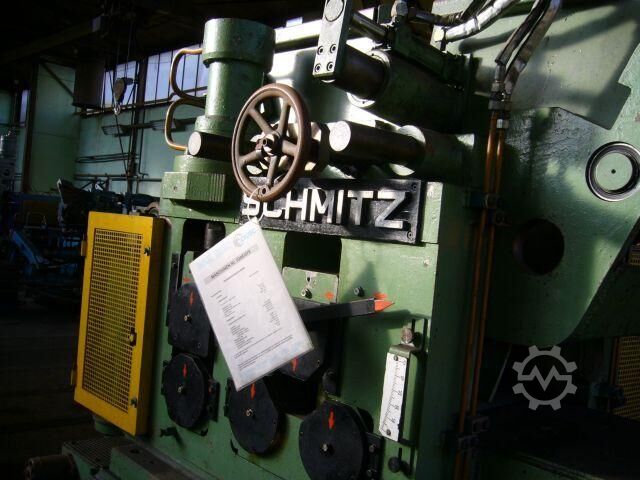

MDS (SCHMITZ)

Kondisi: bekas, Lebar pita: maks. 450 mm Ketebalan pita: maks. 12 mm Duedpfsxc Hytjx Aireu Kecepatan: maks. 20 m/menit Jumlah rol pelurus: 3 Jumlah rol penggerak: 2 Direvisi pada tahun 1995

Kondisi: baik (bekas), Tahun pembuatan: 2002, Manufacturer: BRÜCK Model: 12/1600 Load capacity: 12,000 kg Maximum sheet width: 1,600 mm Dusdpfohrnbksx Airsu Coil diameter: 1,800 mm Weight: approx. 14 t Without control cabinet.

Kondisi: bekas, Lebar pita: maks. 450 mm Ketebalan pita: maks. 12 mm Dedpfxoxc Hygo Aireuu Kecepatan: maks. 20 m/menit Jumlah rol pelurus: 3 Jumlah rol penggerak: 2 Direvisi pada tahun 1995

Kondisi: bekas, Lebar pita: maks. 450 mm Ketebalan pita: maks. 12 mm Kecepatan: maks. 20 m/menit Jumlah rol pelurus: 3 Dujdpfoxc Hyyox Aireu Jumlah rol penggerak: 2 Direvisi pada tahun 1995

Tahun pembuatan: 1999, Kondisi: baik (bekas), Driver / Plate Brake / Flying Shear for Slitting Line Dsdsgryl Aspfx Airjuu Strip width: 500 – 1,650 mm Strip thickness: 0.4 – 4 mm Number of driver rollers: 2

Kondisi: sangat baik (bekas), 13 straightening rollers, Ø 150 mm Strip width: 600 - 2,000 mm Strip thickness: 6 - 15 mm Design: 4-high cassette Dusdov S Ad Depfx Airsu

Tahun pembuatan: 1989, Kondisi: baik (bekas), Bandwidth: max. 1,840 mm Strip thickness: 0.3 – 3 mm Duedpfx Aieg Iih Nereu Knife shaft diameter: 224 mm Knife diameter: 350 mm

Tahun pembuatan: 1985, Kondisi: sangat baik (bekas), Bandwidth: 10 - 350 mm Band thickness: 0.2 - 2 mm Number of cuts/band thickness: 25/0.5 mm Duodpfelilgcex Aireu Coil weight: max. 1 t

Kondisi: bekas, Tahun pembuatan: 1984, Material width: 350 mm Coil weight: 1 t Material thickness: 0.5 - 6 mm Coil inner diameter: 380 - 540 mm Coil outer diameter: 1500 mm Number of straightening rollers: 9 Straightening roller diameter: 30 mm Duodpfxet Hmk Ts Airsu Number of feed rollers: 2 Weight of straightening machine: 2 t Space requirement for straightening machine (W x D x H): 2.0 x 2.0 x 1.9 m Weight of decoiler: 1.3 t Space requirement for decoiler (W x D x H): 1.7 x 1.5 x 1.6 m

Kondisi: bekas, Decoiler and Straightening Line – Decoiler and Straightening Machine Year of manufacture: 1991 Strip width: 50 to 450 mm Sheet thickness (with straightening machine inactive): 6 mm Sheet thickness (with straightening machine active): 2 mm - Very well equipped with excellent feeding aids Total system footprint (L x W): approx. 7,000 x 3,000 mm Total system weight: approx. 11 tons Good condition Straightening Machine HMS Type RS 47-04/1, Machine No. Strip width, nominal: 400 mm Strip width, max. pass-through: max. 455 mm Strip thickness at 400 mm width: max. 1.5 mm (steel) Strip thickness at 400 mm width: max. 2 mm (copper) Speed: max. 40 m/min Number of straightening rollers: 7 pcs. Straightening roller diameter: Ø 40 mm Number of pull rollers: 2 pcs. Pull roller diameter: Ø 80 mm Entry/throughfeed height: 1,500 mm - Straightening rollers hardened, ground and hard-chromed, with central support - Pull rollers hardened, ground and hard-chromed, with hydraulic disengagement - Manual adjustment of straightening rollers - Infeed assistance with hydraulically extendable tongue and hydraulically adjustable deflection roller - Adjustable lateral strip guide - All straightening rollers driven via distribution gearbox with cardan shafts - Both pull rollers driven via gearbox with cardan shafts - Frequency-controlled drive via geared motors - Straightening machine opening stroke 250 mm for cleaning or for processing thicker material, stroke via trapezoidal-thread spindle - Ultrasonic loop control Transport dimensions (L x W x H): 3,600 x 2,200 x 2,200 mm Own weight: approx. 4 tons Decoiler HMS Type BA 1.5-06/80, Machine No. Coil weight: max. 8,000 kg Coil outer diameter: max. 1,600 mm (with loading saddle) Coil outer diameter: max. 2,000 mm (without loading saddle) Coil turntable diameter: Ø 1,700 mm Coil inner diameter, expansion range: 460–520 mm Coil width, nominal: max. 630 mm Spreader jaw width: 750 mm Height of decoiler crown above baseplate: 1,500 mm - Decoiler crown drive via hydraulic motor and gear - Pneumatic overrun brake on decoiler crown TWINFLEX - Hydraulic expansion of decoiler crown, central via wedge slide system - Hydraulic pressure arm with hydraulically driven double pendulum roller - Coil loading saddle with 12 t lifting capacity and 300 mm stroke - Decoiler in floor-running frame with motorized cross-travel drive Transport dimensions (L x W x H): 3,500 x 1,900 x 2,500 mm Dodpfeif Sg Sjx Aireuu Own weight: approx. 5 tons Central Hydraulic Power Unit, free-standing Tank capacity: 350 liters Drive power: 18.5 kW - Drive motor with 2 REXROTH pumps (tandem pump) - Oil cooler as air heat exchanger with fan motor Transport dimensions (L x W x H): 1,600 x 850 x 1,450 mm Own weight: approx. 800 kg Electrical Cabinet, free-standing - All cable connections via Harting plug connectors Transport dimensions (L x W x H): 2,800 x 500 x 2,250 mm Own weight: approx. 800 kg
