5 warna

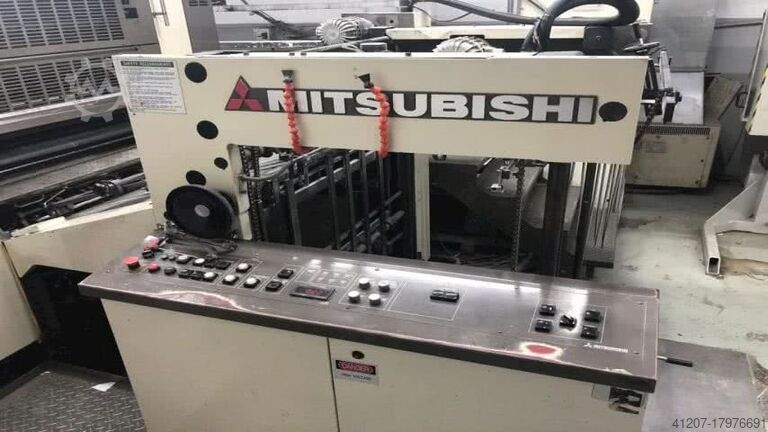

Mitsubishi Diamond 3000 S -5

Tahun pembuatan: 2004, jam operasional: 37.800 h, Kondisi: hampir baru (bekas), Fungsionalitas: berfungsi sepenuhnya, Stanse High Premium terawat dengan kondisi sangat baik untuk pengaturan cepat dan pekerjaan berkualitas TOP Data teknis: Kertas hingga 70 gr/m2 Karton hingga 1000 gr/m2 Karton bergelombang hingga 2 mm Format maks: 1060 x 760 mm Format min: 400 x 350 mm Tekanan cetak 260 t Kecepatan hingga 9.000 lembar/jam Perlengkapan: Stasiun pembongkar Kontrol register optik penyelarasan tumpukan otomatis kontrol ultrasonik double sheet Centerline Microplate Pelat 4 mm Gbjdsyaq S Aepfx Ahujk 2 frame tertutup Tumpukan keluar non-stop Meja penyelarasan ditinggikan 220 mm

Kondisi: diremajakan ulang (bekas), Tahun pembuatan: 2009, Fungsionalitas: berfungsi sepenuhnya, berat keseluruhan: 52.000 kg, gaya punching: 600 t, kebutuhan tinggi: 3.520 mm, persyaratan ruang panjang: 12.150 mm, lebar yang dibutuhkan: 9.340 mm, Machine for Die Cutting, Embossing, Waste Stripping, and Blank Separation Used machine, overhauled at QTM Schwalmtal System equipped with high-performance sheet feeder designed for NON-STOP operation ⦁ For fully automatic die cutting, creasing, and embossing with or without gripper edge ⦁ For removal of internal waste as well as side and rear sheet edges ⦁ For stacking of die-cut and stripped sheets with attached gripper edges ⦁ For separating gripper edges and subsequent stacking of remaining sheets ⦁ With patented gripper carriage registration system for maximum register accuracy ⦁ With package stacker enabling fully automatic separator sheet feeding and NON-STOP stacking, without the need for adjustment even for the smallest blanks (exchange table with comb structure) ⦁ Separator sheet magazine with electronic stock monitoring, refillable during production ⦁ With Centerline equipment Gbodst E Nthopfx Ahuek ⦁ With automatic pallet changing device at delivery ⦁ Modem ⦁ Standard machine height increase by 600 mm Specification Maximum sheet size: 1060 x 1450 mm Minimum sheet size: 500 x 700 mm Maximum die cutting force: 6.0 MN (600t) Speed: 8,000 sheets/h Processable materials: Paper min. 80 g/m² Cardboard up to 2000 g/m² Corrugated board up to 5 mm (max. sheet warp 4%) Equipment: Patented QTM rail system Manual non-stop feeder Stripping station Blank separation station Centerline Fully automatic pallet changer at delivery Including platform Control upgrade to Siemens S7 Completely overhauled machine drive Quick-lock frames in all tooling stations

Kondisi: sangat baik (bekas), Tahun pembuatan: 2021, Fungsionalitas: berfungsi sepenuhnya, lebar kerja: 2.700 mm, Kryma SK2800 automatic slotter with vacuum autofeeder, machine have been used very little and is in perfect condition and available anytime. Speed is approx. 2000pcs per hour. Machine can do up to 10m long sheets. Video can be sent upon request. Also available Kryma flat bed roller die cut like new, and Sunthinks SC860 single pass printer with auto feeder. Gedpfx Aetth Iashujbk * We can arrange transport within Europe, and give offer with transport included if of an interest.

Kondisi: bekas, Tahun pembuatan: 1988, nomor mesin/kendaraan: 1743, UV coating machine Billhöfer Gula Speed CGS JKN 112, year 1988 – Serial No. 1743 Minimum sheet size: 300 x 500 mm Maximum sheet size: 820 x 1120 mm Automatic Mabeg feeder Paper weight: 60 up to 500 g/m² cardboard Online video inspection possible via Skype We would be pleased to welcome your visit – further machines in stock Gjdsh Axqujpfx Ahuobk Available immediately – Inspection possible Located in Emskirchen / Nuremberg – Test run possible

Tahun pembuatan: 2021, Kondisi: siap digunakan (bekas), de-to-hu-it-lt-20240622 Gbodpfx Aow Tc R Rjhuek

Kondisi: bekas, Tahun pembuatan: 2006, Fungsionalitas: berfungsi sepenuhnya, saluran warna: 5, berat kertas (min.): 40 g/m², berat kertas (maks.): 370 g/m², lebar kertas (min.): 400 mm, lebar kertas (maks.): 800 mm, tinggi kertas (min.): 260 mm, tinggi kertas (maks.): 600 mm, tegangan masuk: 380 V, en001 Gsdpfxjwtzp Ts Ahusbk

Kondisi: bekas, Zusammentragturm VAC-100a Horizon VAC-100a Vacuum Collator Gjdpfxsv Haale Ahujbk - Technology: Touch & Work - Model: Suction and Air-Blast Collator Tower - Number of Stations: 10 per collator tower - Error Prevention: Miss-feed, double-sheet, and jam detection - Job Memory: 9 memory slots for repeat jobs - Expandability: up to 6 towers (60 stations) Programs: - Double cycle (non-stop operation) - Inserting (single and double) - Booklet program - Block program - Selective collating - Format: max. 500 x 350 mm; min. 148 x 120 mm - Paper weight: 40–250 g/m² - Loading capacity: 55 mm per station - Performance: up to 9,500 sets/hour - Power supply: 230 V / 50 Hz – 1.86 kW - Dimensions: 842 x 652 x 1,961 mm - Weight: 310 kg Including one stacker Format: 500 x 350 mm Equipment: HORIZON descending stack table / right-hand delivery, ST-20R Collator Tower VAC-100a - Technology: Touch & Work - Model: Suction and Air-Blast Collator Tower - Number of Stations: 10 per collator tower - Error Prevention: Miss-feed, double-sheet, and jam detection - Job Memory: 9 memory slots for repeat jobs - Expandability: up to 6 towers (60 stations) - Stacking options: straight or offset to the side

Kondisi: hampir baru (bekas), Tahun pembuatan: 2019, jam operasional: 2 h, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 34, Kolbus Casemaker, compleet met palletinvoer type PPA290 Omslag – formaatbereik open omslag (breedte x hoogte): min. 300 x 210 mm, max. 1050 x 735 mm Gbjdpfxswnqtkj Ahuek Bekledingsmateriaal (breedte x hoogte): min. 765 x 200 mm, max. 1080 x 290 mm Grijsborddikte: min. 1 mm, max. 4 mm Mechanische snelheid: tot 40 cycli/min Invoerbord, stijve ruginvoer, flexibele ruginvoer vanaf rol, invoer bekledingsmateriaal, lijmtank, lijmrollen, persinrichting, uitvoertransportband Machinenummer: 34, Geproduceerde boeken: 2 miljoen

Kondisi: bekas, Tahun pembuatan: 2005, Mesin Potong Tiga Sisi Müller Martini Esprit (1576) Tahun Pembuatan: 2005 Deskripsi: - Monitor warna dengan layar sentuh - Pengaturan otomatis - Sabuk pengumpan dari kiri - Pemasukan dari kiri - Kaset pisau yang dapat diganti, jumlah: 3 - 11 - Total set pisau: 2 Gedpfx Ahevxfkgjusbk Spesifikasi teknis: - Kapasitas mekanis: hingga 2.000 siklus/jam - Ukuran maksimal tanpa potong: 391 x 320 mm - Ukuran minimal tanpa potong: 148 x 95 mm - Ukuran maksimal setelah potong: 311 x 305 mm - Ukuran minimal setelah potong: 142 x 75 mm - Ketebalan buku: 2 - 80 mm

Kondisi: baik (bekas), Tahun pembuatan: 1991, Fungsionalitas: berfungsi sepenuhnya, MULLER MARTINI PROGRESS 520 rotativa offset 4 colori offset; Lampada UV (IST) Uscite disponibili: bobina a bobina + bobina a piega; Inserti di stampa disponibili: 4x24" (12"); Cilindri perforatori disponibili: 24" (12"); Gbjdpfxovt Suuo Ahujk Nota: Altri formati di stampa possibili (22" - 20")!!!; Macchina completa e funzionante, con tutti gli accessori, manuali e schemi elettrici; Disponibile: Immediata Ubicazione: Europa
