Mesin wire cut EDM

Mitsubishi MV2400 S

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2015, jarak pergerakan sumbu X: 600 mm, jarak lintasan sumbu Y: 400 mm, jarak gerak sumbu Z: 310 mm, tinggi total: 2.150 mm, berat keseluruhan: 3.500 kg, jumlah sumbu: 5, This Mitsubishi MV2400S 5-axis wire EDM machine was manufactured in 2015. It features X, Y, Z travels of 600 x 400 x 310 mm and U, V axes of 150 x 150 mm, supporting a maximum workpiece weight of 1,500 kg. Equipped with an advanced Mitsubishi M700 CNC control with 3D CAD/CAM capabilities, it ensures high-precision machining. Consider the opportunity to purchase this Mitsubishi MV2400S wire EDM machine. Contact us for further information about this machine. Additional Equipment • Cooling/Temperature Control: Cooling system with temperature regulation • Generator: Transistor pulse generator • Output current: 50 A • Generator dimensions: 600 x 650 x 1765 mm • Generator dimensions: 600 x 650 x 1765 mm Machine Advantages Technical Machine Advantages • Maximum machining angle/height: 15° / 260 mm • Maximum workpiece size: 1050 x 820 x 305 mm • U-shaped table dimensions (W x D): 840 x 560 mm • M8 fixing holes: 52 • Wire diameter: 0.1 – 0.3 mm • Wire spool weight: 10 kg • Automatic wire threading and wire cutting: included • Tank capacity: 860 liters • Filter precision: 3 µm • Filter system: dual system // filter system weight: 350 kg Additional Information Controller Inputs: Keyboard, USB, memory stick, Ethernet Display: 15" TFT touchscreen Positioning accuracy: 0.1 µm Minimum incremental movement: 0.05 µm Maximum programmable size: ± 99999 mm Software: ADVANCE Plus with 3D CAD/CAM, 10 GB memory, and a clear/intuitive layout Remote communication enabled: mcAnywhere Graphical views: 3D, front, side, top Machine Advantages Optical Drive System (ODS) Tubular direct drives in X and Y axes Linear scales in X and Y axes Intelligent automatic wire threading system Dry and submerged operation possible Wire straightening system Bwodpfx Aox D Rqfem Iel Automatic hole detection 3D CAD/CAM control system 5 controlled axes + prepared for additional axes Precision finish machining (PFC) Long-Life System (LLS) design U-shaped, hardened, segmented clamping table Pressurized dielectric (water) cooling system Ready for remote communication (mcAnywhere) CE compliant 30°/45° wire cutting capability E.KO Ionizer 1501 Dimensions Machine depth: 2687 mm

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2022, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 02DC2563, berat benda kerja (maks.): 1.500 kg, jarak pergerakan sumbu X: 600 mm, jarak lintasan sumbu Y: 400 mm, jarak gerak sumbu Z: 310 mm, Diameter kawat (maks.): 0,3 mm, Mesin masih beroperasi hingga 08.04.2026! DETAIL TEKNIS Bsdpfx Amoyzh Dae Iswl Perjalanan sumbu X: 600 mm Perjalanan sumbu Y: 400 mm Perjalanan sumbu Z: 310 mm Perjalanan sumbu U/V: 150 mm Berat benda kerja (maks.): 1.500 kg Dimensi benda kerja maks.: 1.050 x 820 x 305 mm Sudut konik (tinggi benda kerja): 15 mm / 260 mm atau 30 mm / 110 mm Dimensi meja: 840 x 560 mm Diameter kawat yang dimungkinkan: 0,10 - 0,30 mm Penahan gulungan kawat: 10 kg DETAIL MESIN Dimensi & Berat Dimensi mesin: 2.687 x 3.030 x 2.150 mm Berat mesin: 3.500 kg PERLENGKAPAN Meja tiga sisi yang dikeraskan

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2015, jam operasional: 64.348 h, jarak pergerakan sumbu X: 600 mm, jarak lintasan sumbu Y: 400 mm, jarak gerak sumbu Z: 310 mm, produsen pengendali: MITSUBISHI, jumlah sumbu: 3, en Bodpfxoylm Scs Am Iewl

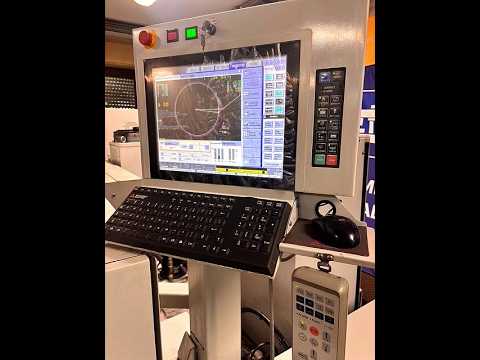

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2015, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 55DM2758, TECHNICAL DETAILS Travel paths X / Y / Z: 600 / 400 / 300 mm Cutting capability: H/W 30°/45° (30/45° instead of 15° for 0.25 mm wire) Control system: MITSUBISHI M700 Controller software: MITSUBISHI ELECTRIC "ADVANCE Plus" Replacement of X and Y linear scale encoders: November 2022 MACHINE DETAILS Total weight: 3,500 kg Overall length: 2,687 mm Overall width: 3,030 mm Overall height: 2,150 mm Input voltage: 400 V Input current: 50 A Bodjwr Aclepfx Am Ijwl Type of input current: Three-phase Input frequency: 50 Hz EQUIPMENT - ODS optical drive system - Direct drive motors on X and Y axes - Scales on X and Y axes - Intelligent automatic wire feed system (wire diameter 0.1–0.3 mm) - Wire straightening system - Automatic wire cutter (for thicker wires) - Automatic hole detection - 3D CAD/CAM control - 5 controlled axes + provision for additional axes - PFC Precision Machining (Precise Finish Circuit) - LLS Longevity System - 10 kg wire spool holder (reel) - U-shaped, hardened, segmented catch table - Compressor dielectric (water cooling) - Prepared for remote communication (mcAnywhere) - CE version - Clear display of main functions on screen - Programming with ESPERADVANCE dialogue system - Control system prepared for 3D file import - Graphic inspection: 3D, front view, side view, top view - Handheld control unit - Ethernet TCP/IP and 2 USB ports - Prepared for remote communication (mcAnywhere)
