Mesin bending putar

PROD-MASZ Kantbank Abkantbank Biegemaschine 1400mm/2.0 Stahl

Kondisi: bekas, TECHNICAL DATA - Max. swing over bed : 270 [mm] - Max. swing over cross slide : 130 [mm] - Distance between centres : 440 [mm] - Spindle nose : CAMLOCK D1-3' - Max. bar capacity : 28 [mm] - Motor power : 7.5 [kW] - Spindle speed : 0-5000 [rpm] with variator - Travels X x Z : 180 x 400 [mm] - Feed rates : 0-5000 [mm/min] with variator - Rapid traverse : 7500 [mm/min] - Power supply : 3-phase 380V 50Hz 14kW Psdpfxouhcars Ab Ierd - Dimensions : 1700 x 1226 x 1660 [mm] - Weight : 1415 [kg] EQUIPMENT - FANUC 20-T CNC control - Multifix 'A' quick-change turret - SCHAUBLIN B32 collet chuck - Tailstock with handwheel - Coolant tank with pump

Kondisi: baru, Metallkraft FSBM 1020-20 S2 Manual Folding Machine With workpiece clamping via foot pedal. DESCRIPTION - The workpiece is clamped using a foot pedal, allowing both hands to remain free for material handling - Different tooling variants available: E, S2, HS2, and HSG - Powerful auxiliary cylinder makes bending easier - Large clearance between upper and lower beam of up to 25 mm - Self-lubricating slide bearings - Clamping pressure of the upper beam easily adjustable via knurled screws - Material thickness adjustment via knurled screw - Adjustable stop for bending angle Equipment details: - With segmented sharp bending tools, segmented bending bar, and continuous bed support TECHNICAL DATA General Information Max. working width: 1020 mm Max. bending angle: 135° Segment configuration: 25-30-35-40-45-50-75-100-150-200-270 mm Dimensions and Weights Product length approx.: 1350 mm Product width/depth approx.: 800 mm Product height approx.: 1130 mm Net weight approx.: 325 kg Bending Capacity Bending capacity at 235 N/mm²: 2.0 mm Prjdokzk Exepfx Ab Ied Bending capacity at 700 N/mm²: 1.2 mm Bending capacity note: For bending stainless steel (700 N/mm²), hardened upper tools are required Bending capacity aluminum: 2.4 mm Made in China For other models, please enquire.

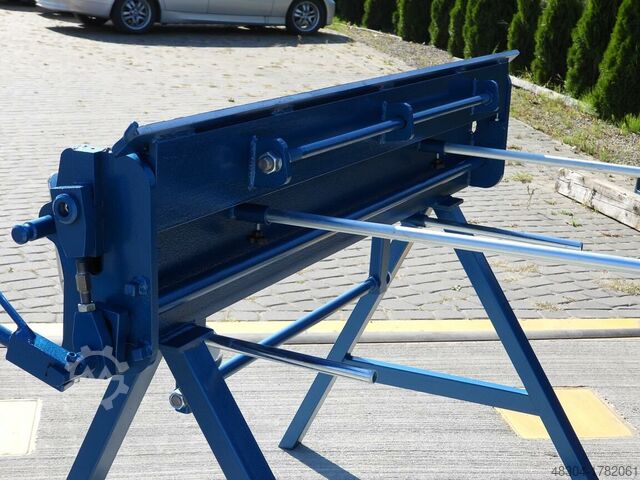

Kondisi: baru, Tahun pembuatan: 2025, Delivery every Monday/Tuesday! Reliable! Mobile Folding Machine 1400/2.0mm without Roller Shear Pjdpsb Hqa Ejfx Ab Ierd We are your partner for sheet metal processing machines. Our commitment is to provide high-quality and reliable service to exceed your expectations! Our success is rooted in our passion and dedication to our work! Technical Data - Maximum working length: 1400 mm - Maximum steel sheet thickness: 2.0 mm - Bending beam: 24 mm - Weight: approx. 190 kg (manual machine) - Upper beam adjustment in three positions - Maximum clear gap between beams: 80 mm - Nationwide delivery within Germany: €180 - Price: €1450 - Includes transport wheels - Delivery time: every week - Payment in cash upon delivery - Optional roller shear (max. cutting capacity up to 0.8 mm / steel sheet): €350 - Optional manual seam closer: €75 - The machine complies with CE regulations and comes with a 12-month warranty. We issue invoices with 0% VAT (intra-community delivery) as well as with 19% VAT. We look forward to hearing from you!

Kondisi: baru, Tahun pembuatan: 2024, ♻ Universal application (wood, pallets including nails and staples, wood fibre boards and remnants, veneers, MDF boards, plastic, etc.) ✔ Motor power: 18.5 kW ✔ Rotor length: 870 mm ✔ Rotor diameter: 270 mm ✔ Rotor speed: 80–120 rpm ✔ Number of cutting knives: 2x19 ✔ Granulation: 10–50 mm ✔ Capacity: up to 7 m³/h* ✔ Extraction port: 200 mm ✔ Feed opening: 1,446 x 1,565 mm ✔ Dimensions (L/W/H): 2.15 / 1.97 / 2.04 m ✔ Weight: 2,050 kg Pjdohzlr Iepfx Ab Iord 2-year warranty or 2,000 operating hours

Kondisi: baru, Tahun pembuatan: 2025, For sawing, for example, stainless steel, tool steel, hollow sections, and solid materials Two-speed drive motor allowing saw band speeds of 30 and 65 m/min Electromechanical saw band tension monitoring via microswitch When lifting the saw arm, the lowering cylinder locks in the upper position via solenoid valve – additional locking at the cylinder is therefore not required Saw arm inclined by 25°, resulting in increased saw blade service life Precise and robust band guides with adjustable carbide plates Prodpfxog U Uv Rj Ab Isd After completion of the cutting cycle, the saw band automatically stops in the lower end position Lowering of the saw arm by gravity or manually With steplessly adjustable, constant saw arm lowering speed via hydraulic cylinder Dimensions and weights Length approx. 1200 mm Width/depth approx. 650 mm Height approx. 1800 mm Weight approx. 270 kg Electrical data Connection voltage: 400 V Mains frequency: 50 Hz Machine data Saw band speed(s): 30 / 65 m/min Speed stages: 2 Saw band length: 2450 mm Saw band width: 27 mm Saw band thickness: 0.9 mm Material feed Table height material feed: 925 mm Cutting capacities 0° round (pipe): 220 mm 0° round (solid): 120 mm 0° rectangular, flat (hollow section): 230 x 150 mm 0° bundle (pipe): 230 x 120 mm -45° round (pipe): 160 mm -45° round (solid): 85 mm -45° rectangular, flat (hollow section): 160 x 90 mm -60° round (pipe): 90 mm -60° round (solid): 55 mm -60° rectangular, flat (hollow section): 90 x 90 mm Item no.: 3680001 Location: Ex stock 54634 Bitburg - Immediately available -

Kondisi: baru, KNUTHin hydraulinen putkentaivutin 1/2 (1/2"–2") on tehokas ratkaisu teräsputkien työstäjille. Podpfx Absuzlh Is Iord

Kondisi: baik (bekas), Tahun pembuatan: 1989, nomor mesin/kendaraan: 01-15792, Offer 24194 Technical Specifications: - Max. working width: 2040 mm - Max. material thickness: 2 mm - Bending angle: approx. 0 – 135° - Bending angle lockable with end stop - Upper beam operated via side handwheel - Max. upper beam stroke: 85 mm Prodpfxetylgus Ab Ijd - Max. adjustment of bending beam: 80 mm - Bending process assisted by counterweight - Required space: approx. W 3250 x H 1250 x D 450 mm - Weight: approx. 1620 kg

Kondisi: baru, Tahun pembuatan: 2025, ZGR-1400 folding machines are solidly designed and built, making them well-suited for processing zinc, aluminum, and copper in standard thicknesses. Overall, they are an excellent choice at an incredible price! The standard model offers a bending angle of 145 degrees, but upon customer request, we can also manufacture a folding machine with a 165-degree bending angle. Folding Machine 1400/2.0 incl. transport wheels Technical Specifications: - Maximum working length: 1400 mm - Maximum sheet steel thickness: 2.0 mm - Bending beam: 24 mm - Machine weight: approx. 190 kg (manual version) - Cutting across the entire working length with shears - Upper beam lift in three positions - Maximum clear opening between beams: 80 mm Podpocpn Hbofx Ab Iord - Delivery to Germany and Austria: 180 euros - Optional roller shear (cutting capacity up to 0.8 mm): 350 euros - Delivery time: 2-4 days - Cash payment upon delivery - Roller shear (maximum cutting capacity up to 0.8 mm / steel sheet) - The machine complies with CE regulations and comes with a 12-month warranty. We look forward to hearing from you!

Kondisi: bekas, Tahun pembuatan: 1986, Round steel - mm Square steel - mm Psdjt D Nz Aepfx Ab Iord Angle steel 120 x 13 mm Punching machine: Pressure capacity 60 t Punching machine: Throat depth 510 mm Punching machine: Capacity (diameter x thickness) Ø 27 in 17 mm Sheet shear: Flat material 500 x 14 mm Sheet shear: Flat material 400 x 16 mm Sheet shear: Flat material 180 x 20 mm Sheet shear: Flat material 120 x 21 mm Sheet shear: Flat material 100 x 22 mm Total power requirement 7.5 kW Machine weight approx. 2.5 t Space requirement approx. 1.8 x 0.9 x 1.8 m - Hydraulic section steel shear - combined -

Kondisi: baik (bekas), Tahun pembuatan: 2015, Fungsionalitas: berfungsi sepenuhnya, panjang pembubutan: 650 mm, diameter pembubutan: 400 mm, Fanuc Oi-TD control 3-jaw chuck, diameter 250 mm 12-position turret Tailstock Chip conveyor The machine has only 4051 power-on hours Technical details: Swing diameter: 650 mm Podpfx Abjvi Haqe Ijrd Turning diameter: 400 mm Turning length: 650 mm X-axis travel: 230 mm Z-axis travel: 650 mm Max. spindle speed: 4500 rpm Number of tool stations: 12 Spindle drive capacity: 11/15 kW Weight approx.: 5400 kg Technical data, accessories and machine description are non-binding.
