Quaser MV-204 CP
Quaser MV-204 CP

Name: Quaser MV-204 CP
Brand: Quaser
Availability: InStock

Tahun pembuatan

2007

Kondisi

Bekas

Lokasi

Swiss

Data mesin

Nama mesin:: Quaser MV-204 CP

Pabrikan:: Quaser

Model:: MV-204 CP

Tahun pembuatan:: 2007

Kondisi:: siap digunakan (bekas)

Jam operasional:: 8.400 h

Harga & Lokasi

Lokasi:: , Swiss

Hubungi

Rincian teknis

Jarak pergerakan sumbu X:: 1.200 mm

Jarak lintasan sumbu Y:: 700 mm

Jarak gerak sumbu Z:: 610 mm

Produsen pengendali:: HEIDENHAIN

Model controller:: iTNC 530

Tinggi total:: 2.880 mm

Lebar total:: 3.680 mm

Beban meja:: 1.800 kg

Berat keseluruhan:: 9.100 kg

Kecepatan spindel (maks.):: 12.000 rpm

Daya motor spindle:: 30.000 W

Jumlah sumbu:: 3

Rincian penawaran

ID iklan:: A21591783

Nomor referensi:: CH-MIL-QUA-2007-00001

Pembaruan:: terakhir pada 19.05.2026

Deskripsi

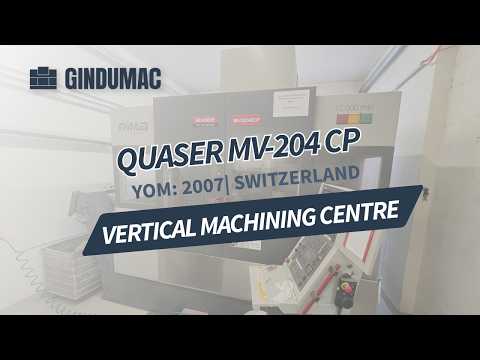

This 3-axis vertical machining center, Quaser MV-204 CP, was manufactured in 2007. It features a working area with an X-axis travel of 1200 mm, a Y-axis travel of 700 mm, and a Z-axis travel of 610 mm. The machine is equipped with a sturdy table size of 1400 x 700 mm and a maximum table load capacity of 1800 kg. If you are looking for a high-quality milling machine, consider the Quaser MV-204 CP, which we are offering for sale. Contact us for further details.

• Machine table: 1400 x 700 mm
• T-slots: 6; width 18 mm; spacing 100 mm
• Distance from table to spindle nose: 150–760 mm
• Spindle type: WEISS WB-40R
• Spindle torque: 192 Nm
Iedpfxjyw S Die Alcoib
• 20 bar through-spindle coolant (IKZ)
• Tool changer: 30 positions
• Operating resources: compressed air 6 bar; voltage 400 V; circuit protection 63 A; connection cable cross-section 4 x 16 mm²
• Usage/condition notes:
• Spindle collision in 2018; spindle operates for plastics, but spindle condition should be checked
• Machine has been out of operation for approx. 6 months due to new acquisition
• Spindle hours: 8,400

Additional equipment

• Coolant system with 600-liter tank
• Chip conveyor
• Heidenhain handwheel HR410
• Various milling chucks
• Haimer shrink-fit chuck
• Slimline basic holder for DuoBlock
• Various ER collet holders (without collets)
• Albrecht drill chuck
• Haimer dial gauge
• Complete machine documentation

Technical Specification
Taper size BT 40
