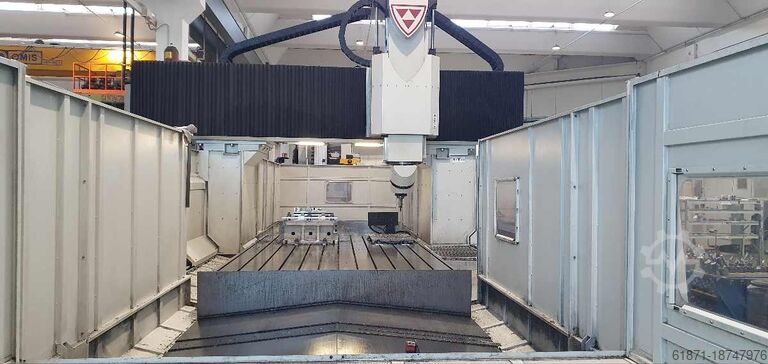

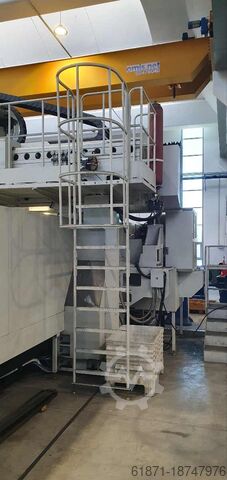

Pusat permesinan CNC

RAMBAUDI/JOBS SARA

Technical Data:

Manufacturer: RAMBAUDI/JOBS
Model: SARA
Year of manufacture: 2018
Control: HEIDENHAIN iTNC 640
Dimensions: 12,600 x 6,830 x 5,045 mm
Table size: 5,000 x 2,500 mm
Maximum load capacity: 15 tons

The machine is equipped with a universal milling head featuring two swivel axes (C and A). The rotation of the tool in the universal milling head as well as the swiveling movements of the C and A axes are controlled by a drive spindle:
- Spindle speed: 5,000 rpm
- Power output: 25 kW (S1) / 33 kW (S6 60%)
- Torque: 482 Nm (S1) / 637 Nm (S6 60%)
- Tool holder: ISO50 DIN69871 collet

Main axes:
- X-axis: Longitudinal movement of the worktable
- Y-axis: Cross movement of the ram slide
- Z-axis: Vertical movement of the ram
- Swivel axis 1 (C-axis): Rotation of the milling unit around the vertical axis of the ram
- Swivel axis 2 (A-axis): Rotation of the milling unit around an axis inclined at 45° to the C-axis

Automatic tool changer (ATC):
- 24-position chain magazine (ISO50)
- Tool change arm between spindle housing and magazine

Additional equipment:
- RENISHAW NC4 laser

Chsdjv Rfwkopfx Adpoc
AXIS SPEEDS

| Axis | Travel | Speed |
|-----|-----|-----|
| X-axis (optical position system) | 5,200 mm | 12 m/min |
| Y-axis (optical position system) | 3,000 mm | 12 m/min |
| Z-axis (optical position system) | 900 mm | 12 m/min |

*(Note: Optical measuring systems ensure precise position detection for the X, Y, and Z axes.)*
