Mesin bor meja

Scharmann Opticut FB 140

Kondisi: siap digunakan (bekas), Tahun pembuatan: 1992, Fungsionalitas: berfungsi sepenuhnya, Diameter batang (maks.): 32 mm, panjang pembubutan: 80 mm, kedalaman pengeboran: 80 mm, No reserve price – guaranteed sale to the highest bidder! The machine is sold complete with collets, tool holders, and additional accessories! For more Schütte multi-spindle machines available from the same location, see below! TECHNICAL DETAILS Maximum turning length: 80 mm Maximum drilling depth: 80 mm Maximum round bar diameter: 32 mm Maximum square bar diameter: 22 mm Maximum hexagonal bar diameter: 27 mm Maximum octagonal bar diameter: 29 mm Spindle pitch diameter: 300 mm Standard bar feed: 125 mm Special bar feed: 290 mm Standard longitudinal slide total travel: 100 mm Standard longitudinal slide working stroke: 80 mm Special longitudinal slide total travel: 145 mm Special longitudinal slide working stroke: 115 mm Top cross slide total travel: 50 mm Top cross slide working stroke: 33 mm Middle cross slide total travel: 50 mm Middle cross slide working stroke: 30 mm Lower cross slide total travel: 60 mm Lower cross slide working stroke: 37.5 mm Maximum workpiece passage: 32 mm Maximum material feed: 125 mm MACHINE DETAILS Voltage: 400 V Frequency: 50 Hz Coolant volume: 700 l Pump: E-type submersible pump Pump capacity: 180 l/min EQUIPMENT Rapid drilling device Gripper device Reaming device Hfsdpfxoz Ag Anj Aqvsl Independent auxiliary longitudinal control Powered cross slide adjustment Collets Tool holders Additional accessories

Kondisi: siap digunakan (bekas), Tahun pembuatan: 1991, Fungsionalitas: berfungsi sepenuhnya, Diameter batang (maks.): 32 mm, panjang pembubutan: 80 mm, kecepatan rotasi (maks.): 3.150 rpm, kedalaman pengeboran: 80 mm, en-01 Hodpfx Ajz Agz Deqvofl

Kondisi: siap digunakan (bekas), Tahun pembuatan: 1983, Fungsionalitas: berfungsi sepenuhnya, kecepatan spindel (maks.): 3.150 rpm, Diameter batang (maks.): 32 mm, berat keseluruhan: 8.300 kg, No reserve price – guaranteed sale to the highest bidder! The machine is sold complete with collets, tool holders, and additional accessories! For more Schütte multi-spindle machines available from the same location, see below! TECHNICAL DETAILS Maximum bar diameter, round: 32 mm Maximum bar diameter, square: 22 mm Maximum bar diameter, hexagonal: 27 mm Maximum bar diameter, octagonal: 29 mm Spindle circle diameter: 300 mm Bar feed, standard/special up to: 125 / 290 mm Longitudinal slide travel, standard, total/travel: 100 / 80 mm Longitudinal slide travel, special, total/travel: 145 / 115 mm Cross slide travel, upper slide, total/travel: 50 / 33 mm Cross slide travel, middle slide, total/travel: 50 / 30 mm Cross slide travel, lower slide, total/travel: 60 / 37.5 mm Number of spindle speeds: 49 Spindle speed range I: 450–3,150 rpm Spindle speed range II: 200–1,400 rpm Workpiece revolutions per operation, standard: 60–425 Workpiece revolutions per operation, reduced: 33.5–236 Workpiece revolutions per operation, extended: 95–670 Number of main times per spindle speed: 35 MACHINE DETAILS Rated power, drive motor: 18.5 kW Drive motor speed: 1,500 rpm Dimensions with control cabinet (L x W): 3,850 x 1,510 mm Length with bar feeder: 6,453 mm Machine weight: 8,300 kg Required space for packed machine: 15 m³ Hsdpfx Ajz Agzqeqvefl EQUIPMENT Collets Tool holders Additional accessories

Kondisi: siap digunakan (bekas), Tahun pembuatan: 1982, Fungsionalitas: berfungsi sepenuhnya, kecepatan spindel (maks.): 3.150 rpm, Diameter batang (maks.): 32 mm, berat keseluruhan: 8.300 kg, No reserve price – guaranteed sale to the highest bidder! The machine is sold complete with collets, holders, and additional accessories! For more Schütte multi-spindle machines available from the same location, see below! Hjdpfxez Agzdj Aqvefl TECHNICAL DETAILS Maximum bar diameter, round: 32 mm Maximum bar diameter, square: 22 mm Maximum bar diameter, hexagonal: 27 mm Maximum bar diameter, octagonal: 29 mm Spindle pitch circle diameter: 300 mm Bar feed, standard/special up to: 125 / 290 mm Longitudinal slide travel, standard, total/travel: 100 / 80 mm Longitudinal slide travel, special, total/travel: 145 / 115 mm Cross slide travel, upper slide, total/travel: 50 / 33 mm Cross slide travel, middle slide, total/travel: 50 / 30 mm Cross slide travel, lower slide, total/travel: 60 / 37.5 mm Number of spindle speeds: 49 Spindle speed range I: 450–3,150 rpm Spindle speed range II: 200–1,400 rpm Workpiece revolutions per operation, standard: 60–425 Workpiece revolutions per operation, reduced: 33.5–236 Workpiece revolutions per operation, extended: 95–670 Number of main times per spindle speed: 35 MACHINE DETAILS Drive motor: 18.5 kW Drive motor speed: 1,500 rpm Dimensions & Weight Dimensions with control cabinet (L x W): 3,850 x 1,510 mm Length with bar guide: 6,453 mm Machine weight: 8,300 kg Space required for packaged machine: 15 m³ EQUIPMENT Collets Holders Additional accessories

Kondisi: siap digunakan (bekas), Tahun pembuatan: 1992, Fungsionalitas: berfungsi sepenuhnya, Diameter batang (maks.): 32 mm, panjang pembubutan: 80 mm, kedalaman pengeboran: 80 mm, No reserve price - guaranteed sale to the highest bidder! The machine is sold with collets, holders, and additional accessories! For other Schütte multi-spindle machines being sold from the same site, see below! TECHNICAL DETAILS Max. turning length: 80 mm Max. drilling depth: 80 mm Hedpfx Asz Ag Aboqvofl Maximum bar diameter, round: 32 mm Maximum bar diameter, square: 22 mm Maximum bar diameter, hexagonal: 27 mm Maximum bar diameter, octagonal: 29 mm Spindle pitch circle diameter: 300 mm Standard bar feed up to: 125 mm Special bar feed up to: 290 mm Standard longitudinal slide travel, total: 100 mm Standard longitudinal slide travel, working travel: 80 mm Special longitudinal slide travel, total: 145 mm Special longitudinal slide travel, working travel: 115 mm Top cross slide travel, total: 50 mm Top cross slide travel, working travel: 33 mm Middle cross slide travel, total: 50 mm Middle cross slide travel, working travel: 30 mm Bottom cross slide travel, total: 60 mm Bottom cross slide travel, working travel: 37.5 mm Maximum material passage: 32 mm Maximum material feed: 125 mm MACHINE DETAILS Voltage: 400 V Frequency: 50 Hz Coolant capacity: 700 l Pump: E-submersible pump Pump capacity: 180 l/min EQUIPMENT Rapid drilling unit Gripper unit Reaming unit Independent auxiliary longitudinal control Motorized cross-slide adjustment Collets Holders Additional accessories

Kondisi: siap digunakan (bekas), Tahun pembuatan: 1995, Fungsionalitas: berfungsi sepenuhnya, Diameter batang (maks.): 32 mm, panjang pembubutan: 80 mm, kecepatan rotasi (min.): 3.150 rpm, kedalaman pengeboran: 80 mm, en-001 Hfodpfx Aqsz Ag A Isvol

Kondisi: siap digunakan (bekas), Tahun pembuatan: 1992, Fungsionalitas: berfungsi sepenuhnya, kecepatan spindel (maks.): 3.750 rpm, Diameter batang (maks.): 26 mm, berat keseluruhan: 6.800 kg, No reserve price – guaranteed sale to the highest bidder! The machine is sold complete with collets, tool holders, and additional accessories! For more Schütte multi-spindle machines available from the same location, see below! TECHNICAL DETAILS Bar diameter round: 26 mm Bar diameter square: 19 mm Bar diameter hexagonal: 22 mm Bar diameter octagonal: 24 mm Spindle pitch circle diameter: 270 mm Standard bar feed: 125 mm Special bar feed: 290 mm Standard longitudinal slide total travel: 80 mm Standard longitudinal slide working travel: 63 mm Special longitudinal slide total travel: 125 mm Special longitudinal slide working travel: 98 mm Top cross slide total travel: 40 mm Top cross slide working travel: 25 mm Middle cross slide total travel: 40 mm Middle cross slide working travel: 25 mm Lower cross slide total travel: 50 mm Lower cross slide working travel: 31 mm Number of spindle speeds: 49 Spindle speed range I: 530–3,750 rpm Hfodpfxoz Agy Ho Aqvol Spindle speed range II: 236–1,700 rpm Workpiece revolutions per cycle (standard): 60–425 Workpiece revolutions per cycle (shortened): 33.5–236 Workpiece revolutions per cycle (extended): 95–670 Number of main times per spindle speed: 35 MACHINE DETAILS Rated drive motor power: 18.5 kW Drive motor speed: 1,500 rpm Dimensions & Weight Dimensions with control cabinet (L x W): 3,500 x 1,450 mm Length with bar guide: 6,470 mm Machine weight: 6,800 kg Space requirement for packaged machine: 14 m³

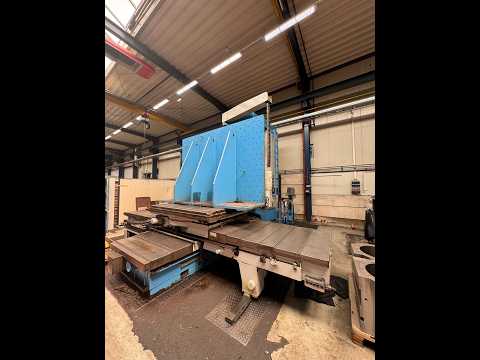

Kondisi: baik (bekas), Tahun pembuatan: 1973, Nomor Referensi: 10658 Produsen: SCHARMANN Tipe: Opticut FB 140 Tahun Pembuatan: 1973 Jenis Kontrol: CNC Kontroler: Heidenhain Lokasi: Halberstadt Negara Asal: Jerman Nomor Mesin: 162XXX Jarak Tempuh Sumbu X: 2000 mm Jarak Tempuh Sumbu Y: 2000 mm Jarak Tempuh Sumbu Z: 1500 mm Diameter Spindel: 140 mm Dudukan Spindel: ISO 50 Dimensi Meja (p x l): 1800 x 1500 mm Kapasitas Beban Meja: 15000 kg Kecepatan Putar: 2,3 - 810 RPM Langkah Spindel: maks. 800 mm Total Kebutuhan Daya: 30 kW Panjang Mesin: 7300 mm Lebar Mesin: 5600 mm Tinggi Mesin: 4000 mm Berat Mesin (kira-kira): 31 ton Hfodpozp Dn Iofx Aqvsl Informasi Tambahan: - Meja putar dengan penggeser meja putar NC dan meja putar NC - Tampilan Digital Heidenhain - Berbagai dudukan perkakas - Berbagai alat penjepit Mesin dapat diperiksa dalam kondisi beroperasi setelah koordinasi.
