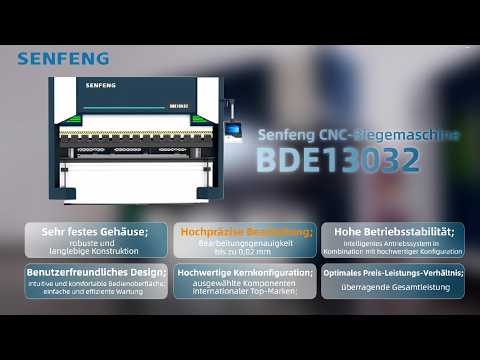

SENFENG BDE13032 CNC Press Brake – 3200 mm × 130 Tons

The SENFENG BDE13032 is a CNC press brake designed for precise, stable, and efficient sheet metal bending. With a working length of 3200 mm and a pressing force of 130 tons, it is suitable for metal fabrication companies, sheet metal processors, mechanical engineering, switchgear manufacturing, enclosure production, construction machinery, and general industrial bending applications.

The machine is equipped with the DELEM DA66S CNC control system. It supports 2D touch-graphic programming, 3D product simulation, a 24-inch color display, a USB interface, and optional Industry 4.0/OPC-UA connectivity. This allows even complex bending tasks to be programmed efficiently and produced with high repeatability.

Key technical data:
• Model: SENFENG BDE13032
• Press force: 1300 kN / 130 tons
• Working length: 3200 mm
Dcedpjzhgltofx Aavjp
• Frame distance: 2600 mm
• Stroke: 400 mm
• Upper beam stroke: 200 mm
• Open height: 480 mm
• Dimensions: approx. 3700 × 1515 × 2630 mm
• Machine weight: approx. 8120 kg
• Main servo motor: 10.8 kW
• X-axis travel: 480 mm
• X-axis speed: 400 mm/s
• X-axis accuracy: ±0.02 mm
• R-axis speed: 200 mm/s
• R-axis accuracy: ±0.05 mm

Bending capacity at 3200 mm bending length:
• Carbon steel: up to 4.5 mm
• Stainless steel: up to 3 mm
• Aluminum: up to 7 mm

Bending accuracy:
• Angular accuracy over the entire length: ±30′
• Straightness accuracy over the entire length: ±0.15 mm
• Dimensional accuracy of the bending length: ±0.15 mm

The machine bed is made of Q235B steel and offers high toughness, impact resistance, and long-term stability. The integrated tongue-and-groove welded structure increases welding strength and reduces the risk of deformation. The frame and upper beam are precisely machined as a unit to reduce positioning errors and ensure stable bending performance over long periods of use.

The CNC-controlled compensation table compensates for the deflection of the upper and lower beams during the bending process. The CNC system calculates the necessary compensation based on the bending load and automatically adjusts the wedges. This ensures that the bending angle remains constant over the entire sheet metal length.

Main configuration:
• DELEM DA66S CNC control
• REXROTH hydraulic control
• HYTEK oil pump
• SCHNEIDER main electrical system
• HIWIN drive components
• SKF cylinder seals
• SENTEK / GIVI magnetic scale
• CNC-controlled deflection compensation
• European standard upper and lower tooling
• LED lighting in the work area
• Adjustable front sheet support with linear guide

Optional equipment includes a DSP safety light curtain, a WILA New Standard clamping system, VERA hydraulic clamps, double-sided quick clamps, and smart factory LAN connectivity.

Depending on the configuration and market version, the series has SGS and other relevant certifications. SENFENG Germany offers professional consulting, installation, commissioning, training, and after-sales service.

The BDE13032 is a reliable solution for companies seeking precise bending, a stable machine structure, modern CNC control, and long-term production efficiency.
