Mesin Pembubut Horisontal

SPINNER TTS 65-DUPLEX

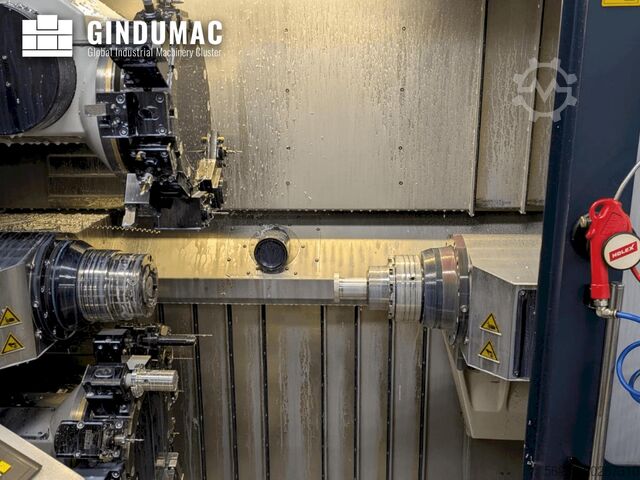

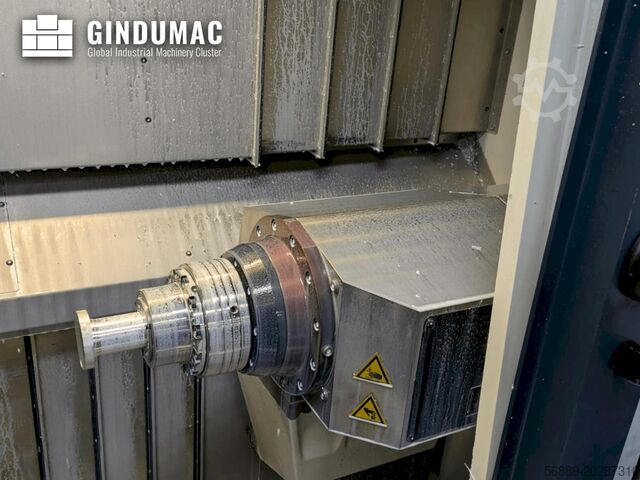

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2015, jam operasional: 5.381 h, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: AS0211, lubang spindel: 65 mm, jarak pergerakan sumbu X: 180 mm, jarak lintasan sumbu Y: 45 mm, gerak cepat sumbu X: 30 m/menit, model controller: FANUC SERIES 31 i-MODEL A, Perlengkapan: konveyor serpihan, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel distances X1 / X2 axis: 180 mm Y1 axis: 45 mm Z1 axis: 704 mm Z2 axis: 620 mm E2 axis: 720 mm Rapid traverse X/Y/Z axes: 30 m/min Spindle 1 Max. speed: 5,000 rpm Spindle nose: A6k Spindle bore: 65 mm Draw tube bore: 65 mm Chuck diameter: 210 mm Drive power: 24 kW Spindle 2 Max. speed: 7,000 rpm Spindle nose: 110 mm Spindle bore: 42 mm Draw tube bore: 42 mm Chuck diameter: 140 mm Max. chuck jaw weight: 1.25 kg Output power: 16.5 kW Tool carrier Turret 1: 10-position tool turret Turret 2: 12-position tool turret Godpexm S Ahefx Adqjkc Driven stations: 12 stations Max. speed of driven tools: 8,000 rpm MACHINE DETAILS Control model: FANUC SERIES 31 i-MODEL A Electrical data Operating voltage: 400 V Frequency: 50–60 Hz Rated current: 80 A Dimensions & weights Dimensions (L x W x H): 4,500 x 2,400 x 2,400 mm Total weight: 9,000 kg Operating hours: 5,381 h EQUIPMENT Documentation/manual KNOLL chip conveyor Tool holders

Kondisi: sangat baik (bekas), Tahun pembuatan: 2020, SIEMENS 840D SL control system MAIN SPINDLE Speed: 5,000 rpm Spindle bore: 65 mm COUNTER SPINDLE Speed: 7,000 rpm Spindle bore: 42 mm 2 TURRETS Travel X1, X2: 180 mm Travel Y1: ±45 mm Gkedpfovi Nizjx Adqjc Travel Z1: 704 mm, Z2: 620 mm 12 stations per turret All stations driven Chip conveyor Bar feeder magazine: TOP X-FILES XFS/7.3

Tahun pembuatan: 2020, Kondisi: siap digunakan (bekas), X1-/ X3-axis: 180 mm, X2-axis: 180 mm, Y1-/ Y3-axis: ±45 mm, Z1-/ Z3-axis: 704 mm, Z2-axis: 620 mm, E2-axis: 720 mm, Rapid traverse X, Y, Z-axis: 30 m/min, Spindle 1: max. speed: 5,000 rpm, spindle bore: 65 mm, chuck diameter: 210 mm, Spindle 2: max. speed: 7,000 rpm, spindle bore: 42 mm, max. chuck diameter: 140 mm, spindle nose diameter: 110 mm, max. chuck jaw weight: 1.25 kg, Number of stations: 2x12, Number of driven tool stations: 2x12, max. speed: 8,000 rpm, Power S3 25%: 4.3 kW, Torque S3 25%: 13.6 Nm. Length: 2,880 mm, Width: 2,130 mm, Height: 1,990 mm, Weight: 7.5 t, Operating hours: 16,597.7 h. Including bar feeder Top Automazioni X-FILES S, year of manufacture 2020, 4x tool holders, straight, left-right square holder, external coolant, 4x machine interface: BT45A, 1x milling head 90°/BMT 45 Spinner, angled milling head/ BMT45/ ESX-25 double spindle right and left, Spinner flat coupling, ER25 max. speed: 6,000 rpm, i=1:1, raised version with center height 85 mm, 1x parting holder, universal rotation direction, external coolant. Machine has been serviced regularly, maintenance records available, an on-site inspection is possible. Godpfx Aew Sxx Uodqjkc
