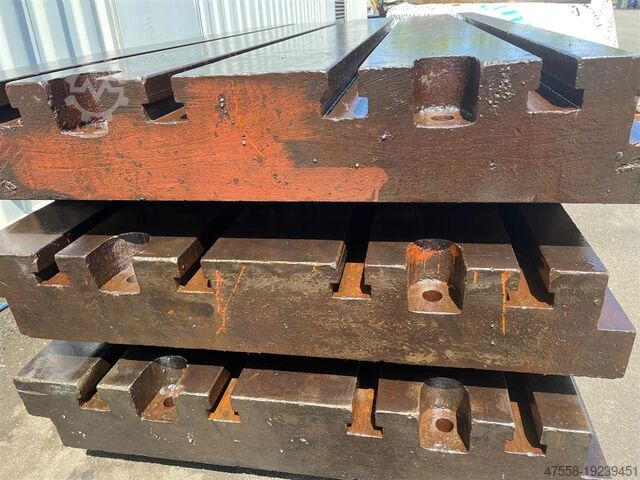

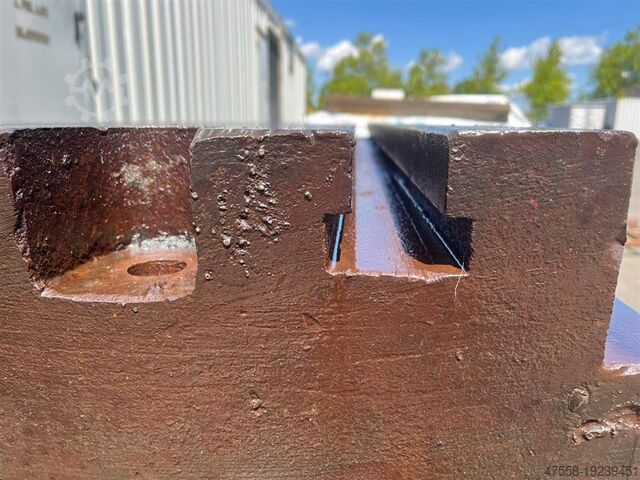

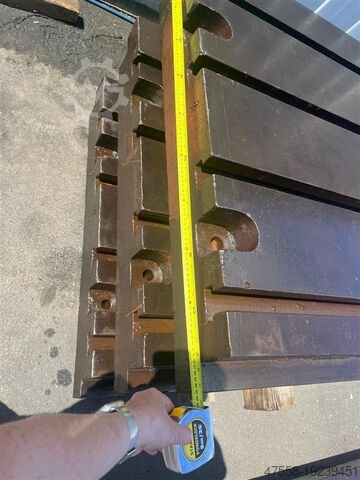

Bolster plate - Plate field

UNBEKANNT / UNKNOWN AP 2000 x1000 x180 (Nr.1-3)

Kondisi: bekas, ALZMETALL AB 3 ESV Column Drilling Machine Machine no.: 15967 Year of manufacture: 1977 Drilling capacity: 32 mm Spindle taper: MK 3 - short quill Distance spindle nose to table: 545 mm (short quill) Distance spindle adapter to table: 395 mm (Morse taper adapter) Throat depth: 290 mm Quill stroke: 160 mm Table size: Ø 545 mm Column diameter: 220 mm Spindle speed: 55 – 1450 rpm, stepless Motor power: 1 / 1.6 kW Power supply: 380 Volt, 50 Hz - Spindle speed adjustable via 2 gearbox stages, 2 motor speeds, and stepless via variator gearbox - Pre-stage for high torque at low speeds - Morse taper adapter from MK3 to MK4 - Automatic feed: 0.1 – 0.2 – 0.3 mm/rev - Rotatable drill table - Table height adjustment via hand crank - Heavy machine base with machined workpiece support surface (not original Alzmetall) Djdpfxsharwvj Aavskw - Work area lighting Required space (L x W x H): 1150 x 650 x 2000 mm Weight: 850 kg In good condition.

Kondisi: bekas, Tahun pembuatan: 1990, nomor mesin/kendaraan: 2316-3, 10622 Technical Data: - Drilling capacity in solid steel ST 60: 28 mm - Drilling capacity in cast iron GG 25: 40 mm - Thread cutting in ST 60: M 30 - Thread cutting in GG 25: M 40 - Drill spindle taper: MT 3 - Spindle diameter: 50 mm - Quill stroke: 150 mm - 18 spindle speeds: 45 – 2240 rpm - 4 feed rates: 0.1 – 0.45 mm/rev - Min./max. spindle-to-table distance: 300 / 700 mm - Min./max. drilling radius: 305 / 1005 mm - Table height: 820 mm - Table size: 1200 x 600 mm - Drive: 400 V / 6 kW - Space requirement (approx.): W 1300 x H 2800 x D 2300 mm - Weight (approx.): 1500 kg - Equipped with: - Thread cutting device - Hydraulic column and arm clamping - Coolant system Dkodpfx Aaou Et Nbsvow - Vertical T-slots on the left-hand side of the machine

Kondisi: perlu perbaikan (bekas), Lathe for machining small wooden pieces; the machine processes diameters from 7 to 45 mm. Dsdpfx Asuknznjavokw

Kondisi: baru, Tahun pembuatan: 2026, kapasitas pengeboran: 40 mm, kedalaman tenggorokan: 1.220 mm, kecepatan spindel (min.): 110 rpm, kecepatan spindel (maks.): 2.900 rpm, berat keseluruhan: 1.710 kg, langkah spindel: 200 mm, penjepit spindle: MK 4, Drilling capacity in St 60: 40 mm Dedpfxstzkmbs Aavokw Drilling capacity in GG 20: 40 mm Thread cutting (St 60 / GG 20): M 27 / M 36 Tool holder short spindle: MK 4 Distance spindle center / column, min. - max.: approx. 210 - 1220 mm Clamping surface machine table: approx. 1200 x 510 mm T-slots in machine table: number x width: 3 x 18 mm Distance spindle – table, min. - max.: approx. 375 - 675 mm Distance spindle – base plate (= option), min. - max.: approx. 1075 – 1375 mm Spindle stroke: approx. 200 mm Feed rates (4): 0.08 - 0.1 - 0.2 - 0.3 mm/rev Main spindle speed range: infinitely variable 110 - 2900 rpm Dimensions (height x width x depth): approx. 2500 x 1200 x 1710 mm Net weight: approx. 1710 kg Drive power, spindle motor: 400 V, 50 Hz, approx. 2.2 / 4.0 kW

Kondisi: baik (bekas), Tahun pembuatan: 1999, For sale is an AXA Vario horizontal machining center with two milling tables. The machine is in good condition and has performed very little 'heavy-duty machining' (primarily used for drilling and thread cutting). Technical specifications: Year of manufacture: 1999 Control unit: Heidenhain TNC 410 M digital Table dimensions: 2030 mm x 500 mm Maximum table load (evenly distributed): 800 kg Minimum spindle speed: 30 rpm Maximum spindle speed: 10,000 rpm Travel on X-axis (mechanical feed): 1760 mm Travel on Y-axis (mechanical feed): 500 mm Travel on Z-axis (mechanical feed): 620 mm Machine dimensions: Height: 3900 mm Length: 2900 mm Width: 3000 mm Weight: 9 t INCLUDED EQUIPMENT/FEATURES: - 1 spindle version SK 40 DIN 69 871 A - 1 control cabinet (integrated into the rear of the machine) - Ball screw spindles: Manufacturer Deutsche Star - Central lubrication system: Manufacturer Bielomatik - Hydraulic power unit: Manufacturer Hydac - RTA 2-300 - MK-3 manually operated tailstock - Electric handwheel HR 410 - Scraper belt conveyor, discharge side right - Probe TS 630 WORKPIECE HOLDERS ARE NOT INCLUDED IN THE OFFER All prices plus VAT. Viewing by appointment possible. Contact us—our team will be happy to assist you. Trade-in or exchange possible! Machinery purchase and sale BUYING/SELLING PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or do you want to sell yours? Dkedpfx Astt Abmsavow For more information or to contact us, please visit our website.

Kondisi: baru, Anzahl der Räder (Stk.): 4 Raddurchmesser: 120 mm Radbreite: 60 mm Dededmk Ekjpfx Aavokw Vorschubgeschwindigkeit: 3,5 / 5 / 7 / 10 / 12,5 / 16 / 25 / 32 m/min Motorleistung: 750 W / 550 W Maschinenrahmen: Aluminiumguss Vorschubrichtung: Vorwärts/Rückwärts

Kondisi: baik (bekas), Tahun pembuatan: 1995, deckel-maho-fp1-1995 Dsdpfxszamw Ie Aavekw

Kondisi: bekas, Technical details: z-axis travel: 400 mm Spindle speed range: up to 3,000 rpm, stepless Feed, stepless: not specified Quill stroke, vertical: 100 mm Spindle taper: MT2 Dkodpfxjv A S Efs Aavjw Table surface: 445 x 315 mm Distance table to spindle underside: max. 520 mm Table travel (longitudinal): 250 mm Table travel (cross): 330 mm Table height above floor: 920 mm Total power requirement: 1.6 kW Machine weight approx.: 1,500 kg Machine dimensions LxWxH: 1.3 x 1.1 x 2.0 m Application: Milling and drilling of elongated holes Fine depth indicator gauge mounted on the drilling spindle head. 5x T-slots according to DIN 650: a=10; h=18; b=18; c=8 mm Equipment: Two-axis digital display ACU-RIDE

Kondisi: bekas, Technical Details: Table length: 2000 mm Table width: 1500 mm Dkedpfx Asu N D Rdsavsw Table height: 820 mm Table thickness: 185 mm Approx. machine weight: approx. 2.1 / 2.2 t per plate Transport dimensions (LxWxH): approx. 2.0 x 1.5 m / per plate There are 6 of these clamping plates available for sale. (Price per piece) Material: cast steel / profile cast T-slots according to DIN 650: a=43; h=105; b=76; c=50 mm; center distance 375 mm 4x through holes Ø 90 mm 10x mounting holes Ø 25 mm with countersink Ø 85 x 135 mm with base frame for plate no. 1+3+4+5+6: L: 1990 mm x W: 1490 mm x H: 185 mm with base frame for plate no. 2: L: 2020 mm x W: 1515 mm x H: 520 mm

Kondisi: bekas, Tahun pembuatan: 1983, Technical details: Throat depth: 315 mm Throat width: 310 mm Throat height: 230 mm Saw band length: 2530 – 2650 mm Saw band width: 13 mm Band speed: 12 – 750 m/min Table size: 500 x 500 mm Table height above floor: 950 mm Total power requirement: 1.3 kW Approx. machine weight: 450 kg Machine dimensions (LxWxH): 0.8 x 0.7 x 1.65 m Steel and metal band saw File band length: 2550 mm Additional equipment: Saw band processing unit Ideal -> Saw band cutting station – Saw band welding device – Saw band grinding device Cooling via spray system Foot control Accessories: Djdpeva E E Tefx Aavskw -various saw bands -1x flywheel Ø 320 mm -Saw blade stock by the metre RRR Röntgen
