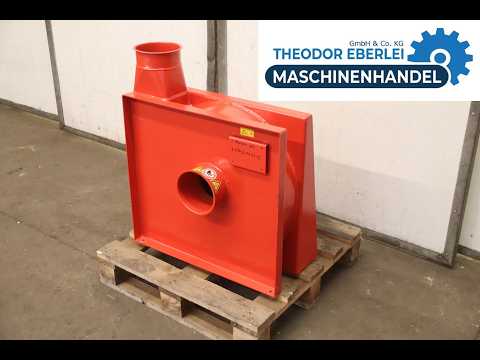

Blower tekanan 2,2 kW

WIPA Ø 420 mm 650/560/H760 mm

Kondisi: baru, nomor mesin/kendaraan: 190040019, Inclined conveyor (4,000 x 390 mm) Inclined conveyor with direct drive and PU-PVC belt Lredpfstvfb Nox Afvjr

Kondisi: baru, Tahun pembuatan: 2019, nomor mesin/kendaraan: DF0303, gaya penekanan: 160 t, panjang meja: 550 mm, lebar meja: 500 mm, tinggi kerja: 700 mm, Hydraulic Vulcanizing Press – Manufacturer: Hidrobrasil – 160 t Heated Press For sale is a hydraulic vulcanizing press from Hidrobrasil with a maximum pressing force of 160 t. The machine features heated platens sized 550 × 500 mm, an open height of 700 mm, a stroke of 400 mm, and is particularly well-suited for vulcanization, laminating, and thermal pressing processes in rubber and plastics processing. ==== Technical Data & Information: Hidrobrasil Vulcanizing Press – Heated Press ==== General Specifications - Manufacturer: Hidrobrasil - Model: Vulcanizing Press - Design: Heated press / vulcanizing press - Press force: 160 t - Machine weight: approx. 4.2 t - Dimensions (L × W × H): 950 × 2,440 × 2,400 mm ==== Working Area Lrodpjfxyh Rofx Afver - Open height: 700 mm - Stroke / travel: 400 mm - Table height above floor: 850 mm ==== Table and Ram - Table plate: 700 × 600 mm - Ram plate: 700 × 600 mm ==== Forces - Return force: 16 t ==== Speeds - Approach speed: 10 mm/s - Pressing speed: 10 mm/s - Rapid traverse speed: 10 mm/s - Return speed: 25 mm/s ==== Hydraulic System - Motor power: 15 kW - Oil tank: 300 l - Electric oil cooling: 1.5 kW ==== Heating System - Heating plates: 550 × 500 mm - Electrically heated up to 200 °C - Heating power: approx. 12 kW - Temperature sensors: 2 per heating plate - Temperature accuracy: ± 3 °C within 500 × 450 mm - Heating plate manufacturer: ELKOM - Upper and lower platens separately controllable - Adjustable heating time - Automatic opening after heating time (optional) ==== Ejector System - Ejector size: 30 × 30 mm - Ejector stroke: 150 mm - Ejector force: 15 t - Ejector speed: 25 mm/s - Number of ejectors: 1 ==== Equipment - Swing-mounted two-hand control - Interior lighting - Pressure adjustment via rotary control (10 steps) - Heating plates with T-slots per DIN 650 (customized) - Insulation of heating plates from machine frame ==== Options - Light barriers front and rear: €6,800 - Double door with rear-side monitoring: €2,400 - Door with right-side monitoring: €1,200 - Door with left-side monitoring: €1,200 ===== Vulcanization, rubber processing, plastics processing, laminating processes, compression molding, thermal pressing methods, hot pressing Vulcanizing press, heated press, hydraulic press, rubber press, laminating press, compression mold press, thermoforming press, tryout press, tool tryout press Looking for a hydraulic press tailored to your application? Contact us for an individual offer. Our hydraulic presses are manufactured in accordance with German and European machinery directives (Directive 2006/42/EC), EC standards, and EU safety regulations. Furthermore, our presses exceed Canadian and European safety requirements as they also fully comply with Brazilian national safety directive NR 12, which builds on these standards. Our main strengths are special purpose machine construction and press automation. We supply customized hydraulic presses at surprisingly competitive prices. For the hydraulic systems, we primarily use components from leading European manufacturers.

Kondisi: sangat baik (bekas), Tahun pembuatan: 1991, Fungsionalitas: berfungsi sepenuhnya, daya: 11 kW (14,96 hp), tegangan masuk: 200 V, gaya penekanan: 160 t, panjang meja: 600 mm, berat keseluruhan: 19.000 kg, gaya punching: 160 t, jenis penyesuaian ketinggian: listrik, tinggi pemasangan: 1.900 mm, penyesuaian silinder hidrolik: 100 mm, penyesuaian langkah: 130 mm, Perlengkapan: dokumentasi / manual, penghadang cahaya keselamatan, Manufacturer: AIDA Model: NC2-160 Press force: 160 t Year of manufacture: approx. 1991 Stroke length: 130 mm Shut height: (adjustable) 285–335 mm Table: 1900 x 600 mm Lrodpsu D Dhxefx Afvor Ram: 1360 x 585 mm Electrical power: 3x200V (!!), 15 kW – Japanese standard Net weight: 19,000 kg Dimensions: 2140 x 2210 x 3175 mm Automatic lubrication system. Optional with decoiler and straightening machine.

Kondisi: baru, nomor mesin/kendaraan: 190040021, Voran inclined conveyor belt 2,800 x 390 mm, angled Lredpstvfdnofx Afver

Kondisi: baru, nomor mesin/kendaraan: DF0189, gaya penekanan: 500 t, Single-column Press – Manufacturer Calende – 500 t Straightening Press – Table 1,200 × 1,200 mm For sale is a powerful hydraulic single-column press from manufacturer Calende, offering a pressing force of 500 t. This machine stands out for its compact design while delivering high pressing capacity, making it ideal for demanding straightening, assembly, and forming operations. ==== Technical Data & Information: Single-column Press Calende – 500 t Straightening Press ==== General Information - Manufacturer: Calende - Model: Single-column Press - Design: C-frame press / Single-column press - Pressing force: 500 t - Machine weight: approx. 40 t - Dimensions (L × W × H): 2,800 × 1,750 × 4,350 mm ==== Working Area - Pass-through width: 1,200 mm - Stroke: 400 mm - Max. working height: 800 mm - Table height: approx. 1,200 mm ==== Table & Ram - Table plate: 1,200 × 1,200 mm - Ram plate: 1,000 × 1,000 mm ==== Speeds - Approach speed: 0 – 10 mm/s Lrodpfx Asfxykaefvsr - Pressing speed: 0 – 10 mm/s ==== Hydraulics - Motor power: 50 kW - Return force: 50 t - Oil tank capacity: 700 l ===== Straightening work, assembly work, forming technology, pressing-in operations, maintenance, toolmaking Single-column press, C-frame press, hydraulic press, straightening press, industrial press, die setting press, tryout press, tool tryout press Are you looking for a hydraulic press tailored to your specific application? Contact us for a customised offer. Our hydraulic presses are manufactured in accordance with German machinery directives, as well as European Machinery Directive (Directive 2006/42/EC), EC standards, and EU safety regulations. Furthermore, our presses exceed both Canadian and European safety requirements, as they fully comply with the national Brazilian safety standard NR 12, which builds upon these regulations. Our key strength lies in special-purpose machine construction and press automation. We supply customised hydraulic presses at surprisingly affordable prices. For the hydraulics, we primarily use components from leading European manufacturers.

Kondisi: diremajakan ulang (bekas), Tahun pembuatan: 2018, nomor mesin/kendaraan: DF0150, gaya penekanan: 63 t, Single-column Press – Manufacturer Calende – 63 t C-Frame Press – Table 750 × 600 mm For sale is a robust hydraulic single-column press (C-frame design) from Calende, offering a pressing force of 63 tons. The machine features high traversing speeds, a modern Siemens control system, and a compact structure, making it ideally suited for assembly, straightening, and pressing operations in industrial applications. ==== Technical Data & Information: Single-column Press Calende – 63 t C-Frame Press ==== General Information - Manufacturer: Calende - Model: Single-column Press - Design: C-frame Press / Single-column Press - Pressing Force: 63 t - Machine Weight: approx. 5.1 t - Dimensions (L × W × H): approx. 1,500 × 1,600 × 2,995 mm ==== Working Area - Passage Width: 700 mm - Stroke: 500 mm - Max. Working Height: 700 mm - Table Height: 850 mm ==== Table & Ram - Table Plate: 750 × 600 mm - Ram Plate: 600 × 540 mm ==== Speeds Lodpfxjfhcc Us Afvsrr - Approach Speed: max. 140 mm/s - Pressing Speed: 15 mm/s ==== Hydraulics - Motor Power: 11 kW - Retraction Force: 6 t - Oil Tank Capacity: 150 l ==== Electrical & Control - Control Voltage: 24 V - Frequency: 50 Hz - Control System: Siemens S7-1200 - Monitor: Siemens, 12" ==== Assembly operations, pressing-in operations, straightening operations, series production, workshop applications, maintenance Single-column press, C-frame press, hydraulic press, workshop press, assembly press, industrial press, tool adjustment press, tryout press, tool try-out press Are you looking for a hydraulic press tailored to your specific application? Contact us for a customized offer. Our hydraulic presses are manufactured according to German and European machinery directives (Directive 2006/42/EC), EC standards, and EU safety regulations. Furthermore, our presses exceed Canadian and European safety requirements by fully complying with the Brazilian national safety guideline NR 12, which is based on these standards. Our core competence lies in custom machine building and press automation. We offer customized hydraulic presses at surprisingly competitive prices. For the hydraulics of our presses, we primarily use components from leading European manufacturers.

Kondisi: diremajakan ulang (bekas), Tahun pembuatan: 2019, nomor mesin/kendaraan: DF0195 - Rev.00, gaya penekanan: 40 t, Single-column press – Manufacturer Calende – 40 t C-frame press – Table 750 × 720 mm For sale is a compact hydraulic single-column press (C-frame) from manufacturer Calende with a pressing force of 40 t. This machine impresses with its high operating speeds, modern Siemens control system, and robust construction, making it ideal for assembly, straightening, and press-fitting tasks. ==== Lsdpfxjfhcc Ho Afvsrr Technical Data & Information: Single-column press Calende – 40 t C-frame press ==== General Information - Manufacturer: Calende - Model: Single-column press - Type: C-frame press / single-column press - Pressing force: 40 t - Machine weight: approx. 3,800 kg - Dimensions (L × W × H): approx. 1,300 × 1,800 × 3,200 mm ==== Working Area - Throat width: 850 mm - Stroke: 500 mm - Max. working height: 700 mm - Table height: approx. 850 mm ==== Table & Ram - Table size: 750 × 720 mm - Ram plate: 600 × 450 mm ==== Speeds - Approach speed: max. 140 mm/s - Pressing speed: 15 mm/s - Return speed: 140 mm/s ==== Hydraulics - Motor output: 12.7 kW - Return force: 4 t - Oil tank capacity: 160 l - Oil cooling: electric, 1.5 kW (max) ==== Control & Operation - Control system: Siemens S7-1200 - Monitor: WEG, 10" ===== Assembly, press-fitting, straightening, series production, workshop applications, maintenance Single-column press, C-frame press, hydraulic press, workshop press, assembly press, industrial press, die tryout press, tryout press, tool try out press Are you looking for a hydraulic press tailored to your application? Contact us for an individual offer. Our hydraulic presses are manufactured in accordance with German and European machinery directives (Directive 2006/42/EC), EC standards, and EU safety regulations. In addition, our presses exceed Canadian and European safety requirements as they fully comply with the national Brazilian safety directive NR 12, which builds on these standards. Our key strengths are custom machine construction and press automation. We supply tailor-made hydraulic presses at surprisingly affordable prices. For the hydraulics, we use components predominantly from leading European manufacturers.

Kondisi: baru, Tahun pembuatan: 2025, Fungsionalitas: berfungsi sepenuhnya, gaya penekanan: 40 t, panjang langkah: 250 mm, lebar meja: 700 mm, panjang meja: 450 mm, kedalaman tenggorokan: 230 mm, tinggi pemasangan: 400 mm, PRESS C-frame BARU EXNER EEX SLL 40 Standard Line LIGHT Tahun pembuatan: 2025 Kekuatan tekan: 400 kN Tinggi pemasangan: 400/450 mm Langkah (stroke): 250 mm Meja (lebar): 700 mm Meja (kedalaman): 450 mm Lrsdpfx Aow Nx Nhjfvsr Jangkauan (throat depth): 230 mm

Kondisi: bekas, Tahun pembuatan: 1992, Pressure: 75 t Lsdpfjt Hwrzox Afverr Throat depth: 280 mm Stroke: 303 mm Total power requirement: 15 kW Machine weight approx.: 7,000 kg Space requirement approx.: (dimensions unspecified) Hydraulic single-column press, Type HZS 75 Year of manufacture: 1992 Serial no. H 92-2249 _____ Ram pressing force: 75 t Table size: 750 x 515 mm Table height above floor: 820 mm Through-hole in table: 300 x 200 mm Maximum installation height: 500 mm Throat depth: 280 mm Ram stroke: approx. 303 mm Ram area: 500 x 400 mm Ram bore: 50 mm Main drive: approx. 15 kW - 380 V - 50 Hz Weight: approx. 7,000 kg Total machine height: 3,850 mm Accessories / Special equipment: - DUNKES program control Type PC 10 with data input field for pressure setting, pressure/time switching, top/bottom stroke, rapid traverse and working speeds, including digital display of pressing force, ram travel, pressing time, program number. Storage for up to 30 tool programs, Siemens S5 PLC, teach-in button - Press ram guided over adjustable prism guides - Hydraulic stroke cushioning mounted in the press cylinder, 15 mm - Motorised depth stop and stroke cushioning adjustment - Double sheet detection: Maximum pressing force only after reaching preselected position - Hydraulic tool clamps (4) on the table, hydraulic pin clamping on the ram, hydraulic ejector in the ram, 3 t/15 mm - Safety two-hand control, electrical and stepless return stroke limitation - Overrun monitoring devices NKS, ram switching for the upper piston - Mounted control cabinet, connection for oil cooler, etc.

Kondisi: sangat baik (bekas), Jabsco 200 pumpe, Edelstahlpumpe, 18-Liter-Trichter, bis zu 200 l/min Förderleistung, 316-Edelstahl, Temperaturbereich 4 °C bis 70 °C, ideal zum Fördern von Lebensmitteln, Saucen, Teigen, Fleischpasten, Flüssigei, Joghurts, Cremes, Molkereiprodukten, pharmazeutischen Produkten und vielem mehr, 1,5 kW Motor, 3-Phasen Anschluss. Lredoic Nqmepfx Afvor
