Mesin termoforming - mesin pelapis tepi

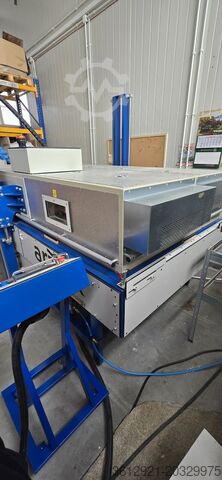

Artex VPF2 3D

The VPF series vacuum press is designed for PVC foil laminating as well as veneering with natural wood veneer. It is suitable for both small and large manufacturing facilities.

The VPF Vacuum Press is fully automated and offers three operation modes:
- Automatic mode: After pre-setting the work parameters in the PLC controller, the press automatically completes all operations (heating, pressing, cooling).
- Manual mode: The operator performs all operations manually.
- Membrane mode: This mode is intended for operation with a membrane for veneering and lamination bending (also available in automatic mode).

Working area: 1400x3000 mm
Max temperature: 140°C
Power: 30 kW
Power supply: 3P 400V 50Hz
Dimensions: 3500x1700x2200 mm
Weight: 1150 kg

APPLICATIONS:

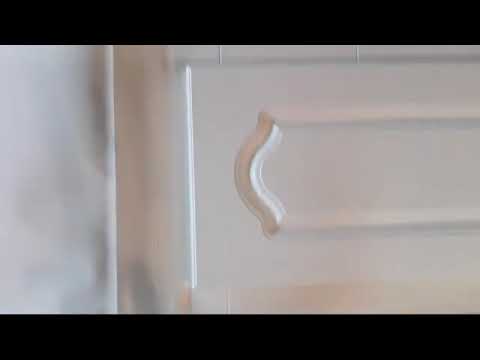

- Lamination of flat elements with PVC foil (kitchen fronts, windowsills)
- Veneering of straight and shaped parts with natural veneer (doors, frames, chairs, tables, furniture, coffins)
- Lamination of parts with HPL laminates in 2D format (kitchen worktops, window sills)
- Pressing of structural surfaces (stone veneer, decorative mats)

CONSTRUCTION FEATURES:
- Robust, welded, powder-coated steel frame
- Infrared carbon heating elements
- Three heating zones with adjustable temperature
- Pneumatic cylinders for lifting the heating dome
- All-round access to the work table

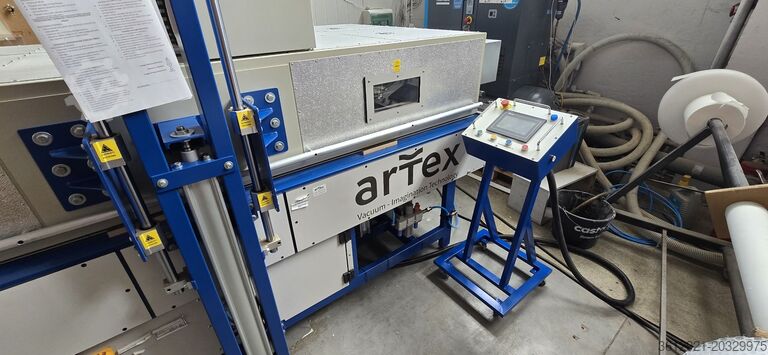

- Integrated PLC controller for automatic operation
- Equipped with an electronic vacuum control system
- Work table surface made of HPL board
Iodpfx Adsxpqt Deqotn

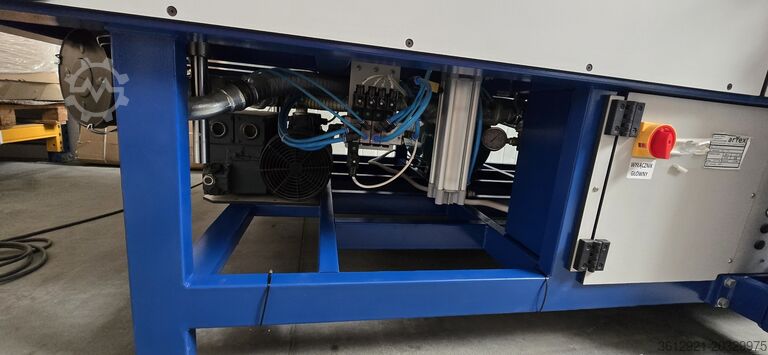

- Built-in oil vacuum pump (100 m³) – 0.9-0.95 bar (9000-9500 kg/m²)
- Integrated 100-liter buffer tank

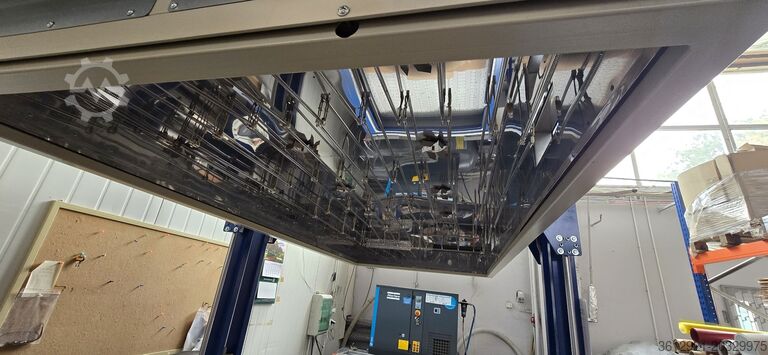

- Upper heating dome made of aluminum
