Pusat permesinan vertikal

AVIA VMC1000

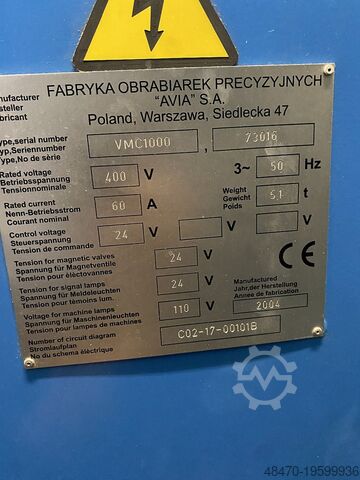

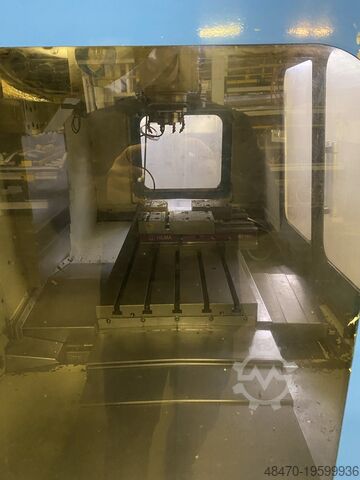

Kondisi: bekas, Tahun pembuatan: 2004, Technical specifications: Travel (X/Y/Z): 650 / 500 / 450 mm Clamping surface: 1000 x 600 mm Spindle taper: SK 40 Spindle speed: 6,500 rpm Max. table load: 400 kg Number of tool magazine positions: 20 Power supply: 24 kVA Machine weight, approx.: 5,500 kg Equipment: - Motor spindle 12,000 rpm - 20-position tool changer - Heidenhain tool probe - Heidenhain workpiece probe - Heidenhain handwheel - Menzel minimum quantity lubrication system - approx. 25 tool holders Njdpfx Aewglapegyowp

Tahun pembuatan: 1993, Kondisi: siap digunakan (bekas), Vertical Turning Center Dörries Scharmann Model VCE 2000/160 Pallet Size: 1,600 mm Nwedpfxjguk S Ss Agyep Pallet Load Capacity: max. 8,000 kg Number of Pallets: 13 units Table Indexing: C-Axis 0.001° Table Cross Travel (X): 2,300 mm Column Longitudinal Travel (Z): 1,500 mm Crossbeam Positions: 9 steps of 100 mm each Feed Rate X/Y/Z: 1 – 6,000 mm/min Rapid Traverse X/Y/Z: 8 m/min Max. Swing Diameter: 2,000 mm Max. Workpiece Height: 1,500 mm Main Spindle Spindle Drive Motor: 69 kW Spindle Speed: 2.8 – 315 rpm Automatic Tool Changer for Turning: 59 positions – System 240.2 Live Spindle – SK50 Spindle Drive Motor: 30 kW Spindle Speed: 10 – 1,500 rpm Automatic Tool Changer for SK50: 61 positions CNC Controller: Siemens Sinumerik 880M Accessories FMS (Flexible Manufacturing System): 13 pallets Rotary Loading Stations: 2 units Coolant Unit with Filtration System Through-Spindle Coolant Supply Machine Weight: Approx. 40 tons Year of Manufacture: 1993 (See also other listings from this seller)

Kondisi: bekas, Tahun pembuatan: 1979, x800_y300_z400 Nsdpewwwqhofx Agyewp

Tahun pembuatan: 2017, Kondisi: siap digunakan (bekas), Laser power: 10 kW (10,000 W), working area: 3000 mm x 1500 mm, maximum material thickness: mild steel: 25 mm, stainless steel: 30 mm, aluminium: 30 mm, copper: 12 mm, brass: 15 mm. Maximum positioning speed: 120 m/min, positioning accuracy: +/-0.05 mm, maximum workpiece weight: 1100 kg. Machine dimensions (X/Y/Z): approx. 9500 mm / 3500 mm / 3500 mm, extraction unit dimensions (X/Y/Z): approx. 1500 mm / 1500 mm / 4000 mm, machine weight: approx. 12,000 kg, operating hours: approx. 17,000 h. Documentation available. On-site inspection possible. Expected to be available from June 2025. Nwedpfxjvyiqge Agyjp

Kondisi: baik (bekas), Tahun pembuatan: 2003, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 1.200 mm, jarak lintasan sumbu Y: 900 mm, jarak gerak sumbu Z: 500 mm, model controller: iTNC 530, kecepatan rotasi (maks.): 18.000 rpm, berat keseluruhan: 12.500 kg, de1b11ac-8f4c-4ece-91fc-d724c3f574f8 Nwjdjvambiepfx Agyjp

Kondisi: baru, Tahun pembuatan: 2023, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 1.000 mm, jarak lintasan sumbu Y: 600 mm, jarak gerak sumbu Z: 650 mm, produsen pengendali: Heidenhain, model controller: TNC640, Technology: Direct drive Speed: 12,000 rpm Power: 20 kW Torque: 128 Nm Tool holder: SK 40 Tool changer: 40 positions Working area Travel X: 1,000 mm Travel Y: 600 mm Travel Z: 650 mm Fixed table (X/Y): 1,100 x 600 mm Table load capacity: 1,100 kg Miscellaneous Rapid traverse (X/Y/Z): 36/36/32 m/min Equipment Chip management: Hinged belt conveyor Coolant management: Internal coolant supply 20 bar Coolant filtration: Oil separator Electrical cabinet cooling: Air conditioning unit Njdpfjtpm Stsx Agyswp Workpiece measurement: Renishaw OMP 40

Kondisi: baik (bekas), Tahun pembuatan: 2008, daya laser: 4.000 W, ketebalan pelat baja (maks.): 20 mm, jangkauan kerja: 2.500 mm, Perlengkapan: unit pendingin, TRUMPF TruLaser 2525 - 4 kW (formerly Trumatic L 2530) Working area: 2,500 x 1,250 x 115 mm Control: Siemens Sinumerik 840 D Laser power: 4,000 watts Max. sheet thickness mild steel: 20 mm Max. sheet thickness stainless steel: 15 mm Max. sheet thickness aluminium: 10 mm STANDARD EQUIPMENT: - Enclosed machine frame with integrated laser unit - TFT color monitor - Positioning laser diode - Motion unit for high-precision machining - Additional high-dynamic Yp axis - Maintenance-free three-phase servo drives - Enclosed beam guidance - Small parts and scrap conveyor - NitroLine - FlyLine - Piercing detection TRUMPF LASER: - CO2 laser TruFlow 3200 - High-frequency excitation - Maintenance-friendly turbo radial blower - Integrated gas mixer - Laser power control - Laser logbook function CUTTING HEAD: - Laser cutting head with 5" lens - Laser cutting head with 7.5" lens - Universal quick-change system - ControlLine Nwjdpsrwlwnofx Agysp CONTROL: - Control: SIEMENS Sinumerik 840D - Automatic switch-off - ContourLine - SprintLine - Teleservice - Microweld - RJ45 network interface - 3.5" floppy disk drive - Network connection via remote diagnostics SAFETY: - CE marking - Light barriers - Multi-chamber extraction system - Compact dust extraction unit - Workshop programming EXTENDED EQUIPMENT: - More powerful TruFlow 4000 laser - Automatic pallet changer

Kondisi: bekas, Deckel Maho DMU 70 eVolution Nsdpfx Aew Rtd Aegyewp

Kondisi: hampir baru (bekas), Tahun pembuatan: 2012, jam operasional: 6.589 h, Fungsionalitas: berfungsi sepenuhnya, Wir offer for sale a superb POSMILL E1100 machining center, year of manufacture 2012. The machine has low spindle hours (6589) and has been used for single-part production. The machine is under power and ready for demonstration at the site. Nsdpfx Agjwkhy Teyjwp Technical data: X-axis: 1100 mm Y-axis: 600 mm Z-axis: 510 mm Spindle-to-table distance: 120-630 mm Table size: 1300 x 600 mm Control: ITNC 530 - ITNC 530 control system - Tool measurement 35.1 - Workpiece measurement with probe - Linear measuring system on all axes - ICS for internal machining - Various tools with holders - Chip conveyor - Filtration unit - Workshop trolley with holders - Machine vice

Kondisi: baik (bekas), Tahun pembuatan: 1999, Offered is a used CNC milling machine CHIRON FZ 22 S high speed with Siemens SINUMERIK 840D control system. The machine is already dismantled and ready for loading. Manufacturer: CHIRON - Werke 78532 Tuttlingen Model: FZ 22 S high speed Machine No.: 497-55 Chip conveyor: Knoll 340 K-1/500 Spindle hours: 2,355 h Year of manufacture: 1999 Weight: 6,500 kg Inspection report from 2021 is available X-axis travel: 750 mm Y-axis travel: 520 mm Z-axis travel: 630 mm Spindle taper: SK 40 CNC control: Siemens SINUMERIK 840D Table size: 1,150 x 570 mm Max. table load: 1,200 kg Nodokr E Nnspfx Agyjwp Automatic tool changer: 20 positions Coolant system Operating voltage: 400 V Total power requirement: 32 kVA Space requirements (W x L x H): approx. 2.00 x 3.80 x 3.0 m The price is net, plus statutory VAT, ex works, loaded on truck.
