Lathe-conventional-electronic

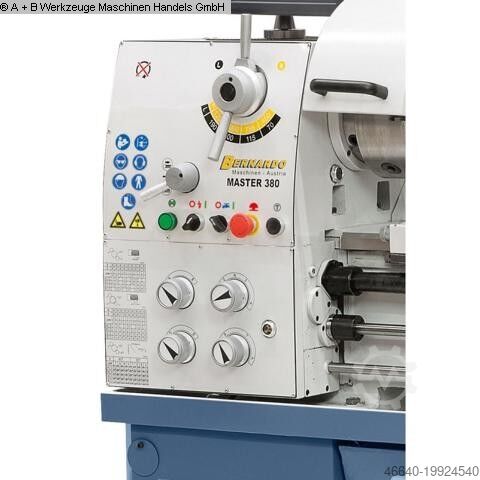

BERNARDO MASTER 380-1000 Digital

turning length 1000 mm
turning diameter 380 mm
turning dia. in gap 490 mm
spindle bore 51,0 mm
Cjdpsxabv Rsfx Anpjhd
turning speeds 70 - 2000 U/min
bed width 185 mm
spindle taper 55029 D 1-5
taper in tailstock 4 MK
quill travel 120 mm
total power requirement 1,5 / 2,2 kW
weight of the machine ca. 575 kg.
range L-W-H 1920 x 800 x 1660 mm
Equipment:
- 3-axis digital display i200 with LCD display
- 3-jaw chuck DK11-200 mm / D5
- Faceplate 200 mm / D5, according to DIN 55029
- Fixed steady rest - passage diameter max. 70 mm
- Follow-on steady rest - passage diameter max. 50 mm
- Coolant system
- Initial filling with Shell Tellus 46
- Extendable chip tray
- Clamping disc 320 mm
- Quadruple tool holder
- Protective device for quadruple tool holder
- Slip clutch
- Micrometer longitudinal stop
- Thread gauge
- LED machine light
- Reducing sleeve
- Change gears
- 2 centering points
- Foot pedal with brake function according to CE
- Motor with magnetic brake according to CE standard
- Base frame with drawers
- Operating tools
