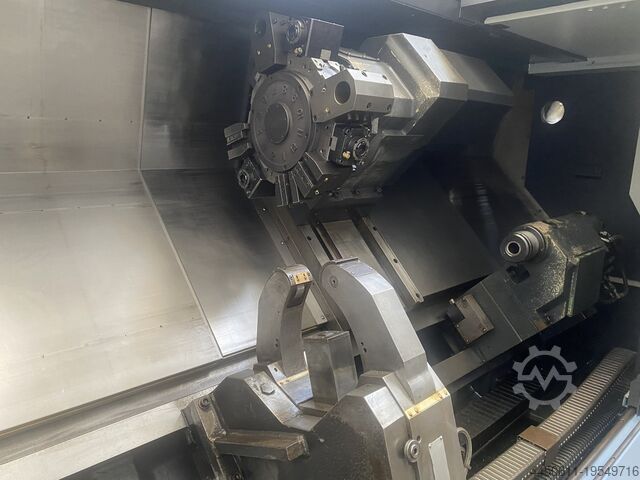

CNC Lathe DOOSAN PUMA 480XLM – Year 2012

The DOOSAN PUMA 480XLM is a high-power, high-precision CNC lathe, ideal for large-scale machining and high productivity. Equipped with a FANUC Series 32i-A control unit, it offers extensive turning capacity and outstanding performance.

Main Features:

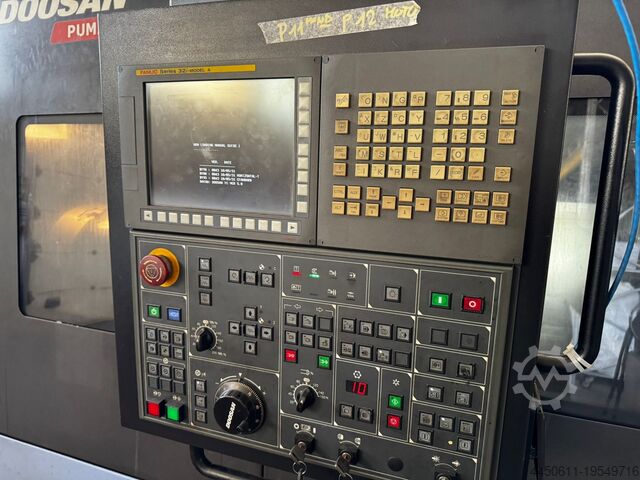

CNC Control: FANUC Series 32i-A
Year of manufacture: 2012
Machine weight: 12,700 kg
Machine dimensions: 8,100 × 2,340 × 2,410 mm
Required power: 68 kVA

Machining Capacity:
Max swing diameter over bed: Ø 900 mm
Max swing diameter over carriage: Ø 720 mm
Max turning diameter: Ø 650 mm
Max turning length: 3,065 mm
Bar capacity: Ø 165.5 mm
Chuck diameter: Ø 530 mm
Max allowable weight on chuck: 900 kg
Max allowable weight between chuck and tailstock: 3,400 kg
Max overhung weight: 235 kg

Axis Travels:
X-axis: 362 mm
Z-axis: 3,100 mm
C-axis: +/- 360° (with 0.001° resolution)

Spindle:
Chuck diameter: Ø 530 mm
Spindle speed: 15 – 1,500 rpm
Spindle nose: ASA A2-15
Spindle motor power: 37/45 kW (cont. / 30 min)
C-axis positioning: 0.001°

Turret (BMT 75):
Dedpfx Aaswyxuyjyswc
12 stations (live tooling supported)
Live tool speed: 30 – 3,000 rpm
Live tool power: 5.5 / 7.5 / 11 kW
Tool size: 32×32 mm (turning) / Ø 60 mm (boring)

Feedrates:
Rapid traverse:
X-axis: 30,000 mm/min
Z-axis: 10,000 mm/min
Interpolated X/Z feed: 0.001 – 500 mm/rev

Tailstock (in cycle):
Stroke: 1,200 mm
Taper: Morse 5
Quill diameter: Ø 120 mm

Additional Equipment:
Chip conveyor with right-side discharge
Hydraulic steady rest min Ø 150 mm - max Ø 420 mm
Coolant tank with washdown pumps
4 driven toolholders (2 radial / 2 axial)
Various fixed toolholders and jaw sets
Manuals, electrical diagrams, and CE Declaration
