Pusat pemesinan vertikal 5 sumbu

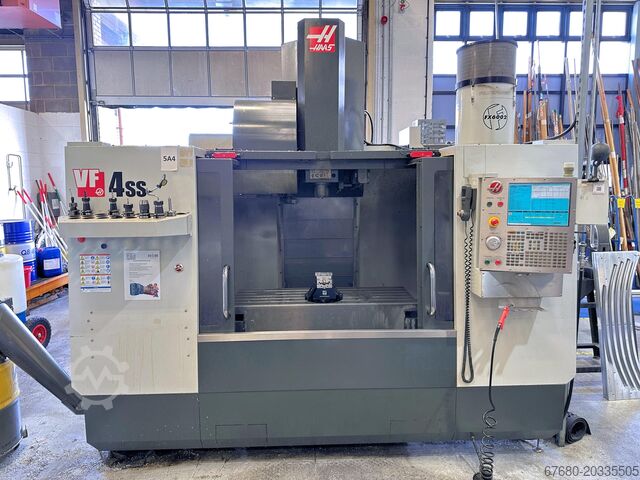

HAAS VF-4SS

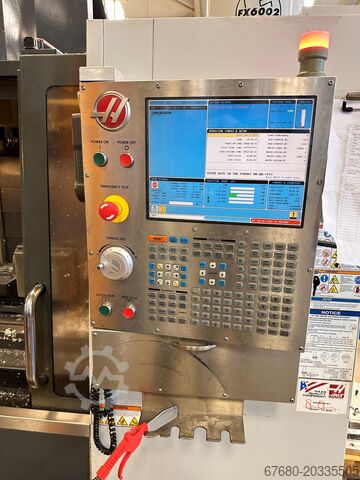

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2008, Penggerak Utama Kecepatan Spindel: 12.000 RPM Daya motor spindel: 22,4 kW Jumlah sumbu: 3 Pergerakan Dedpfx Afsx D Irmstoup Pergerakan Sumbu X: 1270 mm Pergerakan Sumbu Z: 635 mm Pergerakan Sumbu Y: 508 mm Pusat pemesinan vertikal 3-sumbu HAAS VF-4SS ini diproduksi pada tahun 2008. Mesin ini memiliki rentang gerak 1270 × 508 × 635 mm, daya spindel 22,4 kW, dan kecepatan spindel maksimum 12.000 rpm. Dilengkapi dengan penukar alat 40 + 1 posisi dan paket pemesinan kecepatan tinggi. Jika Anda mencari kemampuan milling berkualitas tinggi, pertimbangkan mesin HAAS VF-4SS yang kami tawarkan. Hubungi kami untuk informasi lebih lanjut. Jenis Aplikasi Milling

Kondisi: bekas, Tahun pembuatan: 2011, Mazak HC Nexus 5000-II Mazatrol Matrix Nexus Baujahr: Juli 2011 Palettengröße: 500 x 500 mm Verfahrwege: - X: 730 mm - Y: 730 mm - Z: 740 mm Spindeldrehzahl: 12.000 U/min Werkzeugwechsler: 40 Plätze Späneförderer: Chrom Dusdpov Tvh Sefx Aftop

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2019, jarak pergerakan sumbu X: 1.270 mm, jarak lintasan sumbu Y: 508 mm, jarak gerak sumbu Z: 635 mm, produsen pengendali: HAAS, model controller: na, tinggi total: 2.770 mm, beban meja: 794 kg, berat keseluruhan: 6.260 kg, kecepatan spindel (maks.): 12.000 rpm, daya motor spindle: 224.000 W, berat alat: 5.400 g, jumlah sumbu: 3, This 3-axis vertical machining center, HAAS VF4SS, was manufactured in 2019. It features a spindle with a maximum speed of 12,000 rpm and a power output of 22.4 kW. The machine offers a travel range of X=1270 mm, Y=508 mm, Z=635 mm, and rapid traverse rates of 35.6 m/min on all axes. The table can support loads up to 794 kg. Take advantage of the opportunity to purchase this HAAS VF4SS vertical machining center. Please contact us for further information. Additional Equipment • Technical manuals and documentation • Chip conveyor • Optional tooling included Dusdpfjyalkysx Aftsp • Loading at our facility possible Machine Advantages Technical Advantages • Maximum torque: 122 Nm at 2000 rpm • Liquid-cooled – air/oil lubrication • Table size: 1321 x 495 mm • Type: SMTC – 30+1 tool positions • Tool change time: 1.8 s • Rapid traverse: 35.6 m/min on all axes • Max. thrust Z-axis: 17,459 N • Voltage: 220/440 V – 3 phase • Maximum phase current draw: 70 A (at 220 V) Additional Information Machine still under power Dimensions Machine depth: 3870 mm

Kondisi: bekas, Tahun pembuatan: 2016, x-travel: 1270 mm y-travel: 508 mm z-travel: 635 mm Controller: Haas Measuring probe Tool holder: 24 (SK40) Spindle cooling: 21 bar 1603 hours Dsdpeyfw Dcofx Afteup

Kondisi: diremaj di bengkel (bekas), Tahun pembuatan: 2016, jarak pergerakan sumbu X: 6.500 mm, jarak lintasan sumbu Y: 1.800 mm, jarak gerak sumbu Z: 1.300 mm, panjang pemakanan sumbu X: 10.000 mm, panjang umpan sumbu Y: 10.000 mm, panjang umpan sumbu Z: 10.000 mm, gerak cepat sumbu X: 35 m/menit, pergeseran cepat sumbu Y: 35 m/menit, pergerakan cepat sumbu Z: 35 m/menit, kecepatan spindel (maks.): 7.000 rpm, kecepatan spindel (min.): 20 rpm, panjang meja: 8.000 mm, lebar meja: 1.100 mm, RepairFIT by Dornhöfer The Difference. Including installation and commissioning! Year of manufacture: 2016 Travels / Motion ranges: Longitudinal (X): 6,500 mm Vertical (Y): 1,800 mm Cross (Z): 1,300 mm Table size: Length: 8,000 mm Width: 1,100 mm Number of T-slots on the table surface: 7 units Width of T-slots: 22 mm Distance between slots: 140 mm Paintwork: RAL 7021 (black grey) RAL 7035 (light grey) ref F-38 (DanobatGroup blue) Tool holder: ISO 50, DIN 69871 AD Pull stud: DIN 69872 Form A Main drive: Drive power: 43 kW at 100% duty cycle Spindle speed range: Max. spindle speed: 20 – 7,000 rpm Torque: 900 Nm Feeds: X, Y, and Z axes: 2 – 10,000 mm/min Max. Rapid traverse: X, Y, and Z axes: 35,000 mm/min Base area SLP8000 (without enclosure): 13.0 x 4.5 m Overall height: approx. 4.4 m Weight: approx. 34,000 kg Dsdoxvx Amopfx Aftjup Heidenhain TNC 640 HSCI Automatic milling head, diagonal H207 Adapter - Angular milling head SK50 with Hirth gearing Automatic tool changer with 60 magazine positions Chip conveyor Preparation / integration for NC rotary table Adaptive Control ACCURA HEADS Coolant system 2 RepairFIT is our proven solution for a profitable entry into our product lines. Machines available in this line undergo a strict selection process and a comprehensive inspection (deep-dive check) by us. After thorough cleaning, any identified obvious defects and faults are professionally repaired by our expert service team.

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2015, jam operasional: 7.100 h, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 1.270 mm, jarak lintasan sumbu Y: 508 mm, jarak gerak sumbu Z: 635 mm, kecepatan spindel (maks.): 12.000 rpm, beban meja: 794 kg, DETAIL TEKNIS Lintasan sumbu X: 1.270 mm Dujdpfxsxtbtis Aftsp Lintasan sumbu Y: 508 mm Lintasan sumbu Z: 635 mm Kecepatan laju cepat X/Y/Z: 35,6 m/menit Jarak maksimum hidung spindle ke meja: 742 mm Jarak minimum hidung spindle ke meja: 107 mm Kecepatan spindle maksimum: 12.000 rpm Daya penggerak spindle: 22,4 kW Ukuran meja: 1.321 x 495 mm Beban maksimal meja: 794 kg Jumlah posisi penukar alat: 24+1 Berat maksimal alat: 5,4 kg Waktu pergantian alat: 1,8 dtk DETAIL MESIN Dimensi & Berat Dimensi (P x L x T): sekitar 3.000 x 2.500 x 2.600 mm Berat: sekitar 6.800 kg Waktu siklus: sekitar 10.100 jam Waktu langkah pemakanan: sekitar 7.100 jam PERLENGKAPAN Kontrol Haas dengan tapping benang sinkron Sistem probe pengukuran nirkabel Sistem pendingin dengan nozzle pendingin yang dapat diprogram Konveyor serpihan spiral

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2012, jam operasional: 18.699 h, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 1095132, jarak pergerakan sumbu X: 1.270 mm, jarak lintasan sumbu Y: 508 mm, jarak gerak sumbu Z: 635 mm, lebar meja: 457 mm, panjang meja: 1.321 mm, TECHNICAL DETAILS Travels X-axis: 1,270 mm Y-axis: 508 mm Z-axis: 635 mm Table Length: 1,321 mm Width: 457 mm Max. load: 794 kg Spindle Speed: 12,000 rpm Drive system: Inline Direct Drive Power: 22.4 kW Max. torque: 122 Nm at 2,000 rpm Feeds Rapid traverse rate X / Y / Z: 35.6 m/min Maximum cutting speed: 21.2 m/min Tool Changer Capacity: 24+1 Type: CT 40 Max. tool diameter: 76 mm Tool-to-tool: 1.6 s Chip-to-chip: 2.2 s MACHINE DETAILS Dimensions Height: 3,023 mm Width: 3,886 mm Depth: 2,667 mm Djdpfoxb Uhijx Afteup Operating Hours Cycle start time: 18,699 h Power-on time: 23,179 h EQUIPMENT 40 + 1 position tool changer, BT40 High-pressure spindle cooling 63 bar (TSC 1000) Coolant tank 360 liters Chip conveyor, spiral type 4th axis HRT 210, 210 mm incl. tailstock Wireless Intuitive Probe System (WIPS R) Renishaw OTS tool setter Renishaw measuring probe Intuitive Programming Screen (IPS) Programmable coolant nozzle (P-Cool) Approx. 15 tool holders

Kondisi: diremajakan ulang (bekas), Tahun pembuatan: 1988, - Completely overhauled in 2022 - Heidenhain TNC320 CNC control - CNC or manual operation possible - Movable vertical milling head with extendable spindle - Counter bearing for long milling arbors - Hydraulic tool clamping - Automatic transmission - Automatic clamping on X, Y, and Z axes - Central automatic lubrication - Coolant system - Direct path measurement Dujdpewhk Ubjfx Aftjp - Collision protection coupling on Y and Z axes - Year of manufacture: 1988 - Includes tool holders, drilling/milling tools & tool trolley Specifications Working Area: - X-axis (longitudinal): 485 mm - Y-axis (cross): 385 mm - Z-axis (vertical): 380 mm - Quill stroke (vertical): 80 mm - Vertical milling head manually movable on spindle block: 150 mm Main Drive: - Pole-changing three-phase brake motor: gearbox with forward/reverse - Power: 3.7 / 4.4 kW - Spindle speeds: 63 - 3150 rpm (18 steps) - Step increment: 1.25 - Tool holder: SK40 (M16) - Tool clamping: disc spring pack - Tool release: hydraulic Feed Drive: - X-axis: 1 DC motor - Y & Z-axis: 1 DC motor - Ball screws: all axes - Feed rate: 2 - 3000 mm/min (programmable) - Rapid traverse X/Y/Z-axis: 3000 mm/min Table Slide: - T-slots quantity: 4 - T-slot width: 14H7 mm - T-slot spacing: 63 mm - Permissible load: approx. 600 kg Installation: - Footprint (with safety area): approx. 2300 x 2500 mm - Machine weight incl. vertical head and angle table: approx. 1830 kg - Operating voltage: 400 V - Total connected load: 12.5 kVA - Floor load: 3000 kg/m²

Kondisi: baik (bekas), Tahun pembuatan: 2000, de Djdpfjvzagujx Aftsup

Kondisi: baik (bekas), Fungsionalitas: belum diuji, berat keseluruhan: 80 kg, lebar total: 990 mm, tinggi total: 870 mm, panjang total: 1.180 mm, tinggi tumpukan: 800 mm, kapasitas tangki: 900 l, berat kosong: 80 kg, We hereby offer you, subject to prior sale, approximately 200 used steel stacking boxes / storage containers made of galvanized sheet steel. Manufacturer: unknown Overall dimensions of the stacking box: 1180 x 990 x 870 mm (L x W x H) Stacking height: 800 mm Internal box height: 700 mm Box volume: approx. 0.9 m³ Weight: approx. 80 kg/piece Notes: The steel stacking boxes were previously used by the former owner on construction sites as containers for sorted construction waste. Emptying into larger transfer containers / skips was carried out by forklift with rotator. Therefore, the stacking containers have been manufactured with extra thick walls. Sale is subject to prior sale, excludes any warranty or guarantee, and is intended for commercial customers only. We would be pleased if the steel stacking containers are of interest to you. Your Service Team Mertens & Frowein GmbH Dujdpfsvtckmox Aftjp
