Beli Arix Mesin Bubut Cnc bekas (77.717)

Kondisi: baru, Tahun pembuatan: 2026, High-performance flat bed lathe suitable for both series and single-piece production. The machine features a rigid construction with heavy-duty, hardened and ground guides, ensuring stability, turning accuracy, and high repeatability when machining large workpieces. Technical specifications: - TURNING DIAMETER OVER BED: 560 mm - TURNING DIAMETER OVER SLIDE: 340 mm - MAXIMUM WORKPIECE LENGTH: 1500 mm - SPINDLE SPEED: 100–800 rpm - SPINDLE BORE: 90 mm - BED WIDTH: 430 mm - SPINDLE NOSE: A2-11 - NUMBER OF TOOLS: 8 - TOOL SIZE: 25x25 mm - TAILSTOCK QUILL TAPER: MT 5 - MAXIMUM QUILL TRAVEL: 150 mm - MOTOR POWER: 11 kW - DIMENSIONS: 3770 x 1500 x 1900 mm - NET WEIGHT: 4150 kg Available equipment: - SINUMERIK 808D control system - SIEMENS servo drives - 3-jaw hydraulic chuck - 8-position turret head - Set of soft jaws - Hydraulic tailstock Isdpfxji Apf To Alcsib - Cooling system - Automatic lubrication system for gears and guides - 24V halogen lighting - Operating manual in Polish and English - CE declaration The listed price is NET. Transport costs are not included. For more information, please contact us by phone or email. We invite you to view our complete offer on our website.

Kondisi: baru, Tahun pembuatan: 2025, High-performance flat-bed lathe suitable for both batch and small-series production. The machine is capable of turning external, internal, spherical surfaces, and threading. The control system features canned cycles for cross turning, plain turning, taper turning, threading, plunge cutting, and contouring, which significantly simplify machine programming and reduce machining time. Technical Specifications - Max. turning diameter over bed: Φ400 mm - Max. turning diameter over carriage: Φ210 mm - Distance between centers: 1000 mm - Spindle speed range: 0–2000 rpm - Spindle bore: Φ75 mm - Spindle taper: MT6 - Number of tool turret positions: 8 - Max. tool post size: 25x25 mm - Min. setting unit (X; Z axes): 0.001 mm; 0.001 mm - Rapid traverse X-axis (longitudinal): 8 m/min - Rapid traverse Z-axis (cross): 10 m/min - Tailstock quill taper: MT4 - Max. quill travel: 120 mm - Main motor power: 7.5 kW - (X) feed motor: 6 Nm - (Z) feed motor: 6 Nm - Package dimensions (mm): 2640 x 1500 x 1766 mm Iiedpfeiz S S Uex Alcsb - Net weight: 1800 kg Available equipment • SINUMERIK 808D control system (Polish language) • SIEMENS servo drives • Hydraulic lathe chuck • 8-position tool turret • Set of soft jaws • Hydraulic tailstock • Coolant system • Automatic lubrication system for gearbox and guideways • 24V halogen work light • Operating manual in Polish • CE declaration of conformity The listed price is NET. Transport costs are not included. For further information, please contact us by phone or e-mail. Please visit our website to discover our full offer.

Kondisi: baru, Tahun pembuatan: 2026, Technical Specifications TURNING DIAMETER OVER BED: 360 mm TURNING DIAMETER OVER CROSS SLIDE: 150 mm DISTANCE BETWEEN CENTERS: 750 mm Ijdpfeizw E Asx Alcoib SPINDLE SPEED: 100-2000 rpm SPINDLE BORE: 51 mm SPINDLE NOSE: MT5 NUMBER OF TOOLS: 8 TOOL SIZE: 20x20 mm TAILSTOCK QUILL: MT3 MAXIMUM TAILSTOCK TRAVEL: 100 mm MOTOR POWER: 5.5 kW DIMENSIONS: 1815 x 1300 x 1600 mm NET WEIGHT: 1300 kg Available Equipment - SINUMERIK 808D control system in Polish - SIEMENS servo drives - 1 driven tool - HYDRAULIC 3-jaw lathe chuck - 8-position turret head - Set of soft jaws - Hydraulic tailstock - Cooling system - Automatic lubrication system for gearbox and slideways - 24V halogen lighting - Operating manual in Polish - CE declaration The price quoted is NET. Transport costs are not included. For more information, please contact us by phone or email. We invite you to visit our website to explore our full offer.

Kondisi: baru, Tahun pembuatan: 2026, The lathe is perfectly suited for efficient and precise machining of metal parts as well as other materials. The machine is equipped with functions for machining internal and external cylindrical surfaces, faces, tapers, radii, and threading. The bed is a robust cast iron component, highly resistant to vibrations. The guides are induction-hardened and ground for durability and accuracy. Technical Specifications: - TURNING DIAMETER OVER BED: 320 mm - TURNING DIAMETER OVER SLIDE: 160 mm - DISTANCE BETWEEN CENTERS: 750 mm - SPINDLE SPEED: 100–2500 rpm - SPINDLE BORE: 46 mm - SPINDLE NOSE: MT5 - NUMBER OF TOOL POSITIONS: 6 - TOOL SIZE: 16x16 mm - MAXIMUM SHAFT DIAMETER THROUGH SPINDLE: 44 mm - TAILSTOCK NOSE: MT3 - MAXIMUM TAILSTOCK TRAVEL: 100 mm - MOTOR POWER: 3 kW - DIMENSIONS: 2370 x 1420 x 2000 mm - NET WEIGHT: 950/1300 kg Available Equipment: - SINUMERIK 808D control panel (Polish language) - SIEMENS servo drives - Hydraulic 3-jaw lathe chuck - 6-position turret head - Set of soft jaws Ijdpfji Apg Ujx Alcsib - Hydraulic tailstock - Cooling system - Automatic gearbox and guideway lubrication - 24V halogen lighting - Technical documentation in Polish - EC Declaration of Conformity The listed price is NET. Transport costs are not included. For further information, please contact us by phone or email. We invite you to view our full offer on our website.

Kondisi: bekas, Tahun pembuatan: 2014, jam operasional: 9.075 h, INDEX ABC 65 Distance between main spindle and counter spindle: approx. 250 mm Main spindle: Bore: 65 mm Maximum speed: 6,000 rpm Power: 25 / 35 kW at 80 / 120 Nm Chuck diameter: 160 mm Bearing ISO 702/1, diameter 140 mm Ijdpfxjyxbz Hs Alceib C-axis Upper tool turret: 10 stations Maximum speed: 12,000 rpm Power: 7.5 kW at 11.25 Nm Travel X / Y / Z: 140 / ±50 / 300 mm Rapid traverse X / Y: 30 / 50 m/min Lower tool turret: 9 stations Maximum speed: 12,000 rpm Power: 9 kW at 10 Nm Travel X / Y / Z: 140 / ±50 / 300 mm Rapid traverse X / Y: 30 / 50 m/min Counter spindle: Bore: 52 mm Maximum speed: 6,000 rpm Power: 5 / 9 kW at 10.5 / 20 Nm Chuck diameter: 110 mm Traverse X / Y: 140 / 300 mm Backworking units: 8 units including 5 powered stations Maximum speed: 12,000 rpm Power: 6.4 kW at 7 Nm Workpiece and handling unit with gripper: Stroke X approx. 1,580 mm Speed approx. 68 m/min Rotation angle approx. 33° Maximum diameter: 65 mm Max. weight: 2 kg CNC control: INDEX C 200-4D (based on Siemens Sinumerik 840 D-sl) Dimensions: approx. 4.1 x 2.1 m Required space incl. bar loader and coolant/filter unit: approx. L x W x H 11 x 1.5 x 2 m Weight: approx. 7 t Voltage: 400 V / 50 Hz Operating hours: 9,075 h Hydraulic hours: 16,167 h Scope of delivery: INDEX MBL bar loader Coolant filter unit KNOLL KF 150 Chip conveyor KNOLL 320 S-1/160 Additional cooling unit KLH SC 8.K2L. MT-00-IND

Kondisi: bekas, Tahun pembuatan: 2013, jam operasional: 30.431 h, INDEX ABC 65 Distance between main and counter spindle: approx. 250 mm Main spindle: - Bore: 65 mm - Max. 6,000 rpm - Power: 25 / 35 kW at 80 / 120 Nm - Chuck diameter: 160 mm - Bearing ISO 702/1 diameter: 140 mm - C-axis Upper tool turret: - 10 stations - Max. speed: 12,000 rpm - Power: 7.5 kW at 11.25 Nm - Travel X / Y / Z: 140 / ±50 / 300 mm Ijdsymbp Sjpfx Alcsib - Rapid traverse X / Y: 30 / 50 m/min Lower tool turret: - 9 stations - Max. speed: 12,000 rpm - Power: 9 kW at 10 Nm - Travel X / Y / Z: 140 / ±50 / 300 mm - Rapid traverse X / Y: 30 / 50 m/min Counter spindle: - Bore: 52 mm - Max. 6,000 rpm - Power: 5 / 9 kW at 10.5 / 20 Nm - Chuck diameter: 110 mm - Traverse X / Y: 140 / 300 mm Back-working units: - 8 units including 5 driven stations - Max. speed: 12,000 rpm - Power: 6.4 kW at 7 Nm Workpiece and cut handling unit with gripper: - Stroke X approx. 1,580 mm - Speed approx. 68 m/min - Swivel angle approx. 33° - Max. diameter: 65 mm - Max. weight: 2 kg CNC control: INDEX C 200-4D (based on Siemens Sinumerik 840 D-sl) Dimensions: approx. 4.1 x 2.1 m Required space including bar loader and coolant/filter unit: approx. L x W x H 11 x 1.5 x 2 m Weight: approx. 7 t Voltage: 400 V / 50 Hz Operating hours: 30,431 Hydraulic hours: 28,806 Scope of delivery: - Bar loader INDEX MBL - Coolant filter unit KNOLL KF 150 - Chip conveyor KNOLL 320 S-1/160

Kondisi: bekas, Tahun pembuatan: 2014, jam operasional: 18.384 h, INDEX ABC 65 Distance between main and counter spindle: approx. 250 mm Main spindle: Bore: 65 mm Max. 6,000 rpm Power: 25 / 35 kW at 80 / 120 Nm Chuck diameter: 160 mm Bearing ISO 702/1, diameter 140 mm C-axis Upper turret: 10 stations Maximum speed: 12,000 rpm Power: 7.5 kW at 11.25 Nm Travel X / Y / Z: 140 / ± 50 / 300 mm Rapid traverse X / Y: 30 / 50 m/min Lower turret: 9 stations Maximum speed: 12,000 rpm Power: 9 kW at 10 Nm Travel X / Y / Z: 140 / ± 50 / 300 mm Rapid traverse X / Y: 30 / 50 m/min Counter spindle: Bore: 52 mm Max. 6,000 rpm Power: 5 / 9 kW at 10.5 / 20 Nm Chuck diameter: 110 mm Traverse paths X / Y: 140 / 300 mm Back-working units: 8 units including 5 driven stations Maximum speed: 12,000 rpm Power: 6.4 kW at 7 Nm Workpiece and cutting handling unit with gripper: Stroke X approx. 1,580 mm Speed approx. 68 m/min Rotation angle approx. 33° Max. 65 mm diameter Max. weight 2 kg CNC control: INDEX C 200-4D (based on Siemens Sinumerik 840 D-sl) Dimensions: approx. 4.1 x 2.1 m Required space including bar loader and coolant/filter unit: approx. L x W x H approx. 11 x 1.5 x 2 m Weight: approx. 7 t Voltage: 400 V / 50 Hz Operating hours: 18,384 h Hydraulic hours: 16,694 h Scope of supply: Iiedeymblaepfx Alcsb Bar loader INDEX MBL Coolant filter unit KNOLL KF 150 Chip conveyor KNOLL 320 S-1/160 Additional cooling unit KLH SC 8.K2L. MT-00-IND

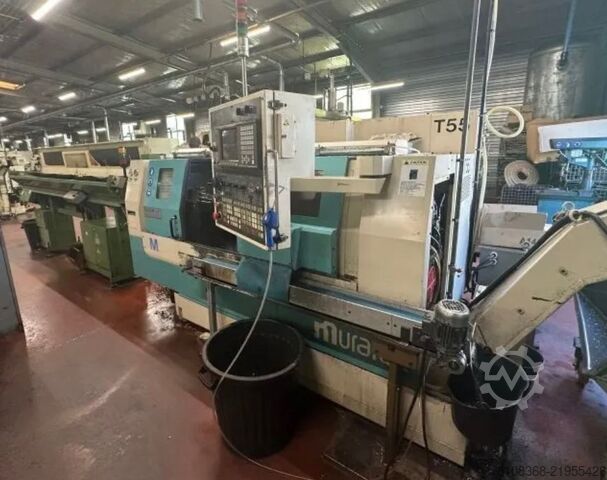

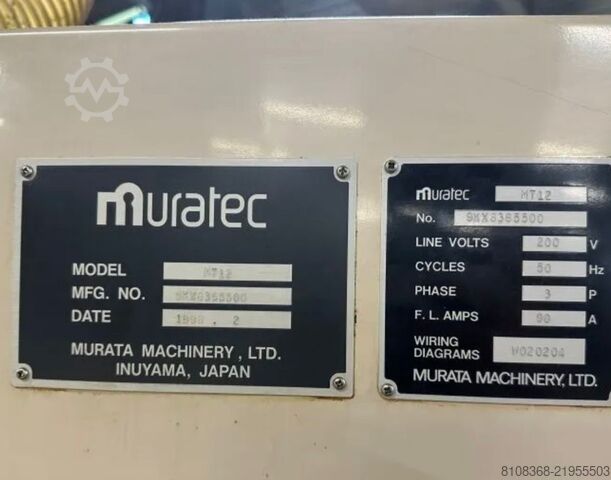

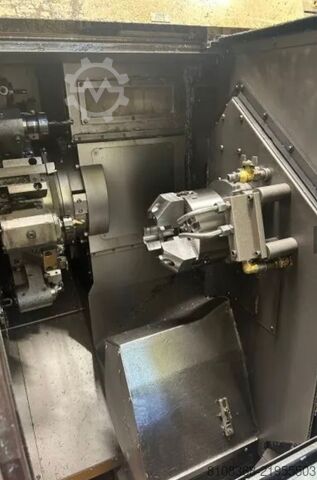

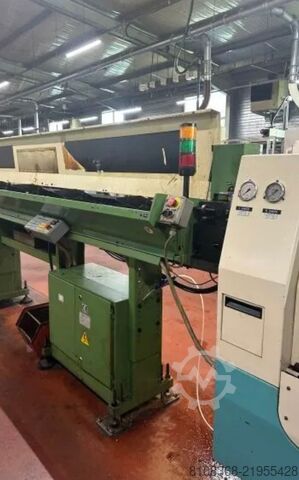

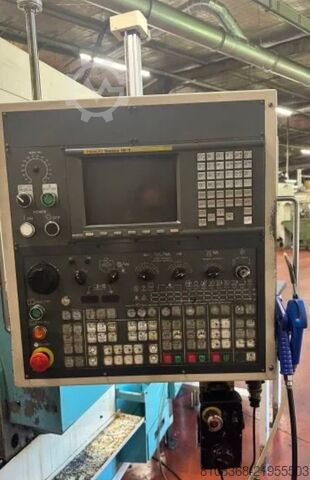

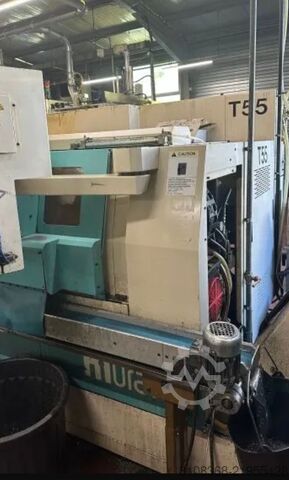

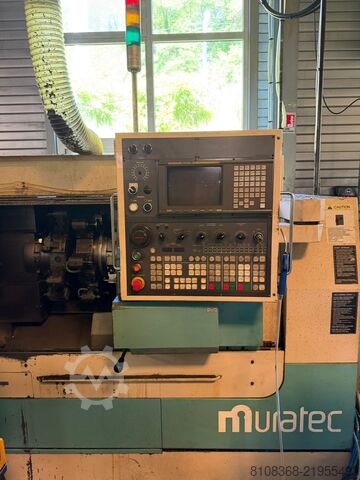

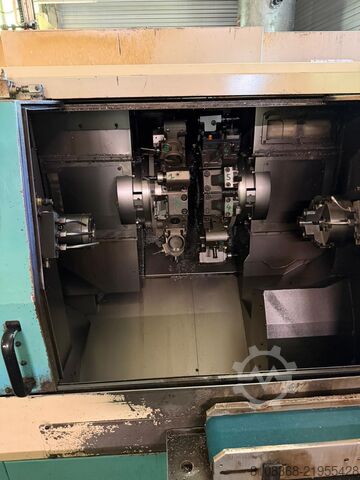

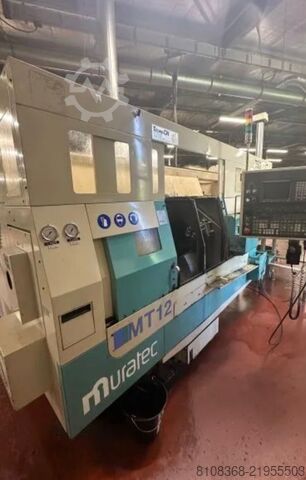

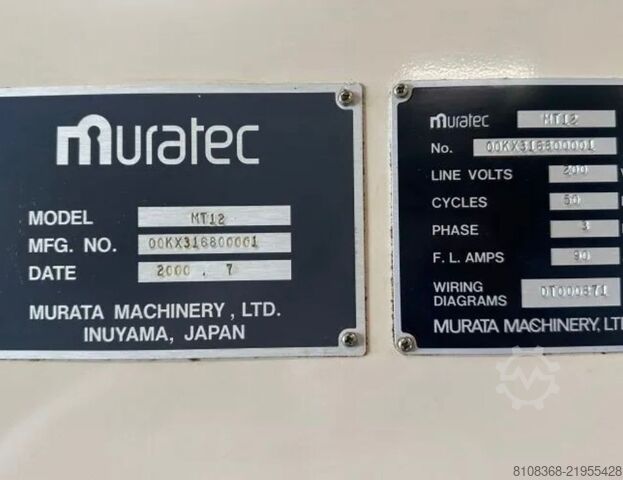

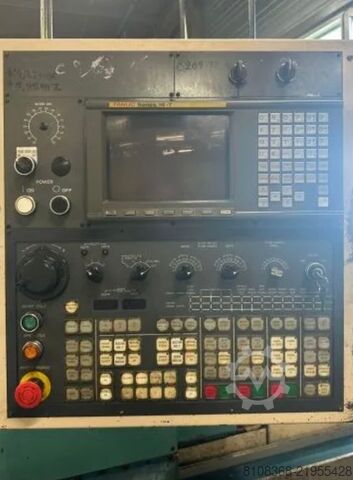

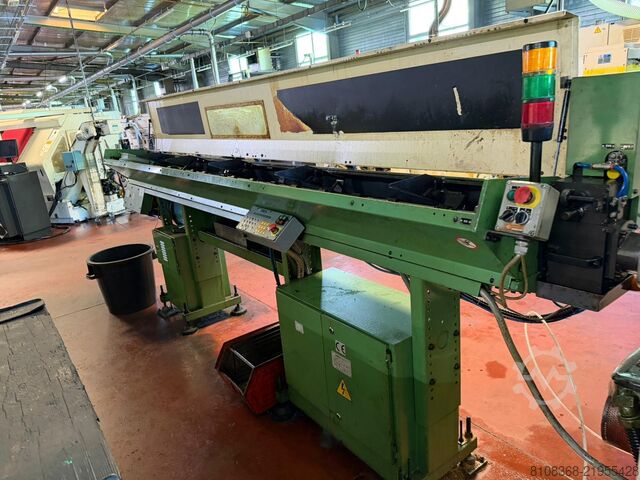

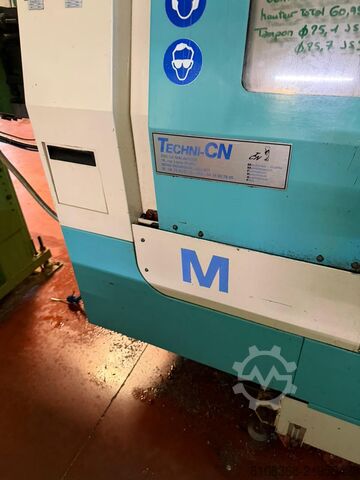

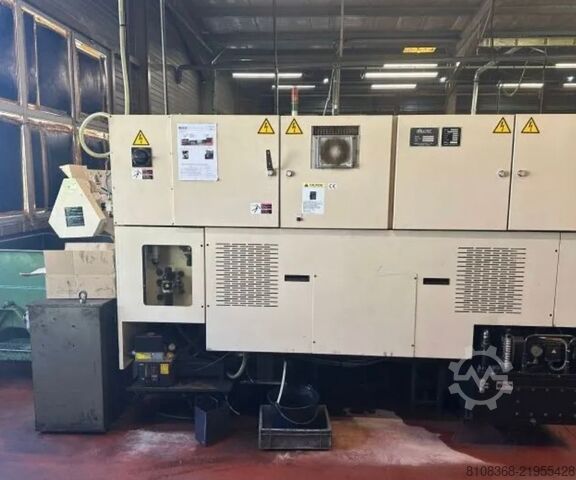

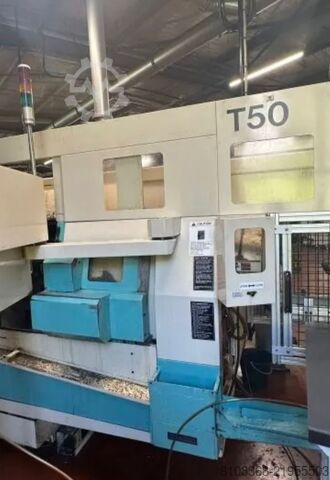

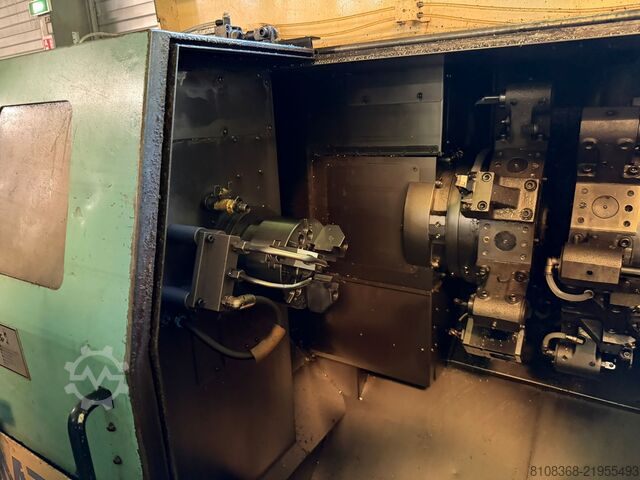

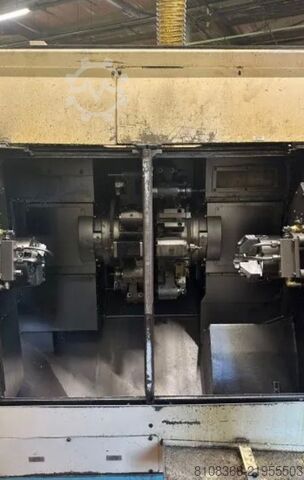

Kondisi: baik (bekas), MT12 MURATEC CNC-draaibank uit 1999 Iiodsy Ta Stepfx Alcsb

Kondisi: baik (bekas), Tahun pembuatan: 1999, fr-001 Ijdpfx Aljy Ta Sgecoib

Kondisi: sangat baik (bekas), Tahun pembuatan: 2007, 1 Iisdpfx Ajy Ta Saolcjb

Kondisi: sangat baik (bekas), Tahun pembuatan: 2007, fr-to-xx-001 Ijdpfxoy Ta R Ao Alceib

Kondisi: baik (bekas), Tahun pembuatan: 2005, 1 Ijdpfsy Ta Rpsx Alcsib

Kondisi: sangat baik (bekas), Tahun pembuatan: 2013, 50102f31-f87a-47cc-b4c2-a7864e1a738b Iedpfjy Ta N Sjx Alcjib

Kondisi: sangat baik (bekas), Tahun pembuatan: 2000, 1 Isdpfx Aloy Ta Nfecoib

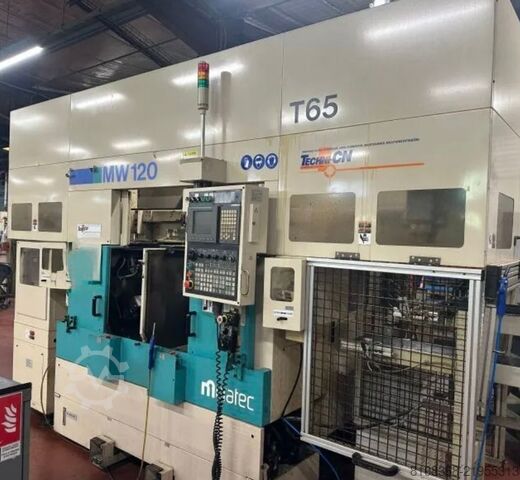

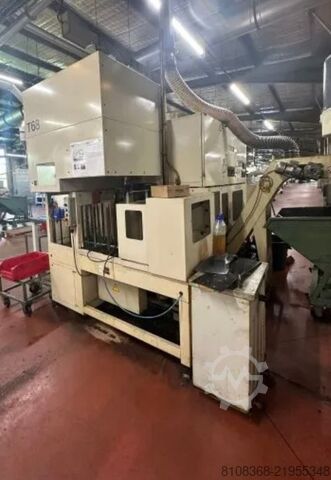

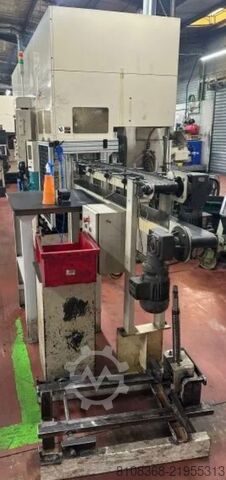

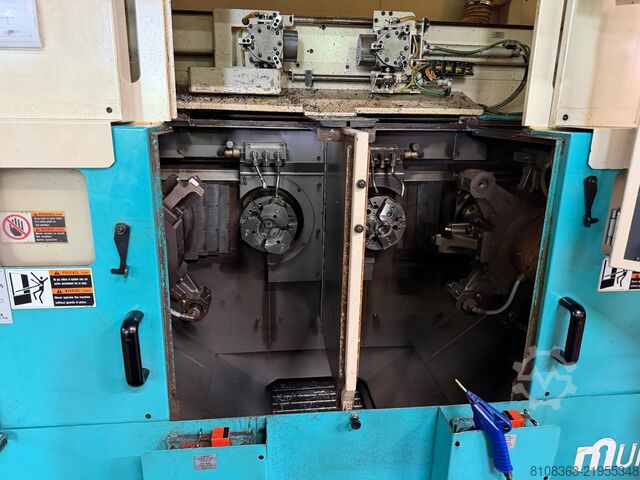

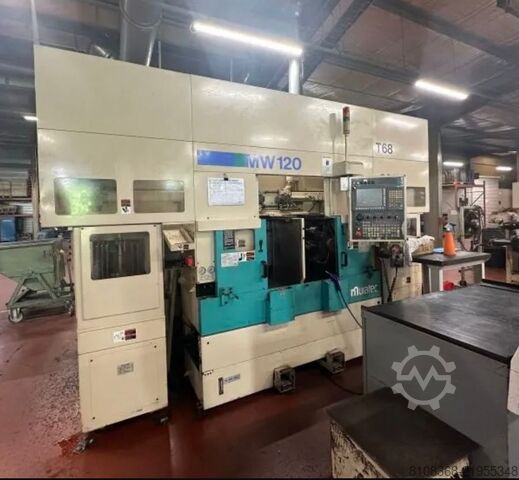

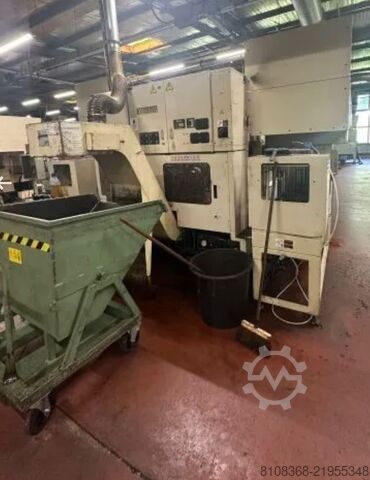

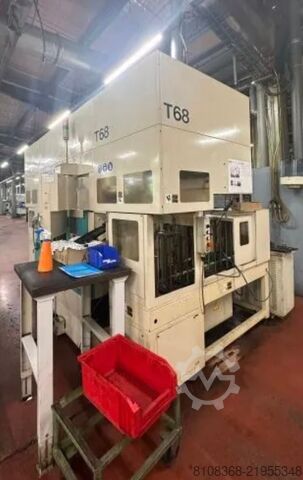

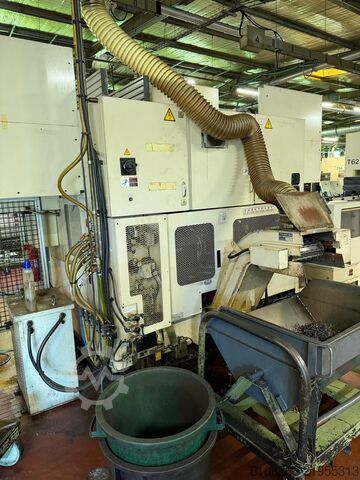

Kondisi: baik (bekas), Tahun pembuatan: 2008, 1 tornio CNC bi-mandrino, bi-torretta MW120 MURATEC del 2008 comprendente: 2 manipolatori integrati Iijdpfxey Ta Eys Alcjb

Kondisi: baik (bekas), Tahun pembuatan: 2005, fr-to-hu-001 Ijdpfx Asy Ta Egelcjib

Kondisi: baik (bekas), Tahun pembuatan: 2005, 1 torni CNC dua spindle, dua turret MW120 MURATEC dari tahun 2005 termasuk: 1 manipulator terintegrasi Iijdpfx Aley Ta Dvscjb

Kondisi: sangat baik (bekas), Tahun pembuatan: 1998, CAZENEUVE CT 200 CNC lathe Iijdsy S T N Aopfx Alcsb CNC NUM control Year: 1998

Kondisi: hampir baru (bekas), Tahun pembuatan: 2018, Fungsionalitas: berfungsi sepenuhnya, Bubut CNC HWACHEON HI-TECH 450B Tahun 10/2018 CNC FANUC Iiodpfx Aloyxnmcscob Termasuk peralatan, dudukan alat, dan dokumentasi Mesin akan tersedia mulai bulan Mei.

Kondisi: sangat baik (bekas), Tahun pembuatan: 2011, Fungsionalitas: berfungsi sepenuhnya, diameter putar di atas sled silang: 410 mm, panjang pembubutan: 850 mm, diameter pembubutan: 410 mm, lubang spindel: 76 mm, kecepatan spindel (maks.): 5.000 rpm, jarak pergerakan sumbu X: 300 mm, jarak gerak sumbu Z: 850 mm, daya motor spindle: 28 W, gerak cepat sumbu X: 30 m/menit, pergerakan cepat sumbu Z: 30 m/menit, jarak gerak quill: 800 mm, CNC Siemens 840D WORKING AREA: Maximum turning diameter: 700 mm Maximum turning length: 410 mm X-axis travel: 300 mm Z-axis travel: 850 mm SPINDLE: Spindle nose: 170h5 mm Bar capacity: 76 mm Chuck diameter: 315 mm Power (40 / 100% duty cycle): 28 / 20 kW Maximum torque (40 / 100% duty cycle): 315 / 225 Nm Maximum speed: 5,000 rpm Idle speed: 900 rpm FEEDS: Rapid traverse X axis: 30 m/min Isdpfx Aey S Db Nelcoib Rapid traverse Z axis: 30 m/min Indexing accuracy: 0.025° TOOL TURRET: Number of driven tool stations: 12 VDI 40 DIN 69880 shank diameter: 40 mm Power (40% duty cycle): 12 kW Max. torque (40% duty cycle): 36 Nm Maximum speed: 4,000 rpm TAILSTOCK: Tailstock stroke with automatic travel: 800 mm Tailstock quill: MT 5 Maximum tailstock force: 800 daN Machine weight: 6,100 kg Machine equipped with: • Tool presetter • Set of fixed toolholders • No. 1 axial driven toolholder • No. 1 radial driven toolholder • Autoblok self-centering chuck, diameter 315 mm • High-pressure pump • Operating and maintenance manuals and CE declaration

Kondisi: sangat baik (bekas), Tahun pembuatan: 1997, fr-to-hu-001 Iiodpfx Aley S Smtecob

Kondisi: sangat baik (bekas), Tahun pembuatan: 2018, tour_hyundai_lv500rm Isdpfxey S Sihs Alcjib

Kondisi: baik (bekas), Tahun pembuatan: 1996, Produsen: Tacchi Tipe: HD 1450 CNC STI Iisdpfey Ny I Tox Alceb Tahun pembuatan: 1996 Kontrol: NUM Dengan aksesori. Kondisi sangat baik. Data teknis: Diameter ayun di atas tempat tidur: 1450 mm Diameter ayun di atas eretan silang: 1000 mm Diameter chuck: 1200 mm Panjang putar maksimum: 4000 mm Lubang spindle: 150 mm Kecepatan spindle: 560 rpm Pemegang kapsul Berat mesin: sekitar 15 ton

Kondisi: baik (bekas), Tahun pembuatan: 2015, Fungsionalitas: berfungsi sepenuhnya, panjang pembubutan: 230 mm, diameter pembubutan: 400 mm, cnc-lathe-fanuc-FDE6D Iiodsy Ni Ezepfx Alceb

Kondisi: bekas, Tahun pembuatan: 2001, dr-001 Iisdpoyuqhgsfx Alceb
