Mesin tekuk lembaran logam - 4 rol

MG MH 2010 B

Sheet width 2050 mm
Sheet thickness 10.0 mm steel
Pre-bending 8.0 mm steel
Top roll diameter approx. 220 mm
Side roll diameter approx. 170 mm
Bottom roll diameter approx. 190 mm
Bending speed approx. 2.0 + 5.0 m/min
Control system: ELAP LYNX
Oil capacity 80.0 liters
Voltage 380 V
Total power requirement 5.5 kW
Weight 5000 kg
Dimensions (L-W-H) 3500 x 1550 x 1400 mm
Very good condition (!!)
Current new price incl. accessories approx. 90,000 Euro
Special price on request

Equipment:
- Robust electro-hydraulic 4-roll plate bending machine
- 4-roll design offers a wide variety of bending and rolling options

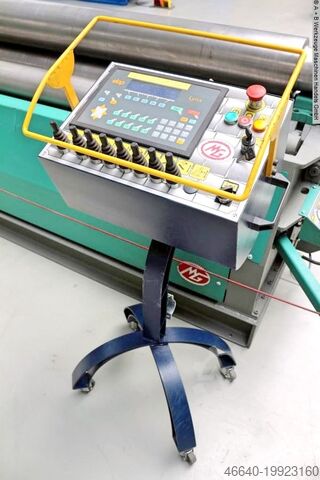

- MG NC control unit "ELAP LYNX"
* Operation and control of all rolls and machine axes
* Digital position display
* Manual operation via joysticks
* Mobile operator console
- Two central rolls driven directly by hydraulic motors
- Conical bending possible via inclined roll positioning
- Parallelism of side rolls via torsion shafts
- Double-sided pre-bending
- Diameters up to 1.1 times the top roll diameter possible

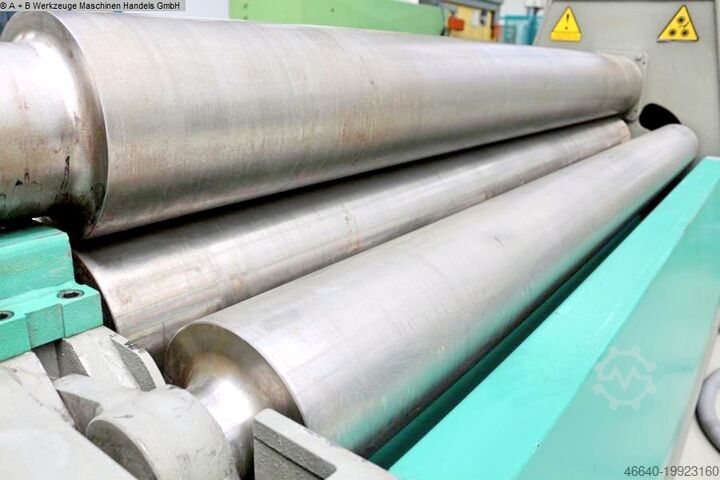

- Forged and hardened rolls with a strength of 53-55 HRC
- Low-maintenance, robust machine design
- Continuous lubrication of all bearings
Cjdpfx Adsxaah Ejpsrh
- Heavy-duty steel welded construction
- Two selectable bending speeds

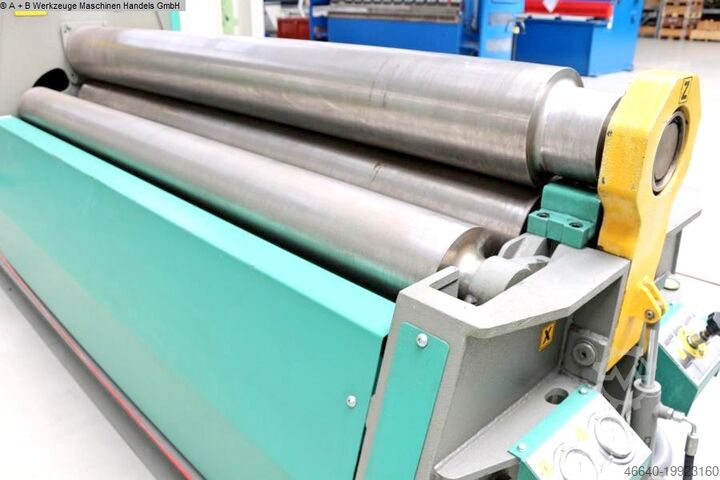

- Electro-hydraulic drop-end for easy removal of rolled tubes
- Manometer / pressure display for the rolls
- Safety device (safety line with switch unit)
- Operating manual (PDF)
