Mesin pembengkok profil

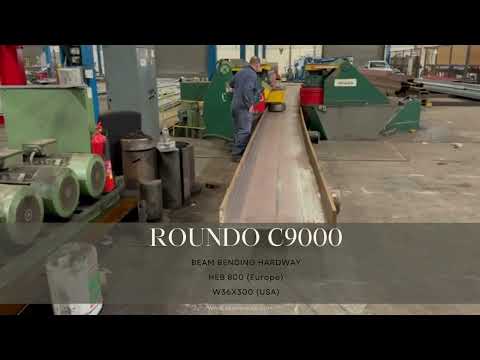

Roundo C-9000 Beam Bender

Kondisi: bekas, Arbeitslänge: 5.500 mm Blechstärke: 13 mm Technische Merkmale: * 3-Walzen-Betrieb * Oberwalzendurchmesser: Ø 500 mm * Seitenwalzendurchmesser: Ø 300 mm (jeweils) * Hydraulische Halter links/rechts Klsdpo Dvliefx Aa Nel * Hydraulischer Hebeturm * Hydraulische Vorbiegung

Kondisi: baik (bekas), NC rotary table with motor drive Infinitely variable rotary table (indexing 0.001°) Ksdpfxjfr Ih Do Aa Noll Manufacturer: Rückle Model: PKT 1000 Clamping surface: 1400 mm x 1400 mm Overall height: 319 mm Clamping slots: 7 pcs Slot dimension: 22 H7 mm Slot spacing: 160 mm Centering bore: 140 H6 mm Condition: Very good (used) Optionally available with machine base About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is on tool milling machines. Our services include spare parts supply, on-site customer service, machine overhauls, and control system modernization. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control system modernization

Tahun pembuatan: 2002, Kondisi: diremaj di bengkel (bekas), Beam cutting, drilling, and marking line CIRCULAR SAW Brand: KALTENBACH Model: HDM 1431 / T13 / SP-CNC Year: 2002 Serial No.: 122,400 Weight without accessories: 10,980kg - Circular saw with downward cutting motion. - Saw unit with gear system, drive system, and saw blade mounted on a heavy-duty, wear-resistant rotary bearing. - Heavy-duty saw gear with helical, hardened, and ground gearing operating in an oil bath. - Hydraulic saw blade feed, adjustable according to cutting chart, with very rapid return stroke. - Hydraulic horizontal clamping device. Rear clamping jaw with long-stroke clamping cylinder and automatic return stroke limitation. - Vertical clamping block with self-adjusting pressure plate. - Mitre cutting device for adjusting the angle from 45° left to 35° right. - Material sensor for automatic switch from rapid to working feed. - Hydraulically liftable feed roller for optimal material transport across the saw table. - Economical lubrication system with micro-dosing unit, particularly suitable for cutting profiles. - Chip collector installed on the machine frame. Specifications: - Saw blade housing: 100x4x30x250mm - Saw blade diameter: 1,430mm - Cutting width: 9.5mm - Cutting speed: 10 to 20m/min - Saw feed rate: 0-400mm/min - Rapid return speed: 2,000mm/min - Total power: 25KW - Working height: 640mm Cutting Capacities: 90º Cuts - Angle steel: 250mm - U steel: 400mm - Double-T beam: 600mm - Wide flange beams: 1,008x302mm - Special wide flange beams: 1,000x450mm Mitre Cuts: IPBv beam - 75º: 1,008x302mm - 60º: 910x302mm - 45º: 716x304mm - 40º: 716x304mm - 35º: 478x307mm IPBs beam - 75º: 1,008x402mm - 45º: 524x357mm IPE beam - 45º: 600x220mm DRILLING UNIT Brand: Kaltenbach Model: KDX 1215 Serial No.: 122,401 Working Capacities: - Angle steel (min - max): 80x65x10mm - 250x250x28mm - U steel (min - max): 80x45mm - 400x110mm Klsdshzbipspfx Aa Nel - Double-T beam (min - max): 80x46mm - 600x220mm - Wide flange beam (min - max): 100x100mm - 1,008x302mm - Extra wide flange beam: 1,200x500mm Drilling units: 3 - Vertical (Y axis): 1 unit - Horizontal (Z and W axes): 2 units Drilling diameter: 8 - 40mm RPM: 150 - 1100 Rapid feed - Rapid return: 3,850mm/min - 8,000mm/min Drilling spindle feed: 0-500mm/min Rapid spindle positioning: 15,000mm/min Automatic tool changer: 5 tools per drilling unit. 3x5 units = 15 total tools Total power: 45KW MARKING UNIT FEED SYSTEM: - 26 meters infeed with beam feeder + 6 side arms for parallel beam feed to roller conveyors - 30 meters with roller conveyors for outfeed + 6 side arms - 4 side arms for small parts - The majority of rollers are powered - The total length required for infeed to outfeed is approximately 60 linear meters. *Please request machine installation layout drawings.

Tahun pembuatan: 2015, Kondisi: bekas, Dimensions (length/width/height): 700 x 655 x 1400 mm Filter surface area / m² Kjdjgr Rkxspfx Aa Njll Number of filter bags: 1 pc. Number of chip collection bags: 1 pc. Weight: 140 kg with control box and start-stop sensor

Tahun pembuatan: 1991, Kondisi: baik (bekas), nomor mesin/kendaraan: 07282, Offer 22336 Technical Data: - Max. working width: 3030 mm - Max. sheet thickness without pre-bending: 4 mm - Max. sheet thickness with pre-bending: 3 mm - 3 driven rollers - Roller diameter, top / bottom: 205 / 185 mm - Working speed: m/min - Drive – brake motor: 400 V / 7.5 kW - Required space (approx.): W 5500 x D 1400 x H 1300 mm - Weight (approx.): 4.7 t Kljdemdqllopfx Aa Njl - With pre-bending function - Rear roller adjustable at an angle - Swing-out bearing for top roller - Extended roller ends for mounting profile rollers - Forward and reverse operation - Separate control panel

Kondisi: baik (bekas), Tahun pembuatan: 2009, Fungsionalitas: berfungsi sepenuhnya, Gewicht 4.950 kg, Gesamtgewicht 12.000 kg Klodpowpmckofx Aa Nel 5,5 kW

Kondisi: bekas, Fungsionalitas: berfungsi sepenuhnya, berat keseluruhan: 6.410 kg, panjang total: 19.250 mm, kapasitas angkut: 10.000 kg, kecepatan pengangkatan utama: 800.000 mm/menit, Perlengkapan: dokumentasi / manual, Derek Kran Overhead Produsen: ABUS Ksdpfxox I Aape Aa Noll Tipe: ELK Bentang: 19.250 mm Kapasitas angkat: 10.000 kg Pengoperasian dapat dilakukan melalui remote control HBC dan stasiun tombol gantung Dokumentasi tersedia lengkap CE

Kondisi: bekas, Fungsionalitas: berfungsi sepenuhnya, Tahun pembuatan: 2013, Sahinler HPK 200 Hydraulische Profil- und Rohrbiegemaschine Wellen- und Achsendurchmesser: 200 mm Werkzeug- und Walzendurchmesser: 900 mm Arbeitsgeschwindigkeit: 2–5 m/min Motorleistung: 30 kW Klsdpfx Aow D Uqxsa Nol Biegeleistung x15x4 273x5,6 / 10.000 mm Maximaler Walzendurchmesser: 9"x6,3 / 4.000 mm Walzendurchmesser oben: 650 mm Walzenkapazität Profil - 3 200x200x18 / 5.000 mm Wellen-Durchmesser: 200 mm Obere Walze x15 mit Vorbiegen mind. 120x120 / 3.000 mm Spannung: 3x400 V Arbeitsgeschwindigkeit: 2–5 m/min Maximale Leistungsaufnahme: 30.000 W Höhe: 2.300 mm Länge: 2.400 mm Breite: 3.400 mm Gewicht: 15.000 kg

Kondisi: baik (bekas), Fungsionalitas: berfungsi sepenuhnya, Tahun pembuatan: 1989, jumlah rol: 3, Überwalzung 280 mm, 12 mm Vorbiegeleistung, Kapazität 18 mm (3x oberer Walzendurchmesser). Gewicht 7.100 kg Kedpfjwtp Haox Aa Nell

Kondisi: bekas, Tahun pembuatan: 1992, en-GB-technical-details-overhead-crane-10t-21m Klodpfx Asv N Ib Nea Nel
