Garis potong silang semi otomatis

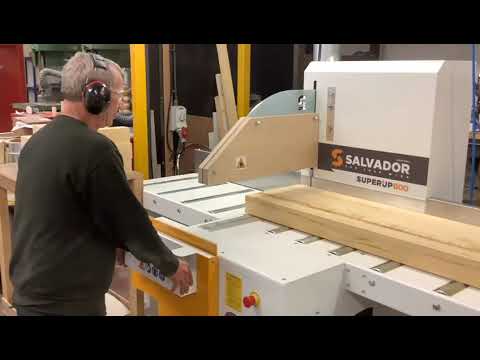

SALVADOR SuperUp 600

Maximum cutting section: 610x30 mm / 520x100 mm / 420x150 mm

Structure entirely made of thick, reinforced, painted steel.

Robust floor anchoring system with flanged steel feet for bolting.

Two-hand safety cutting controls positioned ergonomically.

Independent pneumatic adjustments to adapt to various processing types. Progressive compressed air starter for power supply.

Cutting speed easily adjustable via pneumatic regulator on the control panel.

Cutting time adjustable from 0.5 to 2 seconds. Cutting speed adjustable via pneumatic regulator on the control panel.

CUTTING UNIT:

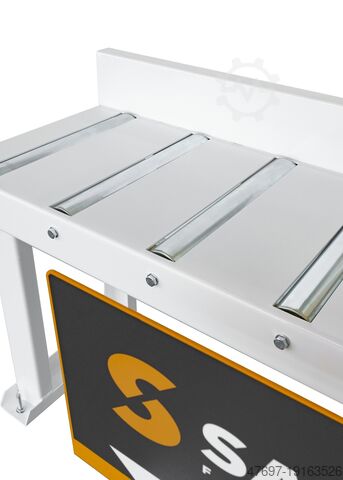

Extremely sturdy horizontal cutting unit with galvanized idle rollers, load capacity 600 kg, diameter 89 mm, width 500 mm.

Swing-type cutting movement with power transmission through belt unit.

Frame made of thick, highly robust sheet metal. Optimal weight balancing system for motor/blade. End-stroke shock absorbers. Oscillation with bearings. Motor anchoring with easy adjustment for perfect 90-degree cuts. Easy maintenance with convenient access.

Blade motor power: 14.8 HP (11 kW).

HM circular saw blade, diameter 600 mm. Teeth: Z=108. Bore diameter: 35 mm.

Upper workpiece clamp with electro-pneumatic control. External speed and pressure adjustment from the control panel. Intelligent clamp: automatic adaptation to workpiece thickness, significantly reducing cutting times.

Clamp movement system with new ball bearing runners featuring double dust protection and automatic lubrication system.

Crodpjwk Iphsfx Ag Ush
Durable, easily interchangeable aluminum blade guards.

The entire system is equipped with individual, independent pneumatic adjustments, externally accessible from the control panel, for flexibility with various processing operations.
