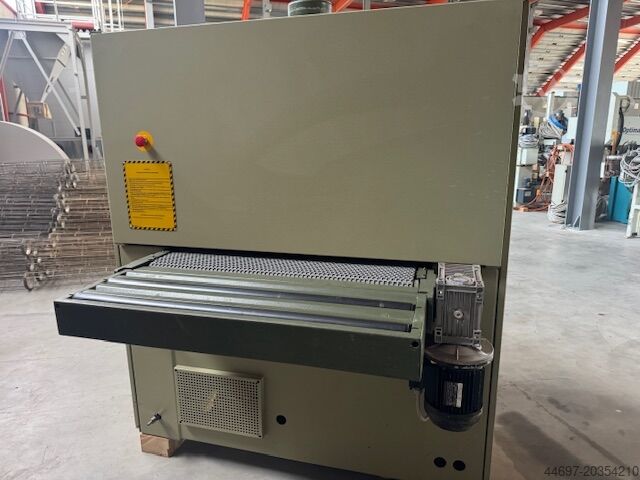

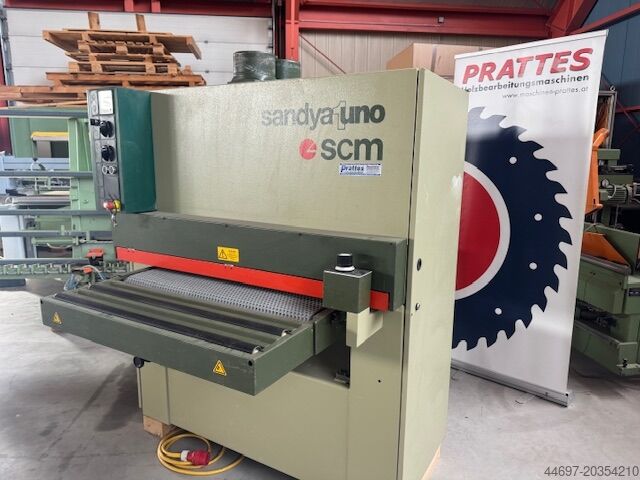

Sander sabuk lebar

SCM Sandya UNO RCS

Kondisi: bekas, Tahun pembuatan: 2008, nomor mesin/kendaraan: 0-411-49-1873, Data teknis: - Produsen: Bütfering - Tipe: Optimat SGO 211/RC - Jumlah agregat pengamplasan: 2 unit - Tahun pembuatan: 2008 - Lebar kerja: 1.100 mm - Lebar belt amplas: 1.120 mm - Panjang belt amplas: 1.900 mm - Ketebalan benda kerja: 3–160 mm - Kecepatan langkah: 2,5–13 m/menit - Berat: 1.800 kg - Penyesuaian tinggi meja Perlengkapan standar: - Penyesuaian otomatis ketebalan benda kerja - Kecepatan langkah variabel tanpa tingkat melalui inverter frekuensi - Dapat menyimpan 125 program pengamplasan - Sistem rem bebas aus Agregat pengamplasan 1 (R): - Roller kalibrasi - Roller kontak baja berprofil - Diameter 160 mm - Motor penggerak: 15 kW Agregat pengamplasan 2 (C): - Agregat kombinasi dengan roller dan sepatu amplas - Roller kontak berlapis karet 65 Shore - Diameter roller kontak 160 mm - Balok penekan elektronik dengan lebar segmen 35 mm - Kecepatan belt: 12 dan 21 m/dtk - Kompensasi toleransi hingga 1 mm - Cocok untuk permukaan berlapis veneer dan kayu solid - Motor penggerak: 11 kW - Daya terpasang total: sekitar 28 kW - Tegangan operasi: 400 V / 50 Hz - Konsumsi udara tekan pada 6 bar: 20 L/menit - Sistem peniup belt per tekanan udara: 440 L/menit - Volume ekstraksi: sekitar 2.880 m3/jam pada 20 m/dtk - Koneksi ekstraksi: 1 x Ø 160 mm (agregat pengamplasan, roller) 1 x Ø 160 mm (agregat pengamplasan, sepatu) Dimensi: - Panjang: 1.700 mm - Lebar: 1.850 mm - Tinggi: 2.100 mm Dcedpjyh Hwujfx Ap Eok - Lokasi: tidak tersedia di gudang - Tersedia mulai Juli 2026

Kondisi: bekas, Format circular saw ALTENDORF F45 - bekas - Trolley ganda, unit scoring saw, paggaris sejajar dengan pengaturan halus, meja tambahan, penyesuaian ketinggian hidrolik, penyesuaian kemiringan hidrolik, indikator digital sudut kemiringan, indikator kecepatan, perpanjangan meja aluminium anodized, pelebaran meja aluminium anodized, topangan sudut/miring, penutup atas pelindung sempit dan lebar, rem otomatis, telah diuji debu ----- Data Teknis ----- Rentang kemiringan: 45°, panjang trolley: 3.200 mm, lebar potong: 1.300 mm, tinggi potong: 125 mm, Diameter mata gergaji maksimum: 400 mm, Kecepatan: 3.000/4.000/5.000/6.000 rpm, Dcsdpfxsw Nx A Ie Ap Ejk Daya motor: 5,5 kW, Berat: 1.040 kg

Kondisi: sangat baik (bekas), Tahun pembuatan: 2012, - 3-osiowe centrum CNC SCM Pratix S - model PRATIX 12B z 2012 roku. - Zakres osi X, Y, Z: 2500x1250x150+ mm - Liczba miejsc na narzędzia w magazynie: 8 - Stół roboczy: stół rastrowy aluminiowy, 2 sekcje. - Sterowanie: sterowanie PC - Oprogramowanie: SCM NESTING, SCM XILOG MAESTRO - Nr seryjny: AH/115920 Liczba osi frezujących: 1 Agregat wiertarski: 1 - praktycznie nieużywany Dcjdpfeuu Ntgsx Ap Esk Maksymalna prędkość obrotowa wrzeciona: 24 000 obr./min Uchwyt narzędziowy: HSK-F63 Silnik główny: 6,6 kW Konstrukcja bramowa: maszyna z ruchomą bramą Pompy próżniowe: 2 szt. BECKER z 2012 r. - jedna umieszczona na zewnątrz, druga zainstalowana w maszynie. Wydajność pomp próżniowych m³/h: 240/280 m³/h. Interfejs do odczytu formatów CAD (.dxf) Zabezpieczenia: Odrzuty Waga ok. 2500 kg Długość: 5900 mm Szerokość: 2790 mm Wysokość: 2190 mm Automatyczny pomiar długości narzędzia

Kondisi: bekas, Fungsionalitas: berfungsi sepenuhnya, lebar kerja: 3.000 mm, PRESSA PANAS MANNI - Ukuran meja: 3000x1300 mm - 6 silinder - Dilengkapi dengan boiler air panas berbahan sisa kayu Dcjdpfx Aex Rqtiop Eok

Kondisi: sangat baik (bekas), Tahun pembuatan: 2017, Brandt KDF 1440 Edition only 1,700 operating hours – excellent condition – can also be supplied with the XES 200 Autark pre-heating station (+ €4,500) OVERVIEW OF UNIT CONFIGURATION: JOINTING MILLING UNIT: 2 x 2.2 kW 200 Hz GLUING UNIT: QA 65 N END TRIMMING UNIT, BEVEL/STRAIGHT: 2 x 0.18 kW PNEUMATIC ADJUSTMENT FOR END TRIMMING, BEVEL/STRAIGHT MULTI-STAGE MILLING UNIT: MS 40 (counter-rotation) PNEUMATIC TWO-POINT ADJUSTMENT PROFILE MILLING UNIT: 1 x 0.35 kW WD 60 (suitable for construction flooring) PNEUMATIC TWO-POINT ADJUSTMENT FOR RADIUS/BEVEL MULTI-STAGE SCRAPER UNIT: MZ 40 GLUE JOINT SCRAPER BUFFING UNIT Top pressure: PU rollers instead of standard rollers Additional QA 65 N gluing unit (interchangeable) Release agent spraying unit for workpiece Automatic edge feed Multiple roller tracing for multi-stage milling unit MS 40 + multi-stage scraper MZ 40 Cleaning agent spraying unit WORKPIECE AND EDGE PARAMETERS: – Minimum workpiece width: – For workpiece thickness 8–22 mm: 70 mm* – For workpiece thickness 23–40 mm: 120 mm* – For workpiece thickness 41–60 mm: 150 mm* *depending on workpiece length – Workpiece overhang: 38 mm – Workpiece thickness: 8–60 mm – Maximum edge height = workpiece height + 6 mm – Edge material (coil): 0.4–3 mm – Max. edge cross-section: – For PVC: 135 mm² – For veneer: 100 mm² – Max. coil diameter: 830 mm – Edge material (strips): 0.4–8 mm – Max. edge cross-section for strips: 360 mm² Dcedpezb Iggefx Ap Eok – Feed speed: 8–14 m/min – Maximum feed speed with profile milling: 11 m/min – Working height: 950 mm – Pneumatic connection: min. 6 bar – Total length: 5,573 mm Complete description: see PDF

Kondisi: bekas, Tahun pembuatan: 2018, en: Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMISABLE PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP SIDE OF THE PANEL ALLOWS FOR ABSOLUTELY PRECISE MACHINING NUMERICAL CONTROL WITH 7" COLOUR SCREEN: EASY AND INTUITIVE TECHNICAL SPECIFICATIONS Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Working area drilling/grooving mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. traversing speed X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y, one shared) Horizontal spindles (along Y axis) Number 2 (1+1) Horizontal spindles (along X axis) Number 1 Fixed groove saw (direction) X Groove saw diameter mm 100 Max. groove saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Groove saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Air consumption Nl/cycle 90 Extraction requirement m3/h 1200 Extraction air speed m/sec 20 Extraction nozzle diameter mm 120 GENERAL FEATURESUniversal CNC drilling machine with fixed gantry work table and moving workpiece for performing the following operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Grooving with integrated groove saw in "X" direction Self-supporting frame Machine base in steel tube construction to provide a large base for the work table. The structure is positioned on 3 self-levelling feet. The electrical cabinet is integrated into the machine base. Central Bakelite support table "Easy Motion": - an MDF sector for through drilling, automatically swivelling away for horizontal drilling - an infeed roller to facilitate panel feeding - a rear roller track to facilitate panel sliding - left and right stops - a manually adjustable central alignerIt is necessary to use the left and right stops to drill the two opposite panel sides horizontally in the "X" direction. Panel positioning along the X-axis by vacuum suction cups. Unit carriage This is a gantry structure in steel tube construction. The main working unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles- chuck D10 mm- spindle spacing 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 chuck D10 mm) - speed 3350 rpm- 1 integrated saw unit in X (max. diameter 100 mm) - saw blade speed 4300 rpm- motor power 1.5 kW - vertical pneumatic stroke per spindle 70 mm - horizontal pneumatic stroke of the drilling unit Positioning of the workpiece and drive of the working unit A CNC-controlled vacuum cup clamps the workpiece and positions it sequentially under the working unit during machining. X and Y axis movement on THK linear guides with reinforced toothed belt transmission; Z axis movement is pneumatic on ball-bushing guides with position stop adjustable via the working unit position. Positioning of the work units via state-of-the-art control and drive technology -CONTROL The control system was specially developed for industrial use. Dcsdjvwbp Aopfx Ap Eok

Kondisi: bekas, Tahun pembuatan: 2008, · Working area X-Y-Z: 3,660 x 1,550 x 130 mm · Travel range X-Y: 4,200 x 2,000 mm Description of units and accessories (standard configuration) The base structure is a monolithic construction made of thick-walled steel. It is reinforced across the entire machine bed with welded triangular plates, providing exceptional stability. The triangular shape used for the load-bearing elements, with a wide base, is the secret to ensuring long-term precision and stability. The machine layout allows the operator an optimal workflow even with minimal space requirements. Thus, the base structure provides the machining unit with a balanced and secure foundation with particularly good load distribution. The moving portal-type aggregate carrier is constructed as a solid monoblock. It is positioned in the X direction on prismatically ground guides and recirculating ball bearing carriages. The working unit is also mounted on prismatic, ground guides and recirculating ball carriages on this mobile aggregate carrier. Axis movement: The drive system for the Y and Z axes uses ground recirculating ball screws of the highest precision class. The drive in the X-axis is via a backlash-free, preloaded precision rack-and-pinion drive. This ensures balanced load distribution during positioning. Such characteristics are essential for smooth movement even during more complex operations. The movement of the individual axes is performed by brushless AC servomotors. These motors offer excellent positioning speed due to very low ramp-up times. Furthermore, the measuring systems are fully integrated into these motors, making this drive type completely maintenance-free. · Rapid traverse speed in X: 40 m/min · Rapid traverse speed in Y: 60 m/min · Rapid traverse speed in Z: 22.5 m/min Vacuum system (standard) · Vacuum pump: 100 cbm/h · Power: 2.5 kW · Max. vacuum (connection): 0.9 bar Control / Control cabinet · Office PC or industrial PC (see options) · Standard NC control: ESA-GV KVARA 6.0 · Cable remote control with main functions ELECTRICAL/ELECTRONIC CNC CONTROL Universal is equipped with a powerful NC control. The integrated office PC gives the NC control an unmatched level of familiarity: the software operates on Windows XP, allowing fast and easy programming that is also user-friendly for inexperienced operators. The system is open, permitting the connection of a CD-ROM drive, sound card, barcode reader, modem, printer, scanning systems, etc. Additionally, all common network systems and commercially available CAD programs can be installed. To save space, the control cabinet is placed beneath the machine table, while the operator works at a separate, movable terminal on castors. PROGRAMMING SYSTEM XILOG Software features: - Import of DXF files - Import of ASCII files - User interface in the operator’s native language (available in languages: I - GB - F - D - E) - Straight line and circular interpolation in three axes, linear in space, spiral in the selected plane - supported programming - Calculator for direct data transfer - Graphic and syntax help for drilling and milling operations - Parametric programming, enabling identical panel machining on various Dodpfx Apsvvi Rfj Eeck

Kondisi: bekas, Tahun pembuatan: 2004, Fungsionalitas: berfungsi sepenuhnya, Pusat pemesinan CNC Homag Weeke Optimat BHC Venture 3, tahun 2004, dijual! Dcodpjx Ey H Iofx Ap Esk

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2007, model controller: CADmatic 4 - Professional, This HOLZMA HPP 380 panel saw was manufactured in 2007. It features a robust steel saw carriage, main and scoring saws, as well as a patented central angle return system that reduces cycle time by up to 25%. The machine is equipped with a Power Control CADmatic 4 system, ensuring precise and efficient operation. The saw blade projection is 95 mm, and it operates with a main saw motor of 18.0 kW. For further information on this panel saw, please contact us. Additional Equipment • Air cushion table with roller element 2160 x 650 mm: 4 units • Central blower: 1 unit Machine Advantages Qualitative Machine Advantages • CE-certified, GS-certified, FPH wood dust certified • Partitioning: 75/275/475/1050/1850/2650/3450 mm measured from the angle stop to the center of the gripper • 2 additional two-finger grippers possible Dcedpfx Aoyaiiysp Esk • 4 manual trimming rakes on grippers • 1 additional single-finger gripper possible • Nozzle spacing of the air cushion tables: 70 x 70 mm Technical Machine Advantages • Trimming saw motor: 2.2 kW • Operating voltage: 400 V / 50 Hz • Electrical connection value for main saw motor: 18.0 kW = 24 kW, 21.0 kW = 27 kW • Positioning accuracy: +/- 0.1 mm/m • Gentle material handling, lifelong positioning accuracy, no lubrication required, high program pusher speed, maintenance-free, full stability of the steel table preserved, simple and cost-effective phenolic resin panel replacement, minimal cylinder wear, consistent pressure application, minimal cut = scoring cut, significant cycle time savings, top cutting quality, minimal setup times, cycle time reduction, adjustable pressing force via electric control • Cutting length: 4300 mm • Cutting width (program pusher travel): 4250 mm • Roller conveyor (10-track element): 1 unit • Roller conveyor (2-track element): 5 units • Grippers: 7 units (first 3 with two fingers, all others with one finger) Additional Information Machine still under power

Kondisi: bekas, Tahun pembuatan: 2000, With electric height and tilt adjustment Used, top condition, low hours Manufacturer: Altendorf Model: F45 Year of manufacture: 2000 Machine No.: GS-tested Motor: 4 kW Steel guides Carriage length: approx. 3000 mm Cutting width: approx. 1050 mm Dcjdjvxlq Hepfx Ap Ejk Tiltable up to 45° Scoring unit preparation Parallelogram guard Extension of table Aluminium parts anodised Height adjustment: electric Tilt adjustment: electric Digital display: - Cutting angle - Speed Extraction connection: D 120/80 mm Required space: approx. 3010 mm x 1800 mm x 1500 mm Weight: approx. 1000 kg Location: 97447 Gerolzhofen, free loaded, unpacked Delivery in as-inspected condition, without warranty or guarantee.
