Planer empat sisi

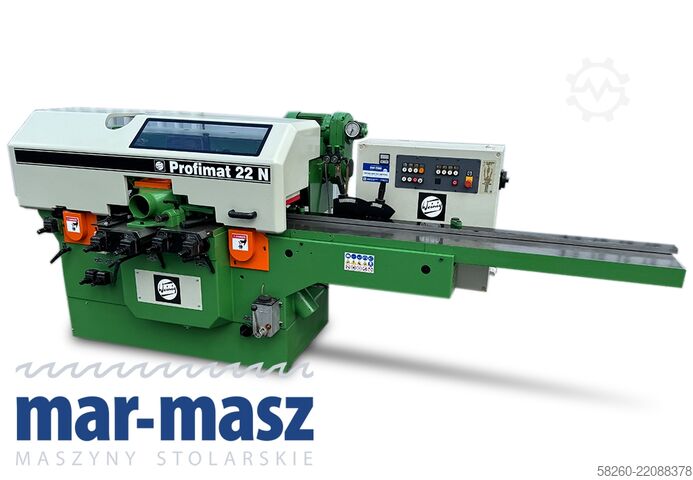

Weinig Profimat 22 N

Kondisi: sangat baik (bekas), Fungsionalitas: berfungsi sepenuhnya, Lebar kerja 220 mm Tinggi kerja 120 mm 5 spindle Konfigurasi spindle: bawah/kanan/kiri/atas/bawah Diameter spindle 40 mm Lhodpfxexxtuvo Ac Asp Motor: 4KW, 5.5KW, 5.5KW, 4KW Panjang meja 198 cm Pelumasan meja Pengaturan kecepatan makan stepless Tekanan pneumatik pada rol penarik Pengaturan kepala pada dua sumbu Pengaturan listrik kepala atas - 0,25 kW Daya motor feeding 2,2 kW

Kondisi: sangat baik (bekas), Tahun pembuatan: 1987, 4-sided planer Manufacturer: Weinig Model: Profimat 22 N Year of manufacture: 1987 Planing height: 220 mm Planing width: 120 mm Lhsdpfx Acsww A T Uj Ajp Number of spindles: 4 Feed rate: 5 - 22 m/min, stepless Total power: approx. 17 kW Spindle speed: 6,000 rpm - First spindle: bottom, 4 kW, tool diameter: 125 mm - Second spindle: right, 5.5 kW, tool diameter: 180 mm - Third spindle: left, 5.5 kW, tool diameter: 190 mm - Fourth spindle: top, 4 kW, tool diameter: 200 mm

Kondisi: sangat baik (bekas), Tahun pembuatan: 1993, 7706 TECHNICAL DATA - Maximum workpiece width: 220 mm Lodpjw Edhiofx Ac Aohp - Maximum workpiece height: 120 mm – 5 spindles: 1) Bottom horizontal: 220 mm, 4 kW 2) Right vertical: 120 mm 3) Left vertical: 120 mm; 2 & 3: 7.5 kW 4) Top horizontal: 220 mm, 5.5 kW 5) Bottom horizontal: 220 mm, 4 kW - All spindles adjustable up/down, right/left - Spindle diameter: 40 mm - Pneumatic pressure rollers - Top: 4 driven infeed rollers, toothed, including 1 double roller - Top: outfeed roller, smooth, rubberized - Bottom: outfeed roller, rubberized - Feed via Cardan shafts - Stepless feed speed adjustment: 6–36 m/min - Feed motor: 2.2 kW - Lifting motor: 0.25 kW - With brake - Electric thickness adjustment - Centralized table lubrication - Infeed table length: 1970 mm - Extraction port diameter: 4x120 mm, 140 mm - Dimensions (L/W/H): 3450 x 1600 x 1450 mm - Weight: 1112 kg Net price: 44,900 PLN Net price: 10,690 EUR depending on the rate of 4.2 EUR (Prices may vary with larger fluctuations)

Kondisi: bekas, Tahun pembuatan: 1986, translation-01 Lhodpfx Aswnhh Sjc Ajp

Kondisi: bekas, Number of spindles: 5 units Planing width: 220 mm Planing height: 120 mm Infeed table length: 2500 mm Feed motor: 6 kW Feed speed: 6–22 m/min Lodev Irizjpfx Ac Ajhp Total connected load: 25 kW Dimensions (L/W/H): 3500 x 1500 x 1600 mm Machine weight approx. 2000 kg 1 WEINIG four-sided planer Model PROFIMAT 22 N with 5 spindles ----- Planing width: 220 mm, planing height: 120 mm Spindle arrangement: 1st spindle (bottom): 4.0 kW 2nd spindle (right) and 3rd spindle (left): 7.5 kW each 4th spindle (top): 5.5 kW 5th spindle (bottom): 4.0 kW Spindle diameter: 40 mm Feed: 3 kW, infinitely variable from 6 to 22 m/min Special features: Cardan shaft drive Profiling package Including 5 used cutterheads. (Technical data as per manufacturer, subject to change and errors excepted!)

Kondisi: bekas, Weinig Profimat 22 A 4 left mobile unit with measuring sensor, enabling automatic adjustment based on the width of the workpieces being processed. Lhedpfxsryb D Ss Ac Asp Dimensions and weight: 330 x 145 x H160 cm. Weight: 1,400 kg (on pallet).

Kondisi: sangat baik (bekas), en-US: Working width 220 mm Working height 120 mm 5 spindles Spindle arrangement: bottom/right/left/top/bottom Motors: 7.5 kW, 11 kW, 11 kW, 11 kW, 7.5 kW Table lubrication Feed drive 2.2 kW Electrically adjustable pressure beam Electrically adjustable left spindle head Feed speed 6–22 m/min Year of manufacture 1993 Machine length 4400 mm Width 1700 mm Height 1250 mm de-DE: Arbeitsbreite 220 mm Arbeitshöhe 120 mm 5 Spindeln Spindelanordnung: unten/rechts/links/oben/unten Motoren: 7,5 kW, 11 kW, 11 kW, 11 kW, 7,5 kW Tischschmierung Vorschubantrieb 2,2 kW Elektrische Druckbalkenverstellung Elektrisch verstellbarer linker Spindelkopf Vorschubgeschwindigkeit 6–22 m/min Lsdpfx Aov E H Dnjc Ajhp Baujahr 1993 Maschinenlänge 4400 mm Breite 1700 mm Höhe 1250 mm fr-FR: Largeur de travail 220 mm Hauteur de travail 120 mm 5 broches Disposition des broches : inférieure/droite/gauche/supérieure/inférieure Moteurs : 7,5 kW, 11 kW, 11 kW, 11 kW, 7,5 kW Lubrification de la table Entraînement d'avance 2,2 kW Réglage électrique de la poutre de pression Réglage électrique de la tête de broche gauche Vitesse d'avance 6–22 m/min Année de fabrication 1993 Longueur de la machine 4400 mm Largeur 1700 mm Hauteur 1250 mm

Kondisi: sangat baik (bekas), Weinig Profimat 22N Four-Sided Planer Working width: 220 mm Working height: 120 mm Lhjdpow E Hcvefx Ac Aop Number of spindles: 4 Spindle configuration: - Bottom: 4 kW - Right - Left: 5.5 kW - Top: 4 kW Feed speed adjustable via variator: 4–20 m/min Total power: 16 kW

Kondisi: bekas, Tahun pembuatan: 1993, 7705 Ljdpfx Acew Edgfe Aohp

Kondisi: bekas, Tahun pembuatan: 1990, Empty weight: 1,850 kg Dimensions (L x W x H): 350 x 140 x 180 cm - Year of manufacture: 1990 - Documentation available: No - Serial number: 226-4268 - Number of spindles [pcs]: 2 - Spindle 1: - Motor power [kW]: 4 - Max. planing block diameter [mm]: 120 - Spindle 2: - Motor power [kW]: 5.5 - Max. planing block diameter [mm]: 120 - Spindle 4: - Motor power [kW]: 5.5 - Infeed table length [mm]: 1,770 - Feed roller diameter [mm]: 140 Lhodpfx Aswniquoc Aop - Feed motor [kW]: 2.2 - Extraction nozzle diameter [mm]: 140 - Transport dimensions: 3500mm x 1400mm x 1800mm (L x W x H) - Transport weight [kg]: 1850kg - Number of transport packages [pcs]: 1 Financial Information VAT: The indicated price is subject to VAT VAT/margin scheme: VAT deductible for businesses Delivery and trade-in possible at any time for all industrial equipment Yorick Diebels
