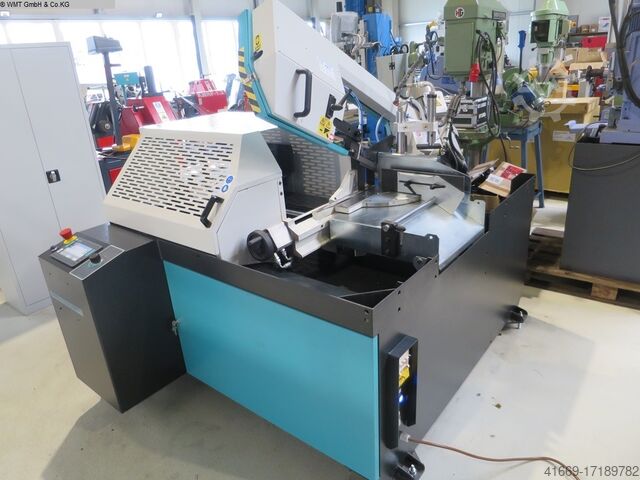

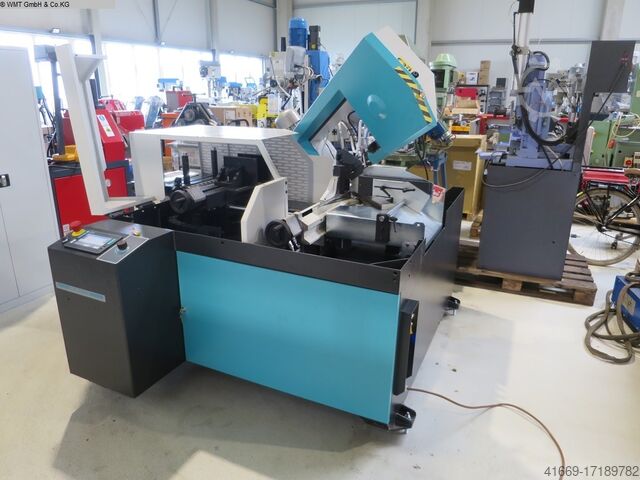

Gergaji pita otomatis - horizontal

BERG & SCHMID GBS 305 VA-I CNC

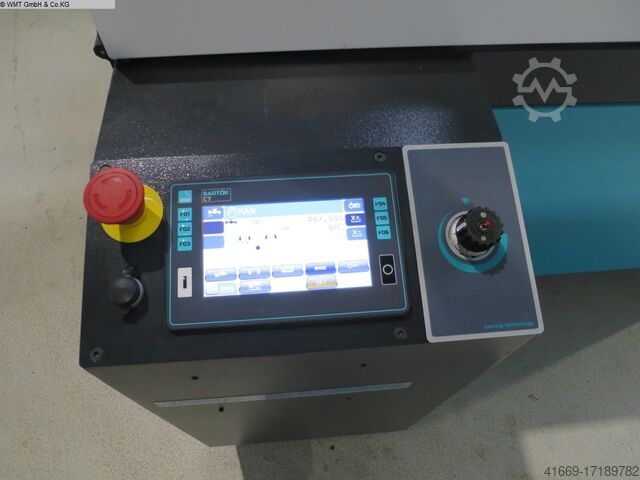

Kondisi: baru, Cutting diameter: 305 mm Cutting capacity at 90° (flat): 350 x 200 mm Cutting capacity at 90° (square): 260 mm Cutting capacity at 45° (flat): 230 x 200 mm Cutting capacity at 45° (round): 250 mm Cutting capacity at 45° (square): 230 mm Cutting capacity at 60° (flat): 170 x 100 mm Cutting capacity at 60° (square): 155 mm Gjdpfxoxabacj Aa Hskb Cutting capacity at 60° (round): 175 mm Band speed range: 18 – 110 m/min Saw blade dimensions: 3,375 x 27 x 0.90 mm Working height: 880 mm Total power requirement: 1.5 / 1.8 kW Machine weight: approx. 840 kg Space required: approx. 1,900 x 1,850 x 2,000 mm Equipment/features: - Mitre cut left 45°: fully automatic operation - Mitre cut left 60°: semi-automatic operation (cuts without programming) - Automatic material height sensor (automatic cut start detection) - Frame and gearbox made from a single casting - Very quiet operation with minimal vibration - Removable chip tray (for cleaning/disinfection) - Impact-resistant and ergonomic control panel with oil-resistant EPDM cover - Superior access to the saw, workpiece, and feed unit - Hinged safety cover - Fine-tuning for feed rate - Semi-automatic cutting BERG SCHMID CNC control: - Input for various parameters such as quantity and material length; automatic kerf compensation - Supports up to 10 different sawing programs, each with 99 sub-programs - For different lengths and quantities e.g. 1 sawing program with various cutting lengths - Incremental feed with automatic length compensation - Adjustable for cutting lengths from 2 mm to 9,999 mm, minimum remainder length 170 mm - Single stroke feed carriage: 500 mm Manufacturer's information: When installing this saw in a system equipped with residual current circuit breakers (RCD), please ensure the RCD is all-current sensitive and rated no lower than 300 mA.
