Bubut-konvensional-elektronik

BERNARDO TITAN 800-3000 Digital

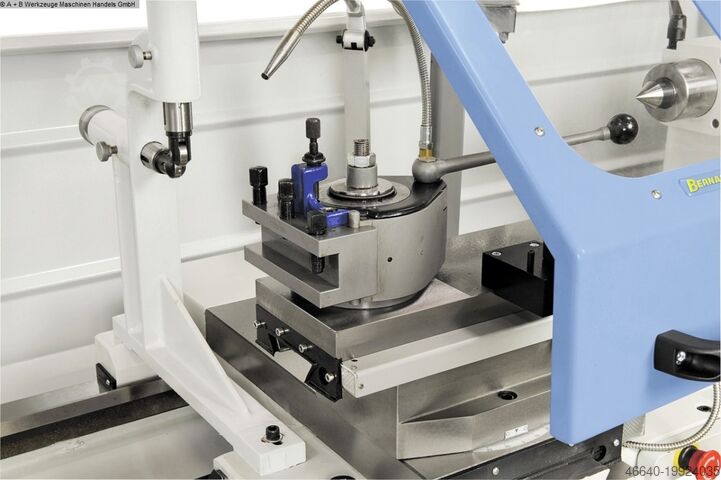

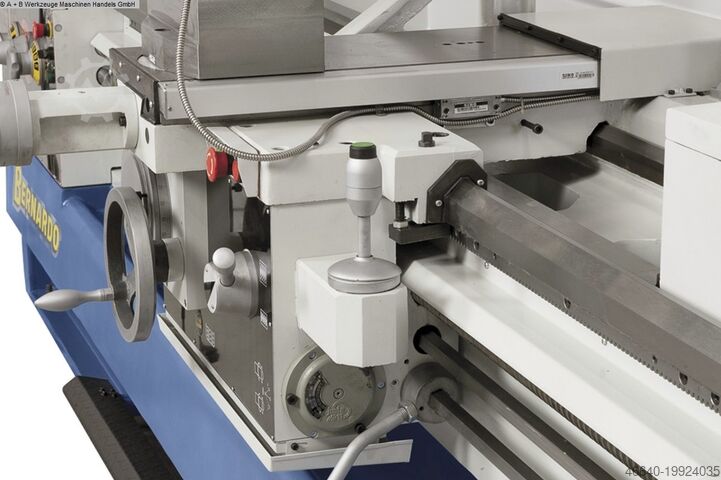

Kondisi: seperti baru (mesin pameran), Tahun pembuatan: 2024, nomor mesin/kendaraan: fortlaufend, Centre height: 200 mm Centre distance: 1,000 mm Swing over bed: 400 mm Swing over cross slide: 220 mm Spindle bore: 52 mm Speed range: 9–1,600 rpm Spindle nose: Bayonet DIN 5027 KK6 Longitudinal feed range: 0.028 – 6.43 mm/rev (93 steps) Cross feed range: 0.012 – 2.73 mm/rev (93 steps) Metric threads: 0.5 – 224 mm (48 steps) Inch threads: 72 – 1/8 tpi (46 steps) Module threads: 0.5 – 112 (42 steps) Kjdpfxe Nh Hxs Aabond Diametral pitch threads: 56 – 1/4 DP Quill diameter: 75 mm Quill stroke: 150 mm Quill taper: Morse taper 5 Motor power: 7.5 kW Weight: 2,100 kg Dimensions: 2,672 × 975 × 1,230 mm Equipment: Digital readout for 3 axes (SINO brand), 3-jaw chuck Ø 250 mm, 4-jaw face plate chuck Ø 400 mm, fixed and travelling steady rest, coolant system, splash guard, rapid traverse, manual central lubrication, 4-way tool post, work lamp.

Kondisi: baru, Tahun pembuatan: 2025, Swing diameter over bed 460 mm Swing diameter over cross slide 270 mm Turning length 1500 mm Center height 230 mm Spindle bore 76 mm Drive power 11 kW - New machine - with 2-axis ACU-RITE digital readout, including Knedpowrma Uefx Aabed constant cutting speed mounted on the carriage, MULTIFIX quick-change toolpost, size MC * For more information about the exact standard equipment and available options, please visit our website or contact us directly *

Kondisi: sangat baik (bekas), Tahun pembuatan: 2022, agri-eszterga-2024-1 Knsdpfoxcug Ujx Aabsd

Kondisi: baru, Tailstock length ----- 3000 mm Centre height ----- 280 mm Swing diameter ----- 560 mm Main spindle bore ----- 105 mm Bed width ----- 350 mm Spindle speed ----- 25-1620 rpm Motor ----- 7.5 KW INCLUDES * 3-axis digital readout, brand SINO * Quick-change toolpost type Multifix TOOC3 with 4 tool holders * Electric brake * 3-jaw chuck 315 mm * 4-jaw chuck 400 mm * Faceplate 450 mm * Fixed and travelling steady rest Knjdpfot Iq D Tex Aabed * LED work lamp and coolant system * Box with various tools

Kondisi: baru, Max. turning length: 2000 mm Centre height: 330 mm Swing diameter over bed carriage: 660 mm Turning diameter in gap: 900 mm Swing diameter over cross slide: 460 mm Spindle bore: 105 mm Spindle speed: 25 - 1600 rpm Bed width: 400 mm Spindle mount: 55029 D 1-8 Tailstock taper: MT 5 Quill travel: 235 mm Total power requirement: 7.5 kW Machine weight: approx. 2,900 kg Dimensions (L x W x H): 3630 x 1200 x 1520 mm The production lathe Titan 660 x 2000 is a modern machine that conforms to current state-of-the-art standards. Its high operator convenience (rapid traverse, quick-change tool post, mechanical multi-plate clutch, digital position indicator, and broad power range) makes this model especially suitable for mechanical engineering, plant construction, production, and custom manufacturing. Scope of delivery: - 3-axis digital readout ES-12 V with LCD display - Overload clutch - Longitudinal and face rapid traverse - LED machine lamp Kodpfx Asxabpqoabjnd - 3-jaw chuck PS3-315 mm / D8 - Face plate 450 mm - Fixed steady rest – max. passage diameter 180 mm - Follow rest – max. passage diameter 120 mm - 2 live centers - Motor with magnetic brake (CE compliant) - Foot pedal with brake function (CE compliant) - Initial fill with Shell Tellus 46 - Coolant system - Quick-change tool post with 4 holders - Safety device for quick-change tool post - Change gears - Reducing sleeve - Chip guard (rear) - Cable routing via energy chain - Operating tools

Kondisi: baru, Technical Specifications: - Turning length: 3,000 mm - Swing diameter: 660 mm - Swing diameter over gap: 870 mm - Swing diameter over cross slide: 420 mm - Spindle speed: 36 – 1,600 rpm - Quill: MK 5 - Quill travel: 150 mm - Spindle bore: 105.0 mm - Motor power: 7.5 kW - Spindle mount: DIN 55029 D1-8 - Machine weight: approx. 3,990 kg - Dimensions: 4,500 x 1,280 x 1,650 mm Features: - Versatile applications in general engineering, production, and single-part manufacturing - Machine bed cast in one piece for maximum rigidity and minimal vibration, providing excellent turning precision - Modern precision main spindle bearings with angular contact ball bearings - Central, user-friendly control for feeds and threads, with leadscrew and feed rod - Rapid traverse longitudinally and transversely as standard to reduce non-productive times - Large, hardened, and precision-ground gear wheels - Removable gap bridge enables machining of large-diameter workpieces - Movable tailstock for taper turning; handwheel with fine vernier scale (0.02 mm) - Electromechanical foot brake to minimize non-productive times - Excellent cutting performance even during facing operations Scope of Delivery: - Slip clutch - Rapid traverse longitudinally and transversely Knodpfx Ajxabyceabjd - LED machine lamp - 3-axis digital readout ES-12 V with LCD display - Three-jaw chuck PS3-315 mm / D8 - Face plate 630 mm - Fixed steady rest, max. diameter 250 mm - Traveling steady rest, max. diameter 110 mm - 1 dead center / 1 live center - Motor with magnetic brake according to CE standard - Foot pedal with brake function according to CE - Initial fill with Shell Tellus 46 - Coolant system - Quick-change tool post with 4 holders - Safety guard for quick-change tool post - Reducing sleeve - Chip guard/rear splash guard - Operating tools
