Mesin penggilingan kayu CNC

CORMAK C1325 PREMIUM 1300x2500

PREMIUM VERSION MODELS ARE DISTINGUISHED BY THEIR HIGH RIGIDITY AND MAXIMUM RESOLUTION PRECISION, OPERATING WITH FULL INTERPOLATION ON EVERY AXIS X, Y, AND Z.

The machine holds an "Innovation Opinion," facilitating eligibility for EU funding support.

The high-performance and precise CNC CORMAK C1325 router features a frame constructed from steel and cast iron, ensuring adequate stiffness and resistance to overloads occurring during operation. Designed for machining and cutting wood materials, chipboard, MDF, OSB, plywood, and synthetic materials such as PVC, plexiglas, and dibond. The sectional table features four independent vacuum sections with a working area of 1300x2500 mm. Operator training at our facility is included in the price of every machine!

Technical Specifications
- Spindle: 5.5 kW / 18,000 rpm, inverter drive, air-cooled
- Working area: 1300x2500 mm
- Maximum spindle clearance: 350 mm
- Control: DSP
- Program resolution: 0.001 mm
- Software: INCLUDED
- Power supply: 400V
- Weight: 1080 kg
- Machine dimensions: 2100 x 3100 x 2200 mm
- Table height: 715 mm
- Vacuum pump: 5.5 kW (included)
- Vacuum pressure: 440 mbar
- Linear guides
- Drive transmission: rack and pinion (Z axis: ball screw)
- Axis drives: hybrid servo drives

ATTENTION!

The machine is equipped with a function to remember the last G-code path. In case of failure or power outage, it resumes work from the last point, preventing time and material loss.

Optional Equipment

- Vacuum pump: Becker KVT 3.140, 129 m3/h
Cjdpfx Adof Eyqqo Dsrh
- Top-class safety barriers:
- Optional high-quality light safety barriers available
- Safety zone monitored by sensors prevents entry into the working area
- Complete safety barrier system ensures operator safety
- Z-axis gantry height increase up to 450 mm
- UCANCAM V11 software (supports import from Corel, AutoCAD), import/export files, edit and add text
- Tooling package: cutters, drills, holders

*Unloading and machine installation must be handled by the customer.

Standard Equipment

- Air-cooled spindle, Premium version
- Hybrid servo drives
- Heightened Z-axis gantry to 350 mm
- Vacuum table – 4 independent vacuum sections + T-slot table for manual material clamping (clamps included)
- 5.5 kW vacuum pump included

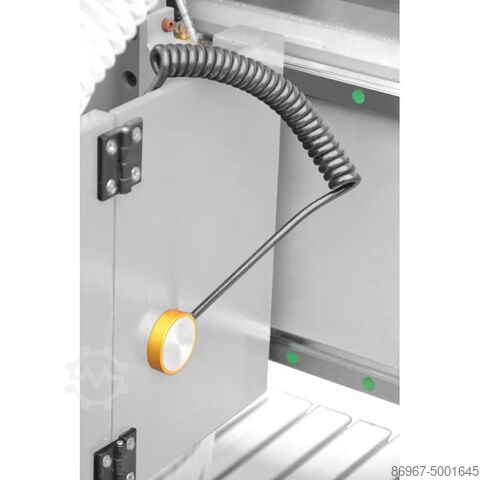

- Tool measurement sensor included
- Comprehensive software package included
- Tools, collet set, leveling feet and other accessories
- DSP control – Digital Signal Processing
- Machine equipped with last G-code path memory function (in the event of failure or power interruption, work resumes from the last point, preventing waste of time and material)

For more information, please feel free to contact us.
