Rod machining center

Elumatec SBZ 150

Tahun pembuatan: 2001, Kondisi: perlu perbaikan (bekas), Images to follow – machine is currently undergoing overhaul. Chedpfxst Ea Tfj Anpod Technical specifications: - X-axis travel: 7,300 mm - Y-axis travel: 1,000 mm - Z-axis travel: 650 mm - A-axis swivel angle: 0–90°, freely programmable - C-axis swivel angle: 0–355°, freely programmable - Max. machining length without end-face machining: 7,300 mm - Max. machining length with end-face machining: 6,980 mm - Tool changer with 10 positions, plus one saw blade holder - 9 material clamps - Tool holder SK30 - 2-layer machining

Tahun pembuatan: 2009, jam operasional: 5.387 h, Kondisi: siap digunakan (bekas), Fungsionalitas: berfungsi sepenuhnya, berat keseluruhan: 12.000 kg, panjang total: 15.000 mm, kecepatan rotasi (maks.): 24.000 rpm, panjang kerja: 7.500 mm, Functions: Sawing, notching, milling, drilling, tapping, shifting operations TECHNICAL DETAILS Number of controlled NC axes: 14 Processing length: 7,500 mm Max. traverse speed X / Y / Z: 60 / 60 / 30 m/min A-axis rotation: ±110°, continuous C-axis rotation: ±220°, continuous Tool holder: HSK-63F Tool dimensions, milling cutter / drill (max. d/l): Ø 50 mm / 200 mm Tool dimensions, disc milling cutter (max. d): Ø 500 mm Speed range: 1 - 24,000 rpm Milling motor power: 16 kW Number of tool magazine positions: 16 Number of special tool positions: 2 Automatic positioning of clamps: Yes Number of clamps: 8 Profile system with quick-change system: Yes Processing features Max. cross-section W x H / length for single bar processing: 400 x 300 / 7,500 mm Chedpfsx U Thkox Anpsd Min. cross-section W x H / length for single bar processing: 30 x 30 / 300 mm Movement: Tool Max. number of profiles per machine loading: Up to 8 profiles (depending on individual bar length) Number of fixed profile stops: 2 Repositioning of clamps during 2 processing steps: Automatic Steel processing (up to 5 mm wall thickness): Yes Electronics / Software Equipment Machine PC processor: Yes Control panel with display and keyboard: 19" touch TFT color display Machine operation based on Windows® with menu navigation: Yes Custom programming without NC/CNC knowledge: Yes Schüco CAM installable on office PC (processing visualization): Yes MACHINE DETAILS Dimensions: 15 x 4 x 5.5 m Weight: 12 t Operating time: 20,616 h Spindle hours: 5,387 h

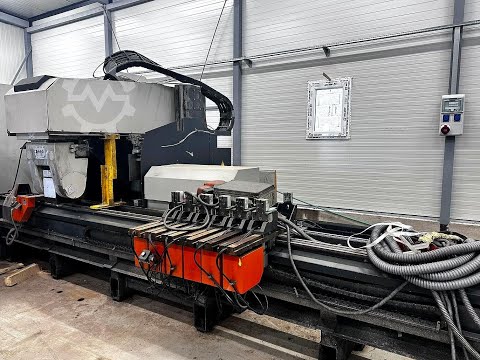

Tahun pembuatan: 2003, Kondisi: bekas, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 1500050182, Elumatec SBZ 150, pusat pemrosesan balok dengan 5 sumbu untuk profil aluminium 7,3 m dan profil baja berdinding tipis. Karena adanya perubahan dalam produksi yang mengarah pada penggunaan mesin laser untuk pipa, kami menjual Elumatec SBZ 150 kami yang berfungsi penuh. Servis dilakukan oleh perusahaan Elumatec pada bulan Maret 2026, dan sejak itu kami tidak lagi menggunakan mesin ini. Peminat dipersilakan kapan saja. Kami dengan senang hati akan mendemonstrasikan dan menguji mesin ini. Data teknis: - Jarak tempuh sumbu X: 7300 mm - Jarak tempuh sumbu Y: 1000 mm - Jarak tempuh sumbu Z: 650 mm - Sudut putar sumbu A: 0-90°, dapat diprogram secara bebas - Sudut putar sumbu C: 0-355°, dapat diprogram secara bebas - Panjang pemrosesan maksimum tanpa pemrosesan ujung: 7300 mm - Panjang pemrosesan maksimum dengan pemrosesan ujung: 6980 mm - Pengganti alat dengan 10 posisi, serta tempat untuk mata gergaji - 8 penjepit material - Dudukan alat HSK63 - Daya spindel 15 kW / 22000 RPM - Pemrosesan 2 lapisan - Pelumasan jumlah minimum - Pelumasan terpusat - Mata gergaji 400 mm Cedpfxoy Dvq Ho Anpehd Mesin tersedia segera! Kebutuhan ruang, lihat tata letak di lampiran. Instruksi pengangkutan juga terdapat di lampiran, jika ada ketidakjelasan, jangan ragu untuk menghubungi kami. Pembongkaran, pemuatan, dan pengangkutan sebaiknya diatur oleh pembeli karena akan dipasang kembali. Berbagai alat bantu dapat disediakan sesuai kesepakatan, jika tersedia. Semua informasi dan dimensi diberikan sebaik mungkin, tetapi tidak ada jaminan kelengkapan dan keakuratannya! Penjualan dilakukan apa adanya, tanpa garansi, pengembalian, atau sejenisnya. Penjualan dapat dilakukan sewaktu-waktu.

Kondisi: sangat baik (bekas), Fungsionalitas: berfungsi sepenuhnya, ELUMATEC SBZ150 Pusat Pemesinan CNC 5-sumbu untuk pengolahan batang, tahun pembuatan 2004. Codpfx Asylbvisnpohd Pusat pemesinan CNC 5-sumbu untuk profil aluminium dan baja berdinding tipis.

Tahun pembuatan: 2005, Kondisi: sangat baik (bekas), Fungsionalitas: berfungsi sepenuhnya, elumatec SBZ150 Profile Machining Center 6.0m 5-axis control. Efficient machining of aluminum and steel profiles Working length: 6,000 mm Description: Short tool change times; automatic tool changer for eight standard tools and three special tools (saw blade, special milling cutter with 50 mm diameter, angle head or special milling cutter with max. 100 mm diameter); six-sided machining; underside processing with angle head (option); Fast positioning (up to 60 m/min) of the machining unit along the X-axis; low-wear direct drive; with automatic clamp detection and positioning; Dual-circuit clamping system with two pneumatically retractable stops; equipped as standard with automatic central lubrication system; Rigid machine bed for a working length of 6,000 mm; Continuous support table; Clamping system with integrated six-row circulating roller units and linear guides. 5-axis industrial PC control, including 3 axes as path control; high-dynamic three-phase servo drives with resolver and digital servo controller; freely programmable swivel angles for the A and C axes; With color display and floppy disk drive; Storage capacity for over 200,000 sets; 3 serial and 1 parallel interface for online connection; barcode scanner, label printer, etc. Integrated network card 10/100 MBit, RJ45 connection (network connection must be provided by the customer's administrator) Analog modem (customer must provide an analog phone line) Technical Data: Chedsw A Rv Iopfx Anpod Travel range X-axis: max 6,240 mm Max. travel speed 60 m/min Travel range Y-axis: 1,000 mm Max. travel speed 30 m/min Travel range Z-axis: 635 mm Max. travel speed 30 m/min Swivel angle A-axis: 0-90° freely programmable Swivel angle C-axis: 0-355° freely programmable For further details on the milling area, see drawing no. 150 05 17 08 Max. machining length for face machining left + right: 6,000 mm (with tool length 150 mm) Positioning accuracy: X-axis +/- 0.1 mm / 1 m length Y-axis +/- 0.1 mm Z-axis +/- 0.1 mm Milling Spindle: Speed [rpm]: up to 100-22,000 Power [kW]: 15 Tool holder: HSK-F 63 Cutter diameter: max. 100 mm Saw blade diameter: 400 mm Tool length: max. 150 mm from nominal taper size Included Accessories: Automatic tool changer (without tool holders) Dual-circuit clamping system with 2 pneumatically retractable material stops Automatic clamp detection and positioning 8 horizontal pneumatic material clamps Tool setting gauge Front light barrier Saw blade DM400 with holder Angle milling head Important: The profile machining center is equipped as standard with front light barriers for safety. For additional lateral and rear safety, on-site measures are required, or please inquire about our safety fence solutions. Incl. Angle milling head for underside machining

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2005, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 1500050285, jarak pergerakan sumbu X: 7.800 mm, jarak lintasan sumbu Y: 1.000 mm, jarak gerak sumbu Z: 630 mm, kecepatan spindel (maks.): 24.000 rpm, jumlah slot dalam magazin alat: 14, translation_01 Cjdjxx Uf Njpfx Anpshd
