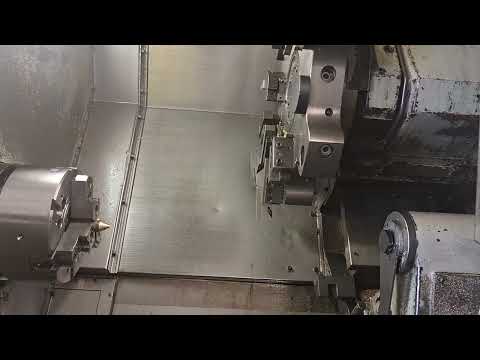

Mesin bubut CNC

Hwacheon Hi - ECO 21 HS

Tahun pembuatan: 2016, Kondisi: siap digunakan (bekas), - BEKAS - MESIN FRAIS DENGAN KOLUM BERGERAK PERGERAKAN LONGITUDINAL: 6000 mm PERGERAKAN TRANSVERSAL: 1500 mm PERGERAKAN VERTIKAL: 2500 mm GERAK CEPAT L-T-V: 35 m/menit SPINDEL: 337-5000 rpm; 42 kW; 1180 Nm Bedpfx Adjx Ru Azs Rsdf MEJA KERJA: 300 x 2500 x 7000 mm KEPALA: ISO 50 ; POSISI MILLESIMAL ; SUMBU A/B OTOMATIS MAGAZIN ALAT: PICK-UP; 12 POSISI UNIT KONTROL: HEIDENHAIN TNC 640 PENDINGIN TEKANAN TINGGI: 20 Bar CATATAN: PERGANTIAN KEPALA OTOMATIS; UDARA BERTEKANAN DI DALAM ALAT; RTCP; PERANGKAT LUNAK AUTOCAL UNTUK KALIBRASI OTOMATIS

Kondisi: bekas, Tahun pembuatan: 1987, Technical details: Number of spindles: 8 Spindle bore: 51 mm Item: Multi-spindle automatic lathe Manufacturer: Schütte Model: AF51 Year of manufacture: 1987 Six-spindle automatic lathe 8 main spindles max. nominal bore D=51mm Bodpfx Adeiay Sfj Rjdf Control: SIEMENS SIMATIC S5 Gripper in position 7 for rear-side machining Thread cutting drive Independent feed in positions 2/3 electronic cam switch Balluff Plain text display Wöhrle Coolant auxiliary pump Magnetic cartridge filter Oil operation Including bar loader IEMCA PRA40/37/F, year 1987 (bundle magazine) Painted in light blue and light grey Tool configuration may differ from images. Please contact us for further information and pictures via mail(at) or

Kondisi: baik (bekas), Tahun pembuatan: 1995, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 10.000 mm, jarak lintasan sumbu Y: 1.500 mm, jarak gerak sumbu Z: 3.000 mm, - CNC control Heidenhain TNC 415B - Programmable 2-axis NC milling head, 2.5° - Coolant system Bdsdswrzkzspfx Ad Rof The machine is sold without the platen table Accessories: Approx. 20 tool holders DIN 2080 with drawbars DIN 69872 Various spare parts such as bevel gears for the milling head and a ball screw for the X-axis. Technical data: X-axis travel (longitudinal): 10,000 mm Y-axis travel (cross): 1,500 mm Z-axis travel (vertical): 3,000 mm Spindle taper: SK50 Spindle speed range (2-step): 35–3,000 rpm Feed rate: 6–10,000 mm/min Rapid traverse X, Y, Z: 10, 15, 10 m/min Main drive power (100% duty cycle): 37 kW Machine weight approx.: 39,300 kg Technical data, accessories, and machine description are not binding.

Kondisi: bekas, Craven Bubut Berat 2000mm x 8000mm Diameter ayun di atas alas: 2000mm Diameter ayun di atas saddle: 1500mm Jarak antara center: 8.000mm Daya utama: 60kW Kapasitas muat: 40 ton Kecepatan spindle: 2 – 152 rpm Steadies Bdodpfex Hp Iwjx Ad Ref Perpanjangan ranjang 2000mm

Kondisi: belum diuji (bekas), Tahun pembuatan: 1996, berat kosong: 800 kg, diameter 1.5 - 160 MM stroke 400 MM weight 800 KGS tooling Bodpfx Adswgm Saj Rsdf

Kondisi: bekas, Tahun pembuatan: 2013, nomor mesin/kendaraan: 5279, jarak pergerakan sumbu X: 8.000 mm, jarak lintasan sumbu Y: 1.600 mm, jarak gerak sumbu Z: 1.300 mm, kecepatan spindel (maks.): 4.000 rpm, kecepatan spindel (min.): 22 rpm, Year of manufacture: 2013 Control system: SIEMENS Sinumerik 840D pl Tool holder: HSK 100-A TRAVEL PATHS Horizontal (X-axis): 8,000 mm Vertical spindle slide (Y-axis): 1,600 mm Horizontal/Traverse spindle (Z-axis): 1,300 mm WIRELESS PROBE: m&h HSK 100 SIEMENS OPERATOR HANDHELD UNIT B-MPI RIDE-ALONG WORK PLATFORM 3-SIDED SPLASH AND CHIP GUARD WALL CHIP CONVEYOR CLAMPING PLATE Dimensions: Length: 10,000 mm, Width: 2,500 mm WASHING GUN IN THE WORK AREA REINFORCED COOLANT SYSTEM Pump capacity: 32 l/min at max. 20 bar Coolant tank: 2,000 l 2-CHANNEL COLLISION MONITORING SYSTEM 2 monitoring channels: – 1. Collision monitoring for orthogonal milling head (Channel 1) – 2. Collision monitoring for fork milling head (Channel 2) PENDULUM OPERATION, 3 WORKING AREAS MULTI-AXIS INTERPOLATION FOR FREE-FORM SURFACES (TRAORI, 3D tool radius compensation, spline interpolation) ROTATED AXIS COORDINATE SYSTEM 2 PICK-UP STATIONS For fork head, mounted on clamping plate – 10 tool positions – Maximum tool weight: 12.5 kg – Maximum tool length: 200 mm – Maximum tool diameter: 63 mm – Maximum tool diameter with free adjacent slot: 250 mm – Tool holder HSK 6 AUTOMATIC TOOL CHANGER Number of tools in chain magazine: 48 Maximum tool diameter (full magazine): 125 mm Maximum tool diameter (with free adjacent slots): 250 mm Maximum tool length: 500 mm Maximum tool weight: 25 kg Maximum tool load torque: 40 Nm Tool holder: HSK 100-A HEAD CHANGE MAGAZINE 1 PIECE FORK HEAD WITH HIGH-FREQUENCY SPINDLE AUTOMATIC FORK HEAD WITH INTEGRATED HIGH-FREQUENCY SPINDLE – High-frequency milling spindle – Integrated high-frequency spindle – Tool holder HSK – A 63 DIN 69893 – Main drive power: 20 kW at 100% duty cycle or 25 kW at 40% duty cycle – Speed range up to 20,000 rpm – Motor spindle bearings with lifetime grease lubrication – Sealed with air purge – Torque: 40 Nm at 100% duty cycle, 50 Nm at 40% duty cycle – Automatic tool clamping – Power transmission according to RPM-power diagram GMN HCS 170 – Technical data per datasheet E 745.1467.00 UNIVERSAL MILLING HEAD IN ORTHOGONAL DESIGN – Liquid-cooled milling head – Cast construction from GGG 60 – Milling head, automatically swiveling, 180 x 1 degree – The resulting positions can be accessed via CNC control, programmed, and executed – Repeatability at spindle nose: ±0.002 mm, positioning accuracy ±3 seconds – Tool holder: HSK 100-A – The milling spindle is equipped with a hydromechanical quick-change system Bodpfx Adsu Sppwe Rodf – Tool clamping force: 45 kN – Internal coolant supply Form A-D – External coolant supply via shower ring – Speed range: 22-4,000 rpm MAIN DRIVE Through a frequency-controlled liquid-cooled AC motor with 32 kW drive power at 100% duty cycle and 46 kW at 40% duty cycle. Direct power transmission WITHOUT gearbox, therefore no heating or wear of a gearbox. – 637 Nm torque at 100% duty cycle, 875 Nm at 40% duty cycle.

Kondisi: sangat baik (bekas), Tahun pembuatan: 2008, jam operasional: 40.255 h, Fungsionalitas: berfungsi sepenuhnya, For sale is a DMG DECKEL MAHO DMF 220 linear, a 5-axis universal machining center in traveling column design. The machine was built in 2008 and underwent a full retrofit in 2022 with modernization to Siemens Sinumerik 840D Solution Line. Equipped with a 5-axis simultaneous operation license, Siemens Sinamics drive technology, Siemens OP15 Black Operator Panel, MCP control panel, and electronic handwheel. Technical Data: Manufacturer: DMG DECKEL MAHO Model: DMF 220 linear Machine type: 5-axis universal machining center / traveling column machining center Year of manufacture: 2008 Control: Siemens Sinumerik 840D Solution Line Modernization / Full retrofit: Siemens CNC / Drive upgrade 2022 5-axis simultaneous operation: License available Serial number: 15115223244 Machine number: 2499093 Travel X: 2,200 mm Travel Y: 560 mm Travel Z: 720 mm Tool holder: SK 40 Table load capacity: 2,500 kg Main spindle speed range: 20 – 14,000 rpm Connected load: 80 kVA Max. rated current: 115 A Protection: 125 A Mains voltage: 400 V Frequency: 50 Hz Control voltage AC: 230 V Control voltage DC: 24 V On hours: approx. 40,255 h Spindle / operating hours: approx. 13,082 h CNC / Drive technology: X-axis: Siemens Sinamics 160 A, 2 x SMC20 encoder module Bjdpoyuzg Hjfx Ad Rjdf Y-axis: Siemens Sinamics 50 A, 2 x SMC20 encoder module Z-axis: Siemens Sinamics 80 A, 2 x SMC20 encoder module B-axis: Siemens Sinamics 25 A, 2 x SMC20 encoder module A-axis: Siemens Sinamics 25 A, 2 x SMC20 encoder module Spindle axis: Siemens Sinamics 26 kW, 2 x SMC20 encoder module Control panel: Siemens OP15 Black Operator Panel MCP keypad: Siemens Electronic handwheel: Siemens Magazine technology: Magazine A: 400 W servo drive, 400 W servo motor, 10 m power cable, 10 m encoder cable Magazine B: 400 W servo drive, 400 W servo motor, 10 m power cable, 10 m encoder cable Magazine C: 400 W servo drive, 400 W servo motor, 10 m power cable, 10 m encoder cable Software / Licenses: 5-axis simultaneous operation license Axis licenses Operator software license Equipment: Integrated swivel table / swivel bridge design Paper band filtration unit Coolant / filter unit Control cabinet Full enclosure Work area lighting Siemens operator panel Condition: Machine in well-maintained condition Upgraded Siemens control and drive technology 5-axis simultaneous operation available

Kondisi: bekas, Tahun pembuatan: 2006, Fungsionalitas: belum diuji, Kami menawarkan meja putar merek Parkson di sini. Modelnya adalah PAR-251 R. Meja putar ini memiliki diameter hampir 250 mm. Bsdpextu Efsfx Ad Rsdf Silakan hubungi kami untuk penawaran tanpa kewajiban.

Kondisi: sangat baik (bekas), Tahun pembuatan: 2005, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 0500071, SPESIFIKASI Ukuran Meja: 600 x 320 mm Pergerakan sumbu X: 450 mm Pergerakan sumbu Y: 350 mm Pergerakan sumbu Z: 380 mm Spindle: BT40 Kecepatan Spindle: 0-8000 rpm Motor Spindle: 10 kW Kecepatan rapid semua sumbu: 30 m/menit Kapasitas toolchanger: 12 alat Waktu pergantian alat: 8 detik Berat perkiraan: 2000 kg Mesin dilengkapi dengan: Kontrol CNC Siemens 810D Shopmill Auger serbuk (swarf auger) Penerangan Sistem pendingin Pelindung tertutup Bedpstylazjfx Ad Redf

Kondisi: sangat baik (bekas), Tahun pembuatan: 2014, panjang pembubutan: 700 mm, jarak pergerakan sumbu X: 205 mm, jarak gerak sumbu Z: 700 mm, daya motor spindle: 22.000 W, tinggi total: 2.800 mm, panjang total: 6.000 mm, lebar total: 3.900 mm, berat keseluruhan: 9.800 kg, Complete machining with twin spindle, upper and lower turret Kitagawa 3-jaw chuck left and right Tool holders with driven tools, both axial and radial Large jaw cabinet with inserts OGL gantry loader with approx. 10 kg payload Chip conveyor Paper band filter system with pressure tank Max. turning diameter: 400 mm X-axis: 205 mm Z-axis: 700 mm Spindle bore: 62 mm Spindle speed: 6000 rpm Spindle power: 22 kW Counter spindle speed: 6000 rpm Counter spindle through-hole: 62 mm Counter spindle power: 15 kW Tool changer: 16 positions Speed of driven tools: 6000 rpm Positions lower turret: 16 Driven tool speed: 6000 rpm Driven tool power: 7 kW Chip conveyor: yes Tool Eye: yes Length: 6000 mm Bedpeyn Em Rjfx Ad Redf Width: 3900 mm Height: 2800 mm Weight: 9800 kg Please note: The information on this page has been provided to the best of our knowledge, and wherever possible, obtained from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Therefore, neither representation nor contract terms are implied. We recommend verifying all important details.
