Mesin bubut CNC

Hwacheon Hitech 300

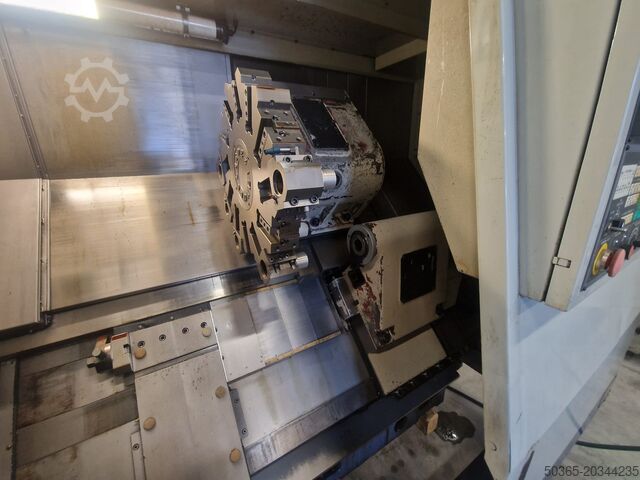

Kondisi: baik (bekas), Tahun pembuatan: 2008, Fungsionalitas: berfungsi sepenuhnya, Machine type: CNC Lathe Manufacturer: Hwacheon Model: Hi-Tech 300 Year of manufacture: 2008 Control: Fanuc 18i-TB Country of origin: Korea Availability: ex stock Machine Equipment ▪ Chip conveyor ▪ Bar feeder ▪ 3 spindle reduction tubes ▪ Turning and milling spindle ▪ Driven tools (4 holders included) ▪ Tailstock with quill ▪ Flat guideways ▪ 3-jaw power chuck 250 mm (Seoam ACE CAH-10) ▪ Fully-functional C-axis ▪ Touch setter Technical Details Performance ▪ Swing diameter over bed: 600 mm ▪ Max. turning diameter: 380 mm ▪ Max. turning length: 1240 mm Spindle ▪ Main spindle power: 22 kW ▪ Main spindle torque: 1030 Nm ▪ Main spindle speed: 3200 rpm ▪ Main chuck diameter: 254 mm ▪ Bar capacity: 76 mm Rapid Traverse ▪ Travel speed X-/Z-axis: 20/--/20 m/min Turret ▪ Tool turret - number of stations: 12 positions Kdedpfx Adjxfbm Hsqeu ▪ Driven tool speed: 3000 rpm ▪ Drive power: 3.7 kW ▪ Tool system (type): BMT ▪ Direct mount: 6 driven stations ▪ C-axis: 0.001° Tailstock ▪ Quill diameter: 100 mm ▪ Quill stroke: 120 mm ▪ Taper: MT 5 Bar feeder ▪ Type: Samsys Multisam 2000 ▪ Bar length: max. 1550 mm Dimensions ▪ Machine dimensions without accessories (LxW): approx. 3300 x 1960 mm ▪ Total machine length (machine + chip conveyor + bar feeder): approx. 7000 mm ▪ Machine height: approx. 2150 mm ▪ Weight: approx. 10,500 kg
