Mesin pembengkok tabung mandrel

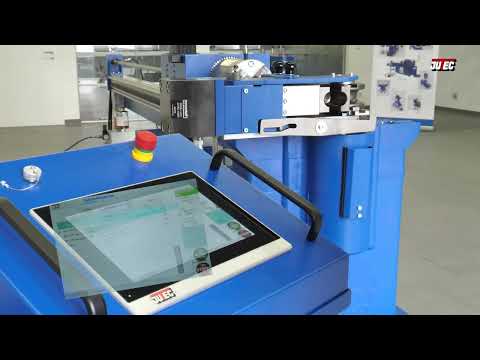

Jutec Biegesysteme GmbH & Co. KG Biegesystem 5000

Kondisi: baru, Fungsionalitas: berfungsi sepenuhnya, Tahun pembuatan: 2026, jenis kontrol: Dikendalikan oleh PLC, jenis aktuasi: listrik, Diameter pipa (maks.): 54 mm, Panjang pipa (maks.): 6.000 mm, Ketebalan dinding tabung (maks.): 4 mm, Sudut pembengkokan (maks.): 195 °, radius pembengkokan (maks.): 250 mm, tekanan (maks.): 250 batang, Perlengkapan: Penandaan CE, henti darurat, kendali jauh kaki, perangkat ganti cepat, sistem pelumasan terpusat, THE ECONOMICAL TUBE BENDING MACHINE FOR TIGHT BENDING RADII: The tube bending machine with a free-standing bending head can be easily converted for complex geometries to perform right- and left-hand bends. Plug-in bending tools allow for quick changeovers to different tube sizes. A rapid hydraulic system to minimize non-productive times is an important factor for series production. The clamping pressure for the tube can be optimally adjusted. The PLC control system (expandable via USB stick) with data storage and the latest X2X interface can accommodate an almost unlimited number of programs storing bending angles, lengths, and rotation angles for up to 50 bending sequences on a single tube length. For monitoring springback values, a freely programmable database for up to 200 materials is available. The machine offers 2 operating modes: In 'Simple Bending', the length and rotation of the arcs relative to each other are displayed automatically. In 'Controlled Bending' mode, the data is pre-set and a continuous setpoint/actual comparison is performed during bending operations. This excludes mispositioning within a tolerance window, effectively minimizing operator errors. General error messages are displayed in plain text on the large screen. The mandrel retraction is programmable and can be automatically activated upon reaching the bending angle. The compact drive unit with removable mandrel support offers benefits for on-site assembly as well as for special constructions with very long tube in-feeds and is also available as a stationary version with a tool and mandrel bar organizing system. A cost-effective alternative to fully controlled CNC machines. POTENTIAL APPLICATIONS: • Hydraulic piping • Pipeline construction • Plant construction, e.g. for the chemical industry Bjdpfjng Exasx Anxedc • Metal fabrication • Prototype construction Technical Data: • Bending capacity Ø 4 to 50 x 4 mm depending on material • Bending radius min/max: 10mm/140mm • Min. bending radii: 1.5 x Ø (Standard 2 x Ø) • Multifunction machine control with bending angle adjustment (0.1°) • Mandrel support lengths 1500/3000/4500/6000 mm (longer versions available upon request) • Maximum 180º bending result • Weight 800-900 kg (depending on version) • Ergonomic operation via safety foot switch OPTIONAL ACCESSORIES: • Automatic mandrel lubrication (minimal quantity) • Pneumatic or hydraulic quick-change chuck • Length and rotation positioning via automatic brake function or manual stops with foot switch • Automatic positioning of length and rotation via servomotors • Pneumatic rotation stop • Tube calculation software • Laser-assisted tool monitoring for clamping force supervision • 10-inch touchscreen with integrated tube calculation • Bending radius up to 250 mm • Data transfer via cable (LAN), wireless (WLAN), or USB OUR ON-SITE SERVICE: • You are welcome to join us for test production at our in-house demo room • Consulting and informational meeting at your site • Consultation and handling of leasing/finance purchase via JUTEC • Trade-in of your existing machine • Service contracts and on-site maintenance

Kondisi: baru, Tahun pembuatan: 2026, UNIBOHRFIX 100 H Fully Automatic Drilling Machine, Measuring Length 6000mm Art.No. 6020 The fully automatic UniBohrFix 100 drilling machine positions, clamps, and drills your material on the X-axis at the desired position. All you need to do is press the start button. The horizontal gripper of the positioning system allows for easy pneumatic clamping of round tubes, rectangular tubes, angle profiles, as well as flat and solid materials. After simply entering the X-values or loading an already written program, the machine operates completely autonomously. The Y-axis can be set by the operator via a handwheel with digital display. Advantages • A series of holes is automatically drilled at precise intervals. • Operator errors are significantly reduced. • Programming takes just a few minutes. • Excellent price-performance ratio. • Significantly reduced manpower requirement. Fully automatic design Measuring length: 6,000 mm Total length: 13,500 mm NC single-axis control Pneumatic vise (clamping range 200 mm) Minimum quantity spray unit with holder and spray nozzle Drilling machine: Unimax 3T AV (Technical data see data sheet) Anti-rotation device Bdedpfxjfu Itbo Anxec Motorized height adjustment Thread cutting device NC positioning system PD 200p Feed force 200 kg Positioning by absolute or incremental values possible Carriage with DC servo motor and encoder Carriage with 12 ball bearings Pneumatic end stop clamp with high holding force Steel guide rail with precision rack Steel carrier profile for dirt protection Infeed and outfeed roller conveyor RD-200/4 Length: 6,000 mm / 7,000 mm Load capacity 200 kg/m Height-adjustable rollers Mounting brackets Roller width 407 mm Insert plates Bracings Roller diameter 50 mm Steel rollers We look forward to your inquiry! Plantec Maschinen GmbH

Kondisi: baru, Tahun pembuatan: 2026, Fungsionalitas: berfungsi sepenuhnya, The Cormak MJ45-KB4 panel saw with scoring unit is an advanced woodworking machine, also known as a panel saw with scorer. It is an ideal solution for cutting and processing various materials, primarily wood, chipboard, MDF, and other wood-based panels. Construction and Design: The Cormak MJ45-KB4 is a robustly constructed woodworking machine featuring a durable steel frame for stability during operation. The large work table rides on hardened steel rods, with a carriage length of 3200 mm, equipped with cutting units to ensure efficiency and accuracy. Main Cutting Unit: Scoring Unit: A key feature of this saw is the scoring unit, which pre-cuts the underside of the board to relieve internal stress within the wood. This prevents splintering and reduces the likelihood of material deformation after cutting. The scoring motor’s power of 0.75 kW ensures reliable scoring performance. Bodstz Smiopfx Anxjdc Main Saw Blade: The Cormak MJ45-KB4 panel saw comes with a primary circular saw blade powered by an electric motor, enabling precise cuts through various materials. With a blade diameter of 350 mm, the maximum cutting height reaches up to 105 mm. Manual Scoring Adjustment: The straightforward and effective manual adjustment of the scoring unit allows for quick and accurate setup. Index stops make it easy to return to previous settings, while the intuitively located adjustment controls allow operators to make changes without interrupting workflow. Panel Saw Features: Large Working Surface: Equipped with a spacious working area, this panel saw enables comfortable handling of large material sheets. Smooth Carriage Travel: The feeding system uses precision-hardened steel guides with steel ball bearings for effortless longitudinal cutting, even with large panels or plywood sheets. Angle and Depth Adjustment: The cutting angle and cutting depth can be easily adjusted, allowing customization for specific project requirements. Safety Systems: The panel saw is fitted with safety features such as blade guards and emergency stop systems for safe operation. Applications: Panel saws with scoring units are mainly used in woodworking and window manufacturing workshops for cutting wood and wood-based materials. They are particularly suitable for cutting boards, chipboards, MDF panels, and similar materials. The Cormak MJ45-KB4 stands out for its high precision. Technical Specifications: Table dimensions: 990 x 575 mm Sliding table length: 3200 mm Cutting width at rip fence: 1250 mm Cross-cutting capacity at crosscut fence: 3100 mm Saw blade tilt: 0° - 45° Saw blade diameter: Ø350 mm Saw blade bore: Ø30 mm Saw blade cutting height: 0-105 mm Saw blade cutting height at 45°: 0-73 mm Main saw spindle speed: 4000 / 6000 rpm Scoring blade diameter: Ø125 mm Scoring blade bore: Ø20 mm Scoring spindle speed: 8000 rpm Main motor power (S1/S6): 5.5 kW / 9 HP Scoring motor power (S1/S6): 0.75 kW / 1.2 HP Main dust extraction port diameter under table: 100 mm Blade guard extraction port diameter: 80 mm Machine weight: 680 kg The saw is sold without cutting blades. Price does not apply to machines sold in Poland.

Kondisi: baru, Tahun pembuatan: 2023, Horizontal bending machine AH 40 - ZOPF -with semi-automatic control -NC control system -includes bending pin -includes tool holder for dies and foot pedal -Pressing force: 40 tons -Infinitely adjustable stroke setting -Adjustable working speed Max. working stroke: 10 mm/sec Return stroke: 20 mm/sec -Adjustable hydraulic pressure -Maximum tool height: 250 mm -Motor power: 3.0 kW -400 Volt, 50 Hz, 3-phase -Working height: 900 mm -Enclosed table -Weight: 1000 kg -Bending capacities: Flat stock: 150x22 mm Bdjdpfx Ajqvm Ukenxsc Round tube up to 60 mm

Kondisi: baru, Tahun pembuatan: 2026, CNC drilling and milling machine Kudu with CNC control and tool changer (3-axis) Drilling and milling machine with movable processing unit – the table remains stationary, and the drilling head moves. The drilling unit can operate both manually and fully automatically. After each drilling cycle, the processing unit automatically moves to the next drilling position along the X and Y axes. Operation is designed for ease of use. Data transfer to the machine control is possible via DXF/DWG file formats using a programming station. Alternatively, programming can also be performed directly at the machine control unit. The system is highly robust and consists of proven machine components. Technical data: • Measuring length: 6,000 mm • Total length: 8,050 mm • Sturdy machine base frame • Drill head speed: up to 2,500 rpm (standard version), supplied with the appropriate speed for your application • Tool holder: SK 40 • X, Y and Z axis driven by servomotors • Rapid traverse in X axis: 20 m/min • Rapid traverse in Y axis: 5 m/min • Distance from table top to bottom edge of tool holder: 400 mm • Table width: 480 mm • Working height: 1,050 mm • Drilling diameter: 3 to 30 mm in St 50 (tool-dependent) • Tapping: M4 – M30 (with compensation chuck) • Y-axis travel: 300 mm • Positioning tolerance X axis: ±0.1 mm • Positioning tolerance Y axis: 0.06 mm • Positioning tolerance Z axis: 0.06 mm • Drill head drive motor: 5.5 kW • System weight: 2,300 kg • Machine dimensions: 8,050 mm x 3,000 mm x 2,388 mm (see layout plan) • Power connection: 32 A • Compressed air connection: 8 bar • Front safety via light barrier • Rear access protection via safety fence • Control: 21.5" touch screen panel, reinforced front glass • Simple programming directly at the machine • Milling of elongated holes and circles • Lubrication via minimal quantity spray system • Without material clamping devices • Remote maintenance via Teamviewer possible (LAN interface) • Tool magazine for drilling tools, with dimensions, rotational speed • Simulation of work processes • Digital handwheel Your benefits: • Workpiece surfaces are protected • Clear, graphical user interface • Machining directly at the workpiece end is no problem • 50% space savings compared to moving-table systems Bdodpefu Ivzsfx Anxjc • Chips are collected in a chip tray • Easiest programming & operation • Minimal quantity spray system (standard) • Programming errors eliminated by CAD/CAM You are welcome to view the desired system at any time in our production/showroom. Please feel free to contact us about this. We look forward to your inquiry! Plantec Maschinen GmbH

Kondisi: hampir baru (bekas), Tahun pembuatan: 2004, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 051888, Used automatic circular saw Brand: Pedrazzoli Bodpferfw Ikjx Anxsdc Model: SB 350/45 AP Serial number: 051888 Year: 2004 Head rotation mechanism for angled cuts up to 45° to the left with locking lever. Removable pneumatic anti-burr vice. Pneumatic cylinder for feed movement, with speed adjustment brake. Transmission with dual adjustable-pulley system for variable speed from 15 to 90 m/s. Tilting head mounted on adjustable self-lubricating bushings. Feed stroke of 600 mm, controlled by pneumatic cylinder. Repeatable up to a maximum of 9 strokes for a total travel of 5400 mm. Maximum feeder vice opening: 160 mm. Programmable piece counter. Minimum final cut waste: 160 mm. Feeder speed control valve. Ammeter. Reverse function. Emergency stop button and lockable switch on control panel. Blade lubrication and cooling system with electric pump. Coolant tank with removable pump for easy cleaning. Fully enclosed guard designed for quick blade replacement. Blade diameter: Ø 350 mm. Cutting capacity: Round tubes 0°: 102 mm 45° right: 102 mm Square tubes 0°: 85 mm 45° right: 90 mm Rectangular tubes 0°: 158 x 85 mm 45° right: 120 x 85 mm Specifications: Three-phase, 380V Dimensions: 1300 x 1350 x 1600 mm Working height: 950 mm Weight: 420 kg

Kondisi: baru, Tahun pembuatan: 2026, - TFON Kantenverrundungs- und Oberflächenreinigungssystem - Materialkompatibilität: Geeignet für Baustahl, Aluminium und Edelstahl - Bearbeitbare Materialdicke: Für Werkstückdicken von 0 bis 120 mm geeignet. - Kantenverrundung: Erzeugt eine Radius-2-Verrundung für glatte, sichere Kanten, die sowohl die Optik als auch die Funktionalität des Werkstücks verbessern. - Präzisionssteuerung: Ausgestattet mit einem Siemens-Automatisierungssystem für präzise und gleichbleibende Bearbeitungsqualität im gesamten Prozess. - Unabhängige Stationen: Mehrere Bearbeitungsstationen ermöglichen vielseitige Anwendungen, die sowohl parallel als auch nacheinander durchgeführt werden können. - Tischoptionen: Verfügbare Arbeitstischgrößen: 650 mm, 1000 mm oder 1300 mm – flexibel anpassbar an Ihre Produktionsanforderungen. - Tischvarianten: Wahlweise magnetische, Vakuum- oder Magnet-Vakuum-Tische für sicheren Halt unterschiedlichster Materialien und Bauteilgrößen. - Plasma- und Sauerstofftechnologie: Modernste Plasma- und Sauerstofftechnik entfernt zuverlässig starke Grate und Schnittreste, sorgt für saubere und glatte Oberflächen. - Oberflächenreinigung: Entfernt effizient Oberflächenverunreinigungen wie Rost, Oxidschichten und Zunder und bereitet die Werkstücke optimal für weitere Bearbeitungsschritte vor. - Kantenverrundung für Beschichtungen: Sorgt für ideale Voraussetzungen zum Lackieren und Beschichten durch eine gleichmäßige und fehlerfreie Oberfläche. - Branchenanwendungen: Perfekt geeignet für Stahl-Service-Center, Energie-, Bergbau-, Bau- und Automobilindustrie – maßgeschneiderte Lösungen für den Schwerlastbereich. - Gleichmäßige Ergebnisse: Bdjdpjhq A T Uefx Anxsc Sechs Lamellenräder sorgen für konstant gleichmäßige Radiuskanten an jedem Bauteil. - Pneumatisches Oszillationssystem: Verlängert die Lebensdauer der Schleifbänder durch minimierten Abrieb und gewährleistet dauerhaft konstante Leistung.

Kondisi: sangat baik (bekas), Tahun pembuatan: 1990, MAHO MH 500W with Heidenhain TNC 320 The machine comes from a training workshop and is in very good condition. The TNC 320 offers intuitive and highly flexible operation and programming in line with current standards. Technical data: - Heidenhain TNC 320 retrofit - Travel X- 500 mm, Y- 380 mm, Z-350 mm - Spindle mount SK 40 - Vertical quill stroke 50 mm - Spindle speeds 20-3150 rpm, infinitely variable - Feed range 1-3000 mm/min - Rapid traverse 5 m/min - Table load capacity 250 kg - Total power requirement 11.3 kW - Machine weight approx. 2 t - Handheld operating device - Safety enclosure Inspection or test run under power on site is of course possible. We are happy to offer you transport, installation, and commissioning at your site. Everything from a single source: We, Baumgärtner CNC GmbH &, are a company specializing in: - Service - Maintenance - Overhauling - Automation of DMG machines and those of other renowned manufacturers. Bdsdpfx Asxw N S Ienxsc We support you! From machine purchase, transport, and installation all the way to commissioning and subsequent maintenance or repair work – you can count on us.

Kondisi: baru, Fungsionalitas: berfungsi sepenuhnya, Tahun pembuatan: 2026, jenis kontrol: Kontrol CNC, tingkat otomatisasi: semi-otomatis, jenis aktuasi: listrik, produsen pengendali: Bodor, jenis laser: laser serat, Einstiegsmodell Faserlaser-Blechschneidemaschine Bedpfx Anohv U Swjxodc Niedrige Laserschneidekosten und einfache Bedienung Der modulare Schneidtisch mit Versteifungen spart Zeit beim Zerlegen und verbessert Komfort und Steifigkeit. Die spezielle Faserlaserdüse und der Schneidprozess ermöglichen ein schnelleres Sauerstoffschneiden von Kohlenstoffstahl, gas- und kostensparendes Niederdruck-Stickstoffschneiden von Edelstahl sowie ein hochwertiges Luftschneiden bei Kohlenstoffstahl. Faserlaserschneidköpfe erkennen hervorstehende Hindernisse, um die Schadensrate effektiv zu senken und die Wartungskosten des Laserschneiders zu sparen. Materialien: Metall Zustand: Neu Lasertyp: Faserlaser Laserleistung: 1000W, 1500W, 2000W, 3000W Schneidbereich: 4000 x 1524 mm Schneidgeschwindigkeit: 0–100 m/min Positioniergenauigkeit: ±0,05 mm Wiederholgenauigkeit: ±0,03 mm Unterstützte Grafikformate: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT CNC-Steuerung: Ja Kühlung: Wasserkühlung

Kondisi: baik (bekas), de-001 Bdjdpfxeb A R Uhs Anxjc
