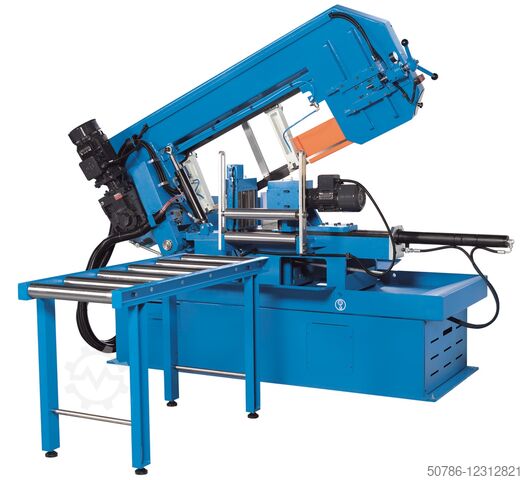

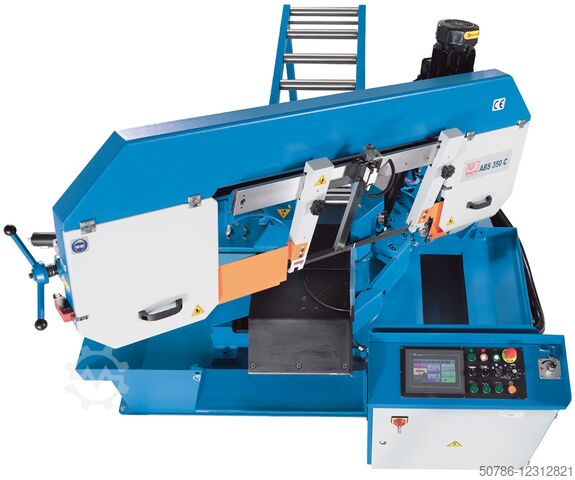

Mesin bandsaw horizontal miring - ABS 350 C

Knuth ABS 350 C

Kondisi: baru, Cutting diameter: 225 mm Saw band length: 2480 mm Maximum cutting width: 245 x 150 mm Voltage: 230 V Drive power: 1.5 kW Kedsnlbmzopfx Aahsfa Saw band dimensions: 2480 x 27 x 0.9 mm Mitre cuts: 0 - 60° Cutting speed: 20 - 90 m/min Machine weight: approx. 185 kg Space requirement: approx. 1.4 x 0.69 x 1.7 m NEW MACHINE PRICE: 2,459.00 EUR + VAT - Infinitely variable speed - Infinitely adjustable feed - Mitre cut - Bi-metal saw band - Material stop - Machine base - Coolant system

Kondisi: sangat baik (bekas), Double spindle, C-axis FANUC 18i-TB control Turning diameter: up to 300 mm Turning length: up to 366 mm Main spindle speed: 30–5,000 rpm Ksdpfxjwufdqs Aahsfa Counter spindle speed: 30–6,000 rpm Turret: 12 driven stations C-axis indexing: 0.001 degrees Various accessories MARCELS MASCHINEN CH

Kondisi: perlu perbaikan (bekas), Machine number: 1464 Type / Model: FUW 250/IV Travel (X-Y-Z): 400 - 220 - 400 mm Table size: 630 x 350 mm Clamping surface: 700 x 300 mm Speed range: 45 to 2,240 rpm Spindle taper: SK 40 Kedpod Hl Stjfx Aahjfa Feed range longitudinal: 6.3 to 1,250 mm/min Feed range cross: 6.3 to 1,250 mm/min Power connection: 7.4 kW Accessories/Equipment: Vertical head Condition: 2 controllers defective Note: Machine repair EUR 2,000 Weight: 1.45 t Dimensions: 1,500 x 1,600 x 1,800 mm

Kondisi: bekas, Rund trough vibratory finishing machine WALTHER TROWAL Type CLS-230 Serial No. 05.833/00 Year of manufacture: 1969 Trough diameter: 1100 mm Total trough outside height: approx. 650 mm Work bowl / gross volume: max. 230 liters Usable volume: approx. 115 liters Speed: 1100 to 1800 rpm, infinitely variable Motor power: 7.5 kW Power supply: 400 V, 50 Hz - Manual or timer-controlled operation - Infinitely variable motor speed via variator gearbox Ksdpfx Aofqpxijahefa - Manually adjustable eccentric imbalance weights - Bowl with polyurethane lining – lining partially damaged or worn - Sound-insulated lid - Manual separation flap - Built-in separation screen device after separator flap - Liquid connection - Material discharge opening 180 x 150 mm - Control cabinet for wall mounting - Baffle lid with perforated screen Space requirement with base L x W x H 1800 x 1750 x 1700 mm Net weight: approx. 1800 kg Good condition Functional description: Workpieces and abrasive media are set in motion by generated vibration and are mixed very gently. The constant relative movement between workpieces and abrasive media results in deburring and surface finishing of the workpieces.

Kondisi: sangat baik (bekas), Vertical bandsaw JAESPA Type MSU 4 Roller diameter: 420 mm Throat depth: 400 mm Table size: 615 x 615 mm Cutting height: 350 mm Saw blade length min. 3450 – max. 3640 mm Saw blade speed: 20 – 2500 m/min, stepless Power supply: 400 Volt, 50 Hz - Infinitely variable saw blade speed via 2 motor speeds, 2 gearbox stages, and stepless belt drive - Tilting saw table - 2 gearbox stages - Saw blade butt welding machine IDEAL BS 0-16 - Saw blade shear - Grinding stone for weld seam grinding Space requirements (L x W x H): 1100 x 950 x 2000 mm Weight: approx. 700 kg Very good condition, immediately operational 2 identical machines in stock Kjdpfsd Tx D Uex Aahsfa

Kondisi: baru, OPTIMUM OPTIsaw S275N Metal Band Saw - Exhibition machine - Continuously adjustable feed rate, Ksdpfx Aasu R S Hpehofa swiveling design ----- Technical Data ----- Swivel range: 0 - 60°, Cutting height: 150 mm, Cutting depth: 230 mm, Blade speed: 45 / 90 m/min, Blade length: 2,480 mm, Motor 400 V: 1.1 kW, Dimensions (LxWxH): 1,400 x 530 x 1,360 mm, Weight: 185 kg - New exhibition machine -

Kondisi: baik (bekas),

Kondisi: baru, Tahun pembuatan: 2025, The CORMAK HBS320 is designed for double-sided miter cutting within a range from -45° to +60°. The machine’s construction is based on solutions and designs developed by Polish engineers. Precision and accuracy place it at the forefront among band saws capable of cutting up to 320 mm in width. A key advantage of the machine is its latest-generation hydraulic cylinder. The unit features a reinforced vise base and a quick-release vise mechanism. Kfjdpfx Aji D Dgwsahoa Machine features The CORMAK HBS320 metal band saw enables material cutting at any angle from -45° to +60°. The workpiece can be fed manually or by any feeding device. The feed during cutting is gravity-operated, utilizing oil flow in the hydraulic cylinder. The operator starts the machine by pressing the start button and sets the cutting speed. After completing the cycle, the machine stops automatically, and the operator raises the arm to the start position. The saw arm is made from a very robust, single-piece gray cast-iron casting. Together with the 27 mm-wide saw blade, it ensures consistent multi-series cutting of structural, stainless, and tool steels. The vise is set in an adjustable bed and equipped with a quick-clamp function. The blade guides use ball bearings and carbide inserts, ensuring exceptional accuracy and straightness of cut. This greatly influences blade tracking, longevity, and overall cutting quality. Carbide guidance significantly reduces both machine and blade wear. The base is a rigid welded body made from steel plates. Inside, there is a separate coolant tank with an electric pump. The upper part of the base is shaped as a tray for coolant drainage and chip collection during material cutting. The base is fitted with a cast-iron worktable with a double-sided pivoting arm and control panel. Feed speed is controlled from the machine’s panel. Two cutting blade speeds are available: 44 and 88 m/min. In the lower arm position–after the material is cut–the blade drive stops automatically. Safety is ensured by blade guards and micro-switches that stop the motor after a cutting cycle or when any safety guard is opened. Additional protection includes automatic shutdown if the blade breaks. Technical data Ø MAX – 260 mm (straight cut) H x W MAX – 320 x 160 mm (straight cut) POWER SUPPLY – 3-phase 400V TOTAL POWER – 1.5 kW ARM DESCENT CONTROL – Hydraulic cylinder BLADE DIMENSIONS – 2740 x 27 x 0.9 mm BLADE SPEED – 44 / 88 m/min VISE BASE HEIGHT – 920 mm DIMENSIONS – 1400 x 880 x 1550 mm WEIGHT – 280 kg Cutting parameters Angle 0º ----- ø260 320 x 160 255 x 255 45º R ø210 210 x 200 210 x 210 60º R ø135 135 x 130 130 x 130 45º L ø160 220 x 130 160 x 160 The listed price is NET. Price does not include shipping. For further information, please contact us by phone or email. Visit our website to browse our full offer.

Kondisi: bekas, Tahun pembuatan: 1976, Diameter putar di atas tempat tidur: 0560 mm Diameter putar di atas dudukan: 350 mm Panjang putar: 1500 mm Lubang spindle: 65 mm Kecepatan spindle: 16-1250 rpm Feed melintang: 0,050-24,0 mm/putaran Feed muka: 0,039-18,86 mm/putaran Total daya yang dibutuhkan: 9 kW Kfedpfxst Tqgxe Aahja Berat mesin kira-kira 4,5 t

Kondisi: bekas, Working width 1350 mm Number of sanding units: 2 units Max. workpiece thickness: 160 mm Abrasive belt dimensions: 1370 x 2150 mm Feed motor: 0.75 HP Unitek Excel LC 1370 2N RKRT MODEL Excel 2NRKRT 2-BELT MACHINE 1st BELT: ROLLER 2nd BELT: COMBINATION UNIT ROLLER/PAD FOR SOLID WOOD, VENEER, AND INTERMEDIATE LACQUER SANDING - Usable WORKING WIDTH: 1350 mm - SANDING BELT LENGTH: 1370 X 2150 mm - MAX. WORKPIECE THICKNESS: 160 mm Kfedpfx Aaermucxohja - STEEL CALIBRATING ROLLER: 180 mm - Rubber-coated SANDING ROLLER: 180 mm - SANDING PAD WIDTH: 50 mm - BELT MOTOR POWER: 14.7 kW - BELT SPEED: 18/16 m/s - FEED MOTOR POWER: 0.75 HP - Variable speed gearbox for feed belt, infinitely adjustable: 4–20 m/min - HEIGHT ADJUSTMENT MOTOR: 0.33 HP - Mechanical BELT OSCILLATION "ECO GEAR PATENT SYSTEM" - 1 DRUM BRAKE for belt stopping - Swiveling ROLLER for belt tensioning - 3 PRESSURE ROLLERS with rubber coating - EMERGENCY STOP BAR at infeed - ELECTRONIC DISPLAY of workpiece thickness - 2 ROLLER CONVEYORS with 2 rollers each at infeed and outfeed - AUTOMATIC CENTERING OF FEED BELT - 1 EXTRACTION PORT, 160 mm Ø - AUTOMATIC TABLE POSITIONING PLEASE NOTE: New patented belt oscillation system 1. No valves 2. No photoelectric sensors 3. Not sensitive to dust 4. Energy-saving, environmentally friendly system Since 2008, the machine model with this system has operated continuously without lateral belt run-off! - Unitek calibrating roller made of steel (standard for all models) - Unitek flexible pressure pad before and after the roller (standard for all machines with 1 roller) - Unitek grit compensation with mechanical grid set, 6 positions (each – standard for all models) - Unitek electronic segmented sanding pad with 24 segments (sanding width 1350) - Unitek belt motor with 18.4 kW instead of 14.7 kW (PER MOTOR) - Unitek surcharge for 2nd motor 14.7 kW (only for Excel 2-belt) - Unitek automatic table lowering in case of emergency stop (standard for all models) - Unitek surcharge for frequency-controlled feed speed - Unitek surcharge for infeed/outfeed roller conveyors with 4 rollers (standard for all models) - Price per roller conveyor - Unitek electronic machine control with 12'' touchscreen (standard for all models) Automatic workpiece detection with feed control ----- Machine price in above configuration on request! ----- Optional extras at additional cost: Surcharge for 3-belt machine Roller-Roller-Pad (Mod. 049): EUR 8,390.00 Freight cost: EUR 1,300.00 Installation and commissioning: EUR 1,300.00 ----- All quoted prices are net prices plus statutory VAT of 19% ----- (Technical data as per manufacturer – subject to change without notice!)
