Beli Mesin Bor Dua Spindel bekas (78.760)

Kondisi: bekas, dreiw23-20240616 Laedpoyv N N Tjfx Afisa

Kondisi: baru, New! Fully stainless steel construction Infinitely variable speed MC control system 2 directions of rotation Laodpfx Afsy Ex Rfoioa Foldable inspection staircase Safety lid Pneumatic lid Front discharge via discharge flap 11 kW With CE marking Suitable for loading with “Easy Connect” Easy to clean External dimensions (L x W x H): 2,180 x 1,000 x 1,600 mm + Loading system for standard trolleys

Kondisi: baru, Tahun pembuatan: 2006, bohrleistung-details Laedpfey Ehwzox Afisa

Kondisi: baik (bekas), mesin bor gagang jendela Lajdpsy Edmlefx Afija

Tahun pembuatan: 1992, Kondisi: sangat baik (bekas), nomor mesin/kendaraan: 238828, Available: immediately available Lasdpfx Ajpr Uvrjfija

Kondisi: bekas, nomor mesin/kendaraan: 007354, Type of applied edge: thin edge, thick edge Adhesive system: EVA Lajdpfoyg Edaex Afiea Multi-function unit: yes Edgebander: Machine 1 & 2 Max. panel width: 240 mm Max. feed speed: 40 m/min Working units, right side: 9 pcs Working units, left side: 9 pcs

Kondisi: sangat baik (bekas), Tahun pembuatan: 2013, Kisaran diameter pengeboran 4mm - 16mm; Panjang komponen hingga 3.000mm; Sumbu ganda; Panjang keseluruhan kurang lebih 11 meter x lebar 900mm; (2) Bagian - Panjang bed headstock sekitar 5 meter, Panjang bed pengeboran sekitar 6 meter; (1) Chuck 4-jaw diameter 500mm, Lubang 120mm dengan Troyke DL-20-B, Sumbu keempat, Meja Putar Presisi diameter 500mm; Kontrol gantung; Lemari listrik mandiri (ukuran sekitar 3.000mm x 500mm x 1.900mm tinggi); Sistem filtrasi pendingin Technidrill terdiri dari konveyor serpihan LNS 'Turbo HB', sistem filter FSI 'CBFP 11' & tangki oli dengan pompa tekanan tinggi; Unit chiller Dimplex Koolant Koolers berdiri sendiri dengan kontrol (ukuran sekitar 700mm x 1.300mm x 1.850mm tinggi, tahun 2012). Laodpfx Afsy Ey E Reiea

Kondisi: bekas, Tahun pembuatan: 2018, 1 piece CNC-controlled drilling, gluing, and dowel insertion machine GANNOMAT "INDEX 130 PRO" (with options as Index 180 Pro), 400V, 3-phase, 50Hz, complete in standard configuration with: - Support with linear guide comprising: * 1 pc. single-spindle horizontal drilling unit, 1.1 kW motor, tool speed selectable via operator software (3000/5000/8000 rpm) * 1 pc. blow-out, gluing, and reinforced dowel insertion station for Ø 8 mm dowels, dowel length 30 mm - Fully automatic, electronically controlled central lubrication - X-axis NC controlled, working length 1300 mm, max. traversing speed 78 m/min - Z-axis, position programmable via support table 5-40 mm; with option for NC-controlled Z-axis - Programmable dowel projection 7-20 mm; with option for NC-controlled Y-axis * Drilling depth 0-35 mm (with drill length 70 mm) automatically set to dowel projection - Closed gluing system: 6 bar glue pressure via glue nozzle, for glues with viscosity 150 to 350 mPas - Glue quantity steplessly adjustable via operator software - Selector switch GLUE/WATER for flushing glue system; each with 1 stainless steel container for 5 kg glue, and 5 l water - Control lamp for glue level indication in glue container Ljdexwaz Hspfx Afijaa - 1 pc. left side fence, 1 pc. right side fence, and 1 pc. center fence (all removable) - 4 pcs. start buttons for individual processing of 1-4 workpieces - 4 pcs. pneumatic tilting vertical clamps 10° for workpiece thickness up to max. 80 mm; workpiece length (Y) min. 70 mm - 1 pc. extraction funnel, connection Ø 80 mm - 1 pc. TCT control system with: * Built-in industrial PC, incl. Beckhoff TWINCAT Soft PLC * Operating temperature 0-50°C * 15" resistive TFT industrial touchscreen display, resolution 1024 x 768 * CPU 2 GHz, 256 MB RAM * 2x network adapters, IDE hard disk, 4x rear USB, 1x front USB * Operating system: WINDOWS 7 - Programming via user-friendly software menu, freely programmable drilling positions by ABSOLUTE, RELATIVE, or GRID coordinates, automatic workpiece mirroring and process optimization, 4 operator fields for different programs, graphical workpiece representation, parametric programming, zero-point shifting, programmable work lists, plain-text error diagnostics OPTIONS: - 1 Electronic glue monitoring system G.I.C. (Glue Insert Control) for 1 glue nozzle - 4 additional 10° vertical tilting clamps with holder (total 8 clamps) - Surcharge for machine bed length 1800 mm (working length 1800 mm) - Surcharge for: * 1 horizontal drilling unit, 1.5 kW motor, multi-spindle drilling head with 3 individually selectable spindles, 32 mm pitch, X-axis arrangement, tool speed 3000 rpm (standard working length remains unchanged) - Y-axis NC controlled, with ball screw drive and dynamic speed 300 mm/sec; software programmable for dowel projection 7-30 mm and drilling depth 0-42 mm (with drill length 77 mm) for vertical drilling unit (top drilling), Y-axis position 5-42 mm - Surcharge for NC-controlled Y-axis, position 5-62 mm instead of 5-42 mm - Surcharge for: * 1 vertical drilling unit (top drilling), 1.5 kW motor, multi-spindle drilling head with 3 individually selectable spindles, 32 mm pitch, X-axis arrangement, tool speed 3000 rpm; Y-axis position 5-42 mm, workpiece length (Y) min. 130 mm (standard working length remains unchanged) - 1 NC-controlled Z-axis, with K

Kondisi: bekas, Tahun pembuatan: 2024, Dowel Boring Machine GANNOMAT 'DB 21400V', 3Ph, 50Hz / 1.5 kW, fully equipped in standard configuration with: - Fully automatic electronic control with pulse operation via foot valve: clamping – drilling – releasing, plus electrical skip cycle function. - Automatic return of the drilling unit after reaching the preset drilling depth. - Automatic extension of drilling depth when drilling from the edge. This eliminates the need to adjust the drilling depth when switching from face to edge drilling (+10 mm, e.g. for dowel length 35 mm, face drilling depth 14 mm and edge drilling depth 24 mm). - 1 drilling beam with 21 spindles, 32 mm pitch, motor 1.5 kW (feed 0–70 mm), incl. 21 quick-change chucks (Ganner system) for easy bit change. - Simple swivel motion of the drilling unit from 0° to 90° supported by gas cylinder. - 1 clamp carrier, movable along the Y-axis, with 3 pneumatic clamps for workpiece height up to max. 80 mm. Ideal stop system including: - 1 stop rail, 1800 mm, for shelf drilling (aluminum profile 40x40 mm) with 3 flip stops, - Quick-change system, easily switchable from right to left stops for mirror-image drilling of shelves in carcass construction; also suitable for line boring in 32 mm system. - Side stops and position adjustments, as well as drilling height positioning over the support table with mechanical digital counters. - Side stops can be easily swung away for quick conversion between carcass, frame, and line boring. - Clamping arms for clamp carrier suitable for line boring positions up to max. 300 mm. - Ideal three-stage tool system. - 1 set of dowel drill bits: - 5 carbide dowel drill bits, Ø 8x77 mm, right - 4 carbide dowel drill bits, Ø 8x77 mm, left Basic machine Dowel Boring Machine GANNOMAT 'DB 21400V', 3Ph, 50Hz / 1.5 kW completely in standard version with: - Fully automatic electronic control with pulse operation via foot valve for clamping – drilling – releasing, with electrical skip cycle. Laodpoxnlflofx Afiea - Automatic return of the drilling unit after reaching the preset drilling depth. - Automatic drilling depth extension for edge drilling (as above). - 1 drilling beam with 21 spindles, 32 mm pitch, motor 1.5 kW (feed 0–70 mm), incl. 21 quick-change chucks (Ganner system). - Simple swivel of the drilling unit from 0° to 90° supported by gas cylinder. - 1 clamp carrier movable on Y-axis with 3 pneumatic cylinders for workpiece up to max. 80 mm height. - Ideal stop system as above (1800 mm stop rail, 40x40 mm aluminum profile, 3 flip stops, quick change from right to left for mirrored shelf drilling; also usable for 32 mm system line boring). - Side stops and position adjustments, and drilling height setting above the support table via mechanical digital counters. - Side stops easily swiveling away for fast changeover between carcass, frame, and line boring. - Clamping arms on clamp carrier for row positions up to max. 300 mm. - Ideally structured three-stage tool system. - Extraction funnel, dust-tested, ø 120 mm - 1 set for line boring in 32 mm system

Kondisi: belum diuji (bekas), Tahun pembuatan: 1987, nomor mesin/kendaraan: 5755, Fungsionalitas: belum diuji, kedalaman pengeboran: 120 mm, kecepatan rotasi (maks.): 1.125 rpm, kecepatan rotasi (min.): 160 rpm, lebar meja: 300 mm, panjang meja: 300 mm, Tanpa harga minimum – penjualan dijamin kepada penawar tertinggi! Laedpfoy D Sydsx Afioa Pengajuan penawaran mengharuskan pengambilan tepat waktu antara 23.06.2026 dan 26.06.2026! DETAIL TEKNIS Rentang putaran: 160 - 1.125 rpm Kedalaman pengeboran: hingga 120 mm Dimensi meja: 300 x 300 mm DETAIL MESIN Dimensi & Berat Dimensi (P x L x T): 1.000 x 500 x 1.800 mm Berat mesin: 250 kg PERLENGKAPAN Catok mesin Referensi eksternal: 18

Tahun pembuatan: 2009, Kondisi: bekas, nomor mesin/kendaraan: 16-TS5-6, 0 kVA, kontrol HEIDENHAIN, meja penjepit alur-T ukuran sekitar 2000x2500 mm, penukar alat 60-posisi AITEK H-60, konveyor serpihan, unit hidrolik, pendingin industri, filter pita, 3 adaptor, pelindung penutup Laedpey D Ty Ejfx Afioa

Kondisi: bekas, Tahun pembuatan: 1989, Mesin bekas Tahun pembuatan: 1989 Perlengkapan dan data teknis: - Chuck bor 2-rahang untuk poros hingga Ø 20 mm - Penyesuaian posisi pneumatik pada 2 tingkat 0-100 mm - Kedalaman pengeboran maks. 150 mm Laodpfx Aswkba Hsfisa - Rel presisi bergradasi 12 mm - Penguncian tengah dan penyesuaian melintang - 2 silinder penjepit pem. pengaman - Motor 1,5 kW - Kecepatan putar 2800 rpm Dimensi (tanpa pemberhentian): 1100 x 1100 x 1500 mm Berat: sekitar 310 kg Ketersediaan: segera Lokasi penyimpanan: Röllbach

Kondisi: bekas, Mesin bekas Mesin bor lubang deret bekas merek Ganner tipe RB 107 Ljdpfx Asw I Unwefieaa No. mesin: 121627 Daya motor: 1,5 kW Kecepatan motor: 2800 rpm 1 balok bor dengan 26 spindel, jarak sumbu 32 mm 3 penahan benda kerja 1 saklar kaki Ketersediaan: segera Lokasi: Röllbach

Kondisi: bekas, Tahun pembuatan: 1993, Mesin bekas Tahun pembuatan: 1993 Perlengkapan dan data teknis: Chuck bor 2-rahang hingga Ø tangkai 20 mm Penyesuaian posisi pneumatik pada 2 level 0-100 mm Kedalaman bor maksimum 150 mm Rel raster presisi 12 mm Kunci tengah dan penyesuaian melintang 2 silinder penjepit pengaman pneumatik Motor 1,5 kW Kecepatan 2800 rpm Perangkat bor lubang panjang dapat diturunkan dengan 2 cam program Berat mesin sekitar 310 kg Ukuran mesin (P x L x T) 1100 x 1100 x 1500 mm (tanpa penyangga) Laodpfx Afow I Uy Teija Ketersediaan: segera Lokasi: Röllbach

Kondisi: bekas, Tahun pembuatan: 1997, Mesin bekas Laedpfsxwz Ihjx Afioa Tahun pembuatan: 1997 Kondisi: terawat Perlengkapan dan data teknis: - Jumlah spindle bor: 21 unit, jarak 32 mm - Arah pengeboran: dari bawah & sisi depan - Sudut putar: 0-90 derajat dengan roda tangan - Penjepit material pneumatik: 3 unit - Bukaan maximal: tinggi 100 mm dan lebar 640 mm - Motor: 1,5 kW - Diameter saluran hisap: 120 mm - Termasuk berbagai pembatas (lihat gambar) Ketersediaan: segera Lokasi penyimpanan: Röllbach

Kondisi: sangat baik (bekas), Fungsionalitas: berfungsi sepenuhnya, Bor mesin Comec FMC 900 3M-I Pemuatan otomatis dari magazin Jumlah spindle: 4 Motor utama 4 kW Panjang maksimal elemen: 900 mm Lebar maksimal elemen: 100 mm Lsdpfx Asy A I R Ajfijaa Jarak pengeboran maksimal: 800 mm Kapasitas pengeboran tergantung panjang material: 500-1100 pcs/jam Penggunaan untuk produksi massal kursi, tempat tidur, ranjang bayi, serta komponen mebel lainnya.

Kondisi: baik (bekas), Spindel: 130 mm Lintasan X: 5000 mm Lintasan Y: 2500 mm Lintasan Z: 1000 mm Meja putar: 2000 x 2500 mm, sekitar 30 ton Dengan piringan perencanaan Kepala vertikal Ljdpfx Aoy D Tvgjfisaa Beberapa alat Tanpa bidang pelat

Kondisi: baru, Tahun pembuatan: 2023, New machine Year of manufacture: 2023 Multi-spindle universal dowel boring machine with 3 numerically controlled axes (+/- 0.1 mm) with horizontal and vertical drilling capabilities electronic adjustment of height, depth, and drilling angle (0-90°) with 7" color touchscreen, memory for up to 1000 programs with parallel stops with numeric adjustment with 21 drilling spindles (10 left, 11 right) Lasdpfx Afolk R Epoioa Spindle pitch: 32 mm Max. drilling distance: 640 mm Max. tool diameter: 40 mm Max. drilling depth: 65 mm Max. horizontal drilling height: 35 mm Working height: 860 mm Max. panel thickness: 60 mm Max. panel size: 900 x 3000 mm Motor: 1.5 kW – 2800 rpm Pneumatic connection: 6/8 bar Compressed air consumption per work cycle: 5 NL Extraction nozzle: 80 mm Machine footprint: 1580 x 950 x 1400 mm Net weight: 340 kg Availability: short notice Location: Flörsheim

Kondisi: bekas, nomor mesin/kendaraan: 008469, Area kerja sumbu X: 3050 mm Area kerja sumbu Y: 850 mm Jumlah sumbu terkontrol: 3 sumbu Jumlah spindle bor: 19 Jumlah tempat alat: 4 Laedpfxsywafus Afija

Kondisi: bekas, Used Machine Pre-owned Line Boring Machine Ganner Compact 30 Features and Technical Specifications: Lasdpfjwhuh Sjx Afisa - 2 drilling beams, each with 15 spindles - 32 mm pitch - Drilling unit position adjustment: 0 – 650 mm - Minimum distance between rows of drilled holes: 190 mm - Spindle speed: 2,800 rpm - Motor power: 2 x 0.75 kW - Maximum clamping height of workpieces: 70 mm - Working height: 850 mm - Compressed air connection: 6 bar Availability: By arrangement Location: Solingen

Kondisi: sangat baik (bekas), Fungsionalitas: berfungsi sepenuhnya, Bor mesin multi-spindle Masterwood K29S Jumlah spindle: 29 Putaran: 2800 rpm Jarak antara bor pertama dan terakhir: 896 mm Jumlah penjepit pneumatik: 4 Jarak antar pusat spindle: 32 mm Kedalaman pengeboran maks.: 80 mm Tekanan kerja: 6 – 7 bar Daya motor: 3 kW Dokumentasi teknis Ledpfx Aoy Atycofieaa

Kondisi: sangat baik (bekas), Fungsionalitas: berfungsi sepenuhnya, Motor pisau: 2,2 kW, 230/400 V (*) 50 Hz Diameter pisau: 400 mm Diameter lubang pisau: 30 mm Kecepatan rotasi pisau: 57 m/detik (2720 rpm) Diameter luar saluran hisap: 85 mm Volume udara hisap yang dibutuhkan: 600 m³/jam Lasdoypb Itopfx Afioa Tekanan kerja: 6 / 8 Bar Konsumsi udara: 40 liter/menit Dimensi: 4220 mm x 1700 mm x 1500 H Berat: 580 kg

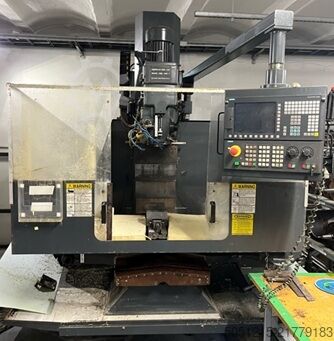

Tahun pembuatan: 2012, Kondisi: bekas, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 60180, Mesin gerinda permukaan spindel vertikal Republic Lagun VBM 1000-F Lsdpey Ey Dtofx Afioaa

Kondisi: baik (bekas), Fungsionalitas: berfungsi sepenuhnya, MESIN BOR MEJA TIPE: TB 16 TAHUN PEMBUATAN: 1977 Data Teknis: - Kapasitas pengeboran maks.: 16 mm - Spindel bor: MK2 - Kedalaman bor (stroke): 100 mm - Meja pengeboran: 220 x 360 mm - Daya penggerak: 0,75 kW/1 HP - Kecepatan motor: 1400 rpm - Kecepatan spindel: 430-680-1120-1800-2800-4500 rpm Perlengkapan: Lodpfxsy Dp I Es Afieaa - Chuck cepat kunci ALBRECHT 0-13 mm - Dokumentasi

Kondisi: bekas, Tahun pembuatan: 2006, Mesin Bor Radial Produsen: Valmer Tipe: TR 80/2500 SP Tahun pembuatan: 2006 Dimensi meja: 1.000 x 800 x 560 mm Diameter pengeboran maks.: 80 mm Diameter tapping maks.: 42 mm Jarak poros spindle/kolom maks.: 2.500 mm Laedpfx Afjw Dbgyoija Jarak poros spindle/kolom min.: 500 mm Pergerakan kepala horizontal: 2.000 mm Jarak maks. antara ujung spindle dan permukaan kerja: 2.000 mm Jarak min. antara ujung spindle dan permukaan kerja: 550 mm Stroke spindle: 450 mm Morse taper: MT 6 Daya: 7,5 kW Dimensi mesin: 3.730 x 1.400 x 3.825 mm Berat: 11.000 kg
