Beli Ott Mesin Pelapis Tepi Ott Atlantic V6F bekas (77.024)

Kondisi: bekas, Tahun pembuatan: 2003, Mesin bekas Tahun pembuatan: 2003 Perlengkapan dan data teknis: - Kontrol MAGELIS - Untuk lem leleh berbasis EVA - Penyambungan: 2x1,5 kW, u=12000, 200 Hz - Pemotong tutup: 2x0,2 kW, perputaran otomatis 0°/3°, 2 pisau gergaji HM 140 mm - Frais rata: 2,07 kW, dengan kepala WPL HF 70, diameter 70 mm - Frais radius: R2 - Pisau tarik radius - Pisau tarik permukaan Bdsdpfx Ajxymfwjnxec - Tangki lem atas - Dimensi benda kerja: - Lebar min: 70 mm - Tebal: 8-42 mm - Panjang min: 150 mm - Ketebalan tepi: 0,2-6 mm - Feeding: 12 m/menit - Koneksi ekstraksi debu: 160 mm Dimensi: 4.500 x 1.250 x 1.300 mm Berat: 1.650 kg Ketersediaan: segera Lokasi gudang: Baden-Württemberg

Kondisi: bekas, Tahun pembuatan: 2008, Used machine Year of manufacture: 2008 Equipment and technical specifications: - Round-pot glue unit - with second glue unit for PUR application - Feed unit with automatic edge band magazine - Pressure zone with multiple pressure rollers - End trimming: 2 motorized saw units for face/end trimming - Top/bottom milling: 2 milling units with tracing wheels for radius or chamfer - Radius scraper: pneumatically controlled, for post-processing radii - Surface scraper: for smoothing edge surfaces - Polishing unit: 2 polishing wheels with motors for final finish - Riepe spraying unit - Control system: PLC with control panel - Feed frequency inverter replaced by Ott in 2022 - Feed speed approx. 10-12 m/min - Workpiece thickness up to 52 mm - Edge thickness 0.3 – 12 mm Bdodpfx Aoyqanbenxsc - Power supply 3x 400 V AC, 50 Hz - Rated power 12.7 kW - Rated current 30.5 A - Control voltage 24 V DC - Max. fuse protection 35 A (5x 6 mm² connecting cable) Machine dimensions: approx. 6120x840x1385 mm Machine weight approx. 3,000 kg Availability: short notice Location: Röllbach

Kondisi: bekas, tinggi total: 1.600 mm, panjang total: 1.500 mm, lebar total: 800 mm, berat keseluruhan: 440 kg, Kein Mindestpreis - garantierter Verkauf zum höchsten Gebot! TECHNISCHE DETAILS Trimming Unit: yes Panel support guides: yes Bdedpfx Anoy Uwq Aexoc Number of Edge Processing Units: 1 Processing Unit: top and bottom rough trimming Number of finishing motors: 1 MASCHINEN-DETAILS Modell: UF 362 / 2713 Typ: Manual sanding machine AUSSTATTUNG Trimming Unit Panel support guides

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2018, Fungsionalitas: berfungsi sepenuhnya, jam operasional: 7.610 h, tegangan masuk: 400 V, arus masuk: 10 A, tinggi total: 1.650 mm, panjang total: 4.400 mm, lebar total: 1.000 mm, de-to-hu-it-lt-001 Bdedpfxsy Tnuve Anxec

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2018, nomor mesin/kendaraan: 974/1-810, Fungsionalitas: berfungsi sepenuhnya, jam operasional: 1.483 h, tinggi benda kerja (maks.): 60 mm, kecepatan pemakanan sumbu X: 18 m/menit, model controller: Edge Control 19 mit 18,5" Touchscreen, The machine was last serviced in February 2026! The machine has the following configuration: Joint milling unit 1802 Motor output: 2 x 2.0 kW 1st cutter: Diamond Ø 70 x 64 x 30 mm, Z2+2, left-hand rotation for joint milling unit 2nd cutter: Diamond Ø 70 x 64 x 30 mm, Z2+2, right-hand rotation for joint milling unit Edge feeding unit 1901 SYNCHRO (fully automatic) Gluing station Glu Jet GJ301 (automatic) Power: 2.3 kW, 50 Hz Cartridges: storage chamber for 14 cartridges (1.4 kg) GluJet collection container Pressure unit 1913 MOT End trimming unit 1918 (60 mm) pneumatic Multi-function milling unit 1826 MOT4 Motor output: 2 x 0.65 kW Air Stream System cutter: Diamond Ø 58 mm x 24 mm, Ø 20 mm Z = 2 R = 2 mm left-hand rotation Air Stream System cutter: Diamond Ø 58 mm x 24 mm, Ø 20 mm Z = 2 R = 2 mm right-hand rotation Profile milling unit 1833 MOT4 1st cutter: Diamond Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4 Radius R = 2 mm, left-hand rotation with CM-technology 2nd cutter: Diamond Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4 Radius R = 2 mm, right-hand rotation with CM-technology Scraper unit 1929 MOT4 HW reversible knives for scraper holder R = 2 mm (2 pcs. required) Flat scraper FK 701 Polishing unit 1940 (2 x 0.12 kW, 50 Hz, 1400 rpm) Spraying device 1856 TECHNICAL DETAILS Feed speed: 10 - 18 m/min Minimum workpiece length: 160 mm Minimum workpiece width: 60 mm Workpiece thickness: 8 - 60 mm Max. edge height: 65 mm Bodsy Tw Edspfx Anxjdc Edge thickness (coil material): 0.4 - 3 mm Edge thickness (strip material) max.: 8 mm MACHINE DETAILS Control: Edge Control 19 with 18.5" touchscreen Infeed fence length: 1,350 mm Electrics for stepless feed: 400 V / 50 Hz Feed electric motor: 2.2 kW Operating hours: 1,483 h EQUIPMENT Motorized pressure bridge adjustment Nesting - vertical feeler shoe top & bottom Edition 18 package ECO MODE energy saving mode ITronic system

Kondisi: sangat baik (bekas), Tahun pembuatan: 2005, Brand: HOLZ HER Model: SPRINT 1310 - CE Standard Automatic edge banding machine with cartridge-based glue system for processing wood, PVC, ABS, and veneer edges. Suitable for furniture, panel materials, custom productions, kitchens, bathroom furniture, joineries, and much more – CE-compliant. Technical Data: Min./Max. panel height: 6 – 45 mm Edge thickness: 0.4 – 6 mm Maximum glue height: 51 mm Minimum panel width: 60 mm Minimum panel length: 180 mm Feed speed: 8 m/min Compressed air: 6–7 bar Machine Features: Automatic feed for coil and strip material Cartridge glue system, allows switching between EVA and PUR glue during operation or changing glue color 3 pressure rollers, 1 driven End trimming unit with 2 motors 0.22 kW each Multi-function unit with controlled axis for flush and chamfer milling, 2 motors 0.6 kW each Flat scraper unit Radius scraper unit Buffing unit Acoustic hood Control: Pivoting and swiveling control panel All units can be individually activated Function display with text and graphics Pre-selection display of units Program list with names and numbers, self-diagnosis Approx. machine dimensions: 3900 x 1050 x 1800 mm (H) Weight: 1000 kg INCLUDES OTT Rondomat – Corner Rounding Unit Bdodsy Emw Hjpfx Anxjc Note on used machines: • Subject to technical changes and prior sale. • Prices stated are ex works – loaded free of charge! • The machine has been cleaned and function-tested. • All machines are sold as-inspected without any warranty or guarantee. Buyers are welcome to inspect the machine at our location. • Special agreements are only valid in written form. (We respond to inquiries only if you provide your address and telephone number!)

Kondisi: bekas, Tahun pembuatan: 2008, Anschlusswert: 11,5 kW Vorschubgeschwindigkeit: 11 m/min Werkstückdicke: 8 - 60 mm Kantendicke: 0,4 - 8 mm Rollentrennen: max. 3,0 x 45 / 0,8 x 65 mm Absaugdurchmesser: 1x 120 / 2x 100 mm Arbeitshöhe: 950 mm Maße: 5860 x 1560 x 2300 mm Gewicht: ca. 2600 kg Lagerort: Kunde Bedpozab Risfx Anxjdc

Kondisi: baik (bekas), Tahun pembuatan: 1999, ts01 Bedpfezafppox Anxedc

Kondisi: diremajakan ulang (bekas), Tahun pembuatan: 2007, nomor mesin/kendaraan: 0-200-03-9040, Fungsionalitas: berfungsi sepenuhnya, ketebalan tepi (maks.): 20 mm, kecepatan pemakanan sumbu X: 18 m/menit, tahun perombakan terakhir: 2025, de-3034 Bdedpfxozap H Se Anxec

Kondisi: sangat baik (bekas),

Kondisi: diremaj di bengkel (bekas), Tahun pembuatan: 2018, nomor mesin/kendaraan: 0-261-71-2126, Fungsionalitas: berfungsi sepenuhnya, Perlengkapan: dokumentasi / manual, en Bdedoza D E Ajpfx Anxsc

Kondisi: bekas, machineseeker-uno-1303-holzher Bjdpfjy Tuylex Anxjdc

Kondisi: bekas, Edge bander BRANDT KDF 430 Freis pra-pemotongan Pot lem yang dapat diganti Bdsdjzarz Eepfx Anxjc Aplikasi lem dengan rol Gilotin awal pneumatik Rol penekan Gergaji pemotong finishing Unit frais atas-bawah R1-R2, pengaturan motorik Unit pemrosesan sudut Scraper profil Scraper datar Polisher Maks tinggi elemen 60mm Maks tebal edging roll 3mm Kecepatan maju 8-14 m/menit Panjang mesin 480cm Mesin diperiksa, siap digunakan

Kondisi: baru, Tahun pembuatan: 2026, Fungsionalitas: berfungsi sepenuhnya, 1 Bodpfxjza D S As Anxsdc

Kondisi: baik (bekas), Tahun pembuatan: 2014, Fungsionalitas: berfungsi sepenuhnya, Single-sided edge banding machine, right-hand version, for gluing workpieces using EVA or PUR hot-melt adhesives, with complete post-processing. Machine type: KDF 660 Feed speed: 8 - 18 m/min Overall machine length: 6,260 mm Workpiece thickness: 8 - 60 mm Edge material (roll): 0.4 - 3 mm Edge material (strip): 0.4 - 12 mm Hood interior lighting: 3 lamps Motorized height adjustment of top pressure Top pressure equipped with PU rollers for sensitive workpieces Equipment configuration: Infeed fence, positioning via program Infeed fence extension 300 Automatic edge magazine with feeding of edge material up to the crosscut shears, for edge thickness up to 3 mm Release agent application top and bottom Jointing unit with 2 pneumatically controlled motors, each 2.2 kW Gluing unit QA45 suitable for EVA and PUR adhesives, automatic cleaning function via program, with collection tray QUICKMELT premelting unit for feeding adhesive with EVA glue Pressure zone with 1 main pressure roller and 3 follow-up rollers, adjustable via program End trimming unit with 2 motors, each 0.35 kW, pneumatic adjustment from bevel to straight cut via program, 2-point adjustment for flush trimming or trimming with overlap. Operating speed with 0.4 - 3 mm edge thickness: 18 m/min; with 3 - 12 mm edge thickness: 14 m/min. Bsdpfx Asy Twu Sonxjdc Pre-milling unit with 2 motors, each 0.55 kW, 2-point adjustment for vertical tracing rollers, axis adjustment for side tracing, multiple roller tracing. Multifunctional profile trimming unit with 2 motors, each 0.4 kW Max. feed speed: 14 m/min Workpiece thickness: 12 - 60 mm Edge thickness max.: 3 mm Multi-profile scraper unit with automatic changeover for bevel/radii, edge thickness max. 3 mm, with multiple roller tracing Flat scraper unit Cleaning agent spraying unit Buffing unit with 2 motors, each 0.18 kW Additional equipment: Interface for Ligmatech return system Control: POWER CONTROL PC 20+ Optional offer: FE-MA-TECH PUR ADVANCED 2kg LIGHT melting system for automatic filling of adhesive application with PUR hot-melt adhesive.

Kondisi: baik (bekas), Tahun pembuatan: 2014, nomor mesin/kendaraan: 0-200-01-2196, Fungsionalitas: berfungsi sepenuhnya, arus masuk: 63 A, jenis penyesuaian ketinggian: listrik, kecepatan pemakanan sumbu X: 25 m/menit, jenis aktuasi: listrik, tinggi total: 2.000 mm, panjang total: 7.850 mm, lebar total: 2.300 mm, berat keseluruhan: 5.000 kg, Perlengkapan: Penandaan CE, dokumentasi / manual, Mesin edge banding, kondisi kerja baik, penyesuaian sepenuhnya elektrik, kecepatan kerja 25 m/menit, tersedia segera. Bdodpey Ebl Sofx Anxsc

Kondisi: bekas, Fungsionalitas: belum diuji, tinggi total: 1.800 mm, panjang total: 9.500 mm, Ketebalan tepi 0,3 - 30 mm Ketinggian tepi maks. 66 mm Bodpfxeyzn Tbs Anxjdc Lebar benda kerja min. 60 mm Panjang benda kerja min. 140 mm Ketebalan benda kerja 6 - 60 mm

Kondisi: baik (bekas), 0300 Bdsdpfoyk Hgkjx Anxjc

Kondisi: baik (bekas), Tahun pembuatan: 2008, Fungsionalitas: berfungsi sepenuhnya, jam operasional: 1.400 h, daya: 11,5 kW (15,64 hp), tinggi benda kerja (maks.): 50 mm, ketebalan tepi (maks.): 8 mm, panjang total: 5.860 mm, Single-sided edge banding machine, right-hand version For hot-melt adhesive bonding. Quick-change gluing unit for hot-melt adhesive. Processing of PU adhesive granulate possible, in compliance with adhesive processing guidelines. Glue reservoir positioned leak-proof below the glue roller. Precisely adjustable glue application to the workpiece via the glue roller; no adjustment to workpiece thickness required. Glue roller rotation selectable in either co-rotating or counter-rotating direction. Glue temperature monitoring via electronic thermostat. Automatic glue temperature reduction during work interruptions. Infrared hot-melt activation. Automatic edge magazine for roll material and fixed lengths, incl. roll holder, Ø 800 mm. Equipped with reinforced pre-end trimming shear for thick PVC/ABS, max. 3 x 45 mm. Centrally adjustable top pressure. Control panel at machine infeed. Electronic control system: power control PC 20+ BRANDT control system with color graphic user interface for simple, user-friendly operation and programming. Technical details: - Swiveling control panel at machine infeed - Durable short-stroke membrane keypad - Color graphic flat display - Industrial PC with CompactFlash disk for mass storage - Aggregated function keys with LED status indicators Bjdpfx Anjyud S Eexodc - Operator guidance supported by color pictograms - Online language switching between various foreign languages - Display of essential machine target and actual states - Plain-text status messages - Easy selection and correction of routing points - Simple axis adjustment (with appropriate aggregate version) - Online help in plain text via accessible help window at any time - Production data logging for production time, edge length and number of workpieces, as daily and total values - Inspection and maintenance interval indicator - Remote service capability via integrated modem and installed service software - Storage of processing programs - Production based on processing programs - Backup of processing programs

Kondisi: sangat baik (bekas), Tahun pembuatan: 2023, Kami menawarkan mesin edgebander Format-4 tempora F600 dalam kondisi sangat baik, tahun pembuatan 2023. Bdodpfxjzak D Sj Anxec Jika Anda memiliki pertanyaan atau membutuhkan informasi lebih lanjut, jangan ragu untuk mengirim pesan atau menghubungi kami.

Kondisi: baik (bekas), Tahun pembuatan: 2004, kantenanleimmaschine-hebrock-akv3005-2004 Bodpfeyyw Tzox Anxodc

Kondisi: baik (bekas), Tahun pembuatan: 2003, Fungsionalitas: berfungsi sepenuhnya, ott_kantenanleimmaschine_euromatic-fu Bdedpjy S Rz Aefx Anxec

Kondisi: bekas, Tahun pembuatan: 2008, nomor mesin/kendaraan: 50071, Fungsionalitas: berfungsi sepenuhnya, daya: 18 kW (24,47 hp), tegangan masuk: 400 V, arus masuk: 42 A, frekuensi input: 50 Hz, jenis arus masuk: tiga fasa, tinggi benda kerja (maks.): 60 mm, ketebalan tepi (maks.): 8 mm, jenis penyesuaian ketinggian: listrik, kecepatan pemakanan sumbu X: 16 m/menit, jenis aktuasi: pneumatik, tinggi total: 1.600 mm, panjang total: 7.200 mm, lebar total: 1.600 mm, berat keseluruhan: 3.700 kg, Perlengkapan: Penandaan CE, dokumentasi / manual, Kami menawarkan mesin edging IMA Advantage 60 yang terawat baik, tahun pembuatan 2008. Tipe mesin: Advantage 60 Nomor seri: 50071 Tahun pembuatan: 2008 Tegangan: 400 V Bdodpfxsy Um Tmj Anxoc Frekuensi: 50 Hz Catu daya listrik: 3 N PE Daya nominal: 18 kW Arus nominal: 42 A Mesin ini dilengkapi dengan grup berikut: - Pra-milling - Nozel peniup untuk menghilangkan partikel lepas - Unit pemanas - Unit aplikasi lem - Unit pemotongan akhir - Unit MFA untuk pemotongan/membulatkan sudut - Scraper profil - Unit aplikasi cairan pembersih Riepe - Scraper datar - Sikat - Unit alur Dengan dua pot lem yang dapat diganti. Jika Anda memiliki pertanyaan atau memerlukan informasi lebih lanjut, silakan kirim pesan atau hubungi kami.

Kondisi: sangat baik (bekas), TOP-ZUSTAND Hebrock Kantenanleimmaschine Modell: Top 2000 Maschinenbeschreibung Ausstattung - Heizleiste für Spanplatten - Leimbehälter - Druckwalze - Vorder- und Hinterkantensäge - Ober- und Unterfrässtation, Radius und Geradfräsen - Maschinenlänge: 3100 mm - Gewicht: 600 kg Bdsdpfozadx Aox Anxoc

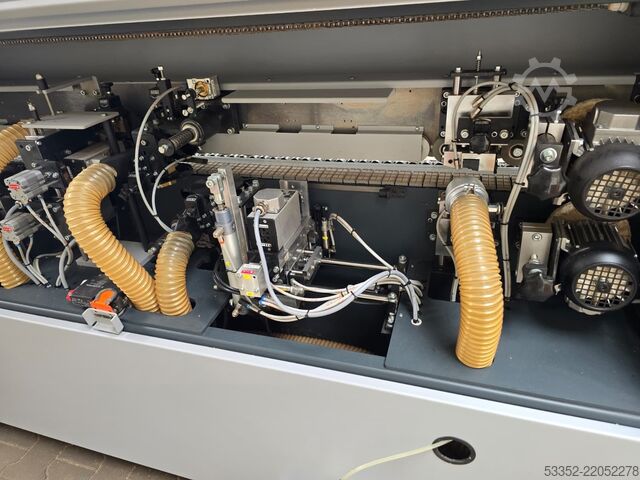

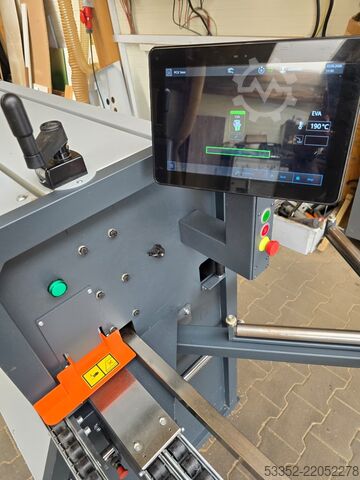

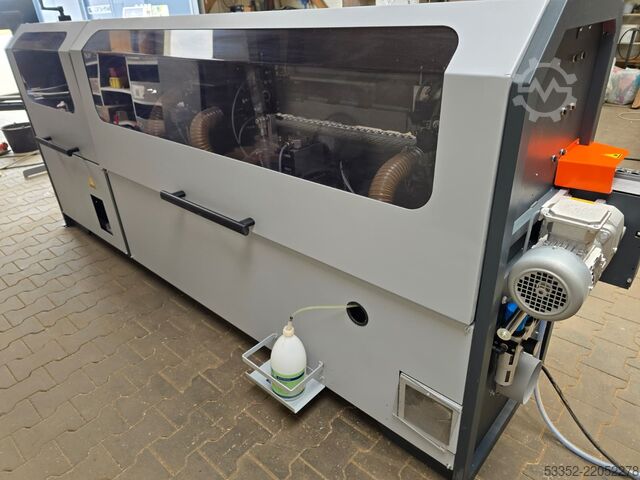

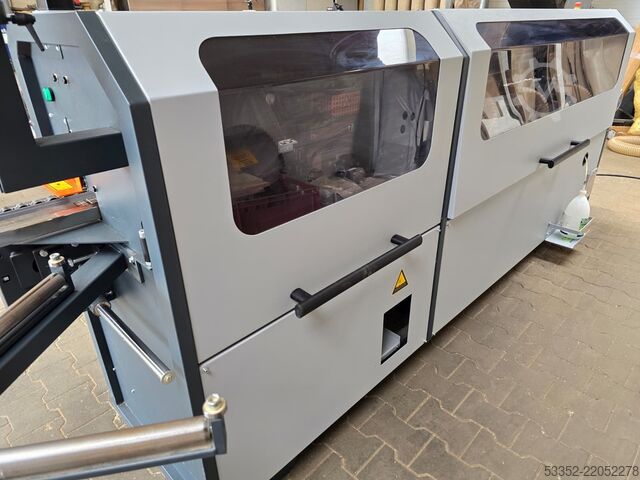

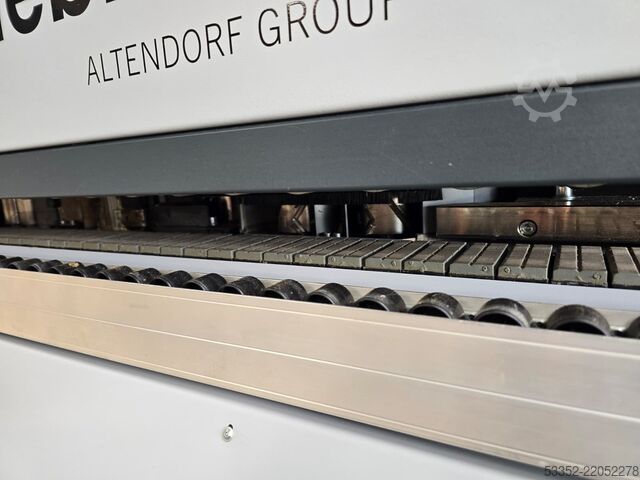

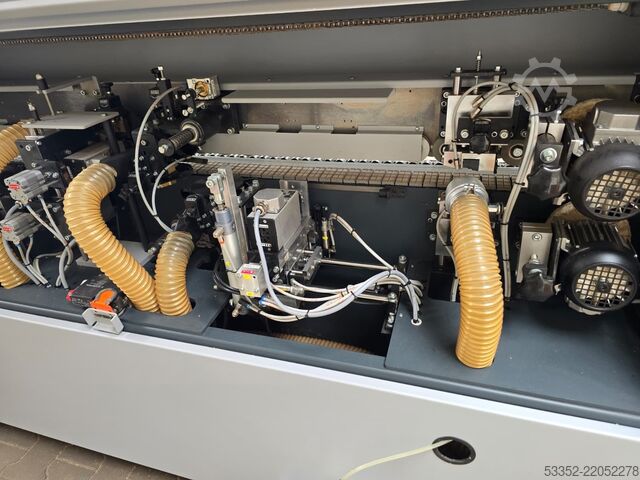

Kondisi: hampir baru (bekas), Edgebander Hebrock F4 Dilengkapi dengan baik, dapat diuji sebelum pembelian. Pisau grooving awal (pre-milling), aplikasi lem menggunakan rol, Dilengkapi dengan pembuangan lem, Pot lem dapat diganti. Gilotin awal pneumatik, rol penekan, Gergaji potong finishing, Unit milling atas-bawah, R1 – R2, Scraper profil R1-R2, Unit pengerjaan sudut yang dapat diganti untuk 1mm dan 2mm, Bedpfx Asy Dcmuenxsdc Scraper datar, Nesting, Regulasi pneumatik 3 titik, Pencahayaan LED, Maksimal ketebalan edge tape dalam rol: 3mm, Kecepatan feeding: 7 dan 10m/menit, Kebutuhan daya: 7,08KW, Harga katalog mesin baru dengan perlengkapan ini lebih dari 51 ribu euro. Mesin tahun 2026, bekas display, pemakaian 18 jam.
