Beli Internal Gauge bekas (13.025)

Kondisi: bekas, Tahun pembuatan: 1982, Technical details: Internal diameter: 300 mm Grinding depth: 418 mm Total power requirement: 13.6 kVA Machine weight approx.: 4 t Grinding length: 1,500 mm Ksdsr R Ellepfx Adqenc Grinding wheel diameter: 150 mm Bore diameter: 300 mm

Kondisi: bekas, Tahun pembuatan: 1983, Inner diameter min/max: 10 / 250 mm Grinding depth: 400 mm Max. external diameter: 380 mm Swing diameter: 390 mm Max. table travel: 550 mm Min. table stroke: 2 mm Rapid traverse: 10 m/min Infinitely variable table speed: 0 - 10 m/min Coarse adjustment: 18 mm Fine adjustment: 4 mm Max. workpiece weight: 100 kg Spindle head: B 6 DIN 55021 Spindle speeds - stepless: 15 - 1,500 rpm Max. swivel angle: +/- 30 degrees Spindle bore: 50 mm Drive power: 2 kW Rapid traverse: 0 - 250 mm/min Stroke: 70 mm Drive power: 3 kW Machine weight approx.: 2.7 t Space requirement approx.: 3.0 x 3.0 x 3.2 m Internal grinding machine BAHMÜLLER - JES 12 Kodpfxevprxfo Adqjnc - New control system (July 2015)

Kondisi: baik (bekas), Tahun pembuatan: 1995, Fungsionalitas: berfungsi sepenuhnya, Technical Details Internal diameter: 800 mm Grinding depth: 500 mm Swing diameter: 850 mm Machine weight approx.: 6.4 t Additional Information Used internal cylindrical grinding machine with face grinding attachment Special version with increased swing diameter and extended hydraulic cross-slide Rebuilt and modernized in 1995 at the manufacturer’s plant in Glauchau, Commissioned in 1996 1. TECHNICAL DATA 1.1 Working Range Grinding diameter within workpiece guard Internal grinding, min./max.: 30/630(800) mm External grinding, max.: 800 mm Kedpfjxfr Uujx Adqsnc Grinding depth, up to approx. 500 mm Table travel: 800 mm Workpiece diameter, max.: 800 mm Swing diameter within workpiece guard, max.: 800 mm without workpiece guard, approx. 850 mm Distance from workpiece spindle head to grinding spindle holder, max.: 1225 mm Adjustment of internal grinding attachment on table, max.: 545 mm 1.2 Workpiece Spindle Headstock Cross movement, max.: 650 mm Cross adjustment via geared motor and positioning system with HEIDENHAIN digital position display Swiveling, max.: 15 degrees Workpiece spindle speeds: 16/22/32/45/63/90/125/180/250 rpm Load capacity, max.: 1000 kg Spindle head (with bayonet flange) DIN 55021 size 11 Equipment and Accessories: 2-axis digital readouts by HEIDENHAIN Coolant system with magnetic separator Machine leveling feet Various grinding wheels Diamond dresser Large face plate Internal and face grinding setup Halogen machine lamp Machine documentation

Kondisi: baik (bekas), Mikrometer internal 3-titik Hoffmann No. 42915, 4 buah: 1x rentang pengukuran 35 mm - 40 mm, 1x rentang pengukuran 30 mm - 35 mm, 1x rentang pengukuran 25 mm - 30 mm, 1x rentang pengukuran 20 mm - 25 mm, ditambah 2 ring penguji dan kotak kayu. Paket lengkap. Untuk detail, aksesori, dan kondisi, lihat gambar. Kjdsxl Dvqopfx Adqsnc

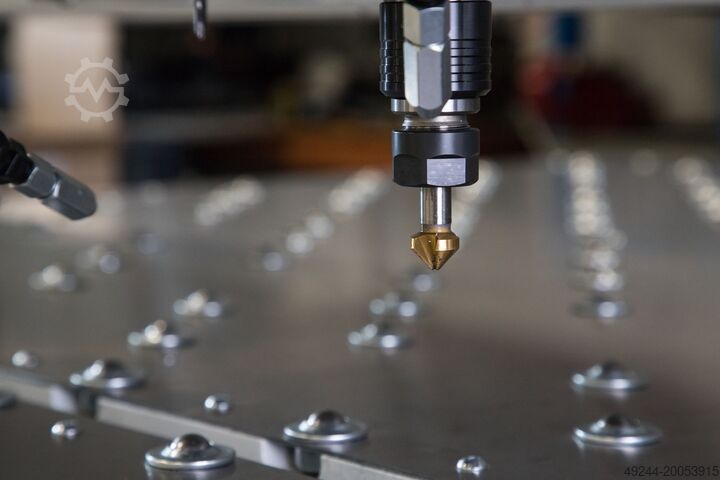

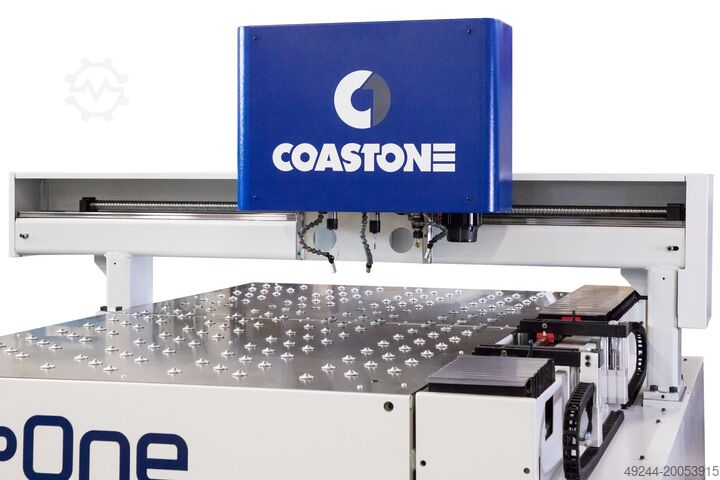

Kondisi: baru, Tahun pembuatan: 2025, jam operasional: 10 h, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: MT1212_38, masa garansi: 36 bulan, Automatic Thread Processing Machine Multitapper 1212 CoastOne - Made in Finland New machine Working area: 1250x1250mm Thread sizes: M2-M10 Number of spindles: 3 (optional 4) 2x thread cutting/forming; 1x countersinking/drilling station Micro-lubrication for each spindle/tool station Kodpfx Asxd U R Nodqsnc Control: TC15 touchscreen Numeric input, import of punching - NC files

Kondisi: baik (bekas), jam operasional: 2.200 h, kapasitas angkut: 1.200 kg, tinggi angkat: 1.800 mm, jenis bahan bakar: listrik, tipe tiang: dupleks, tinggi konstruksi: 2.100 mm, jarak tempuh: 2.200 km, Stacker JALUR LEBAR merek ini tahun 2006 dan dalam kondisi baik; Kapasitas 1.200 kg; Mengangkat hingga ketinggian 1.800 mm; Tinggi bebas lewat 2.100 mm; Hanya 2.200 jam penggunaan; Dilengkapi garpu stainless steel! Lebar luar garpu 88cm, lebar dalam 69cm; Baterai gel bebas perawatan, dilengkapi pengisi daya eksternal. Lihat videonya di YouTube. Knsdpfx Asw Nk Szjdqec

Kondisi: hampir baru (bekas), Fungsionalitas: berfungsi sepenuhnya, jenis alat: VDI 40, berat keseluruhan: 10 kg, VDI40 collet chuck, retractable, with ER50 collets – 10 pieces - Extremely compact design for threads with critical lengths - Precise thread length control thanks to disengageable clutch - Single head for both internal and external threads - Integrated coolant supply (optionally with through-coolant) - Available with - ANGST Flex or ESX (ER) collets - Sizes 1, 2, 3, 4, and 6 - All common shanks, e.g., cylindrical, cylindrical with flat (Weldon), DIN 69880 - Robust and durable Swiss quality products Knjdpexltzvsfx Adqoc PAFIX Thread Cutting Head for CNC Machines - The PAFIX CNC head was specially developed for all machines with programmable forward and reverse travel to the tool holder (turret, spindle, etc.). - It is extremely compact and equipped with a positive-connection disengageable clutch, which can be set to three different extension lengths if required. - The head can be set for two different programmable thread cutting cycles. Both cycles provide a certain amount of pitch compensation (float). - To ensure error-free thread cutting with a precise starting point and thread depth or length, a spring-loaded pitch adjustment or an overload slip clutch has been deliberately omitted. - The PAFIX CNC allows a quick change from thread cutting head to cutting head. Simply unscrew the clamping nut and replace it with the cutting head housing.

Kondisi: bekas, Tahun pembuatan: 2003, jam operasional: 43.000 h, nomor mesin/kendaraan: IntNr231372, STAR SA 12 CNC sliding head lathe, year of manufacture 2003 FANUC 18i-T CNC control unit Operating hours: 43,000 Technical specifications - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE Knodpfsxdy Tiox Adqec - Maximum bar diameter: 12 mm - Z-axis travel: 100 mm - Spindle speed: 8,000 rpm - Spindle drive power: 2.2 kW - Number of tool positions: 13 COUNTER SPINDLE - Maximum bar diameter: 12 mm - Spindle speed: 8,000 rpm - Number of tool positions: 4 FMB Minimag bar feeder The machine can be inspected under power by appointment. Specifications and technical data are subject to change and error. Prior sale reserved.

Kondisi: sangat baik (bekas), Mikrometer Busur Mitutoyo (28662) 103-155 OM-475, rentang pengukuran 450 - 475 mm Kodpow Suwgsfx Adqsnc

Kondisi: bekas, Tahun pembuatan: 2003, jam operasional: 31.000 h, nomor mesin/kendaraan: IntNr231369, STAR SA 16RC CNC sliding head lathe, manufactured in 2003 FANUC 18i-T CNC control system Operating hours: 31,000 Technical specifications: - Number of axes: 5 Ksdpfx Adexdvbpsqenc - Number of spindles: 2 MAIN SPINDLE: - Maximum bar diameter: 16 mm - Z-axis travel: 140 mm - Spindle speed: 8000 rpm - Spindle drive power: 2.2 kW - Number of tool stations: 13 COUNTER SPINDLE: - Maximum bar diameter: 12 mm - Spindle speed: 8000 rpm - Number of tool stations: 4 Includes FMB Minimag bar feeder The machine can be inspected under power by prior appointment. Technical data subject to change and error; prior sale reserved.

Kondisi: baik (bekas), Fungsionalitas: berfungsi sepenuhnya, Thread cutting capacity in ST 60 M 22 Thread cutting capacity in cast iron M 27 8 spindle speeds 180 - 1120 rpm Kedpfxjxdiv Ts Adqenc Console version with height-adjustable head with or without ROMAI multi-spindle head

Kondisi: siap digunakan (bekas), tinggi pusat: 175 mm, panjang penggilingan: 600 mm, ★ TOP maintained machine from the liquidation of a renowned toolmaker – please also see our other listings ★ ★KELLENBERGER 600U-175 universal internal and external cylindrical grinding machine with extensive accessories ★ Year of manufacture: likely 1987 Machine number: 32.467.2987 Condition: Not tested Delivery terms: Free loaded onto truck – unpacked Location: 73347 Mühlhausen, Germany Availability: Early December 2025 – The machines must be collected by the buyer without fail during week 49 / 2025. The exact date will be specified by us. Earlier availability may be possible by arrangement. Payment terms: Advance payment by bank transfer Internal reference no.: JO8 Machine can be inspected under power: YES ⚙️Technical specifications Distance between centers: 600 mm Center height: 175 mm Max. workpiece diameter: 349 mm Max. grinding wheel size: 400 x 50 x 127 mm Grinding spindle motor power: 3 kW Grinding spindle speeds: 1500 / 1700 / 2200 rpm Workpiece spindle speed: Infinitely variable 20–400 rpm Total power requirement approx.: 6 kW 380 V / 50 Hz / 10 A Ksdjxiy N Uopfx Adqenc Equipped with internal grinding attachment Supplied with very extensive accessories as shown in the photos For further specifications, please refer to the pictures Scope of delivery Available manuals Very comprehensive range of accessories as shown in the pictures Dimensions & weight Installation dimensions (L x W x H) approx.: 2500 x 2000 x 1600 mm + accessories on pallets Weight approx.: 2500 kg If you have any questions or would like to arrange a viewing, please do not hesitate to contact us. ⚠️Please also see our other advertisements⚠️ Additional notes: ►We strongly recommend collection by direct transport (freight forwarding) ►The goods are sold with exclusion of any warranty ►Technical data subject to change / errors excepted ►Subject to prior sale ❗Sale exclusively to business customers❗

Kondisi: baik (bekas), Tahun pembuatan: 2018, Internal Article No.: 25043 5-Axis CNC Machining Center POSmill H 500 U Year: 2018 Approx. 1,000 spindle hours since spindle replacement Machine approx. 20,500 hours total 2024: Spindle replaced (18,000 rpm) 2024: Geometry recalibrated. Travel paths: X 650 / Y 850 / Z 500 mm Knodpfx Aewz I Acsdqjc Rotary table: 360 degrees, continuous Control: Heidenhain iTNC 530 Spindle: 18,000 rpm Spindle interface: HSK-A63 The machine is equipped as follows: - 60-position tool changer - ICS (20 bar) with belt filter system - Air through spindle - Kessler table, diameter 500 mm - Infrared workpiece measurement - 3D probe - Tool measurement via BLUM laser - Rotating viewing window - POS DCM collision module - Mobile electronic handwheel - Oil mist extraction - Heidenhain linear measuring systems X, Y, Z - Purge air for all linear measuring systems - Active switch cabinet cooler, air-to-air - Active cooling for 4th and 5th axes, controlled - Network connection + USB port - Controlled spindle chiller - Heidenhain rotary measuring system - Profile safeguarding POSkontur - External hinged belt chip conveyor - Coolant pump at head, operated by M-functions - Pump for chip flushing device - Chip flushing device - Operating status indicator - Air at the spindle - Oil/coolant separator, electromechanical - Automatic coolant fill-level monitoring - 3-way media interface at table center - Hydraulic unit incl. control via M-function Connected load: 60 kVA Footprint: W 4800 / D 4600 / H 3000 mm + ICS unit (LxWxH) 2200 x 1300 x 1400 mm Weight: approx. 13,000 kg The machine is in excellent condition and comes from a small, family-run company. In 2024, the spindle was replaced and the geometry recalibrated (guides repaired and adjusted). Since then, the machine has seen very limited use.

Tahun pembuatan: 1993, Kondisi: baik (bekas), nomor mesin/kendaraan: 03.2370, Manufacturer: Arthur Klink Model: RISZ 10 x 1000 x 400 Year of manufacture: 1993 Weight: 6,500 kg (total) Machine no.: 03.2370 General / Technical Data: Used vertical hydraulic internal broaching machine with automatic workpiece feeding for 2 workpieces, in good condition Tensile force: 10,000 kg Broaching length: 1,000 mm Broaching stations: 3 units Distance between broaching stations: 125 mm Pull head mount diameter: 3 x Ø 80 mm Passage width between cylinders: max. 435 mm Cutting speed: hydraulically infinitely variable from 1 m/min to max. 10.9 m/min Return speed: hydraulically infinitely variable from 5 to max. 27.5 m/min Machine dimensions (W x D x H): approx. 5,500 x 2,800 x 4,900 mm Power supply / Connected load: 380 Volt 50 Hz / 38 kW Accessories / Special Equipment: The machine is equipped with a workpiece table and a pull bridge for 3 broaching stations. Additionally, the machine features an automatic workpiece feeding system for 2 workpieces. Clamping of shaft and end-piece holders is hydraulic. The machine features a coolant system with integrated magnetic chip conveyor, designed for use without a special foundation (pit). Remarks: Kjdpfxscc D Dds Adqjnc This machine is designed for use in high-volume production. The machine is in very good condition and still has its original paint. The machine can be inspected under power at our warehouse.

Kondisi: sangat baik (bekas), Inside micrometer Manufacturer: Mitutoyo Model: 511-176.05 (28651) Measuring range: 160 - 250 mm Kjdpfx Aewykicsdqonc

Tahun pembuatan: 2014, Kondisi: siap digunakan (bekas), Schleifdurchmesser: 6mm-150mm, max. Schleifhub: 125mm, Schwingdurchmesser über Tisch/mit Abdeckung: 600mm/260mm, Verfahrweg X/Z: 500mm/170mm, Eilgang: 10m/min, Vorschub: 10m/min, Auflösung X/Z: 0,0001mm, Werkstückspindeldrehzahl: 850U/min. Maschinendimensionen X/Y/Z: ca. 2550mm/3100mm/1800mm, Gewicht: ca. 2600kg. Dokumentation vorhanden. Eine Besichtigung vor Ort ist möglich. Die Maschine befindet sich in China. Kedpjxf Ikfsfx Adqsnc

Kondisi: sangat baik (bekas), Tahun pembuatan: 1978, The machine can be inspected under power. Ksdpfx Ajwz Emljdqsnc

Tahun pembuatan: 1962, Kondisi: baik (bekas), nomor mesin/kendaraan: 1886, used vertical hydraulic internal broaching machine with 3 broaching stations Pulling force: 10,000 kg Broaching length: 1,200 mm Number of broaching stations: 3 Distance between broaching stations: 380 mm Clamping diameter for broaching heads: 3 x Ø ___ mm Passage width between the cylinders: max. XXX mm Cutting speed: hydraulically steplessly adjustable from 1 m/min to max. 7 m/min Return speed: hydraulically steplessly adjustable from 7 to max. 25 m/min Machine footprint (W x D x H): approx. 1,300 x 1,450 x 3,350 mm (without pit) Power supply / connected load: 380 Volt 50 Hz / 8.0 kW Accessories / Special equipment: The machine is equipped with a work table featuring 3 bores for 3 broaching stations. The tool clamping system is designed for spring-mechanical locking in the pull bridge as well as the feeder. The machine has an integrated coolant system. Comments: The machine is designed for use in series production; for optimal use, a foundation (pit) or optionally a platform is recommended. Broaching heads and push-out devices are available on request. The machine can be inspected at our warehouse. Kedpfx Aet Dwb Dedqsnc

Kondisi: sangat baik (bekas), Mitutoyo Innenfeinmessgerät, Messbereich 35-60 mm, Typ 511-168 (28578) Knsdpfx Adevwau Roqec

Kondisi: sangat baik (bekas), Thread cutting unit Efem No. 1 for internal threads Mount MK 2 Thread cutting head adjustable slip clutch Thread size M3 - M10 Kodpfx Ajtqlq Eodqenc Mechanical condition: very good Visually, there are storage marks

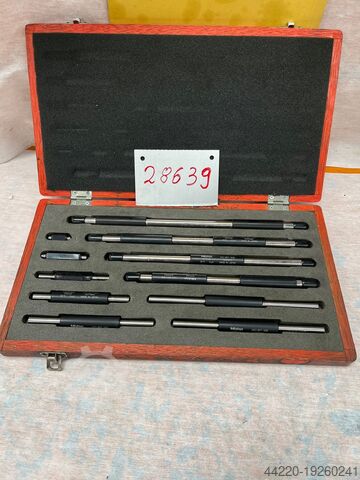

Kondisi: sangat baik (bekas), Adjustment dimensions for micrometer caliper Brand: Mitutoyo Model: 167-903 (28639) Standard settings for micrometer calipers Knedpfx Ajwn E Ivedqoc Set covering 25-275 mm 11 pieces

Kondisi: sangat baik (bekas), Mitutoyo internal precision measuring instrument (28577) Knodpfxevu T Apo Adqoc Type 511-167 Measuring range 18 - 35 mm

Kondisi: sangat baik (bekas), 1 lot of thread plug gauges Approx. 66 pieces Stored in one drawer Dimensions: see images Kodpfx Adsi Dr Akoqsnc

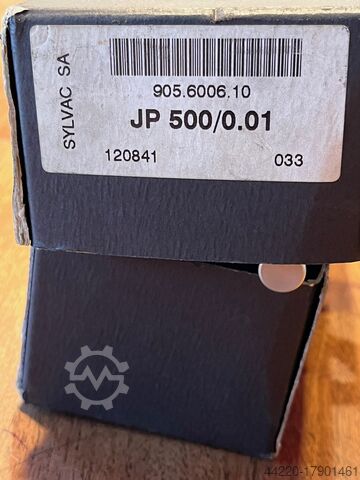

Kondisi: sangat baik (bekas), Depth gauge Manufacturer: Sylvac SA (Item no. 108145) Model: JP 500/0.01 Knodpfx Asvcl Rzjdqec Measuring length: 500 mm Measuring accuracy: 0.01 mm Measuring bridge length: 150 mm

Kondisi: sangat baik (bekas), Schwindmaß vernier caliper Manufacturer: Preisser Knodpfxefhkdte Adqsc Measuring length: 300 mm Shrinkage scales: 1.75%, 2%, 2.5%
