Penggilingan motor untuk tepi mesin pengolahan

Perske DVMS 903/2

Kondisi: bekas, Double-end profiler, edge processing machine, scribing motor, machining motor, milling motor, spindle motor -Manufacturer: Perske, milling motor type DVMS 903/2 Cjdpsmdygisfx Aa Tspw -Power: 0.4 kW, 12,000 rpm at 200 Hz -Voltage: 133 Volts -Spindle shaft: Ø 30 x 32 mm -Tool: Ø 70 x 20 mm / indexable insert milling cutter -Quantity: 1 unit available -Dimensions: 250/59/H140 mm -Weight: 3.8 kg

Kondisi: siap digunakan (bekas), Tahun pembuatan: 1999, Fungsionalitas: berfungsi sepenuhnya, CNC plano-milling and boring machine – quill with rotary-traverse table Manufacturer: SKODA / Model: W200 Cpjdpfxswxyxqs Aa Tjw Base unit year: 1986 / Retrofit to CNC by SKODA in 1999 The machine can be inspected by appointment. Technical specifications: Travel paths: - X-axis: 8,000 mm - Y-axis: 4,150 mm - W-axis: 2,000 mm - Z-axis: 1,600 mm Spindle: - Spindle diameter: 200 mm - Tool taper according to DIN 2080 AD, ISO 60 - Spindle speed: 0.0 – 930 rpm - Spindle drive power: 77 kW Boring and rotary-traverse table: - Manufacturer: SCHARMANN - Table clamping surface: 6,000 x 4,000 mm - V-axis: 2,000 mm - Max. table load: 80 t - B-axis: 360°, indexing: 0.001° Equipment: - CNC control: SIEMENS Sinumerik 840 CE - Chip conveyor - ... No guarantee on completeness or accuracy of technical information or equipment details. Subject to prior sale. A detailed technical data sheet and information about the equipment are available on request.

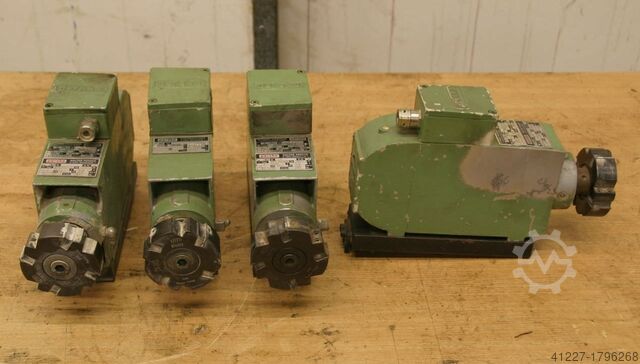

Kondisi: bekas, Double-end tenoner, edge processing machine, scoring motor, cutting motor, spindle motor, milling motor - 1x Motor: 0.4 kW, 11,300 rpm at 200 Hz - Voltage: 133 volts - Shaft mount: Ø 20 mm - Tool: Ø 70 x 20 mm - Quantity: 3 motors available - Price: per piece Cpsdpfx Aob A Tbnoa Tow - Dimensions: 250/60/H140 mm - Weight: 3.8 kg

Kondisi: bekas, Double-end profiler, edge processing machine, scoring motor, machining motor, milling motor, spindle motor - Power: 0.4 kW, 12,000 rpm at 200 Hz - Voltage: 133 volts - Coupling shaft: Ø 20 mm - Tool: Ø 70 x 20 mm - with indexable insert milling cutter - Quantity: 1 unit available - Dimensions: 285/60/H170 mm Cjdpeb A Tctjfx Aa Topw - Weight: 5 kg

Kondisi: bekas, en_001_TechnicalDetails_2024-06-18 Cpsdpfevr S Ulex Aa Tow

Kondisi: bekas, CNC 3+2 Axis Vertical Machining Center DECKEL MAHO Type DMU 35 M CNC Control SIEMENS 810D with ShopMill Serial No. 11065353554 Year of manufacture: 2001 Travel paths: X: 350 mm, Y: 240 mm, Z: 340 mm Table movements: C-axis: 360° Swivel range: +105° / -15° Universal Swivel Rotary Table: 400 x 290 mm, center bore 30H6 Table load: max. 100 kg Distance spindle nose – table: min. 145 mm to max. 485 mm Feed rate: 5,000 mm/min Rapid traverse ( X / Y / Z ): 5 m/min Input increment: 0.01 mm Total power consumption: 15 kVA Spindle speed range: 20 - 6,300 rpm Spindle drive power: 6.3 / 10 kW (100% / 40% duty cycle) Torque: max. 55 / 80 Nm Tool holder: SK 40 DIN 69871 Pull stud: DIN 69872 or ISO 7388/2 Type B Interface: Serial RS232C, LAN (RJ45) Power supply: 400 Volt, 50 Hz, 15 kVA Cjdpfevt D D Usx Aa Tjpw Compressed air connection: 6 bar - CNC control Siemens Sinumerik 810D with ShopMill V05.03.22, NCU 03.03.34-CCU1E, MMC103 - 3 axes controlled (X, Y and Z axes) - Manual swivel rotary table, C-axis = 360° table rotation, B-axis = swivel range +105° / -15° - Direct position measuring system for all 5 axes - Electronic handwheel - Spindle drive via servomotor with toothed belt and 2 gearbox stages - Fully enclosed cabin with sliding door - Swiveling control panel - Coolant nozzles on vertical head - Chip tray with coolant tank and coolant pump - Work area lighting - Documentation available Required space (L x W x H): 2000 x 2000 x 2100 mm Weight: 1750 kg Good condition

Kondisi: siap digunakan (bekas), jarak pergerakan sumbu X: 9.000 mm, 6055-AF16SMM Milling, drilling and turning! Longitudinal X-travel of the column: 9000 mm Cross Y-travel of the column: 650 mm Vertical Z-travel of the milling head: 3000 mm Horizontal W-travel of the milling head: 1200 mm Machine can operate with 6 axes simultaneously 2 hydrostatic CNC-controlled tables - Table load capacity: 30 tons - Continuous 360° rotation - Table cross travel: 2500 mm Tool changer with 60 positions Milling head support / reinforcement of the spindle support Support for drilling spindles / support portfolio extensions Cross traverse Y-axis (table/column): 650 mm (column) Vertical traverse Z-axis: 3000 mm Spindle traverse W-axis: 1200 mm Cpedov Sfm Uepfx Aa Tew Milling spindle taper (ISO): ISO 50 Spindle diameter -- Spindle bore: 160 mm Digital read-out (1) / CNC (2): Heidenhain TNC 530 Rotary table dimensions: 2 tables of 2380 x 2380 mm Max table load: 2 tables x 30 tons

Kondisi: bekas, Grinding length: 4000 mm Grinding width: 1450 mm Workpiece height: 1250 mm Control: Siemens 840 D Workpiece weight: 11,000 kg Column passage: 1460 mm Table clamping surface: 4000 x 1250 mm Table feed: 1 - 45 m/min Cross beam adjustment: 1250 mm Total power requirement: 40 kW Space requirements approx. 12.3 x 6 x 4.8 m Cpodpfxjwa Dx Dj Aa Tow Equipment/Accessories: - 1 universal grinding support, 7.5 kW Grinding spindle swiveling +/- 110° Peripheral grinding wheel dimensions Ø 500 x 60 mm Vertical adjustment 350 mm with dressing device - 1 peripheral grinding support, 22.5 kW Grinding wheel dimensions Ø 600 x 100 mm Vertical adjustment 150 mm with dressing device - with 6 magnetic chucks arranged on the table - separate clamping table - various grinding wheel adapters - technical documentation

Kondisi: sangat baik (bekas), Tahun pembuatan: 1973, lebar penggilingan: 1.600 mm, panjang penggilingan: 3.500 mm, Waldrich Coburg 15-10 S20 20 Cpsdpov Th Hgofx Aa Tow

Kondisi: siap digunakan (bekas), DANOBAT RTM 2500 – CNC Surface Grinding Machine | 2,500 mm Travel | 3,100 kg Table Load High-capacity CNC surface grinder, ideal for large-format and precision applications. Sturdy, reliable, and equipped for demanding jobs. 🛠 Key technical specifications: • Maximum grinding length: 2,500 mm • Maximum grinding width: 900 mm Cedpfshq Ui Ijx Aa Tepw • Maximum grinding height: 1,000 mm • Table working area: 2,500 x 800 mm • Maximum table load: 3,100 kg • Electromagnet: 2,000 x 550 mm • Table speed (X): 1 – 30 m/min • X-axis travel: 2,650 mm • Cross travel (Z): 800 mm • Vertical travel (Y): 1,150 mm • Z-axis speed: up to 8,000 mm/min • Y-axis speed: up to 1,000 mm/min • Programmable increments: 0.001 mm • Z and Y axis measurement with encoder ⚙️ Grinding unit (headstock): • Wheel diameter: 500 mm • Wheel bore: 203.2 mm • Maximum wheel width with recess: 100 mm • Peripheral speed: 26 m/s • Rated speed: 1,000 rpm • Grinding wheel motor power: 15 kW • Total installed power: 30 kW ✅ Additional features: • Turcite-coated prismatic guideways on all axes • Angular grinding head • Paper band filtration unit • 4 kW hydraulic group 📌 Industrial surface grinder ready for major challenges. Ideal for workshops requiring large-scale flat machining with micron-level precision.
