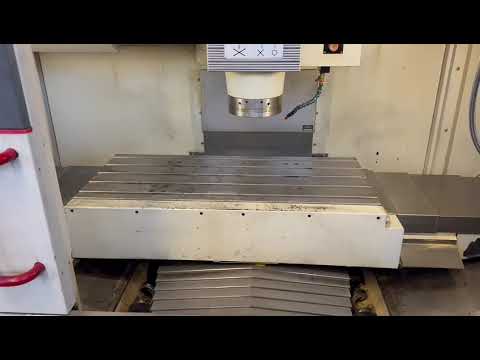

Pusat permesinan CNC vertikal

Quaser MV 154 PL/12

Kondisi: bekas, Tahun pembuatan: 2008, x-travel 1020 mm y-travel 500 mm z-travel 500 mm Table clamping surface 1200 x 500 mm Spindle taper SK 40 Spindle speeds - stepless 40 - 12,000 rpm Spindle motor 18.5 kW Feed rates 0 - 20,000 mm/min Rapid traverse 40 m/min Tool changer 30 positions Control HEIDENHAIN, iTNC 530 Total power requirement 30 kW Machine weight approx. 6.85 t Bwjdpfjuntnbjx Aa Tei - with ICS (internal coolant supply) Accessories: 2 hydraulic clamps, mfr. HILMA, type NC 160, jaw width 160 mm; various tool holders, chip conveyor, coolant system

Kondisi: hampir baru (bekas), Tahun pembuatan: 2017, Maximum wheel diameter: 100 mm Wheel width: 26 mm Module – max.: 3 Module – min.: 0.1 Control: Siemens 840 D SL Operating hours: 9,598 h Total power requirement: 45 kW Machine weight: approx. 7 t Space requirement: approx. 4 x 3 x 2.5 m Bjdov Ehbbspfx Aa Tewi Gleason 100S Gear Shaping Machine For manufacturing cylindrical gears with internal and external teeth, as well as other regularly recurring profiles and shapes on cylindrical workpiece surfaces, including profiling in single-part processes. Technical Data: Nominal workpiece diameter: 100 mm Maximum outside diameter: 150 mm Nominal machine module: approx. 3 mm (Reference value, depending on the specific machining task.) Shaping spindle stroke range: 0–3,000 strokes/min Manual stroke position adjustment range: 20 mm Maximum gear width: 26 mm Minimum hydrostatic diagonal guide pitch height: 400 mm Minimum/maximum distance between tool and workpiece axis: -20 / +180 mm Machine column tilt range (manual): -1° / +11° Tool holder (manual clamping): HSK-D63 (Hollow shank taper according to DIN 69063) Machine weight: approx. 7,000 kg With robot cell

Kondisi: sangat baik (bekas), Tahun pembuatan: 2013, Alpha 1550XS – cycle lathe incl. accessories Centre distance is 1500 mm, not 2000 mm Multifix tool holders - 16 pieces Year of manufacture: 2013 Top condition (truly in excellent condition) Various change jaws (soft jaws) Steady rest Faceplate Spindle bore 104 mm Swing over bed 550 mm Bjdpjunruyofx Aa Tswi Three-jaw chuck 315 mm

Tahun pembuatan: 2003, Kondisi: baik (bekas), Travel: 560 x 410 x 510 mm, table: 900 x 410 mm, 30-tool magazine, spindle: 12,000 rpm, chip conveyor. Bwedpfxeiwkhkj Aa Toi

Kondisi: bekas, Manufacturer: LORENZ Model: LS 630 Bwodpfxowr Dx Uj Aa Tei Condition: Used Stock number: DCL1722 Module: 12 Maximum diameter: 630 mm Working stroke: 220 mm Distance between worktable and cutter spindle: 450 mm Machine weight: 10,000 kg Table bore diameter: 450 mm Table diameter: 730 mm Spindle diameter: 110 mm Distance between table and spindle: 580 mm

Kondisi: bekas, Tahun pembuatan: 2013, Technical details: X-axis travel: 760 mm Y-axis travel: 460 mm Z-axis travel: 460 mm Control unit: Heidenhain TNC 620 Power-on hours: 20,246 h Spindle operating hours: 7,724 h Spindle speed: 12,000 rpm Spindle torque: 75 – 95 Nm Spindle taper: SK40 Tool magazine with: 24 stations Table size: 900 x 410 mm Max. table load: 350 kg Bedpfovhbpdox Aa Tjwi Feed range: n/a Rapid traverse: 36 m/min Interface: RS232 Control voltage: 24 V DC Compressed air connection: 6 / 8 bar Total power requirement: 20 kVA Machine weight approx.: 6.0 t Chiller dimensions: 1.7 x 0.7 x 1.35 m Machine dimensions (LxWxH) approx.: 1.9 x 2.3 x 2.45 m TNC 620 (contouring control with up to 5 controlled axes, particularly suitable for universal milling), network integration possible Safety doors with impact-resistant plastic windows Chip conveyor Hydraulic unit Coolant treatment system Rittal chiller on control cabinet Work area interior lighting Handheld control unit

Kondisi: bekas, Tahun pembuatan: 2011, Mazak HC Nexus 5000-II Bwjdpfxsv Tvh So Aa Toi Mazatrol Matrix Nexus Baujahr: Juli 2011 Palettengröße: 500 x 500 mm Verfahrwege: - X: 730 mm - Y: 730 mm - Z: 740 mm Spindeldrehzahl: 12.000 U/min Werkzeugwechsler: 40 Plätze Späneförderer: Chrom

Kondisi: bekas, Tahun pembuatan: 2014, Workpiece length 100 mm Swing diameter 80 mm Number of spindles 2 Control FANUC 31i-B5 Workpiece weight 2.00 kg Center height 170 mm Grinding wheel diameter 100 mm Grinding wheel bore 32 mm Max. grinding wheel width 20 mm Max. circumferential speed 125 m/sec Steady rest passage 45 - 60 mm Total power requirement 75.00 kW Machine weight approx. 25.00 t Bedpfevx Uvfox Aa Tjwi Space requirements approx. 5.00 x 3.50 x H3.50 m Camshaft grinding machine for cam blanks. Equipped with FANUC 31i-B5 control for non-circular grinding; loading gantry; CO2 extinguishing system; for CBN grinding wheel; tailstock; steady rest; diamond wheel dresser for the grinding wheel mounted on the dressing spindle; grinding spindle stock variant 12 (two grinding spindles movable independently)

Tahun pembuatan: 2007, Kondisi: bekas, nomor mesin/kendaraan: 46650051, Horizontal machining center with multipallet + B39 NIIGATA SPN 501-P8 FANUC 18I-MB Accessories: Chip conveyor High-pressure cooling system through the spindle line Bwjdpfxsgay Evj Aa Toi

Kondisi: baik (bekas), Tahun pembuatan: 2010, X Y Z: 1270 x 508 x 508 mm, meja 1324 x 457 mm, 12000 rpm, BT 40, Kontrol HAAS, ATC 24 stasiun, 40HP, auger chip, pendingin, meja trunnion 5-sumbu Haas TR210. Bodoxpw Rvepfx Aa Tjwi
