Peralatan meja las

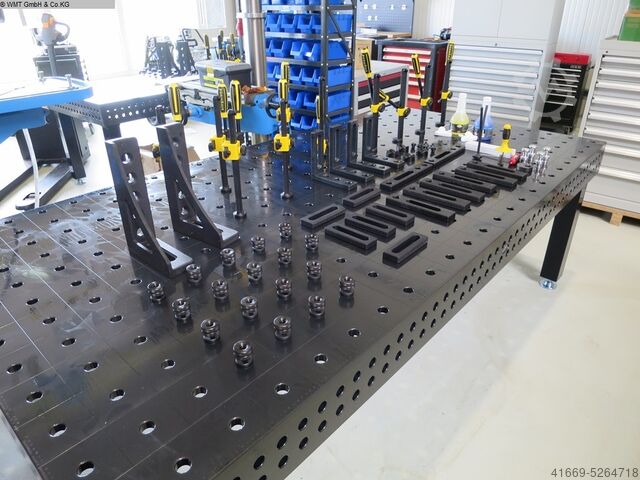

SIEGMUND SET 2 / 22

Kondisi: baru, Tahun pembuatan: 2025, Fungsionalitas: berfungsi sepenuhnya, Table length: 2400 mm Table width: 1200 mm Table height: 200 mm Bore diameter: 28 mm Borehole grid: 100 x 100 mm Material thickness: approx. 24.5 - 27 mm Side panel height: 200 mm Working height: 850 mm Product description: Siegmund Retro Offer incl. Accessories: Welding table as it was 25 years ago, now additionally with plasma nitriding and modern table legs. - High-quality steel S355J2+N with plasma nitriding - Diagonal hole pattern on side panels Kedpfewvkh Dsx Aaysdw - Corners, edges, and holes chamfered at 45° - Reinforced construction with ribs - Includes base legs, standard height 650 mm Accessories: - 6 x professional nitrided screw clamps - 2 x 175 L nitrided stop and clamping squares - 10 x double blackened quick-release bolts without slot - 8 x 225 L nitrided universal stops - 2 x 500 G nitrided stop and clamping squares - 1 x accessory set

Kondisi: bekas, Tahun pembuatan: 2007, 1 Kdedpfx Ajvgl Rcsayew

Kondisi: baru, Quantity: 106 items Weight: 283 kg Condition: new Hole diameter: 28 mm Set 4: 110-piece set, 28mm system, consisting of: Clamps: 14 x 280610.N Clamps: 10 x 280630.N Prism: 6 x 280648.1.N Pins: 30 x 160511 Kdjdpfxjpam Hge Aayjw Magnetic pins: 8 x 280740 Stops: 10 x 280410.N Stops: 10 x 280420.N Stops: 4 x 280430.N Angle brackets: 8 x 160110.N Angle brackets: 2 x 280152.N Angle brackets: 2 x 280162.N Angle bracket: 1 x 280164.N Angle bracket: 1 x 280165.N Angle bracket: 1 x 280166.N Angle bracket: 1 x 280167.N Carriage: 1 x 280910 Accessory set: 1 x 283999 Price stated is exclusive of packaging and shipping.

Kondisi: baru, Cutting range at 90°: round 510 mm Cutting range at 90°: square 480 mm Cutting range at 90°: rectangular 610 x 450 mm Saw band length 5320 x 34 x 1.1 mm Band speed 15 - 100 m/min Table height 820 mm Total power requirement 3.0 kW Machine weight approx. 2.3 t Space requirement approx. 2.65 x 2.8 x 2.2 m Kedpfx Aaofu Nbbeyjdw For miter cuts up to 45° to the left in fully automatic operation and up to 60° to the left in semi-automatic operation. Material height sensor (automatic cut start detection) Automatic feed unit with ball screw incremental feed and automatic length compensation Sensor on saw band for automatic adjustment of saw stroke Fully automatic control of saw frame and clamping device Hydraulic unit with automatic pressure shut-off in idle mode Mechanical chip removal brush, feed vice opens on both sides Remnant piece length 100 mm Modern CNC control, freely programmable for multiple sawing jobs with various cutting lengths and quantities. Automatic feed unit with 500 mm ball screw incremental feed and automatic length compensation. Adjustable for cut lengths from 25 to 9,999 mm. Fully hydraulic control of saw frame and clamping devices Preselection of 3 different material feed speeds Visualization of the entire workflow with simple data entry.

Kondisi: hampir baru (bekas), Tahun pembuatan: 2019, Pressure: 400 t Stroke: 900 mm Table size: 1200 x 1200 mm Drawing cushion: 150 t Drawing cushion stroke: 280 mm Shut height: 1100 mm Kodpefh Izmefx Aayjdw

Kondisi: diremaj di bengkel (bekas), Tahun pembuatan: 2021, jam operasional: 12.622 h, Fungsionalitas: berfungsi sepenuhnya, berat keseluruhan: 300 kg, panjang total: 1.250 mm, lebar total: 650 mm, tinggi total: 1.750 mm, daya: 7,5 kW (10,20 hp), jenis bahan bakar: listrik, suhu lingkungan (min.): 3 °C, suhu lingkungan (maks.): 45 °C, Perlengkapan: Pelat tipe tersedia, pengering pendingin, Kaeser AIRCENTER SM 13 screw compressor 8 bar 7.5 kW Operating hours: 12,622 h Kedjvyr R Ajpfx Aaysdw Integrated refrigeration dryer Kaeser ABT 15 Maintenance carried out including the following items: - Compressor filter set - Oil separator cartridge - Fluid Rotary S-46 – cooling fluid

Kondisi: baru, Table diameter: 315 mm Table load capacity horizontal: 50 kg Table load capacity vertical: 25 kg Chuck diameter: 200 mm Kdjdpfx Aei Hg I Doaysw Speed: 0 - 5 rpm, infinitely variable Swivel range: 90 degrees Tilt adjustment: manual/motorized: manual Connection voltage: 230 V Machine weight: approx. 45 kg Space requirement: approx. 800 x 600 x 600 mm Welding positioner with - Integrated stand and universal torch holder - 200 mm quick-change chuck - Foot switch - Tiltable/swiveling by hand - Speed infinitely adjustable

Kondisi: diremaj di bengkel (bekas), Tahun pembuatan: 2015, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 10.000 mm, jarak lintasan sumbu Y: 3.000 mm, jarak gerak sumbu Z: 1.500 mm, gerak cepat sumbu X: 25.000 m/menit, pergeseran cepat sumbu Y: 25.000 m/menit, pergerakan cepat sumbu Z: 25.000 m/menit, kecepatan spindel (maks.): 4.000 rpm, RepairFIT+ by Dornhöfer The Difference. Including Installation & Commissioning! TECHNICAL MAIN DATA Year of Manufacture: 2015 Capacities / Travel Paths: Longitudinal (X): mm 10,000 Vertical (Y): mm 3,000 Transversal (Z): mm 1,500 Paintwork: graphite grey RAL 7024 / agate grey RAL 7038 Tool Holder: ISO 50, DIN 69871 AD Pull Stud: DIN 69872 Form A Taper Holder: DIN 69871 Main Drive: Motor / Manufacturer: Siemens Main Spindle Drive Type: 1PH7 Max. Drive Power: from 198 rpm 100% duty cycle 41 kW Max. Torque: constant up to 198 rpm, 100% duty cycle, 1,920 Nm Speed Regulation / Transmission: 3-stage (oil cooled) with automatic shift Spindle Speeds up to 4,000 rpm: Low Range rpm: 0 – 516 Medium Range rpm: 460 – 1,288 High Range rpm: 1,200 – 4,000 Axis Drives / Traverse Speeds: Axis Drive Motors: Rapid Traverse max. (X/Y/Z axis): 25,000 mm/min Feed Rate max. (X/Y/Z axis): 15,000 mm/min Kdsdpsv R Hwrefx Aayew Feed Force max. (X axis): 35,000 N (Y/Z axis): 32,000 N Axis Drive Systems: X-Axis (longitudinal): Pinion / Rack (Manufacturer: Atlanta) Y-Axis (vertical): Preloaded ball screw Ø 63 x 20 Z-Axis (transverse): Preloaded ball screw Ø 50 x 20 Weight: (without clamping table/plate field) approx. 49,500 kg Electrical Connection: approx. 60 kVA Innotrol HBG Portable Electronic Handwheel Automatic Tool Changer with 60 magazine positions BIG Plus Tool Spindle Operator Platform electrically height adjustable by 1,800 mm and transversely movable by 800 mm Interface for Adapter Milling Heads What does RepairFIT+ mean? With RepairFIT+, we offer you a profitable and secure entry into our product lines. Our machines undergo a strict selection process, a comprehensive deep-dive check, and are thoroughly cleaned by our experts. All detected defects, both technical and cosmetic, are professionally repaired so the machine is presented in impeccable condition.

Kondisi: baru, Tahun pembuatan: 2025, Table length 3000 mm Table width 2000 mm Table height 200 mm Weight 1700 kg Manufacturer: GERD WOLFF Technical Details: • Length: 2000 mm • Width: 3000 mm • Height: 200 mm • Weight: 1700 kg • Hole diameter: 28 mm • Hole spacing: 100 mm • Plate thickness: 25 mm Advantages and Features Kdodpfeuia Ntjx Aaysw • 3-day gas nitriding process • Increased corrosion resistance • Anti-adhesion protection against welding spatter • Maximum load capacity • Enhanced fatigue strength • Improved vibration resistance • Fine laser-engraved scale • Reinforced with welds and ribs on the underside • Optimum working height: 820–865 mm • 8x height-adjustable support legs • Optional matching accessory set available Our welding tables are manufactured using cast quality grade HT 300 and are nitrided as a whole after machining. Additionally, these tables feature a precise fine scale engraved using laser technology. To ensure adequate stability, our welding tables are reinforced on the underside with welds and ribs (see images). Furthermore, they undergo a 3-day gas nitriding process, which increases, among other things, the corrosion resistance, as well as the fatigue and vibration resistance of the tables. All our tables are equipped with adjustable legs. The minimum adjustment range is 620 mm, the maximum is 665 mm, which allows for a variable working height from 820 to 865 mm. Other available sizes: • 1000 x 1000 x 200 • 2000 x 1000 x 200 • 1200 x 1200 x 200 • 1500 x 1000 x 200 • 1500 x 1500 x 200 • 1500 x 2000 x 200 • 2000 x 3000 x 200 • 3000 x 1500 x 200 • 3000 x 2000 x 200 • 4000 x 2000 x 200 • 2400 x 1200 x 200 Images do not correspond to the original size and are for illustrative purposes only. Our welding tables are produced for our distribution brand "GERD WOLLF Maschinenfabrik" by a renowned manufacturer. 3D welding table – 3D clamping systems – 3D precision welding tables

Kondisi: bekas, Tahun pembuatan: 2000, Grinding length: 1600 mm Grinding width: 600 mm Workpiece height: 500 mm Total power requirement: 50 kW O F F E R We are pleased to offer you, without obligation and subject to prior sale and errors, ex-stock: B L O H M CNC-controlled precision surface grinding machine Model PLANOMAT 616 with SIEMENS 840 D control Year: 2000 Serial No.: 14 67x _____ Grinding area: 1,600 x 600 mm (!) Table size: 2,000 x 600 mm Working height under the grinding wheel approx.: 150–500 mm Max. longitudinal table movement (X-axis): 1,700 mm Max. vertical movement of the upper slide (Y-axis): 550 mm Max. cross movement of the upper slide (Z-axis): 560 mm Max. workpiece weight approx.: 800 kg Table speed (X-axis): 30 – 30,000 mm/min Min. cross feed (Z-axis): 0 – 4,000 mm/stroke Vertical feed (Y-axis): 0.001 – 0.099 mm/stroke Feed rate Y/Z axes: 4 – 4,000 mm/min Grinding wheel Ø x width approx.: 400 x 100 mm Grinding wheel speed, infinitely variable via direct-drive GS motor: 300 – 1,250 rpm Max. spindle drive: approx. 27.5 kW Total power requirement: approx. 50 kW – 400 V, 50 Hz Total weight: approx. 10,000 kg Accessories / Special features: • SIEMENS CNC control type 840 D with monitor; SIEMENS components, and WINDOWS interface model MMC 103/PCU 50 with operator guidance for direct input of all grinding parameters, e.g. roughing/finishing/sparking out, and for slot grinding with (cross) indexing device, and with automatic shutdown on reaching grinding depth and return to home position, grinding wheel management, dressing programs and cycles, hand control unit, etc. • All axes driven by ball screws, DITTEL touch control • Infinitely variable grinding spindle speed via direct GS motor • Table-mounted diamond disk dressing device, type PEA, electrically driven, with DITTEL touch device and separate straight-line dressing device with diamond fleece, with compensation, dressing cycles integrated in control • Mounted electromagnet chuck approx. 500 x 1,500 mm, manuf. WAGNER, with demagnetizing unit • Attached electrical cabinet, separate flanges with wheels, separate oil mist extractor • Complete work area enclosure with a sliding door with glass insert • Large HOFMANN coolant system TECHNOPUR S 300 with chiller and grinding sludge conveyor, tank 1600 l or 1280 l, separate oil mist collector, etc. Condition: good to very good – soon ready for demonstration, extremely large and robust machine (!) Delivery: ex-stock, as inspected Kdsdpfet Hxcbsx Aayow Payment: strictly net upon receipt of invoice We kindly ask for your order. Further grinding machines of all types available in stock. Please enquire.
