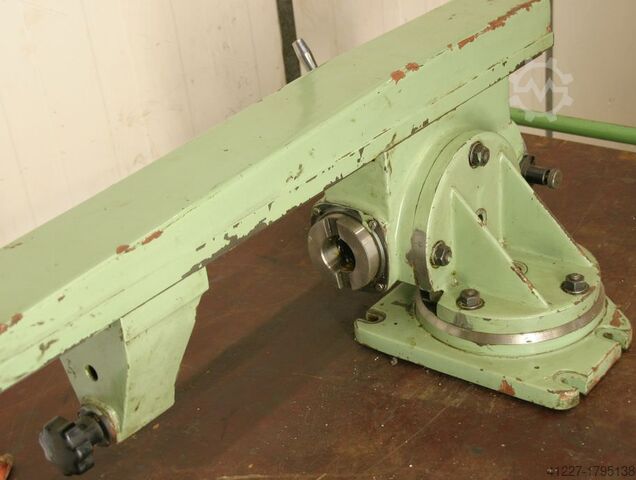

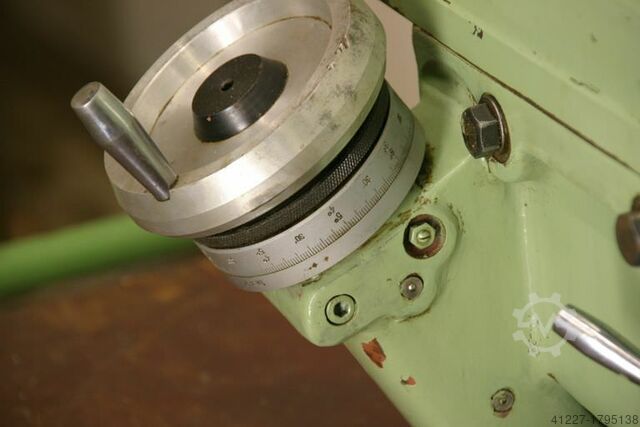

Bagian kepala

WMW mit Gegenlager

Tahun pembuatan: 1979, Kondisi: siap digunakan (bekas), Max. Schleifdurchmesser: 300 mm, Max. Schleiflänge: 1.950 mm, Max. Werkstücklänge: 2.000 mm Max. Vorschubgeschwindigkeit: 1–30 m/min Kühlmittelzufuhr: 100 l/min Stufenlos regelbarer Drehzahlbereich: 2.000–6.000 U/min Dwelhcjhq Uigocqqsf Spindeldurchmesser: 88 mm Spitzenhöhe: 150 mm Schleifscheiben: 100–250 mm Spindelleistung: 3,5 kW Gesamtleistung Schleifmaschine: 15 kW – 380 V – 50 Hz

Kondisi: bekas, Tahun pembuatan: 1980, nomor mesin/kendaraan: 19780, Grinding length: 600 mm Grinding width: 300 mm Workpiece height: 375 mm Spindle speed: 1,000 – 3,000 rpm Grinding wheel dimensions: 300 x 50 x 76.2 mm Dolhocxxrzsccqqjwf Grinding spindle drive: 2.8 – 8.4 kW Machine weight approx.: 3.5 t CNC-controlled surface grinding machine with 3D-controlled profile dresser, ELB CNC Unicon control system with integrated electronic handwheel, monitor, analog spindle load display, infinitely variable cross feed, coolant system with magnetic roll separator, full enclosure, separate control cabinet, additional grinding wheel with flange.

Tahun pembuatan: 1984, Kondisi: bekas, Max. Schleifdurchmesser: 40 mm Min. Schleifdurchmesser: 5 mm Gewicht: 0,9 t Lieferumfang: - 2 Schleifscheiben mit Flansch - 8 Spannzangen Dolhccqscq Rv Ueqswf - 1 Kühlmittelbehälter - Mechanischer Vorschub mit Festanschlag Hinweis: Die Gelenkwelle für den Werkstückantrieb ist ausgeschlagen.

Kondisi: sangat baik (bekas), Tahun pembuatan: 2006, Control system: ELB PLC Grinding area: Length X 1000 mm Width Z 750 mm Height Y 400 mm Magnetic table 1000 x 700 mm Table load capacity: (without magnetic plate) 1100 kg Longitudinal axis X: Table speed 2–26 m/min Max. longitudinal stroke 1100 mm Vertical axis Y: Dolovwl Ipohccqqowf Vertical stroke 400 mm Max. feed rate 1200 mm/min Minimum vertical infeed 0.001 mm Cross axis Z: Max. cross stroke 620 mm Max. feed rate 2000 mm/min Minimum cross infeed 0.001 mm Grinding spindle: Taper 75 mm Drive power 22 kW Speed range 1450 rpm Grinding wheel dimensions 450 x 150 x 203.2 mm Machine footprint (without control panel) LxWxH 3550 x 2750 x 3230 mm Machine total weight 7300 kg

Kondisi: bekas, Oberflächenschleifmaschine mit Magnetspannplatte Dsle Dv Nuehccqqjwf Tischabmessungen: 1100 x 400 mm

Tahun pembuatan: 1984, Kondisi: bekas, nomor mesin/kendaraan: 57051/4, Manufacturer: Rhode & Doerrenberg (May) Model: SS 40 U Serial no.: 57051/4 Year of manufacture: 1984 Weight: 950 kg Dolhec Nv S Asccqqewf General / Technical Data: Used drill grinding machine from German production for 2-, 3-, and 4-flute tools in good condition. Diameter range: from 5mm up to 40mm Tool length: 500mm Point angle: from 80° to 160° Relief angle: from 1° 30' to 10° Grinding wheel: 210 x 127 x 50mm (cup wheel) Tool holders: for 2-, 3-, and 4-flute drills and countersinks Grinding direction: Left- & right-cutting tools Machine dimensions (L x W x H): 1350mm x 1100mm x 1400mm Power connection / control voltage: 380 Volt 50 Hz / 220V Motor output / total power consumption: 2.2 kW / 2.55 kW Accessories / Special features: • 2 grinding wheel mountings with grinding wheel • 8 collets for drill holder, manufacturer: Forkardt • 6 Morse taper holders & drill extensions • Coolant system • Machine documentation & electrical schematic Remarks: The machine is available in our warehouse, connected to power, and can be demonstrated by appointment.

Kondisi: bekas, Grinding length: 1000 mm Grinding width: 300 mm Workpiece height: 230 mm Table clamping surface: 1000 x 240 mm X-axis travel: 1000 mm Y-axis travel: 270 mm Dolju Dn Txehccqqowf Z-axis travel: 350 mm Grinding wheel diameter: 240 mm Grinding spindle speed: 2,180 rpm Table speed, infinitely variable: 3 – 30 m/min Total power requirement: 4.5 kW Machine weight approx.: 2.8 t Machine dimensions (L x W x H): 2.36 x 1.37 x 2.0 m Accessories: Magnetic chuck 680 x 200 mm, grinding wheel with flange (ø 240 x 25 mm), wet grinding device

Tahun pembuatan: 1979, Kondisi: baik (bekas), May WH50 Back-Off Grinding Machine Specifications: Manufacturer: Rhode & Dörrender (May) Model: WH 50 Year of manufacture: 1979 Min. grinding diameter: 3 mm Dolhccqjhadxcoqowf Max. grinding diameter: 50 mm Weight: 1.35 t Footprint: 1520 x 1600 mm Application range: For 2 to 4-flute round tools and back-off grinding Suitable for grinding form tools Diaform dressing unit

Tahun pembuatan: 1973, Kondisi: baik (bekas), 1 used keyway shaft grinding machine, manufacturer Fritz Werner Model: FKR 16 Year of manufacture: 1973 Serial no.: 5275/8012 Djlhcon Atchecqqowf Technical specifications: Center height: 185 mm Max. grinding length: 1600 mm Passage diameter: 55 mm Divisions: 4-32 Dimensions (L x W x H): 5900 x 2300 x 2000 mm Weight: 7 t

Tahun pembuatan: 1963, Kondisi: bekas, Drill bit grinding machine manufacturer Rode + Dörenberg MAY type SS 75 A Dslhcenccx Hocqqewf
