Mesin gergaji pita semi-otomatis MBS

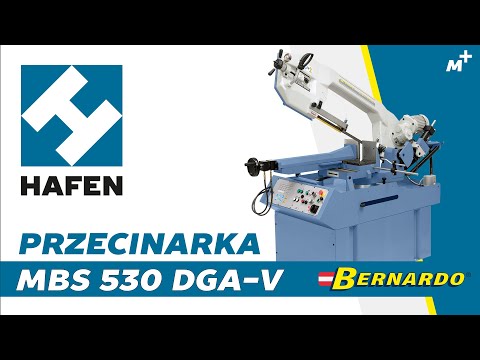

Bernardo MBS 530 DGA-V

Semi-automatic bandsaw for cutting within a range from -45° to +60°. Infinitely variable cutting speed and hydraulic vice ensure comfortable operation. This model is characterized by a robust construction enabling precise cutting of profiles, solid materials, stainless steel, etc. Cutting capabilities up to 530 mm.

- Infinitely variable blade speed adjustment (20 / 70 m/min)
- The blade guides are equipped with special carbide plates and bearings ensuring high cutting accuracy
- Equipped with semi-automatic mode, optimal for series production
- Option to select cutting mode: manual or semi-automatic
- Quick-release vice adjustable manually or hydraulically
- Saw arm tilts from -45° to +60° with scale readout
- Fully professional device with optimal price-performance ratio
- Sturdy construction guarantees precise, quiet operation without vibration
- Ideal power transmission thanks to precise worm gear
- Saw arm adjustment via hydraulic cylinder

Semi-automatic operation:
- Vice clamped hydraulically
- Saw arm lowered hydraulically
- Saw arm lifted

Technical specifications:
- Cutting range, round at 90°: 355 mm
- Cutting range, flat at 90°: 530 x 300 mm
- Cutting range, square at 90°: 300 x 300 mm
- Cutting range, round at 60°: 240 mm
- Cutting range, square at 60°: 170 x 170 mm
- Cutting range, round at 45° right: 355 mm
- Cutting range, flat at 45° right: 360 x 290 mm
- Cutting range, square at 45° right: 290 x 290 mm
- Cutting range, round at 45° left: 300 mm
- Cutting range, flat at 45° left: 270 x 270 mm
- Cutting range, square at 45° left: 270 x 270 mm
- Working height: 965 mm
- Cutting speed: 20 - 70 m/min
- Bandsaw blade dimensions: 3770 x 34 x 1.1 mm
- Bandsaw blade width: 34 mm
- Coolant system pump motor power: 0.1 kW
- Motor power: 3 kW
- Motor power S1 100%: 2.2 kW
- Voltage: 400 V
- Dimensions – width: 2200 mm
- Dimensions – depth: 1400 mm
- Dimensions – height: 2050 mm
- Weight approx.: 640 kg

Scope of delivery:
- Bandsaw
- Workpiece stop
- Band tension manometer
- Quick-clamp vice
- Coolant system
- Hydraulic cylinder
Tjdpjyt Huaofx Ad Roa
- Motor emergency stop
- Automatic end switch
- Base
