Mesin pengikat tepi satu sisi

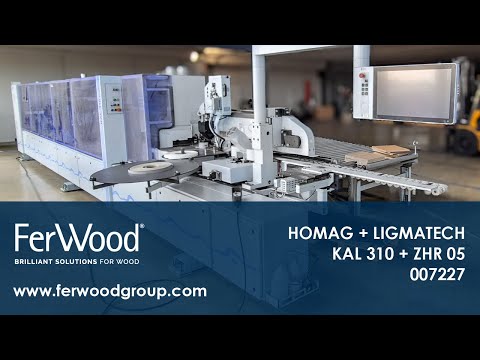

HOMAG + LIGMATECH KAL 310 + ZHR 05

Kondisi: baru, Tahun pembuatan: 2024, New machine Year of manufacture: 2024 (arrived 2025) MACHINESEEKER ENQUIRIES: Please understand that we do not offer this new machine outside of our sales territory within Germany (Rhine-Main area and North Rhine-Westphalia). Enquiries from outside this region will not be answered. Technical data: Fodpfjxymd Tjx Adgsft Edgeband thickness for coil material: 0.4 - 3 mm (material-dependent) Edgeband thickness for strip material: 0.4 - 8 mm (material-dependent) Edge cross-section: max. 6 x 42 mm Edge height: max. 65 mm Workpiece thickness: 6 - 60 mm (Restrictions may apply to individual units) Workpiece width: min. 65 mm Workpiece length: min. 160 mm (without corner rounding) Workpiece length: 180 mm Feed speed: 10 m/min Equipment: Motorized pressure bridge adjustment XL, extendable workpiece support, 600 mm spacing Three-color LED entry light Motorized adjustable infeed fence Long infeed fence, 1252 mm I-Tronic package Edge Control PPC 322 W control system IntelliSet: intelligent tool calibration f.a.s.t = fast setting technology ECO-Mode energy saving mode Preparation for RETURN connection (third-party) BS 501 guide system: precise right-angle feeding for end edging of narrow parts - Workpiece thickness: min. 10 mm - Workpiece thickness: min. 60 mm - Workpiece length: approx. 140 - 450 mm Jointing unit FG201 with two milling heads, 64 mm high Edge feeding unit MG 301 Gluing system GluJet GJ 725 NC PUR PRO - Automatic glue height adjustment via dosing sleeve with sensing nozzle to compensate for panel tolerances - NC axis for height adjustment - 90° swiveling for easy GlueJet nozzle cleaning - Includes vacuum pump for professional processing of PUR adhesives. The vacuum pump removes the reaction partner (water molecules) from the PUR, preventing premature curing, so PUR adhesive can remain in the system without hardening. The vacuum pump operates independently of the machine's power supply and automatically compensates for any vacuum loss. - Full PUR control! Press unit DW 301 with motorized NC axis; first roller is powered with pneumatic dip control; two conical follow-up pressure rollers Spray unit GM301 after press unit with release agent for high-gloss edges KA 501 pneumatic end trimming unit (60 mm) Extraction hoods for trimming unit Multifunctional milling unit FR301 MOT6 Shelf program Profile milling unit FF 301 MOT1 Scraper unit ZK301 MOT4 incl. high-gloss package Flat scraper FK702 Spraying device for separating and cleaning agent, complete Spray unit GM 301 after press unit (high-gloss edges) Buffing unit SW 501 Piping above the machine is not included in scope of supply Availability: short-term Storage location: Hochheim

Kondisi: baik (bekas), Tahun pembuatan: 2004, Mountable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Cutter head mounting plate diameter (Ø) 360 mm Mounting taper nominal diameter for cutter heads Ø 58.227 mm Travel distance - Z axis 200 mm Recording diagram magnification ±10 - ±500 µm Machine weight approx. 2.3 t Required space approx. 2 x 1.5 x 2.03 m In the manufacturing process for spiral bevel gears, the quality of the gearing tools used plays a decisive role. Especially in dry milling, high gear quality and long tool life can only be achieved with precisely set cutter heads. The Oerlikon cutter head setting and testing device CS 200 enables quick and easy adjustment of individual cutters, checks their position, and documents the measurement results. The measurement process on the CNC-controlled inspection device is semi-automated: The respective actions required for the process are clearly displayed on the screen via operator guidance. The positioning of the individual cutters in the cutter head and the height of the cutter tips is performed largely automatically via a special process and is simultaneously documented in a run-out diagram. A subsequent measurement process checks the radial position of the inner and outer cutting edges of all cutters in the cutter head. If certain test parameters of the cutters do not comply with tolerance specifications, they can be individually re-positioned. Through the combination of a semi-automated adjustment process, operator-guided setup actions, and an automatic measuring process, cutter heads can be adjusted conveniently, quickly, and with high precision. Operator-guided setting and inspection process - Graphical display of the cutter head configuration and measurement results with tolerance check Fjdjul Efmepfx Adgoft - Plain-language instructions for the operator (no encoded information) - Easy allocation of measurement results to individual cutters - Documentation of setting and measurement results via printer - Setting and inspection procedure suitable for blade-type cutter heads of the types ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® - Interface for neutral data

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2005, jam operasional: 52.455 h, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 2501-0154, panjang pembubutan: 600 mm, diameter putar di atas sled silang: 140 mm, diameter pembubutan: 300 mm, daya motor spindle: 25.000 W, kecepatan spindel (min.): 5.000 rpm, kecepatan spindel (maks.): 5.000 rpm, jarak gerak sumbu Z: 900 mm, gerak cepat sumbu X: 3 m/menit, pergeseran cepat sumbu Y: 3 m/menit, pergerakan cepat sumbu Z: 3 m/menit, kecepatan rotasi (maks.): 4.000 rpm, kecepatan rotasi (min.): 4.000 rpm, torsi: 239 Nm, saluran batang: 80 mm, kecepatan pemakanan sumbu X: 165 m/menit, laju pemakanan gandar Y: 165 m/menit, laju pemakanan sumbu Z: 220 m/menit, berat keseluruhan: 10.500 kg, Perlengkapan: dokumentasi / manual, The machine is still in operation and can be viewed under power at VOVU Machining in Uden. There are a total of 6 identical machines available here. Equipped with Fanuc 310is control. Fsdpfx Aeur Hfzodgoft

Kondisi: sangat baik (bekas), Fungsionalitas: berfungsi sepenuhnya, Tahun pembuatan: 2021, jam operasional: 22.351 h, jenis kontrol: Kontrol CNC, tingkat otomatisasi: semi-otomatis, produsen sumber laser: Trumpf, jam kerja laser: 17.317 h, daya laser: 4.000 W, ketebalan lembaran (maks.): 20 mm, ketebalan pelat baja (maks.): 20 mm, ketebalan maksimum lembaran baja tahan karat: 15 mm, tebal plat aluminium (maks.): 10 mm, panjang kerja: 3.000 mm, lebar kerja: 1.500 mm, jarak gerak sumbu Z: 115 mm, akurasi pengulangan: 0,03 mm, jenis pendinginan: air, berat keseluruhan: 12.000 kg, Perlengkapan: Penandaan CE, dokumentasi / manual, ekstraksi debu, henti darurat, penghadang cahaya keselamatan, unit pendingin, Dijual: TRUMPF TruLaser 3030 dengan otomatisasi LoadMaster Mesin dipasang pada Juni 2021. Diservis secara eksklusif oleh TRUMPF Slovakia, dengan perawatan profesional dilakukan secara rutin setiap enam bulan. Mesin dalam kondisi sangat baik, dilengkapi dengan otomatisasi LoadMaster. Pemotongan plat hingga ketebalan 25 mm. Tipe dan daya resonator: CO₂, 4 kW. Area kerja maksimum: 3000 × 1500 mm. Mesin akan beroperasi hingga akhir Desember 2025, dapat dilihat kapan saja dalam kondisi operasi penuh. Dokumentasi lengkap riwayat servis akan disediakan. Ffsdpowya Twjfx Adget

Kondisi: sangat baik (bekas), Independent machine – universal machine (first & second position in a production line) Electronic control – EasyLing programmer Safe and soundproof enclosure No. 3+3 vertical columns for supporting the processing units Min. usable working width (mm): 240 Max. usable working width (mm): 3,100 Min. usable working thickness (mm): 3 Max. usable working thickness (mm): 150 Retractable positioning cams, spacing (mm): 800 Fedpfx Adjwhmdfsgoft Feed rate (min/max), infinitely variable (m/min): 4 – 24 Total power No. 4 processing units (for each side of the machine): Scoring unit Automatic scoring unit 1 x 3 kW (6,000 RPM) Planing unit 1 x 6 kW (6,000 RPM) 0–10° Universal milling unit (electropneumatically controlled) 1 x 6 kW (6,000 RPM) 0–90° Universal milling unit 1 x 6 kW (6,000 RPM) 0–90°

Kondisi: bekas, Tahun pembuatan: 2014, Power Control PC 22 control system with WoodWop – POWERTOUCH software Fsdpfx Adsvqbh Eegeft Panel thickness: 8 - 60 mm PVC/ABS edge thickness: 3 mm Feed speed: up to 25 m/min (20 m/min with corner rounding) Electronically adjustable working height via CNC Motorized, rubber-coated pressure belt with superior hold Panel support guide and facilitation for introducing small panels Monitored infeed guide Anti-adhesive unit Rectifier unit with two motors, each 3 kW, 9000 rpm ball bearings Glue application system for PUR adhesive with pre-melter and adhesive tank Edge pressure unit for straight profiles with electronically adjustable pressure rollers via CNC Trimming unit with 2 motors (automatic tilt adjustment?) Overlap cutting unit with 2 motors Corner rounding unit with 2 multifunctional motors (trimmer + corner rounder) with CNC control Edge scraper unit Glue scraper unit Buffing unit Anti-adhesive unit TECHNICAL DETAILS MUST BE VERIFIED

Kondisi: hampir baru (bekas), Tahun pembuatan: 2006, Technical Data Brand: KENT Model: VK 1600MC Year: 2006 Serial number: 2200139 CNC control: FANUC 18 iMD Location: Tabaza (Asturias) Table Dimensions Table surface: 1700 x 810 mm T-slots: 22 x 5 x 160 mm Maximum table load: 2,000 kg Travel X-axis travel (longitudinal): 1600 mm Y-axis travel (cross): 815 mm Z-axis travel (vertical): 815 mm Distance from spindle head to table: 220 ~ 1035 mm Distance from spindle head to column: 865 mm Spindle Taper: BT50 Spindle speed: 30 – 6000 rpm ZF gearbox (2 ranges): Yes Maximum tool weight: 15 kg Max. tool size (diameter x length): 125 x 300 mm ATC Max. tool size: Ø125 x L250 mm Max. tool weight: 15 kg Number of tools: 32 Feeds Working feed rates: 1 – 10,000 mm/min Rapid traverse (X / Y / Z): 18 / 18 / 18 m/min Motor Spindle motor (max. power): 15/18.5 kW Axis drive (X, Y, Z): 5.5 | 5.5 | 5.5 kW Coolant Pump CTS: One air & two coolants – 4 bar + 6 bar / 20 bar Weight & Dimensions Machine weight: 16,150 kg Machine dimensions: 4,488 x 3,448 x 3,250 mm Base footprint: 5,000 x 3,500 mm Ffsdpfx Adeqwyzfegot

Kondisi: baik (bekas), Tahun pembuatan: 2002, Edge banding machine with jointing milling, otherwise fully equipped, PU adhesive can be used. Ffodpfsgmn H Ajx Adget

Kondisi: sangat baik (bekas), Tahun pembuatan: 2008, Fungsionalitas: berfungsi sepenuhnya, nomor mesin/kendaraan: 693068, berat keseluruhan: 7.300 kg, daya: 30 kW (40,79 hp), Walter Helitronic Vision CNC Werkzeug- und Schleifmaschine mit Palettenlader Universelle Werkzeug- und Schleifmaschine (CNC-gesteuert) Hersteller: Walter, Modell: Helitronic Vision, Seriennummer: 693068, Baujahr: 2008 Beschreibung: Geeignet zur Herstellung und Nachschärfung von Metall- und Holzbearbeitungswerkzeugen aller Art. Die Maschine kann unter Strom besichtigt werden. Technische Daten: • Längsbewegung (X-Achse): 480 mm • Vertikalbewegung (Y-Achse): 320 mm • Querbewegung (Z-Achse): 700 mm • Drehtisch Schwenkbereich (C-Achse): +/- 200° • Werkstückaufnahme: ISO 50 • Max. Werkstückdurchmesser: 320 mm • Werkstücklänge Umfangsschleifen: 370 mm • Werkstücklänge Stirnschleifen: 320 mm • Genauigkeit, lineare Auflösung: 0,0001 mm • Radiale Auflösung: 0,0001° • Spindeldurchmesser: 100 mm • Schleifscheibenaufnahme: HSK50 • Schleifscheibendurchmesser: 200 mm • Schleifspindeldrehzahl: 0 – 12.000 U/min • Spitzenleistung: 30 kW • Anschlussleistung: 35 kW (460 V / 60 Hz) • Gewicht ca.: 7.100 kg • Abmessungen (L x B x H): 3.649 x 2.490 x 2.301 mm Ffsdpfx Adouqzdpjgst Zubehör: • Haltevorrichtung zum Öffnen der Schleifscheibe (nicht enthalten, wie auf Fotos abgebildet) • Stufenlose Drehzahlregelung, Messtaster, pneumatische Werkstückspannung • Elektrostatischer Nebelabscheider • Feuerlöschanlage • Ölauffangwanne, 2 Schleifscheibenflansche, kompletter Satz Handbücher • Turmoil Drive Chiller • Paletten für Lader: 8 Stück – 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 1-1/4” • 10 Stück HSK-Schleifscheibenaufnahmen Software: • Windows XP Pro Svc Pack 3 • Tool Studio V3.3 • Der Computer wurde aufgerüstet und ist sehr schnell beim Rendern der Werkzeuge in Tool Studio Zustand: • Hervorragender Zustand, sehr präzise und konstant. Oktober 2023: Y-Achse komplett überholt (Linearmotor, Führungen, Kompensationszylinder, Festo-Booster-Pumpe durch United Grinding erneuert). • Es wurde ein 1 Mikron-Filtersystem verwendet (nicht enthalten), daher extrem sauber gehalten • Verladung auf einen Tieflader für den Versand für 1.200 $ möglich. Gerne erstellen wir Ihnen auch ein Angebot für den Versand oder die Seekistenverpackung.

Kondisi: sangat baik (bekas), Four-sided planer Weinig Maximum planing width: 230 mm Maximum planing height: 120 mm 5 heads: bottom - 5.5 kW; left and right - 11 kW each; top - 11 kW; bottom - 5.5 kW Feed motor: 4 kW Fully adjustable heads Electrically adjustable planing height and width Spindle diameter: 40 mm Fodjrigxyopfx Adgsft Feed via cardan shaft rollers, stepless adjustment Robust planer by WEINIG Machine length: 415 cm The machine has been inspected and is in original condition
