EDGEBANDER DUA SISI

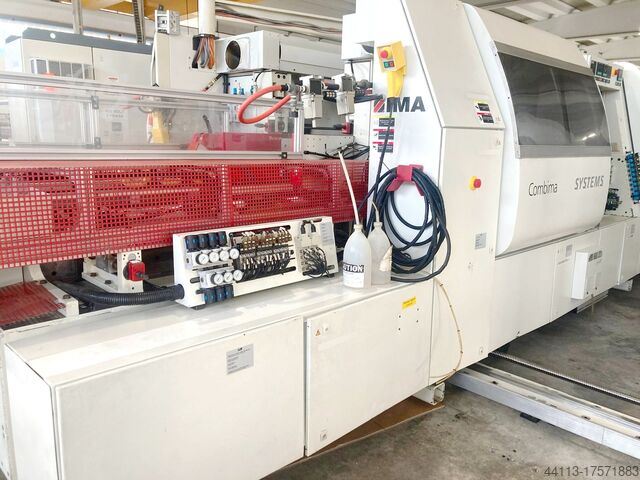

IMA CombimaK/ II/ R75 / 740 / B/F

Double-sided single machine (or 1st and/or 2nd machine in a production line)

Edge thickness in rolls (min/max) mm: 0.3 / 3
Csdpfx Adsu Ekbno Dorh
Edge thickness in strips mm: 1.3
Panel thickness (min/max) mm: 8 / 40
Working width (min/max) mm: 266 / 2400 (option 3000)
Cam spacing (mm): 540 (prepared for 270 mm)
Control system: ICOS OPEN
Feed speed m/min (adjustable): max. 60 m/min
No transmission bar (Master & Slave systems)

FORMAT PROCESSING (for each side):
Sprayer unit (for liquid anti-adhesive)
Jointing unit 08.376 (KW 4.5 x2)
Open station

EDGE BANDING PROCESSING (for each side):
Gluing station (hot melt adhesive) 283.205
Edge pressure zone. Edge magazine for rolls (No. 2 fold)
End trimming unit 08.42 (KW 0.2 x 2) 0°-25° (max. working speed 50 m/min, servomotor)
Milling unit 08.055 (KW 0.66 x 2) 0°-30°
Multi-function unit (radius milling and profile milling) 08.342 (KW 0.66 x 2)
Sprayer unit (for polishing liquid)
Open station (for optional addition of a scraper)
Buffing unit 08.617 (KW 0.18 x 2)
