Beli Demak, Cosmec, Scm, Gabbiani Banyak Mentah bekas (759)

Kondisi: baru, Multi-function combination machine with aluminium sliding table for sawing, milling, surface and thickness planing, and optional slot mortising. Torsion-resistant steel and cast iron construction Machine table made of cast iron, hardened and ground Smooth-running anodised aluminium sliding table, 10-year SCM warranty on sliding table guide wear Large crosscut frame with extendable aluminium telescopic fence and flip stops With combination saw/jointing fence with quick 45° adjustment Max. saw blade diameter 315 mm with optional scoring unit, swiveling from 90° to 45° Helically-geared steel feed roller for consistent wood feed during thickness planing Four manually adjustable spindle speeds Spindle moulder with standard forward and reverse rotation Three independent motors, one for each working unit Sliding table with ball contact system Equipped with a proven ball contact system, millions of units in use Permanently smooth running due to hardened and ground guides Insensitive to dust and dirt thanks to minimal contact between ball and trapezoidal rail The dust extraction ports for the surface and thickness planers are located on the same - right - side. As a result, the extraction hose can be used for both planing types from the same side. Helically-geared steel feed rollers ensure consistent and uniform workpiece feed Robust anti-kickback devices for operator safety 3-knife cutterblock ensures optimal planing results Crosscut length 1600 mm Max. saw blade diameter with scorer 315 mm Max. cutting height at 90° / 45°: 100/79 mm Codoiiyppspfx Aiusrc Max. crosscut width left of saw blade: 1660 mm Rip capacity at parallel fence: 800 mm Saw spindle speed: 3500 rpm Saw blade tilting: 90° - 45° Working width: 300 mm Surface table length: 1260 mm Planer shaft diameter / number of knives: 72 mm / 3 pcs. Table size: 300 x 450 mm Min. / max. working height: 3 mm / 220 mm Max. cutting depth: 4 mm Feed speed: 7 m/min Spindle diameter: 30 mm Usable spindle length: 100 mm Max. tool diameter retractable: 180 mm Spindle speeds: 3500/6000/8000 rpm Motor power: 3 x 4 kW, 400 V, 50 Hz Extraction ports diameter: 4 x 120 mm Saw blade guard extraction port diameter: 60 mm Weight: 430 kg OPTIONS: - Professional stops EUR 300.-- Saw fence with quick lock and micrometric adjustment Surface planer fence with continuous adjustment from 90° to 45° - Scoring unit incl. saw blade EUR 292.-- - Handwheel with digital readout for thickness table positioning EUR 129.-- - Mobility kit EUR 119.-- - 2 additional handwheels for aggregate adjustment EUR 45.-- - TERSA cutterblock DM 72 mm EUR 212.-- - Xylent spiral cutterblock with 3 cutting rows EUR 717.-- - Aluminium slot mortising attachment EUR 390.-- - 2 flip stops on crosscut fence EUR 150.--

Kondisi: baru, Massive work table made of heavily ribbed cast iron Robust base frame made of welded steel Precision sliding table made of anodized aluminium Carbide guide rails—for long-lasting precision and minimal maintenance of the sliding table Tilting cast-iron saw unit with double segment guide Heavy-duty parallel fence with round bar guidance Integrated mitre cutting device on the sliding table Scorer with separate powerful drive motor (optional) Equipped with a high-quality squaring frame & telescopic fence, integrated roller, inclined scale and practical eccentric clamp Saw blade speed adjustable in two stages (from above, work table with removable insert) Includes pendulum saw blade guard INCLUDES OPTION DIGITAL DISPLAY FOR PARALLEL FENCE Codpfxeit I Sbo Aiusrc Max. cutting height at 90° (mm): 140 with 400 blade Max. cutting height at 45° (mm): 100 with 400 blade Saw blade tilting angle (degrees): 90/46 degrees Lifting and tilting of saw blade unit: manual Saw blade speed (rpm): 3500/5000 Main motor power (kW) 50 Hz: 7.5 Scorer motor power (kW) 50 Hz: 1.3 Scorer speed (rpm): 9200 Panel cutting capacity (mm): 3200x3200 Cutting width for parallel cuts (mm): 1270 Extraction port diameter (mm): 120, 60

Kondisi: baik (bekas), 0399 Crodpfx Aiezbmvaeuec

Kondisi: baik (bekas), R-A0074 Crjdpfx Aeza Dqfeiujc

Kondisi: bekas, Fungsionalitas: berfungsi sepenuhnya, Mesin Milling Poros Bawah SCM T130 Diameter poros: 35 mm Panjang total poros: 160 mm Motor utama dengan daya 5,5 kW Kecepatan putar (penggantian sabuk): 3000/4500/6000/7000/10000 rpm Putaran poros ke kiri dan kanan Codpfszakgmsx Aiusrc Pengangkatan poros secara elektrik

Kondisi: sangat baik (bekas), Einmaliger-Zustand-Sandya-1100-szönyeg-és-henger-mint-az-új-pneu matikus-csiszolósaru-fokozatmentes-eltolás-hu Cedezbct Ijpfx Aiusrc

Kondisi: bekas, Mesin bekas Serut (Abrichte): Lebar kerja 500 mm Panjang meja total 2200 mm Poros empat pisau dengan pisau serut strip Motor 4 kW Ketebalan (Dickte): Tinggi kerja min. 3 mm Tinggi kerja maks. 235 mm Credpsza I Tkofx Aiusc Pengambilan serpihan maks. 8 mm Tampilan digital pengaturan ketinggian dengan tampilan desimal Kecepatan penghantar 7,5/15 m/menit Ketersediaan: dalam waktu singkat Lokasi stok: Flörsheim

Kondisi: baik (bekas), de-001 Cedpfx Aisza Htpsusrc

Kondisi: bekas, Tahun pembuatan: 2011, AXES Working area X-Y-Z axes * mm: 3050-1300-180 Workpiece length during pendulum operation mm: 1390 Travel X-Y-Z axes mm: 3460-1735-250 Max. traversing speed X-Y axes m/min: 60 WORK TABLE Number of workpiece supports and vacuum pods: 6 / 2 standard type Standard end stops / position: 1 / rear Vacuum pump m³/h: 90/108 DRILLING UNIT Vertical spindles std./number/speed rpm: 12 (8X-5Y) / 4000 Horizontal spindles std./number/speed rpm: 6 (4X-2Y) / 4000 Integrated grooving / saw unit in X, dia. mm / rpm: 120 / 6000 Motor power kW (hp): 2.2 (3) ELECTROSPINDLE Motor power std. / opt. (S6) kW (hp): 7.5 (10) / 11 (15) Max. speed rpm: 24,000 Tool changer traveling with the unit carrier in X: 4 positions, pneumatic INSTALLATION Installed power kVA: 23÷28.5 Compressed air demand Nl/min: 450 Extraction air demand m³/h: 1900+1900 (3400) Crjdpfsyymz Uex Aiuec Required extraction air velocity m/sec: 30 Extractor connection diameter mm: 150+150 (200) Machine weight kg: 3000 * X distance between the stops – Y cutter center as reference point; Z workpiece clearance GENERAL FEATURES CNC-controlled drilling and milling center in C-frame design with worktable featuring adjustable supports and vacuum pods for performing: - Vertical drilling on the panel surface - Horizontal drilling on all four panel sides - Grooving with disc cutter in the

Kondisi: sangat baik (bekas), Catalog No. 7713 TECHNICAL DATA - Maximum workpiece width: 240 mm - Maximum workpiece height: 130 mm - 6 spindles: 1) Bottom horizontal: 240 mm, 7.5 kW 2) Right vertical: 130 mm, 5.5 kW 3) Left vertical: 130 mm, 5.5 kW 4) Top horizontal: 240 mm, 7.5 kW 5) Top horizontal: 240 mm, 5.5 kW (Spindles 4 and 5 are electrically adjustable up/down) 6) Bottom horizontal: 240 mm, 5.5 kW - All spindles adjustable vertically and horizontally Crsdpfx Aiszab Eyjuoc - Spindle diameter: 40 mm * From above: - 8 powered infeed steel rollers with gears, including 3 double rollers - 4 powered outfeed rubber rollers, smooth, including 2 double rollers * From below: - 3 powered smooth feed rollers - 3 lateral pressure units - Infinitely variable feed speed (via frequency inverter) - Pneumatic pressure rollers - Feed drive motor: 7.5 kW - Cardan shaft feed transmission - Electric thickness adjustment - Lifting motor: 0.75 kW - Infeed table length: 2480 mm - Pneumatic cabin opening/closing - Pneumatic table air blast system - Centralized table lubrication - Extraction port diameters: 3 x 120 mm, 3 x 150 mm - Dimensions (LxWxH): 5300 x 1700 x 1800 mm - Weight: 5000 kg FEATURES - Made in Italy - 6 heads - Suitable for wet and dry timber - Pneumatic cabin opening - Pneumatic table air blast - Spindles 4 and 5 electrically adjustable - Used planer, in very good condition Net price: PLN 116,900 Net price: EUR 27,850 (based on 4.2 EUR/PLN) (Prices may vary with currency fluctuations)

Kondisi: bekas, Tahun pembuatan: 2011, Base machine M800 X5 TV 1 WORKING FIELD X: 5,020mm Y: 1,830 mm Z: 675 mm Clearance height: 300 mm (from 50 mm pod height) MACHINE STRUCTURE The base structure is a monolithic design made of thick-walled steel. It is reinforced over the entire machine bed with welded-in parts, providing exceptional stability. The table design, featuring a large base, is the key to ensuring lasting precision and stability. The machine layout allows the operator to achieve optimal workflow despite minimal space requirements. The mobile gantry is built from a solid monoblock. It is positioned in the X direction on prismatic, ground guides using ball recirculation carriages. Mounted on this mobile unit carrier, the working unit is also installed on prismatic, ground guides and ball recirculation carriages. AXIS MOVEMENT All axis movements are performed on large cross-section prism linear guides with ball recirculation shoes offering extensive contact area, ensuring optimal sliding even at the highest speeds and accelerations. Precise and swift positioning of the moving gantry (X-axis) is achieved via helical rack and pinion drive. Large cross-section ball screws guarantee accurate positioning of the working unit along the mobile gantry (Y- and Z-axes). Perfect mechanical dynamics and maximum positioning accuracy are governed by premium quality drives and brushless motors. Maximum axis speeds: - X-axis = 90 m/min - Y-axis = 90 m/min - Z-axis = 30 m/min SAFETY DEVICE WITH BUMPER AND LIGHT CURTAIN 1 Bumpers with sensors are fitted around the mobile stand, and a light curtain system is installed in front of the machine. If the operator enters the active zone, the axis speed of the X-axis is reduced to a lower rate of 25 m/min without stopping the machine. This system allows workpieces to be loaded during pendulum operation without the disadvantageous access restrictions associated with safety mat systems. This prevents undesired interruptions of the machining cycle and allows greater freedom of movement around the work table. CE Certificate for the safety system 1 Safety enclosure 1 Safety enclosure lateral and rear Automatic centralized lubrication controlled via CNC 1 Lubrication of X, Y, and Z axes governed at regular intervals by CNC control, eliminating manual intervention at the machine. Central extraction nozzle 1 All individual extraction ports of the machining units are merged into one central port. Inside the port, various slide valves are controlled by the NC system, reducing the required extraction air volume. Chip conveyor 1 Maxi – 5 axis electrospindle 11 kW HSK-63 “Prisma K” 1 5-axis electrospindle with 11 kW power at 20,000 rpm in S1 (100% duty cycle) Speed: max. 20,000 rpm Rotation direction: left / right Liquid cooling Tool interface: HSK-63F 18 kW inverter for stepless, uniform power delivery Csdsxy Tmnopfx Aiujrc Max. rotation B-axis = 200° (+/-100°) C-axis = 650° Thanks to non-orthogonal axes, complex horizontal positioning can be performed in compact working spaces. This allows machining of complex geometries without the risk of collision.

Kondisi: bekas, nomor mesin/kendaraan: 008288, translation_001 Cedox Nv S Uepfx Aiujrc

Kondisi: bekas, Tahun pembuatan: 2013, tinggi total: 2.240 mm, panjang total: 5.240 mm, lebar total: 2.500 mm, en-001 Cedjwnii Ropfx Aiuerc

Kondisi: bekas, Tahun pembuatan: 2018, Price: On request CNC Machining Centre SCM ACCORD 25 FX Brand: SCM Model: ACCORD 25 FX Year of manufacture: 2018 Machine number: AA10000992 Work Table Dimensions: 5020 x 1380 mm (L x W) Work table fitted with 2 vacuum zones Work table fitted with 2 reference stops Includes 8 reference pins and 8 supports XY Vector Speed: 35 m/min Axis Movements: - Max. X-axis speed: 25 m/min (per chamber) - Max. X-axis speed: 90 m/min (per speed) - Max. Y-axis speed: 90 m/min - Max. Z-axis speed: 30 m/min Control System: - Machine control: KVARA control - Operating system: Windows Embedded Standard 7-64bit - Hard drive capacity: 500GB - 7200rpm - Microprocessor: Intel Pentium - 2.9GHz - RAM: 8GB DDR4 Crjdjycwupspfx Aiusc XILOG MAESTRO software package Includes vacuum pump: - Motor power: 5.5 kW - Pump capacity: 250 m³/h - Vacuum pressure max.: 0.9 bar Overall dimensions: 9000 x 4500 x 3000 mm (L x W x H) Total weight: 7,500 kg - Year of manufacture: 2018 - Documentation available: No - CE marking: Yes - CE certificate: No - Serial number: AA10000992 - Number of router spindles [pcs]: 2 - Router spindle 1: - Number of controlled axes [pcs]: 3 - Min. spindle speed [rpm]: 6000 - Max. spindle speed [rpm]: 18000 - Main motor power [kW]: 15 - Router spindle 2: - Number of controlled axes [pcs]: 3 - Min. spindle speed [rpm]: 600 - Max. spindle speed [rpm]: 24000 - Main motor power [kW]: 12 - Type of router table: Beam table - Tool changer positions [pcs]: 12 - Vacuum pump available: Yes - Quantity [pcs]: 1 - Brand: Becker - Main motor power [kW]: 5.5 - Capacity [m³/h]: 250 - Table length [mm]: 5020 - Table width [mm]: 1380 - Working area Y [mm]: 1300 Financial information VAT: The stated price is exclusive of VAT VAT/taxation: VAT deductible for commercial buyers Delivery and trade-in possible at any time for all items from the industrial sector Glenn Smeets

Kondisi: bekas, Tahun pembuatan: 2015, tinggi total: 1.850 mm, panjang total: 2.300 mm, lebar total: 1.950 mm, Color: White Unladen weight: 1,240 kg - Year of manufacture: 2015 - Documentation available: No - CE marking present: Yes - CE certificate available: No - Serial number: AB/222595 - Main motor power [kW]: 2.2 - Number of controlled axes [pcs.]: 12 - Working area X [mm]: 3050 - Working area Y [mm]: 800 - Working area Z [mm]: 60 - X-axis maximum travel [mm]: 1040 - Y-axis maximum travel [mm]: 1030 - Z-axis maximum travel [mm]: 100 - Number of milling spindles [pcs.]: 8 - Spindle diameter [mm]: 10 - Min. spindle speed [rpm]: 1,000 - Max. spindle speed [rpm]: 4,000 - Horizontal drilling machine: Yes - Horizontal drilling spindles [pcs.]: 6 - Max. drilling depth [mm]: 18 - Vertical drilling machine: Yes - Vertical drilling spindles [pcs.]: 8 - Max. drilling depth [mm]: 30 - Saw unit present: Yes - Voltage [V]: 400 - Power consumption [A]: 10 Codpfx Ajzavvgsiujrc - Transport dimensions: 2,300mm x 1,950mm x 1,850mm (L x W x H) - Transport weight [kg]: 1,240kg - Number of transport packages [pcs.]: 1 Financial Information VAT: The stated price is plus VAT VAT/Margin scheme: VAT deductible for businesses Delivery and trade-in possible at any time for all items from the industrial sector Glenn Smeets

Kondisi: sangat baik (bekas), 7946 Crodpfjy Uxy Sex Aiusc

Kondisi: sangat baik (bekas), pl-hu-001 Codpoy Uxyrsfx Aiuerc

Kondisi: bekas, Tahun pembuatan: 2005, Area kerja: X=2970 mm / Y=1725 mm. Kecepatan gerak sumbu: X=60, Y=45, Z=25 m/menit. Berat: 3200 kg. Lokasi gudang: Nattheim. Cjdpfxew Dccco Aiusrc

Kondisi: bekas, Tahun pembuatan: 2007, Perjalanan kerja: X=4400 Y=2195 Z=440 mm Area kerja pada X=3650 mm Y=1560 mm Ruang bebas: 330 mm Elektospindel SCM Power 2000 Spindel milling kecepatan tinggi dengan daya 13 kW Sumbu putar Vector (sumbu C) Blower pembersih untuk perkakas pada unit milling Penjepit alat HSK 63 F Kecepatan putar 600 – 24.000 rpm tanpa langkah melalui inverter Daya motor 8,5 kW Dudukan alat: 6 pcs Penukar alat: Rapid 12 (12 slot) Pompa vakum 250 m³/h / 5,5 kW Tekanan vakum maksimum: 0,9 bar Stop referensi di sisi meja Unit bor dengan 11 spindle (7 vertikal / 4 horisontal) Kontrol: NUM Seri 1000 Antarmuka pengguna: XILOG Plus PC Office Perangkat keras WINDOWS XP Professional Total daya terpasang: maks. 27,5 kW Berat: 5.200 kg Lokasi penyimpanan: Nattheim Cjdpfew Dcb Ssx Aiusrc

Kondisi: bekas, Tahun pembuatan: 2022, FORMAT CIRCULAR SAW WITH TILTING SAW BLADE L'invincibile SI 5 MAIN FEATURES SLIDING TABLE: HIGHEST CUTTING QUALITY GUARANTEED IN THE LONG TERM TELESCOPIC ARM: AN "INVINCIBLE" SMOOTH GUIDANCE SAW UNIT: FOR A PERFECT CUT Technical Data SI 5 Main saw blade diameter (mm): 550 Panel cuts with extendable fence - with table 3200 mm - with table 3800 mm: 3200x3200, 3800x3200 Saw blade tilting angle (degrees): 46 Maximum cutting height at 90° (mm): 200 Maximum cutting height at 45° (mm): 130 Saw blade speed (rpm): 2500-3500-5000 Scoring blade speed (rpm): 8500 Extraction nozzle diameter: - at the base: 120 mm - at the saw blade guard: 100 mm Main motor power [S6 - 40%] Hz50 kW: 7 Scoring motor power [S6 - 40%] Hz50 kW: 0.9 Cutting width at rip fence (mm): 1600 Crodpoxqtvqofx Aiujc Standard equipment and accessories: - Optimizer/workflow control app for tablets: SCM Thundercut. The app can be downloaded from the App Store or Play Store on tablets compatible with iPadOS or Android. It can be activated using the QR code supplied with the machine. The app enables: * Management of machine fleet, material, and board stock * Creation and editing of projects; importing projects from major furniture design software (“cpout” file format), importing cut lists * Optimization of cut lists by selecting one or more suggestions from the integrated optimization software in the app * Correct machine setup for each cut, thanks to the simple, intuitive graphics of the 3D sequencer that guides the operator step by step * Printing of barcode labels for part identification via Bluetooth connection to compatible label printers. - 10-year warranty on the sliding table guidance system - Sliding table entirely in aluminum structure with guide system on rolled, hardened, and arch-ground steel guides with large contact surface - Max. saw blade diameter: * up to 450mm with scorer mounted * up to 550mm without scorer mounted - eye-S 15" electronic control, complete with: * 15" touchscreen monitor * Direct control of the following working axes in manual, semi-automatic, automatic, and incremental mode: - Main saw blade height adjustment - Saw unit tilting - Rip fence positioning - Scorer height and lateral adjustment (the scorer is automatically raised to the set position when switched on and lowered when switched off) * Operator assistance functions for performing complex cuts * Storage capability for up to 1000 programs, each with associated image * Storage for up to 1000 different tools, each with associated image * Cut sequence control of preloaded parametric machining programs * Environment for creating and storing new sequenced working programs * Automatic acquisition of working dimensions from the Thundercut app * USB port * Network connection-ready - Auxiliary functions of the electronic control, including: * Determination of the correct stop position on the longitudinal fence for panel processing with tilted saw blade * Determination of the correct stop position on the longitudinal fence for miter cuts with miter fence on the worktable, with or without tilting saw blade - Swiveling control panel above the table - Scoring unit with independent ... (text cut off)

Kondisi: bekas, Tahun pembuatan: 2001, Min/Maks. lebar kerja (ukuran jadi): 23 - 180 mm Min/Maks. tinggi kerja (ukuran jadi): 6 - 105 mm Panjang benda kerja minimum: 300 mm Kecepatan feeding: 6 - 12 m/menit Kecepatan spindel: 6000 rpm Diameter spindel: 35 mm Daya motor spindel horizontal: 10 kW Daya motor spindel vertikal: 7,5 kW Daya motor feeding: 1 kW Diameter rol feeding: 120 mm Diameter konektor ekstraksi 1 buah: 150 mm Diameter konektor ekstraksi 2 buah: 120 mm Berat: sekitar 950 kg Crjdpeym D Eiofx Aiusc Lokasi stok: Pemasok

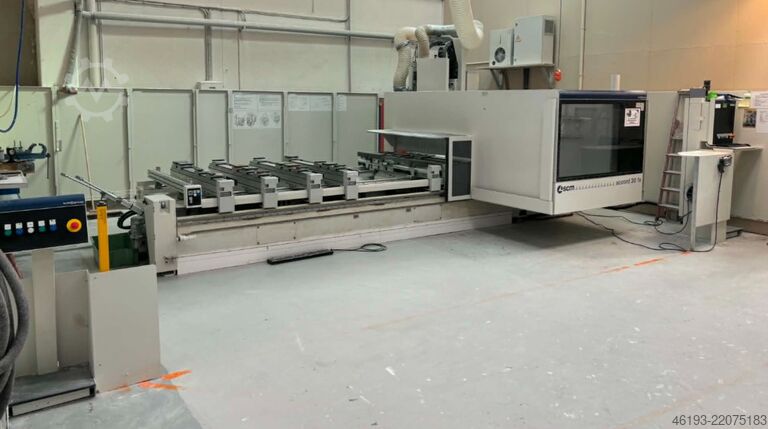

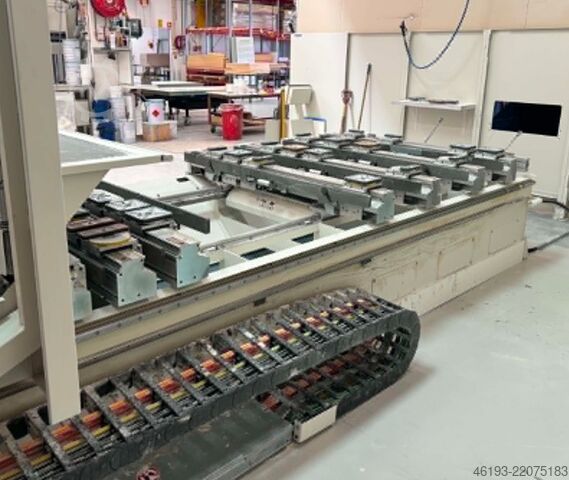

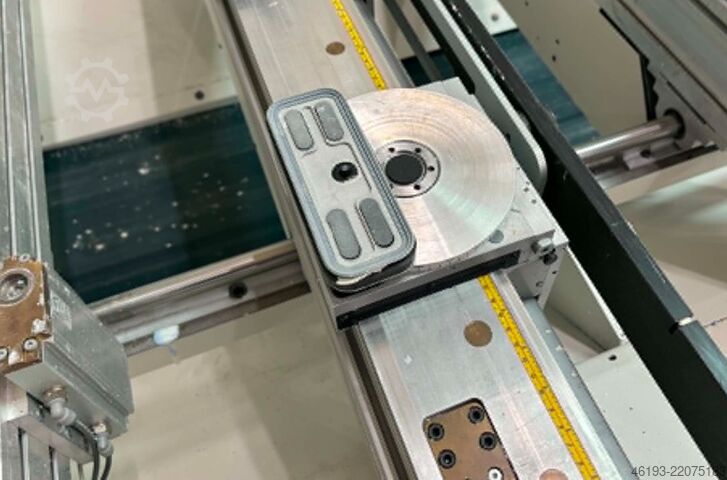

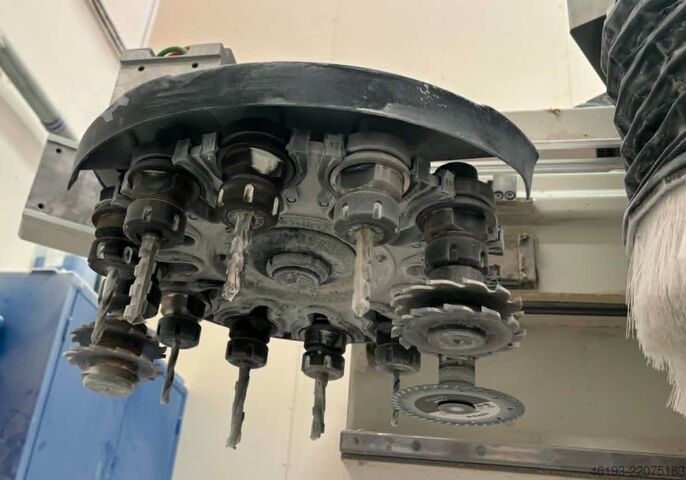

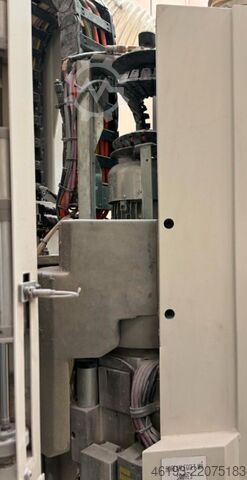

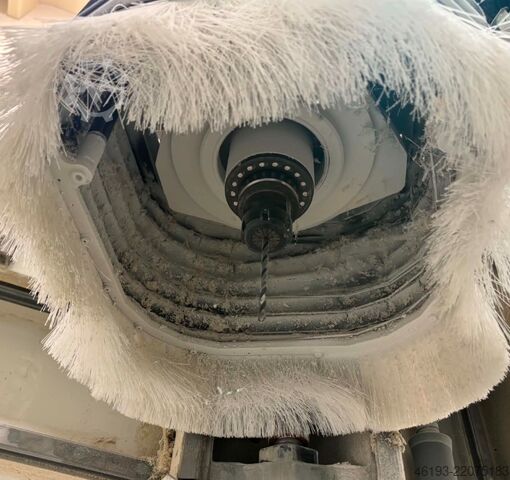

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2012, Fungsionalitas: berfungsi sepenuhnya, Perlengkapan: Penandaan CE, Modell: Accord 30 FX Cedpfx Aezbz Htoiuorc Baujahr: November 2012 – Erste Inbetriebnahme 2013 Maschinentyp: 3-Achs-CNC-Bearbeitungszentrum für Massivholz, Türen, Fenster, Treppen und Holzbau Bearbeitungsfeld: X 3680 x Y 1680 mm Z-Achsen-Verfahrweg: 250 mm BRC Multifunktionseinheit zum Sägen, Fräsen und Bohren (vertikal) Bearbeitungskopf DUO HT 12 Syncron 8 vordere und hintere Anschlagsreihen H50 für Platten Vorrüstung für mechanische und pneumatische Spannzangen für Platten Automatisches Positioniersystem für die Platzierung der Auflagebalken und Saugheber 16 verstellbare Saugheber H50 145x145 mm 8 verstellbare Saugheber H50 145x55 mm 8 verstellbare Saugheber H50 180x65 mm 8 Hubstützen Motorisiertes Band zur Abfallentsorgung Haupt-Elektrospindel-Leistung: 11 kW Maximale Spindeldrehzahl: 20.000 U/min Werkzeugaufnahme: HSK-F63 Werkzeugwechsler für 12 Werkzeuge Vertikale Bohrspindeln: 10 X-Y-Eilgang: bis zu 90 m/min Vakuumpumpenleistung: 250 m³/h Maximale Werkstückhöhe: 250 mm Zusatzsockel für Bar Matic TecPad mobiles Bedienpult Pro-Speed-Sicherheits­system XiLog Maestro Software Maschinengewicht (ca.): 5.000 kg Spannung: 400 V, 50 Hz

Kondisi: bekas, Tahun pembuatan: 2016, TECHNICAL DATA AXES Max. workpiece dimensions X-Y-Z mm: 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm: 300 x 90 x 10 Working area Drilling/Grooving mm: 0 x 800 / 0 x 800 Cjdpjvvi I Rsfx Aiuerc Stroke of X axis mm: 750 Max. traverse speed of X-Y axes m/min: 25 DRILLING UNIT Vertical spindles: Number 7 (4X-4Y, one shared) Horizontal spindles (along Y axis): Number 2 (1+1) Horizontal spindles (along X axis): Number 1 Fixed grooving saw (direction): X Grooving saw diameter mm: 100 Max. saw thickness mm: 5 Motor power kW (HP): 1.5 (2) Spindle speed rpm: 3350 Grooving saw speed rpm: 4300 INSTALLATION Power supply V (Hz): 380 / 400 (50 / 60) Installed power KVA: 4.5 Compressed air requirement bar: 6 Compressed air consumption Nl/cycle: 90 Extraction requirement m³/h: 1200 Extraction air speed m/sec: 20 Extraction nozzle diameter mm: 80+80 F10L Drilling Unit includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads: 1 in X direction with one bit, 1 double drilling head in Y direction (1 + 1 Drill chuck D10 mm) - Speed 3350 rpm - 1 integrated saw unit in X (max. diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit Workpiece positioning and drive of working unit A CNC-controlled suction cup clamps and positions the workpiece sequentially under the working unit during machining. Movement along X and Y axes occurs on THK linear guides with transmission via reinforced toothed belts. Movement along Z axis is pneumatic on ball-bushing guides, with adjustable stopper positioning. Positioning of the working units is via DC motor technology and drives. CNC CONTROL The control system was specially developed for use in drilling and milling machines. CN - 7" color display with touchscreen - Alphanumeric keypad - Self-diagnosis and operator language fault messages Programming - Programming via the CN - Automatic optimization of drilling operations - Possibility of panel zero-point shift - Possibility to store and import drilling programs via USB dongle - Ability to import drilling programs from external CAD-CAM software Configuration - User interface in the same language as the manuals - Graphical representation of unit configuration Vacuum suction cup "B-Power" Vacuum suction cup with double vacuum connection, recommended for highly porous panels (e.g., MDF light). Machine operating interface Software: Xilog Maestro USB Hardware and software requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, min. 2GHz; multicore processor recommended - Memory: Minimum 1GB, 2GB recommended - Free disk space: 5GB - Graphics card: OpenGL compatible (Package includes an installation DVD and a USB dongle) Xilog Maestro features Programming - Parametric, graphical programming - Assisted programming with graphic and syntax aids for drilling operations - Ability to create and store machining macros Integrated additional functions - Self-diagnosis and operator language fault messages

Kondisi: bekas, Tahun pembuatan: 2018, en: Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMISABLE PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP SIDE OF THE PANEL ALLOWS FOR ABSOLUTELY PRECISE MACHINING NUMERICAL CONTROL WITH 7" COLOUR SCREEN: EASY AND INTUITIVE TECHNICAL SPECIFICATIONS Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Working area drilling/grooving mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. traversing speed X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y, one shared) Horizontal spindles (along Y axis) Number 2 (1+1) Horizontal spindles (along X axis) Number 1 Fixed groove saw (direction) X Groove saw diameter mm 100 Max. groove saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Groove saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Air consumption Nl/cycle 90 Extraction requirement m3/h 1200 Extraction air speed m/sec 20 Extraction nozzle diameter mm 120 GENERAL FEATURESUniversal CNC drilling machine with fixed gantry work table and moving workpiece for performing the following operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Grooving with integrated groove saw in "X" direction Self-supporting frame Machine base in steel tube construction to provide a large base for the work table. The structure is positioned on 3 self-levelling feet. The electrical cabinet is integrated into the machine base. Central Bakelite support table "Easy Motion": - an MDF sector for through drilling, automatically swivelling away for horizontal drilling - an infeed roller to facilitate panel feeding - a rear roller track to facilitate panel sliding - left and right stops - a manually adjustable central alignerIt is necessary to use the left and right stops to drill the two opposite panel sides horizontally in the "X" direction. Panel positioning along the X-axis by vacuum suction cups. Unit carriage This is a gantry structure in steel tube construction. The main working unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles- chuck D10 mm- spindle spacing 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 chuck D10 mm) - speed 3350 rpm- 1 integrated saw unit in X (max. diameter 100 mm) - saw blade speed 4300 rpm- motor power 1.5 kW - vertical pneumatic stroke per spindle 70 mm - horizontal pneumatic stroke of the drilling unit Positioning of the workpiece and drive of the working unit A CNC-controlled vacuum cup clamps the workpiece and positions it sequentially under the working unit during machining. X and Y axis movement on THK linear guides with reinforced toothed belt transmission; Z axis movement is pneumatic on ball-bushing guides with position stop adjustable via the working unit position. Positioning of the work units via state-of-the-art control and drive technology -CONTROL The control system was specially developed for industrial use. Crodpfx Aievwbp Aeuec

Kondisi: bekas, Tahun pembuatan: 2011, Besar area kerja pada arah X: 2770 mm Besar area kerja pada arah Y: 1220 mm Ketebalan pemrosesan (ukuran Z): 80 mm Konstruksi mesin: mesin portal Daya spindle utama: 11,0 kW Kecepatan spindle utama: 1500 - 24000 rpm Spindle dengan kontrol vektor: Ya Sistem penjepitan: HSK 63 F Pendingin spindle: Pendingin udara Jumlah sumbu: 3 Penukar alat: Ya Tempat alat: 10 unit Keyboard mesin tik: Ya Mouse: Ya Sistem program: Xilog Plus DXF Interface: Ya Koneksi online memungkinkan: Ya CD Rom Drive: Ya Tipe meja: meja grid Sistem pemberhentian: silinder pemberhenti Jumlah pompa vakum: 1 Kapasitas pompa vakum: 250 m³/h Pengaman: alas pijakan keselamatan Lokasi gudang: Sonnefeld Csdpfovvi Htex Aiuorc
