Beli Counter Poros Mesin Cnc Bubut bekas (82.277)

Kondisi: sangat baik (bekas), Tahun pembuatan: 2003, Control: Siemens 840D Turning diameter: 254 mm Turning length: 500 mm Chuck diameter: 210 mm Turning length: 410 mm Spindle speed: 4,500 rpm 8-position turret Codpjwv Hq Isfx Aarsaa Chip conveyor

Kondisi: baik (bekas), Tahun pembuatan: 1998, d1b3cb87 Caodpfxoqn A Rge Aarea

Kondisi: bekas, Tahun pembuatan: 2007, produsen pengendali: Siemens, model controller: 840 D, Description: General: Year of manufacture: 2007 Control system: Siemens 840 D Turning diameter: 100 mm Turning length: approx. 580 mm Bar capacity: 32 mm Main spindle: Technology: Motor spindle Speed: 8,000 rpm Max. torque: 100 Nm Max. power: 26 kW C-axis: 0.001° Bar capacity: 32 mm Clamping cylinder: Hollow clamping cylinder Chuck: Hainbuch Spanntop Counter spindle: Technology: Motor spindle Speed: 8,000 rpm Max. torque: 100 Nm Max. power: 26 kW C-axis: 0.001° X-axis: 145 mm Z-axis: 380 mm Clamping cylinder: Semi-hollow clamping cylinder Chuck: Hainbuch Spanntop Tool turret I (X/Y/Z): Technology: Tool turret Csdpfx Aajxzmp Ejrjaa Number of stations: 12 Tool interface: VDI 25 Tool drive: 6,000 rpm X-axis: 220 mm Y-axis: 60 (+/- 30) mm Z-axis: 320 mm Tool turret II (X/Z): Technology: Tool turret Number of stations: 12 Tool interface: VDI 25 Tool drive: 6,000 rpm X-axis: 120 mm Z-axis: 345 mm Equipment / Accessories: Chip disposal: Chip conveyor Coolant supply: High pressure coolant system (IKZ unit) Bar loader: Irco Breuning Part removal: Parts gripper + transfer conveyor Tailstock: Stroke 250 mm, quill MK 3 Chuck: 2x Hainbuch Spanntop Tool holders: Various driven and static holders

Kondisi: bekas, Max. turning diameter: 360 mm Turning length: 505 mm Control system: Mazatrol SmoothC Max. swing diameter over bed: 660 mm Max. swing diameter over cross slide: 255 mm Max. bar diameter: 80 mm Spindle speed range: 35 - 4000 rpm Spindle torque: 358 Nm X-axis travel: 225 mm Rapid traverse X-axis: 30 m/min Z-axis travel: 605 mm Rapid traverse Z-axis: 33 m/min Spindle nose: A2-8'' Spindle bore: 91 mm Spindle passage: 80 mm Milling spindle speed (driven tools): 5000 rpm Max. torque at milling spindle: 47 Nm Drive power - milling spindle: 5.5 kW (40% duty cycle) Tailstock quill taper: MT 5 Tailstock travel: 565 mm Max. axial pressure: 5.0 Nm Turret: 1 Number of tool stations: 12 (driven) Turning tool cross-section: 25 x 25 mm Tool holder: BMT Compressed air connection: 5 / 160 bar / l/min Operating voltage: 400 V Coolant tank: 180 l Main motor power: 18.5 kW (30 min duty cycle) Rated power (100% continuous duty): 15 kW Machine weight: approx. 6 t Floor space: approx. 3.6 x 2 x 1.8 m Machine incl. the following special equipment: Side-mounted chip conveyor (right) Productivity package C – Special as per stock machine This package includes: High-performance coolant system (1.1 kW), max. flow rate 17.6 l/min Preparation for chip conveyor (side) Automatic tool eye STANDARD EQUIPMENT Transformer for the European market Linear guide system with guide carriages SD MEMORY I/F(1P) + USB MEMORY I/F(1P) 1 x USB memory interface (1 slot) Spindle bore 91 mm Set of manuals in electronic form on CD Mazak standard color CE marking, metric, 50 Hz C-axis input accuracy: 0.0001° NC controlled tailstock Tailstock pressure adjustment Tailstock with fixed quill MT5 SAFETY DEVICES Operator door interlock switch Double foot switch Hydraulic pressure lock Fully enclosed work area Work area lighting Safety measures according to international standards COOLANT SUPPLY Grundfos coolant pump, type MTA (0.25 kW / 7.6 l/min) Complete coolant system Automatic shut-off via circuit breaker Codpfx Aaev Dxw Rjrjaa MEASURING SYSTEM Absolute positioning system NUMERICAL CONTROL Synchronised tapping with milling spindle Relocation detector Mazatrol SmoothC 10.4" color monitor User macro (600 variables) EIA/ISO input function Background toolpath verification Thread cutting function (G33) Polar coordinate input (EIA) Drawing data direct input function LAN interface Various tool holders - All dimensions, weights and performance specifications non-binding - - Used machine without warranty -

Kondisi: diremaj di bengkel (bekas), Tahun pembuatan: 2006, Mesin bubut CNC GILDEMEISTER CTX 420 linear Dengan kontrol Siemens 840 D powerline Tahun pembuatan: 2006 Diameter putar maksimum: 324 mm Panjang putar maksimum: 600 mm Diameter lingkar maksimum: 680 mm Lubang spindle: 79 mm Kecepatan spindle maksimum: 4.500 rpm Dilengkapi dengan aksesoris berikut: Pelindung geser dengan pencahayaan dalam Revolver 12 posisi dengan 12 stasiun penggerak Sumbu Y, sumbu C Perangkat pengukur alat Perangkat pengambil komponen Chuck hidrolik 3 rahang Ø 210 mm dengan pedal kaki Chuck collet hidrolik Hainbuch Barfeeder IRCO Breuning RBK 10012 Codpfx Aasxzt Dcsreaa Lampu sinyal Tailstock dengan pinol Konveyor serpihan Ekstraktor kabut oli Perangkat pendingin dengan pendinginan tekanan tinggi dan sistem filter sabuk Manual pengoperasian

Kondisi: bekas, Tahun pembuatan: 1995, Gildemeister CTX-200 – CNC Lathe - Gildemeister/DMG CNC control - 3-jaw chuck Ø 140 mm - 12-position tool turret with driven tools - Work area lighting - Chip conveyor - 10,810 operating hours - Includes various tools - Includes operating manuals and documentation - Year of manufacture: 1995 Technical Data Working area: - Max. swing diameter over bed cover: 440 mm - Max. swing diameter over cross slide cover: 210 mm - Cross travel (X-axis): 160 mm - Longitudinal travel (Z-axis): 350 mm Spindle: - Spindle head Ø: 120 mm h5 - Spindle head Ø at front bearing: 85 mm - Spindle bore: 56 mm - Chuck diameter: 140 mm Main drive: - Drive power 100/50% duty cycle: 7.5 / 11 kW Caedpfxexy R Uis Aarea - Max. torque: 58 / 84 Nm - Speed range: 25 – 5,000 rpm Feed drive: - X-axis feed force: 200 daN - Z-axis feed force: 300 daN - X-axis rapid traverse: 12 m/min - Z-axis rapid traverse: 16 m/min - Measuring system: Incremental encoder Tool turret: - Universal disc turret, automatic indexing with directional logic - Number of tool stations: 12 - Tool holder, cylindrical shank (DIN 69880): 20 mm - Turret indexing time per station (30°): 0.48 s Universal disc turret with driven tools: - Number of tool stations: 12 - Max. number of driven tools: 12 - Max. clamping diameter for driven tools: 12 mm - Drive power 100/50% duty cycle: 2.5 / 3.0 kW Tailstock: - Quill diameter: 50 mm - Quill stroke: 120 mm - Quill taper: MT 3 - Max. quill pressure: 300 daN Machine dimensions: - Dimensions with chip conveyor (WxHxD): 3930 x 1690 x 1651 mm - Weight without chip conveyor: 2,950 kg Noise emission value: - Workstation-related continuous sound pressure level: 77 dB(A)

Kondisi: bekas, Tahun pembuatan: 1998, BENZINGER, TNE-1 dengan: Kontrol SIEMENS SINUMERIK, konsveyor serbuk, konveyor bagian Cedpfxoxzpq Ee Aarsaa

Kondisi: bekas, Tahun pembuatan: 2003, Steuerung 840D-PCU 50 V1 Csdpfxjqn A Rre Aarsaa Tersedia: 3 unit Pendingin: ya Konveyor serpihan: ya Arus nominal generator: 110 A Daya terpasang: 56 kW

Kondisi: bekas, Tahun pembuatan: 2014, produsen pengendali: Siemens, model controller: 840 Dsl, maschinenbeschreibung_2014_Drehmaschine Cjdpfx Aoxy Ub Hoaroaa

Kondisi: bekas, Tahun pembuatan: 2020, Swing diameter: 380 mm Turning length: 511 mm Control: Mazatrol SmoothG Swing diameter over cross slide: 276 mm Maximum swing diameter over bed: 675 mm Caodpfx Aetugggsaroa Standard machining diameter: 276 mm Bar capacity: 65 mm X-axis travel: 234 mm Rapid traverse X-axis: 30 m/min Z-axis travel: 625 mm Rapid traverse Z-axis: 33 m/min Spindle speed: 35 - 5000 rpm Spindle nose: A2-6 Spindle bore: 76 mm Power (40% duty cycle): 26 kW Rated power (100% continuous operation): 22 kW Maximum torque: 465 Nm Spindle speed (milling spindle): 6000 rpm Main drive power: 11 kW Maximum torque: 90 Nm Milling spindle speed (driven tools): 35-6000 rpm Max. torque at milling spindle: 47 Nm Milling spindle drive power: 5.5 kW (40% duty cycle) Milling spindle power (continuous operation): 3.7 kW Number of tool stations: 12 (driven) Tool cross-section (external): 25 mm² Boring bar diameter: 40 mm Drill diameter: 20 mm Milling cutter diameter: 20 mm Tapping diameter: M20x2.5 Turret indexing time per station: approx. 0.20 sec Coolant tank: 180 l Connected load: 46.2 kW Machine weight: approx. 5.9 t Space requirement: approx. 2.7 x 1.9 x 1.9 m Machine is in like-new condition including the following accessories: - Signal light (3-color LED), rectangular - High-performance coolant system (1.1 kW) Max. flow rate: 17.6 l/min, Pressure (at pump): 5 bar - Additional coolant nozzle main spindle - Preparation for oil mist extraction electrical/NSCH 98 mm - Preparation for bar feeder - Robot interface (Advance/Profibus) - Chip conveyor with low discharge height - Overload monitoring system - Drilling cycle with torque-dependent chip breaking - Prep. for using a hollow chuck cylinder on sub-spindle - Hollow clamping device incl. draw tube + cylinder - Chuck Hainbuch Spanntop Nova Axfix mini size 52 - Chuck Hainbuch Spanntop Nova Axfix special mini size 52 - 2 x collets - Collet change device STANDARD EQUIPMENT Automatic on/off with warm-up function Air blast device at chuck on sub-spindle Linear guide systems with guide carriages USB port (1 connection) Set of manuals in electronic form on CD C-axis main spindle input accuracy 0.0001° Spindle positioning sub-spindle without C-axis input accuracy 0.001° 12-position VDI tool turret Operator door with interlock switch Double foot switch for main and sub-spindle Hydraulic pressure safety interlock Fully enclosed work area, work area lighting Safety features in accordance with international standards High-performance coolant system (520 W), max. flow rate 11.5 l/min Complete coolant system Automatic opening/closing of chuck jaws Automatic tool eye Absolute positioning system Preparation for chip conveyor (side) Synchronization main and sub-spindle Synchronous tapping with milling spindle Relocation detector Mazatrol SmoothG control, 19" LCD color display (touch screen) User macro (600 variables), EIA/ISO input function Optional stop (selectable halt) Background tool path verification Thread cutting function (G33), polar coordinate input (EIA) Direct input of drawing data Interface for LAN, SD memory card I/F - Used machine, sold without warranty -

Kondisi: bekas, Jenis mesin: CNC Mesin Bubut Pabrikan: WEILER Tipe: Orion PD 180 CNC #10 Kontrol: Sinumerik 810 T Siemens Lokasi gudang: D-59302 Oelde Negara asal: Jerman Informasi tambahan: CNC Mesin Bubut WEILER - Orion PD 180 CNC Diameter pembubutan maks.: 80 mm Panjang pembubutan maks.: 180 mm Kontrol: Sinumerik 810 T Siemens Diameter putar maksimum di atas penutup alas: 190 mm Diameter putar maksimum di atas carriage: 80 mm Cjdoxzi E Aspfx Aareaa Jarak sumbu spindle ke lantai: 1.015 mm Spindle utama: Kisaran kecepatan spindle utama: 50 - 8.000 rpm Daya penggerak spindle utama: 5,5 kW Lubang spindle: 36 mm Diameter batang maks.: 24 mm Diameter chuck: 110 mm Kepala spindle: DIN 55036 MK 4 Revolver alat: Jumlah posisi alat: 8 posisi Diameter tangkai: VDI 3425 / 20 mm

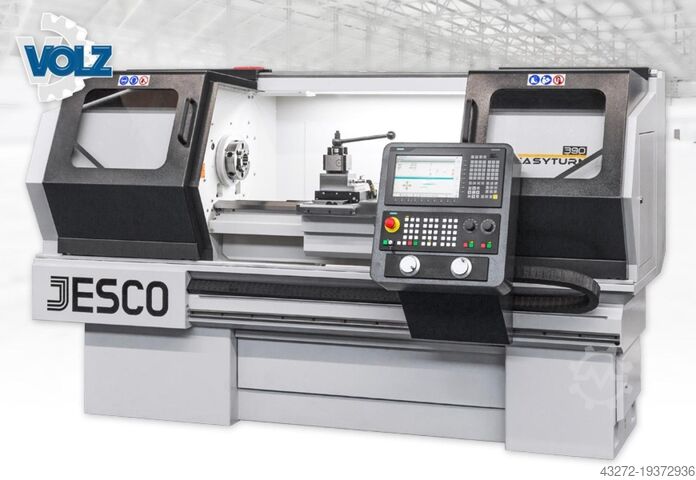

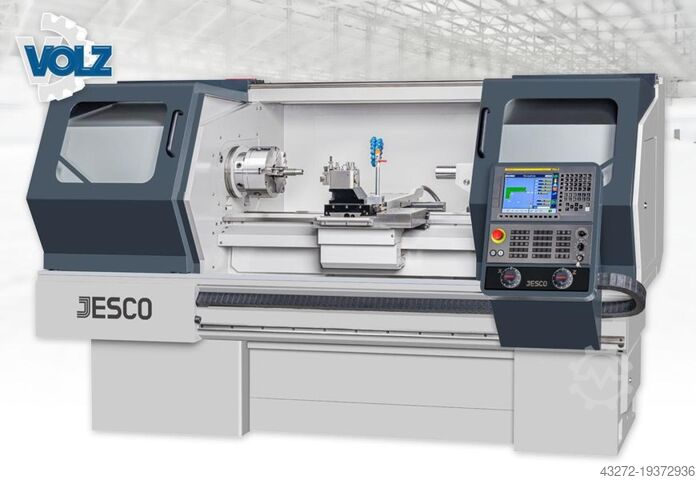

Kondisi: baru, Tahun pembuatan: 2025, drehdurchmesser-0390-mm-drehlange-1250-mm-spindelbohrung-54-mm-b ettbreite-270-mm-spindeldrehzahl-60-1000-u-min-spindelaufnahme-d1 -6-din-55029-pinolendurchmesser-58-5-mm-pinolenhub-120-mm-spitzen weite-1250-mm-neumaschine-steuerung-siemens-828-d-spindelbohrung- 54-mm-mit-siemens-828-d-steuerung-inkl-shopturn-revolverkopf-para t-rd-2-mit-innenkuhlung-herausziehbare-spanewanne-2-elektr-handra der-und-manuellem-reitstock-fur-mehr-informationen-zur-exakten-se rienausstattung-und-den-lieferbaren-optionen-besuchen-sie-uns-im- internet-oder-rufen-uns-direkt-an Casdpfx Ajwth Rkjaroa

Kondisi: sangat baik (bekas), Tahun pembuatan: 2012, CNC lathe 2-axis DMC Korea DL22 Fanuc OiTD dengan Manual Guide dan port USB Tahun 2012 Chuck 8 inci Codpoxyaulefx Aaroaa Lubang spindle 65 mm Panjang pembubutan 400 mm Kepala 12 alat Tailstock Baskom dengan pompa pendingin

Kondisi: bekas, Tahun pembuatan: 2000, Machineseeker_DE_2024_001 Cajdpfx Aash D Anaerea

Kondisi: bekas, Tahun pembuatan: 2011, produsen pengendali: Fanuc, model controller: 31i-Model A, Description: General: Year of manufacture: 2011 Control system: Fanuc 31i-Model A Turning diameter: 255 mm Turning length: approx. 640 mm Bar capacity: 52 mm Main spindle: Technology: Belt-driven spindle Speed: 5,000 rpm Power: 15 kW Torque: 115 Nm C-axis: 0.001° Bar capacity: 52 mm Cedpfjxy Ubyox Aarsaa Chuck: Hainbuch Spanntop Counter spindle: Technology: Belt-driven spindle Speed: 5,000 rpm Power: 7.5 kW Torque: 86 Nm C-axis: 0.001° Bar capacity: 52 mm Chuck: Hainbuch Spanntop Turret I (X/Y/Z): Technology: Tool turret Number of stations: 12 positions Tool interface: BMT Live tooling: 6,000 rpm, 52 Nm X-axis: 190 mm Y-axis: 80 (+/- 40) mm Z-axis: 300 mm Turret II (X/Y/Z): Technology: Tool turret Number of stations: 12 positions Tool interface: BMT Live tooling: 6,000 rpm, 52 Nm X-axis: 190 mm Y-axis: 80 (+/- 40) mm Z-axis: 635 mm Turret III (X/Y/Z): Technology: Tool turret Number of stations: 12 positions Tool interface: BMT Live tooling: 6,000 rpm, 52 Nm X-axis: 190 mm Y-axis: 80 (+/- 40) mm Z-axis: 500 mm Equipment / Accessories: Chip disposal: Chip conveyor Coolant supply: High-pressure coolant system (IKZ unit) Bar feeder: Irco Breuning SiMag 70.1 - 3000 Parts removal: Parts gripper + indexing conveyor Setup mode: Electronic handwheel Chuck: 2x Hainbuch Spanntop Tool holders: Various driven and static holders

Kondisi: sangat baik (bekas), Tahun pembuatan: 2018, Diameter potong maksimum 356 mm, panjang pemesinan maksimum 406 mm, kapasitas batang 63,5 mm, kecepatan spindle 4.000 rpm, motor spindle 20 hp, turret 12 posisi, pendingin dan alat pengukur. Cjdsxz Ekuspfx Aarsaa

Kondisi: baru, The Roturn 400 M is a precision CNC slant bed lathe that excels in the CNC slant bed machine category from KNUTH. This robust machine offers impressive features, including the innovative Siemens 828 D Basic control system, meeting all current requirements for control technology. Equipped with a hydraulic 3-jaw chuck and a powerful main spindle motor, the Roturn 400 M is ideally suited for demanding turning operations. It features a 12-position tool turret with driven tools for efficient milling and drilling operations. The rigid slant bed machine frame ensures high rigidity and the precision linear guides in the X and Z axes provide reliable accuracy even under heavy loads. The standard chip conveyor and effective coolant system support continuous operability. With easy operation and installation, this machine is the ideal choice for any production environment. Order the Roturn 400 M now and experience KNUTH quality in CNC slant bed machines! Cajdpfxsxhfuge Aaroa

Kondisi: bekas, Tahun pembuatan: 2012, Maschinenbezeichnung: Vertikal-Bearbeitungszentrum LCV-760 (fahrende Säule) Hersteller: LEADWELL CNC Machines Mfg. Corp., Taichung, Taiwan Typ / Modell: LCV-760 Steuerung: FANUC Oi-MD Technische Daten • Arbeitsbereich / Verfahrwege: X-Achse: 760 mm Y-Achse: 610 mm Z-Achse: 610 mm Abstand Tischoberfläche (Palette) bis Spindelende: 150 – 760 mm Abstand Säulenvorderseite bis Spindelmitte: 718 mm Tischgröße: 850 × 600 mm Zulässiges Werkstückgewicht: 400 kg Tischkonfiguration: M16 × P2,0 mm T-Nuten Tischhöhe (Fußboden bis Oberkante): 1.033 mm • Spindel / Antrieb: Spindeldrehzahl: 10.000 U/min (optional 12.000 U/min) Spindelmotor: 18,5 / 24 kW (30 min / Dauerbetrieb) Max. Spindelmoment: 95 Nm Spindelaufnahme: 7/24 Kegel Nr. 40 (BT-40) Spindellager-Innendurchmesser: Ø 70 mm Werkzeugspannkraft: 1.200 kgf Antrieb: HT.D Riemenantrieb Spindelölkühler: vorhanden Gewindeschneiden (rigid tapping): serienmäßig • Vorschübe: Eilgänge (X / Y / Z): 32 / 32 / 32 m/min Arbeitsvorschub: 10 m/min Handvorschub: 2.500 mm/min • Automatischer Werkzeugwechsler (ATC): Typ: Doppelarmwechsler Werkzeugplätze: 30 Werkzeugaufnahme: BT-40 Spannbolzen: MAS P40T-1 (JIS B-6339) Max. Werkzeugdurchmesser (nebeneinander): Ø 80 mm Max. Werkzeugdurchmesser (freier Platz): Ø 100 mm Max. Werkzeuglänge: 250 mm Max. Werkzeuggewicht: 7 kg Werkzeugwechselzeit (Wechsel zu Wechsel): 2 s Span zu Span: 6 s • Automatischer Palettenwechsler (APC): Palettenanzahl: 2 Wechselmethodik: hydraulische „Swapper“-Bauweise Palettenwechselzeit: 12 s • Antriebe: Spindelmotor: 18,5 kW (24 PS) X-Achsenantrieb: 4,5 kW (6,4 PS), 30 Nm Y-Achsenantrieb: 4,5 kW (6,4 PS), 30 Nm Z-Achsenantrieb: 3,88 kW (5,4 PS), 22 Nm Hydraulikpumpenmotor: 3 kW Schmiersystempumpe: 0,01 kW Kühlmittelpumpe: 0,76 kW • Führungen: X-Achse: SNS45C2SSCOEx3 (600 mm Breite, 1.000 mm Abstand) Y-Achse: SNS45LC2X151SLHx2 (600 mm Breite, 600 mm Abstand) Z-Achse: SHS45R2SSCOEx1305×2 (500 mm Abstand) • Versorgung / Anschlüsse: Elektrische Anschlussleistung: 45 kVA Druckluft: 0,6 MPa (87 psi) 400 L/min Casdpfx Aasxnlhgsrja Hydrauliktank: 400 L Schmieröltank: 2 L Kühlmitteltank: 300 L • Abmessungen / Gewicht: Maschinenhöhe: 2.885 mm Stellfläche: 3.510 × 2.410 mm Maschinengewicht: 9.200 – 9.500 kg (≈ 10 t Hebezeugbedarf) • Zerspanungsleistung: Fräsen: 230 cm³/min Bohren: Ø 40 mm Gewindeschneiden: M30

Kondisi: bekas, Tahun pembuatan: 2018, Diameter chuck 250 mm Workpiece diameter 200 mm Cedsxap E Tepfx Aaroaa Controller Siemens 840 D sl c-axis positioning accuracy 10 arcseconds Tool turret 12 tool stations Turning spindle 2 Spindle speeds 6,000 / (4,500) rpm Spindle power 26 / (28.3) kW Spindle torque 150 / (300) Nm Spindle nose 55026 - A6 Tool holder VDI 40 Rotational speed 10,000 rpm z-travel 370 mm x-travel 30 mm y-travel +- 40 mm For sale by Aleman Machines Schuster twin-spindle cell VD20 2 units available

Kondisi: bekas, Tahun pembuatan: 2022, produsen pengendali: Siemens, model controller: 840 Dsl - Celos, Description: General: Year of manufacture: 2022 Control: Siemens 840 Dsl - CELOS Turning diameter: 140 mm Turning length: 253 mm Bar capacity: 50 mm Main spindle: Technology: Motor spindle Speed: 7,000 rpm Power: 24 kW Torque: 100 Nm C-axis: 0.001° Chuck Counter spindle: Technology: Motor spindle Speed: 7,000 rpm Power: 24 kW Torque: 100 Nm C-axis: 0.001° Chuck: Hainbuch Spanntop Tool turret I (X/Y/Z): Technology: Tool turret Number of stations: 12 Tool holder: VDI 25 Driven tool speed: 8,000 rpm X-axis: 240 mm Y-axis: 70 mm (+/- 35 mm) Csdoxy Ubgjpfx Aarsaa Z-axis: 350 mm Tool turret II (X/Y/Z): Technology: Tool turret Number of stations: 12 Tool holder: VDI 25 Driven tool speed: 8,000 rpm X-axis: 125 mm Y-axis: 70 mm (+/- 35 mm) Z-axis: 380 mm Equipment / Accessories: Chip disposal: Chip conveyor Coolant supply: High-pressure coolant system including temperature control Bar feeder: Top Automazioni Parts discharge: Parts gripper + indexing conveyor Tailstock: Below counter spindle Chuck: 2x Hainbuch Spanntop Tool holders: Various driven and static holders

Kondisi: sangat baik (bekas), Tahun pembuatan: 2023, Jarak antara pusat 1000 mm, ayunan 360 mm, ayunan di atas dudukan silang 225 mm, kecepatan spindle 50-4000 rpm, lubang spindle 52 mm, kontrol Prototrak RLX, penyangga alat, chuck 3 rahang, pendingin, pelindung dengan pengunci Casdpoxz Dqgefx Aarea

Kondisi: baru, The LabTurn 2028 CNC is a high-performance CNC slant-bed lathe that is suitable for both CNC training and the production of small precision workpieces. This compact machine offers the full range of functions found in larger production machines and impresses with a robust grey cast iron machine bed, ensuring stability and optimal chip removal. Equipped with an 8-position tool turret, providing four tools for internal and external machining, and a maximum spindle speed of 3,000 rpm, the LabTurn is particularly versatile. Precision linear guides ensure high accuracy and stability, while the user-friendly Siemens 808D Advance control system is ideal for introducing operators to CNC applications. In addition, the fully enclosed machine housing provides effective protection, and the spacious working area is easily accessible thanks to the sliding door. Centralized lubrication guarantees optimal maintenance efficiency. Buyers can rely on the versatility and robustness of this CNC slant-bed lathe. Order now! Casdpjuy Iclefx Aarea

Kondisi: bekas, Tahun pembuatan: 2009, Maschinenbezeichnung: Vertikal-Bearbeitungszentrum LCV-760 (fahrende Säule) Hersteller: LEADWELL CNC Machines Mfg. Corp., Taichung, Taiwan Typ / Modell: LCV-760 Steuerung: FANUC Oi-MD Technische Daten Cedpfxsxnki Aj Aarjaa • Arbeitsbereich / Verfahrwege: X-Achse: 760 mm Y-Achse: 610 mm Z-Achse: 610 mm Abstand Tischoberfläche (Palette) bis Spindelende: 150 – 760 mm Abstand Säulenvorderseite bis Spindelmitte: 718 mm Tischgröße: 850 × 600 mm Zulässiges Werkstückgewicht: 400 kg Tischkonfiguration: M16 × P2,0 mm T-Nuten Tischhöhe (Fußboden bis Oberkante): 1.033 mm • Spindel / Antrieb: Spindeldrehzahl: 10.000 U/min (optional 12.000 U/min) Spindelmotor: 18,5 / 24 kW (30 min / Dauerbetrieb) Max. Spindelmoment: 95 Nm Spindelaufnahme: 7/24 Kegel Nr. 40 (BT-40) Spindellager-Innendurchmesser: Ø 70 mm Werkzeugspannkraft: 1.200 kgf Antrieb: HT.D Riemenantrieb Spindelölkühler: vorhanden Gewindeschneiden (rigid tapping): serienmäßig • Vorschübe: Eilgänge (X / Y / Z): 32 / 32 / 32 m/min Arbeitsvorschub: 10 m/min Handvorschub: 2.500 mm/min • Automatischer Werkzeugwechsler (ATC): Typ: Doppelarmwechsler Werkzeugplätze: 30 Werkzeugaufnahme: BT-40 Spannbolzen: MAS P40T-1 (JIS B-6339) Max. Werkzeugdurchmesser (nebeneinander): Ø 80 mm Max. Werkzeugdurchmesser (freier Platz): Ø 100 mm Max. Werkzeuglänge: 250 mm Max. Werkzeuggewicht: 7 kg Werkzeugwechselzeit (Wechsel zu Wechsel): 2 s Span zu Span: 6 s • Automatischer Palettenwechsler (APC): Palettenanzahl: 2 Wechselmethodik: hydraulische „Swapper“-Bauweise Palettenwechselzeit: 12 s • Antriebe: Spindelmotor: 18,5 kW (24 PS) X-Achsenantrieb: 4,5 kW (6,4 PS), 30 Nm Y-Achsenantrieb: 4,5 kW (6,4 PS), 30 Nm Z-Achsenantrieb: 3,88 kW (5,4 PS), 22 Nm Hydraulikpumpenmotor: 3 kW Schmiersystempumpe: 0,01 kW Kühlmittelpumpe: 0,76 kW • Führungen: X-Achse: SNS45C2SSCOEx3 (600 mm Breite, 1.000 mm Abstand) Y-Achse: SNS45LC2X151SLHx2 (600 mm Breite, 600 mm Abstand) Z-Achse: SHS45R2SSCOEx1305×2 (500 mm Abstand) • Versorgung / Anschlüsse: Elektrische Anschlussleistung: 45 kVA Druckluft: 0,6 MPa (87 psi) 400 L/min Hydrauliktank: 400 L Schmieröltank: 2 L Kühlmitteltank: 300 L • Abmessungen / Gewicht: Maschinenhöhe: 2.885 mm Stellfläche: 3.510 × 2.410 mm Maschinengewicht: 9.200 – 9.500 kg (≈ 10 t Hebezeugbedarf) • Zerspanungsleistung: Fräsen: 230 cm³/min Bohren: Ø 40 mm Gewindeschneiden: M30

Kondisi: sangat baik (bekas), Tahun pembuatan: 2020, Maximaler Drehdurchmesser: 660 mm, Umlaufdurchmesser über Bett: 660 mm, Maximale Drehlänge: 1.540 mm, Cjdpfsq T Rt Dox Aareaa Verfahrwege X/Y/Z: 630 mm, 300 mm (+/-150 mm), 1.585 mm, B-Achse: 240 Grad (+/-120), C-Achse: 0,001 Grad, Hauptspindeldrehzahl: 3.000 U/min, Frässpindeldrehzahl: 12.000 U/min, Stangendurchlass: 102 mm, 40-fach Werkzeugmagazin, Capto C6 Aufnahme, Spindelleistung: 26/18,5 kW, Steuerung: Fanuc 31iB, Messtaster, Späneförderer, hydraulische Lünette, Kühlung.

Kondisi: baik (bekas), Tahun pembuatan: 2012, Schwenkbereich 900 mm, max. Bearbeitungsdurchmesser 650 mm, maximale Drehlänge 992 mm, Cjdpfownfzcjx Aarsaa Spindeldrehzahl 1.500 U/min, Stangendurchlass 165 mm, 10-fach Revolver, Spindelmotor 45 kW, FANUC Steuerung, 3-Backen Kraftspannfutter, Reitstock, Späneförderer, Kühlmitteleinrichtung,
